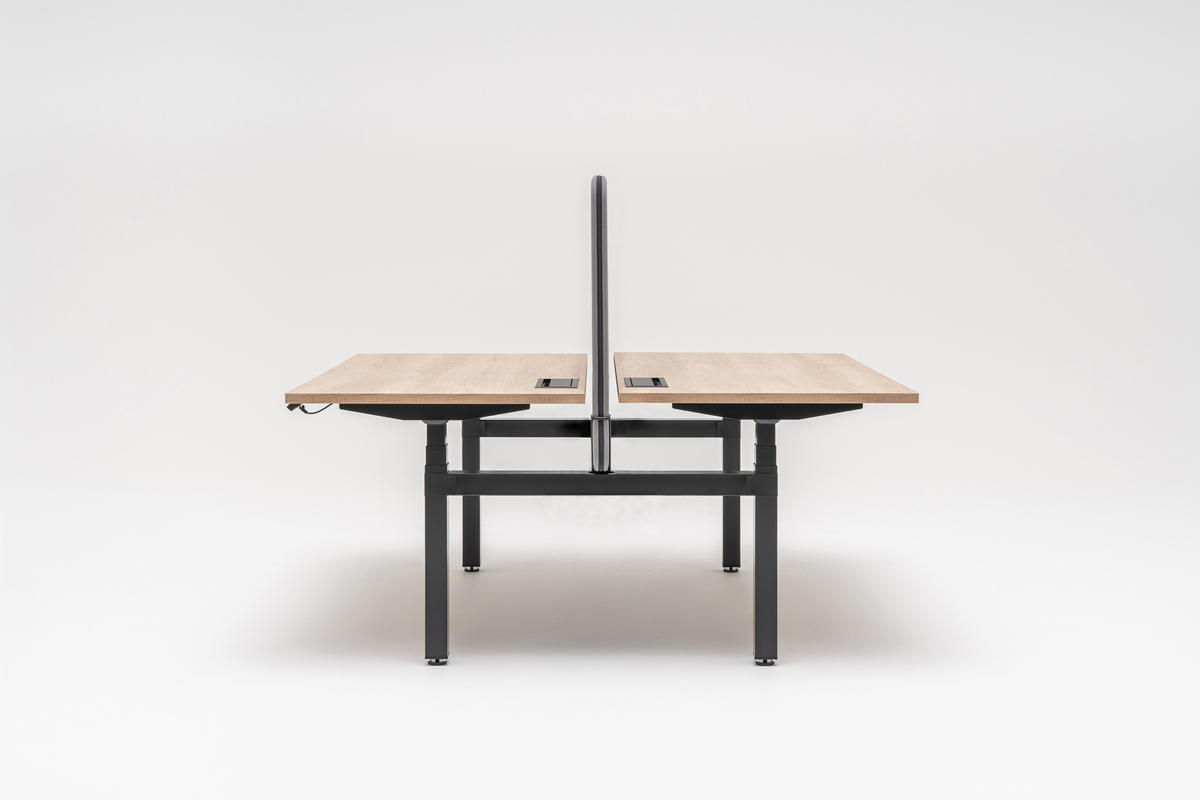

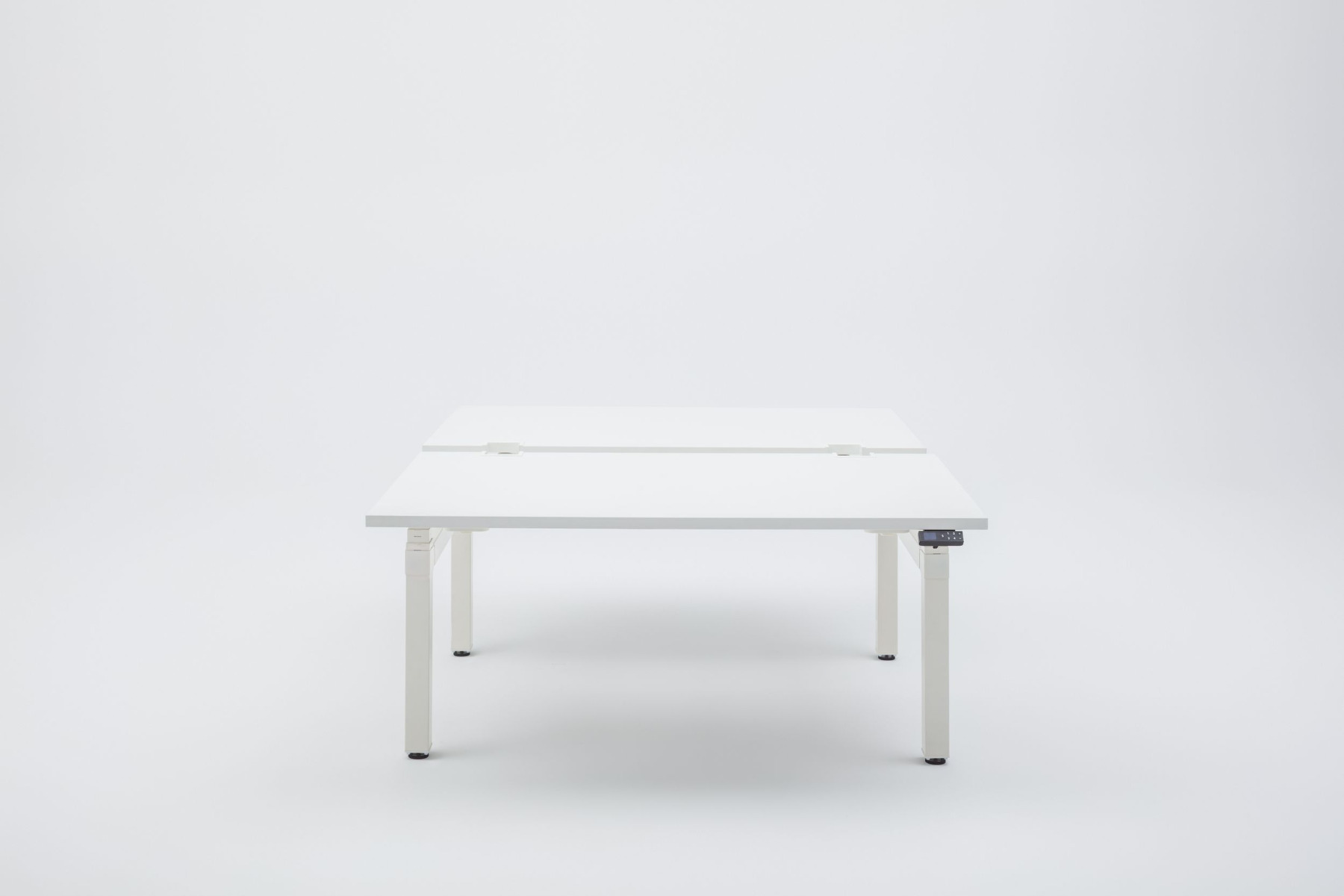

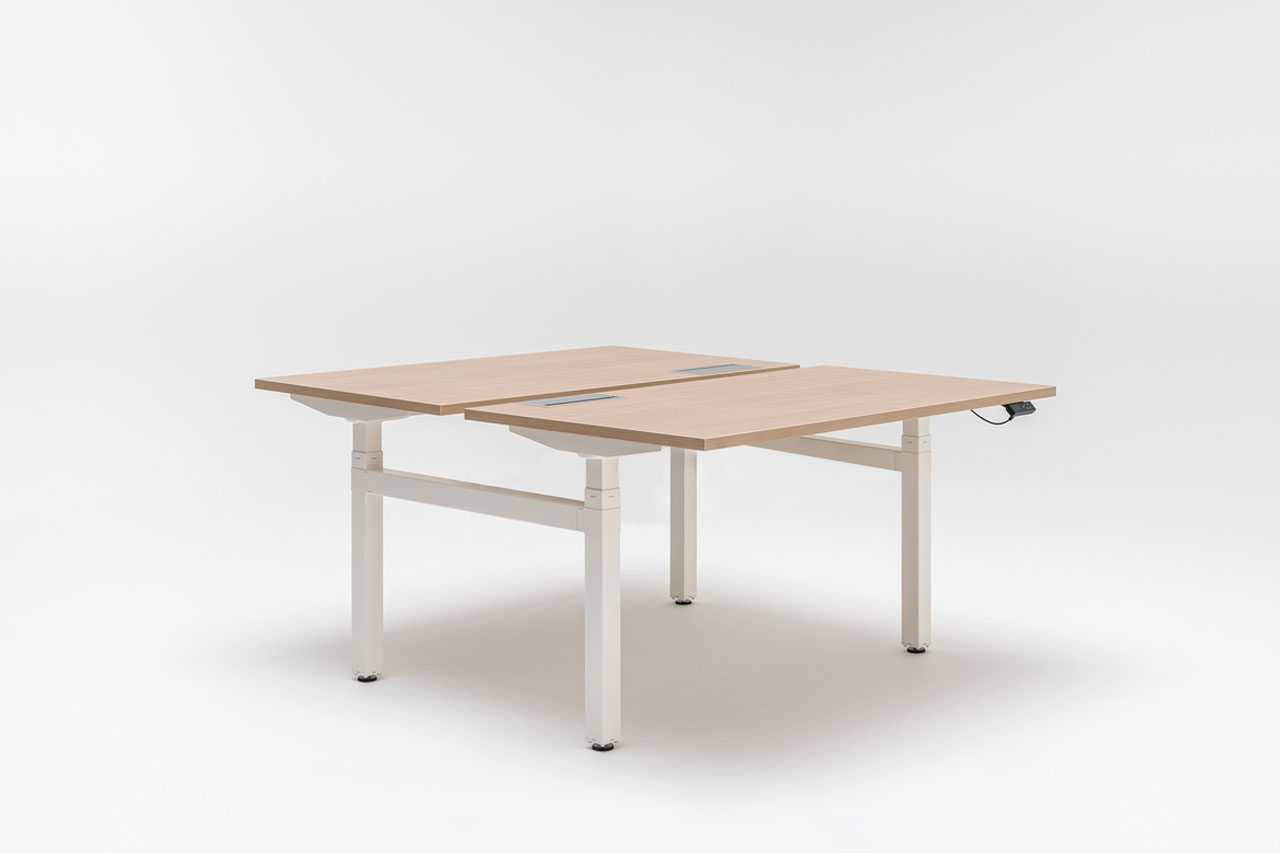

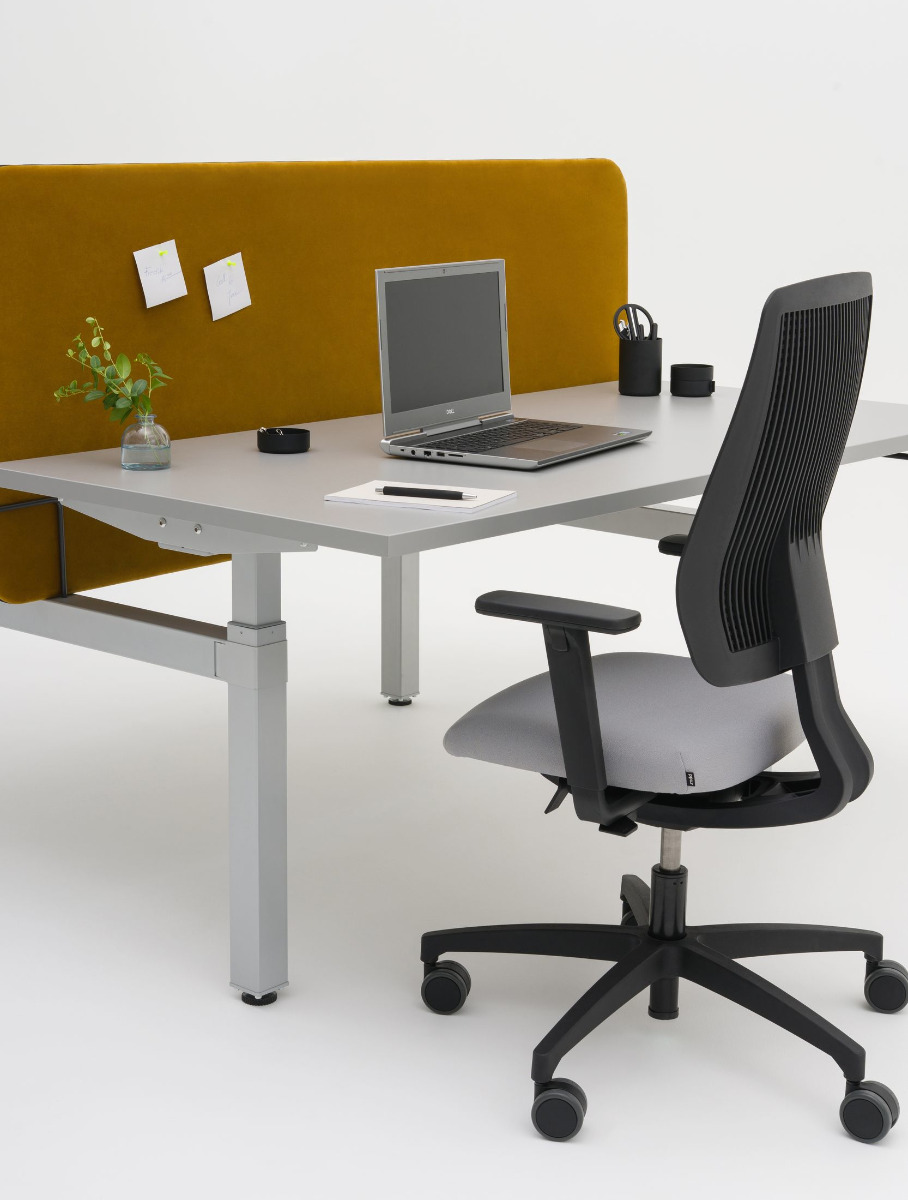

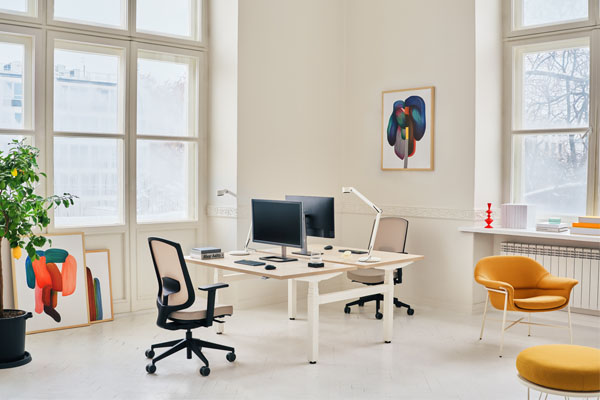

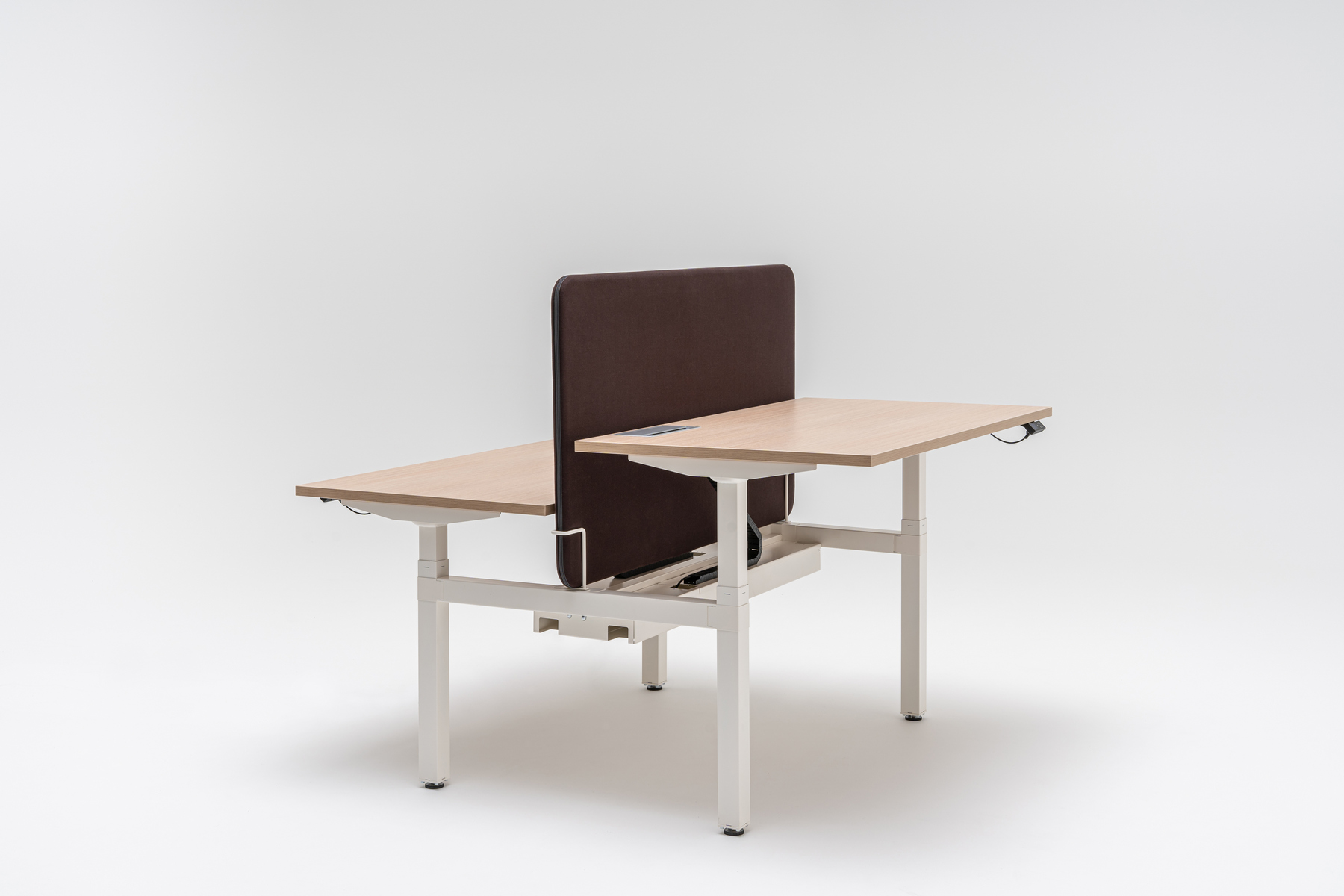

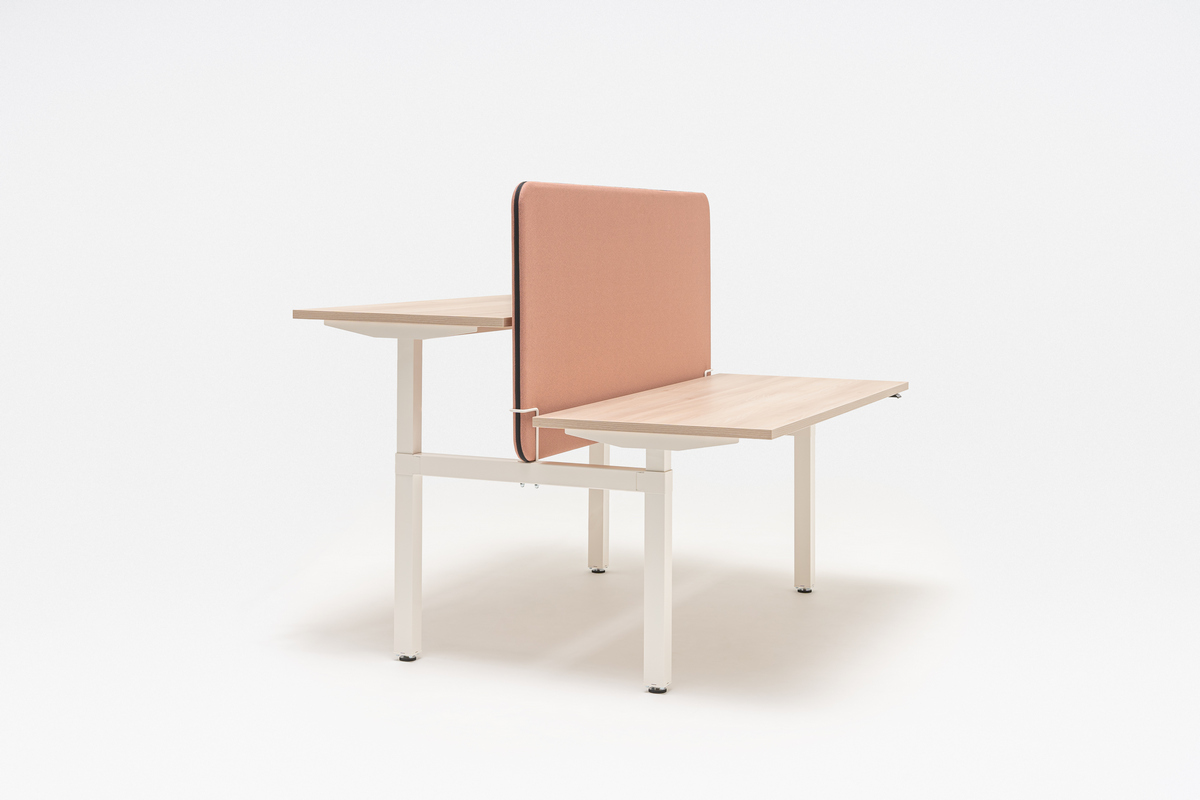

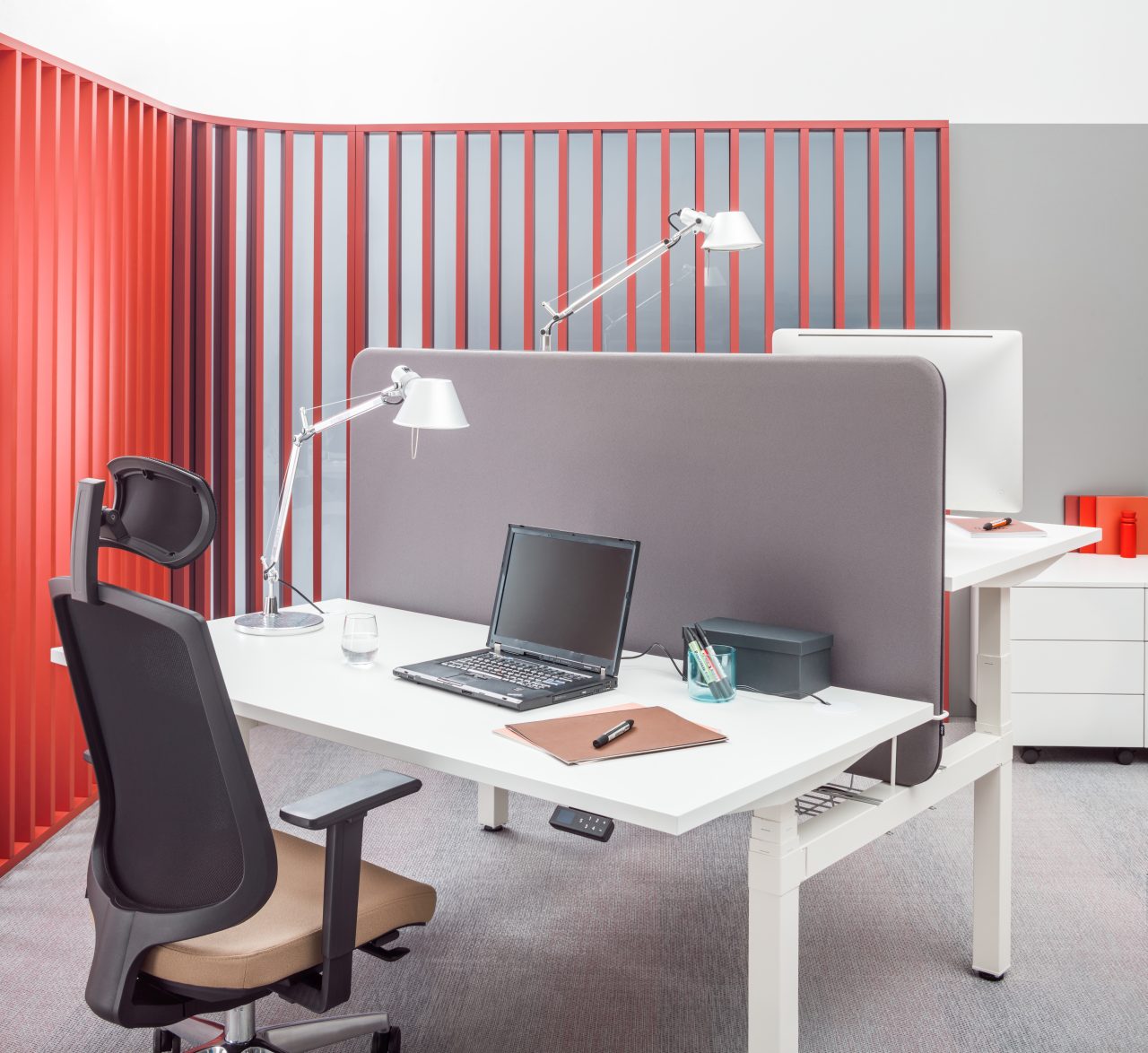

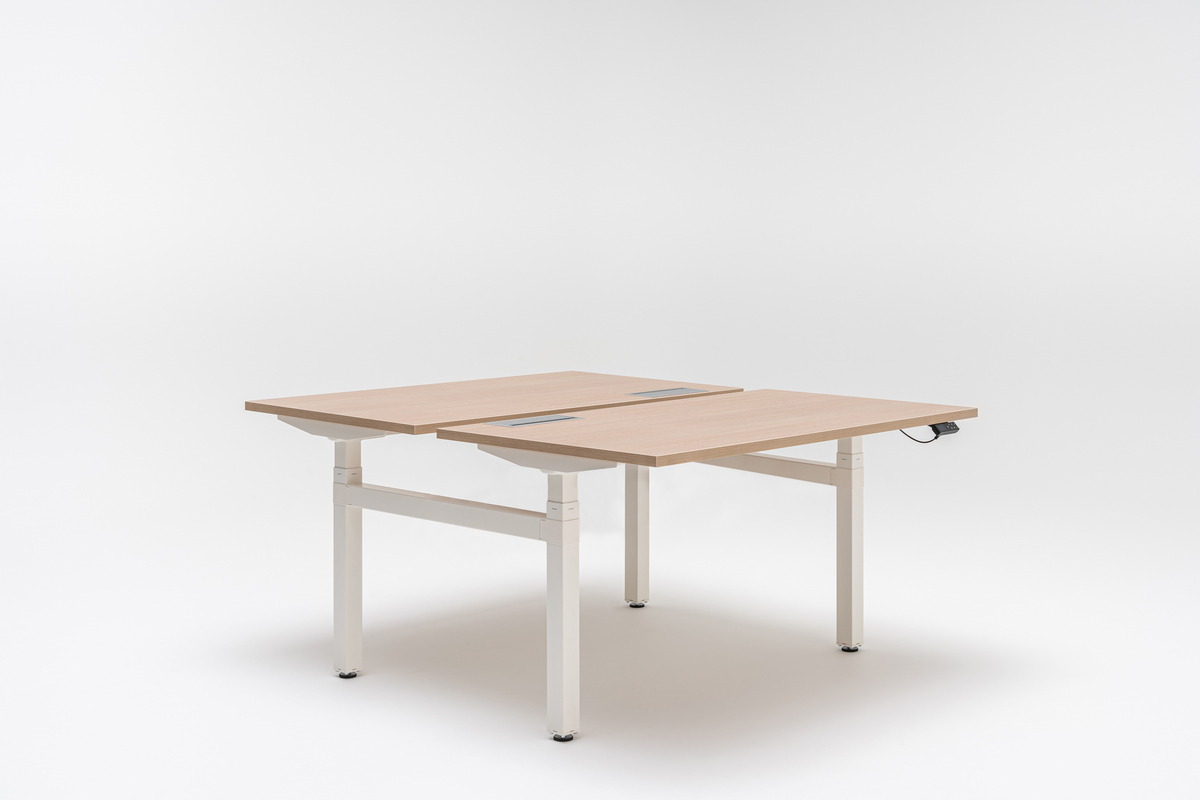

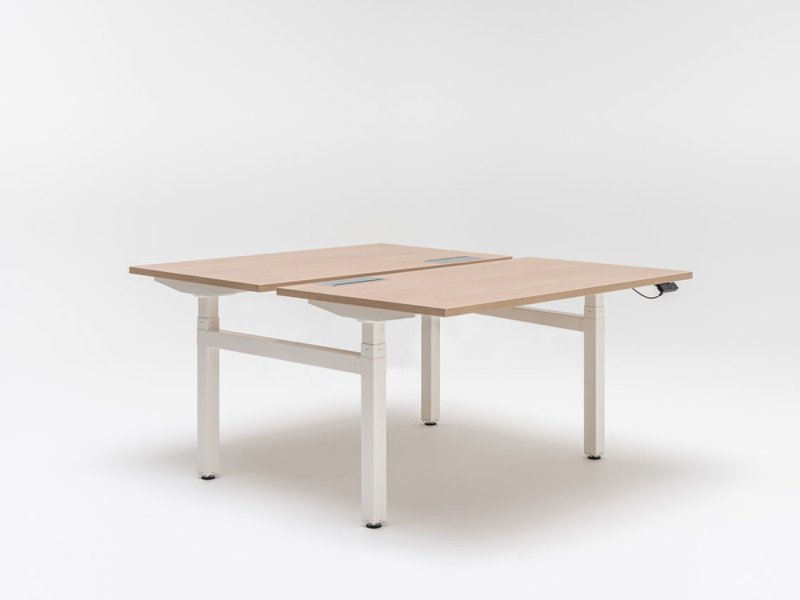

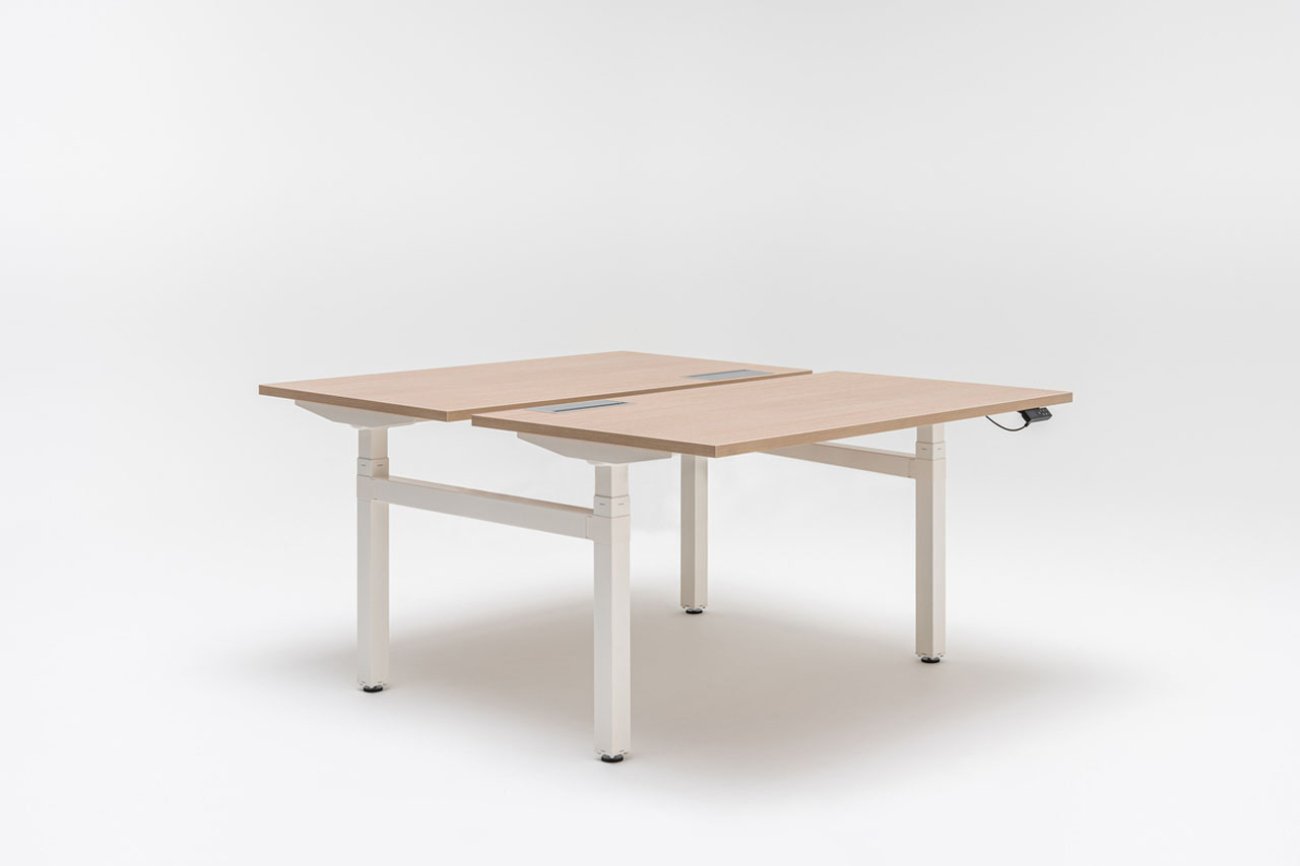

Werkbank bureau met elektrische hoogteverstelling Ogi Drive Bench

• Worktop - MFC 28 mm, ABS edge 2 mm;

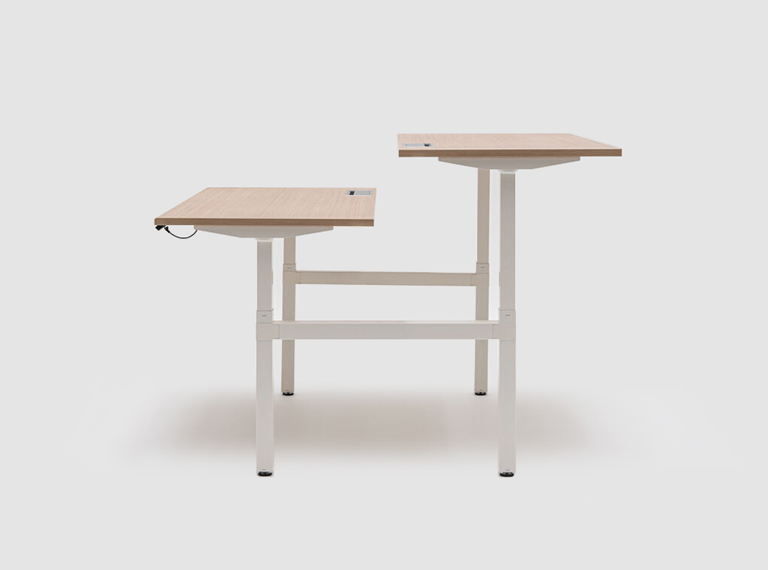

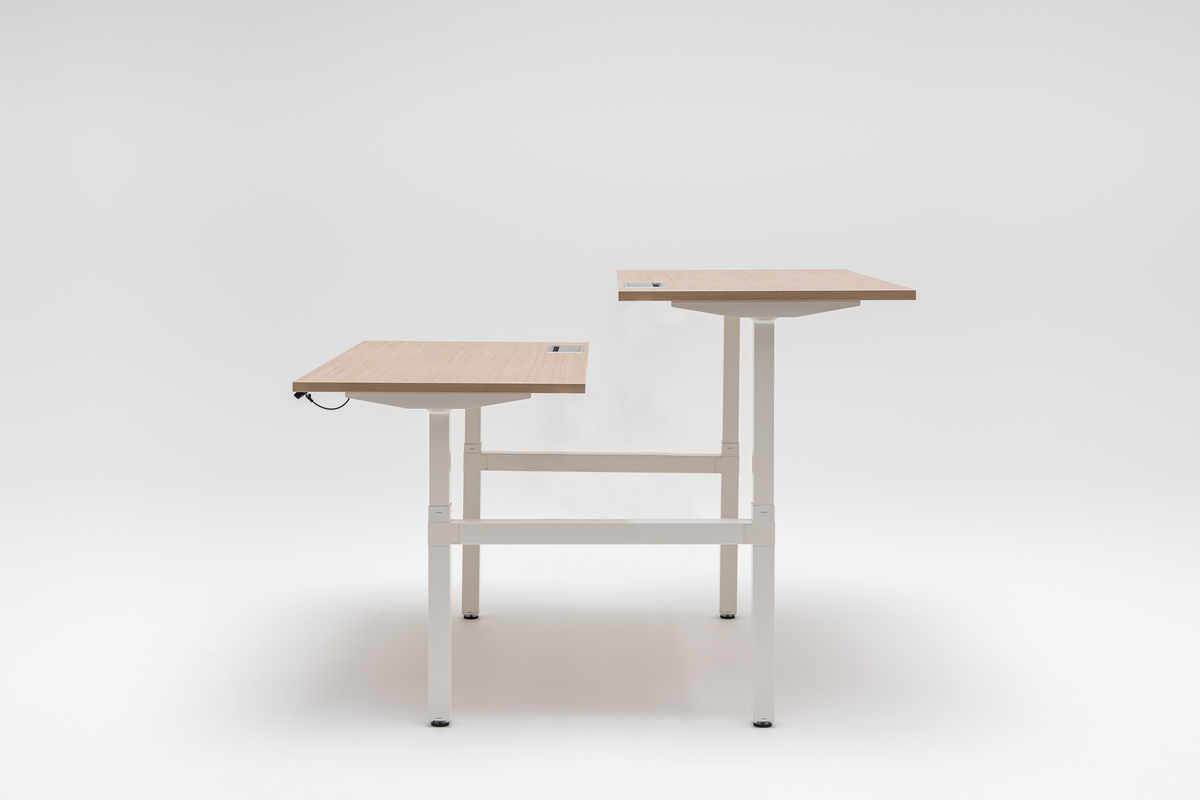

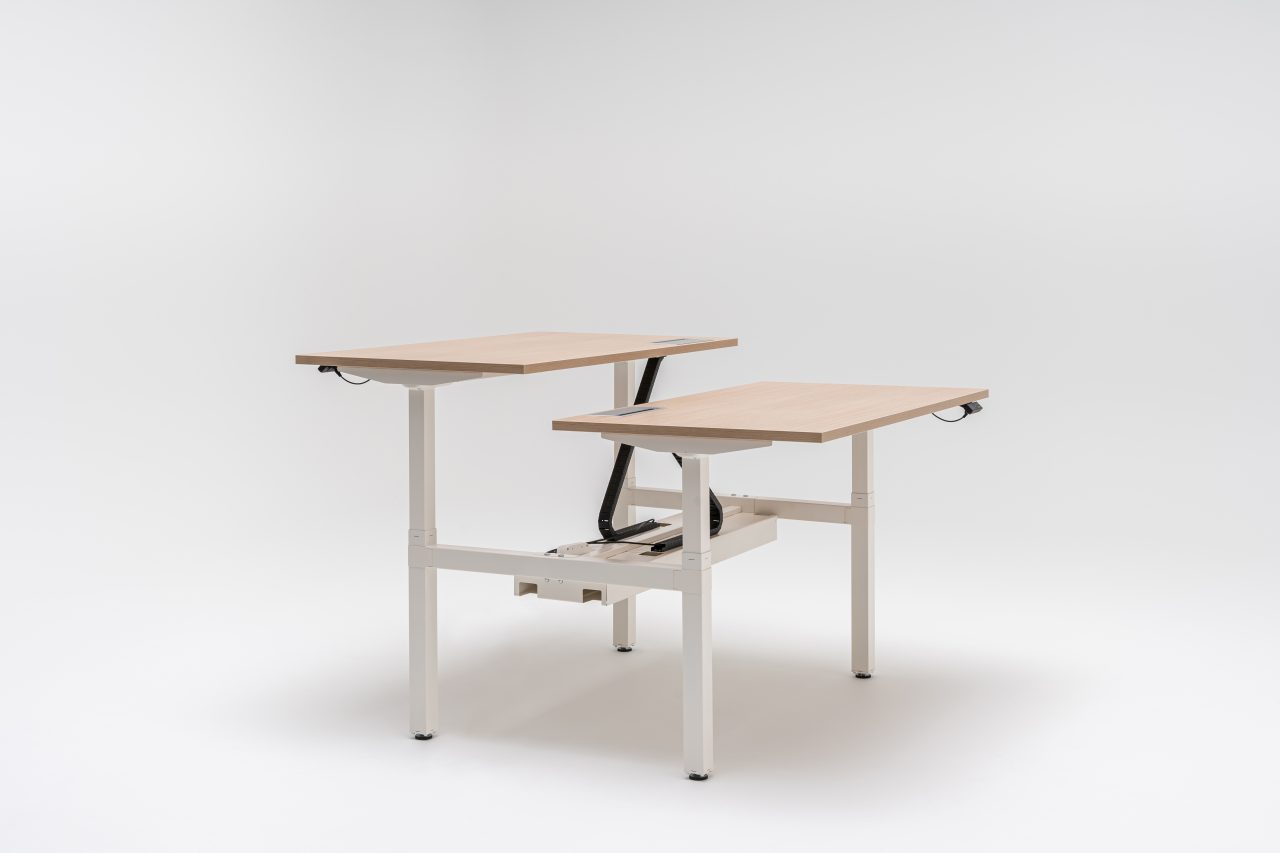

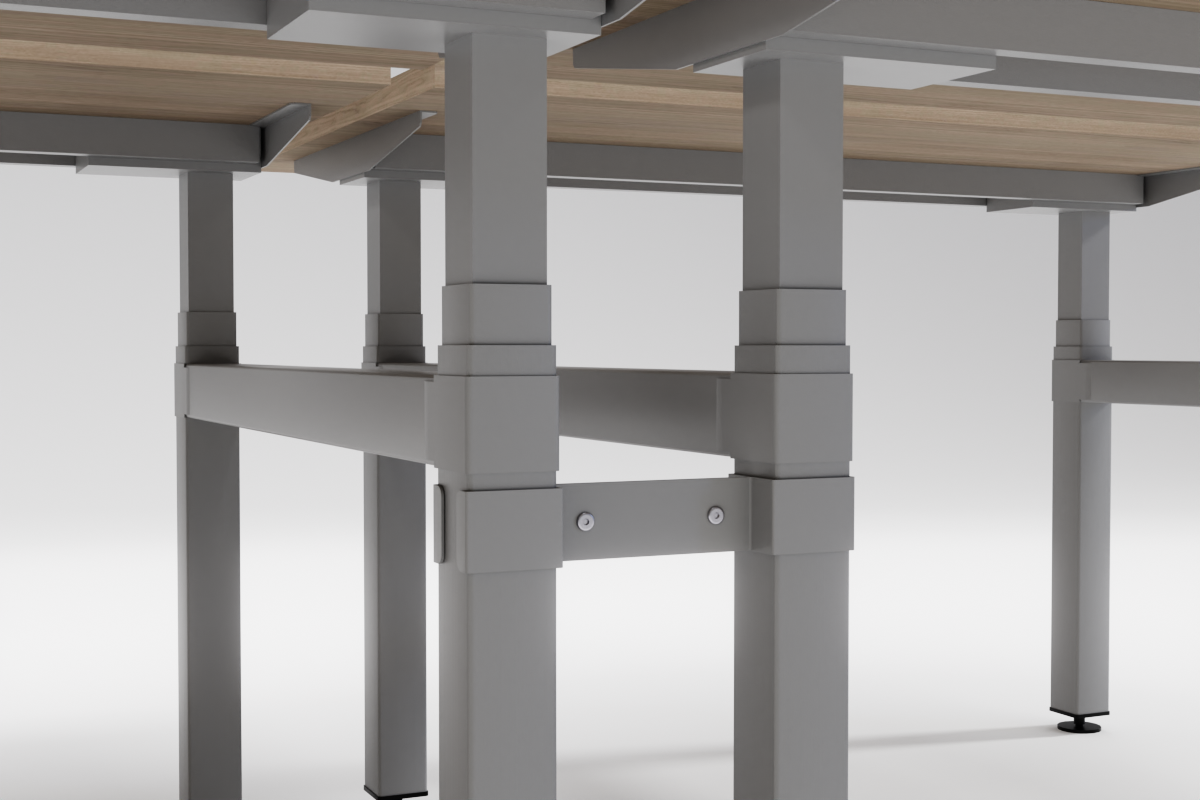

• Twin-motor frame - electric height adjustment in the range of: - 650−1300 mm, steel, powder-coated, 3 profiles 50 × 50 mm, 55 × 55 mm and 60 × 60 mm, load 100 kg, telescopic leg; - 700−1200 mm, steel, powder-coated, 2 profiles 55 × 55 mm and 60 × 60 mm, load 100 kg, telescopic leg;

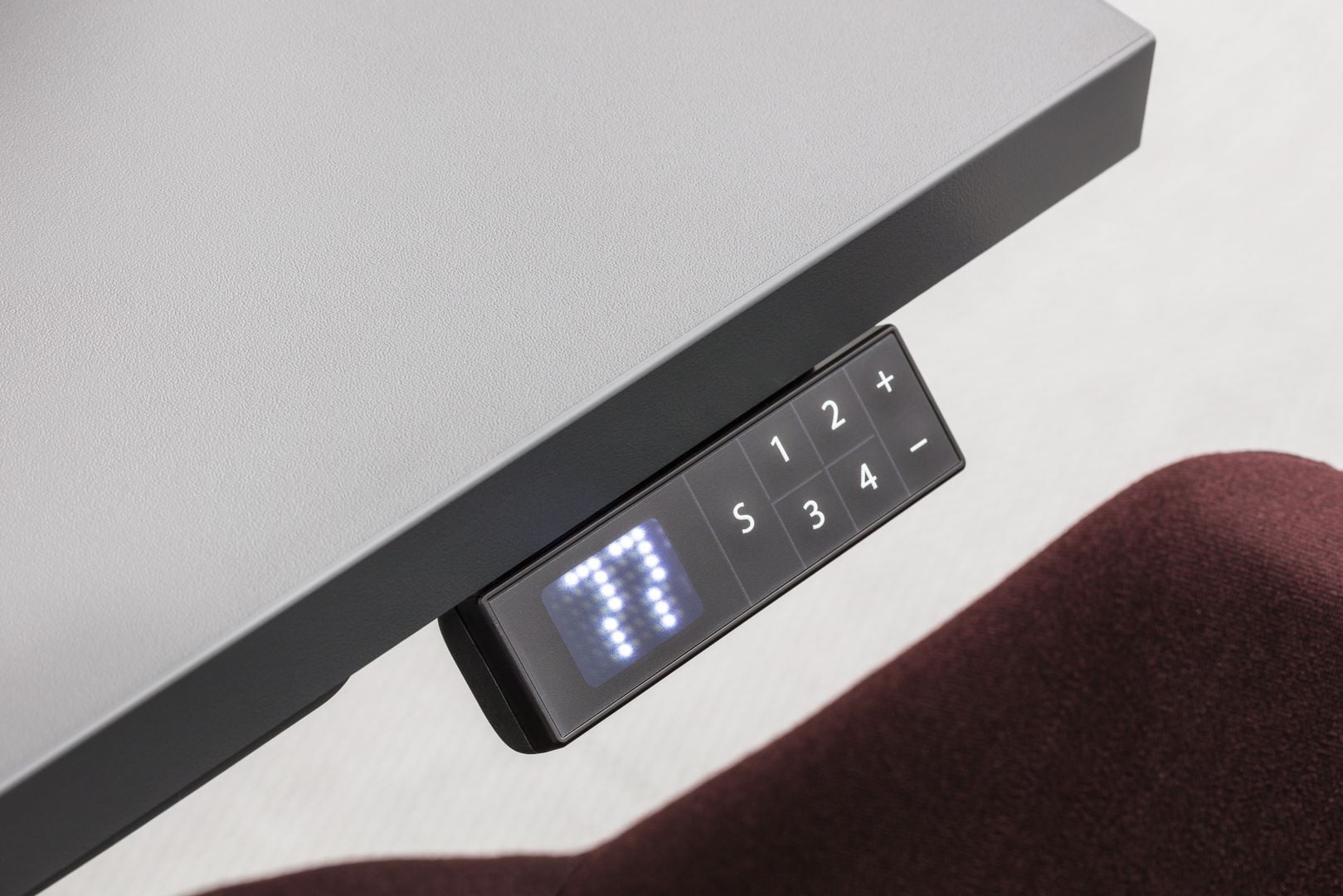

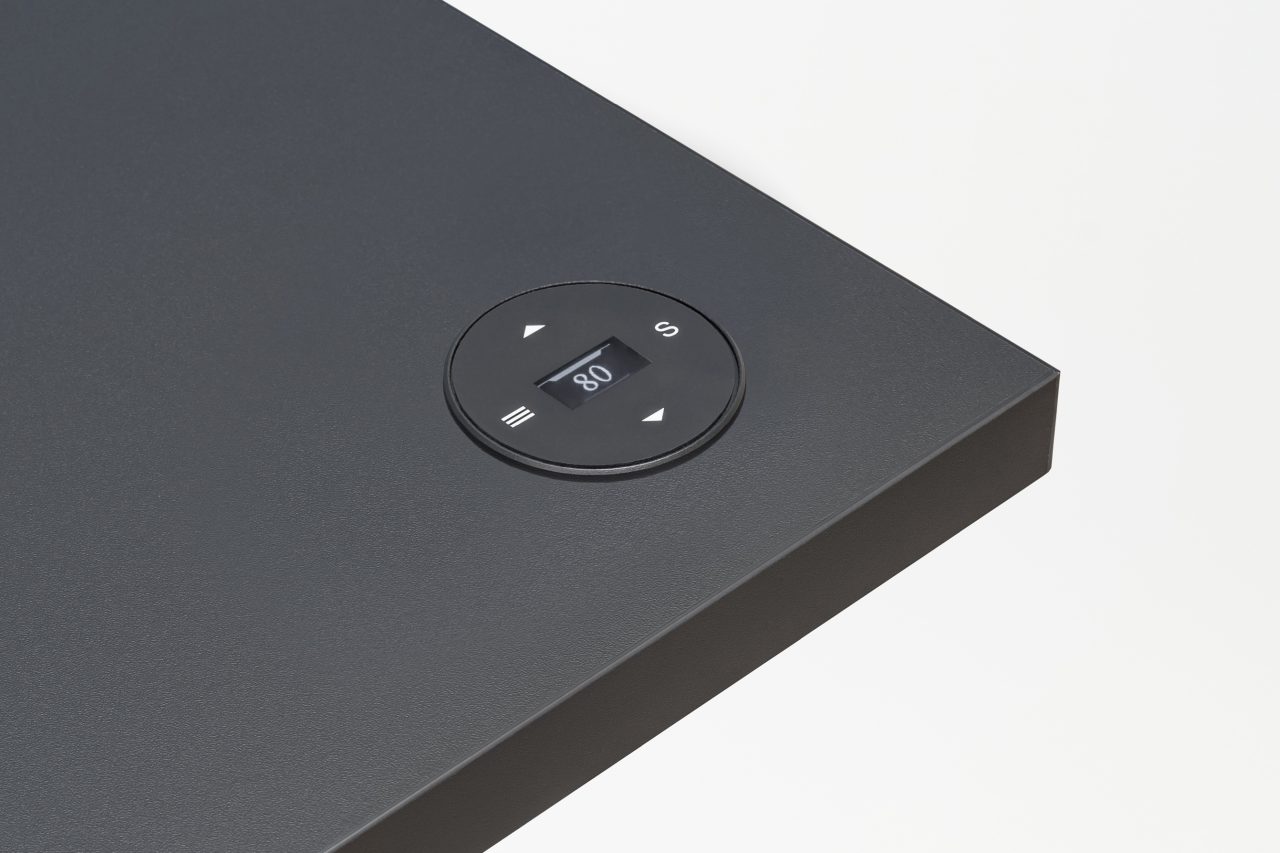

• Control panel (twin-motor frame) - stepless height adjustment: A - basic control panel, the sensitivity of the anti-collision system is set to Medium; B (option with extra charge) - up and down keypad with memory, the ability to change the sensitivity of the anti-collision system within 3 levels: Low, Medium, High; C (option with extra charge) - round control panel with memory, the ability to change the sensitivity of the anti-collision system within 3 levels: Low, Medium, High; mounted to the worktop;

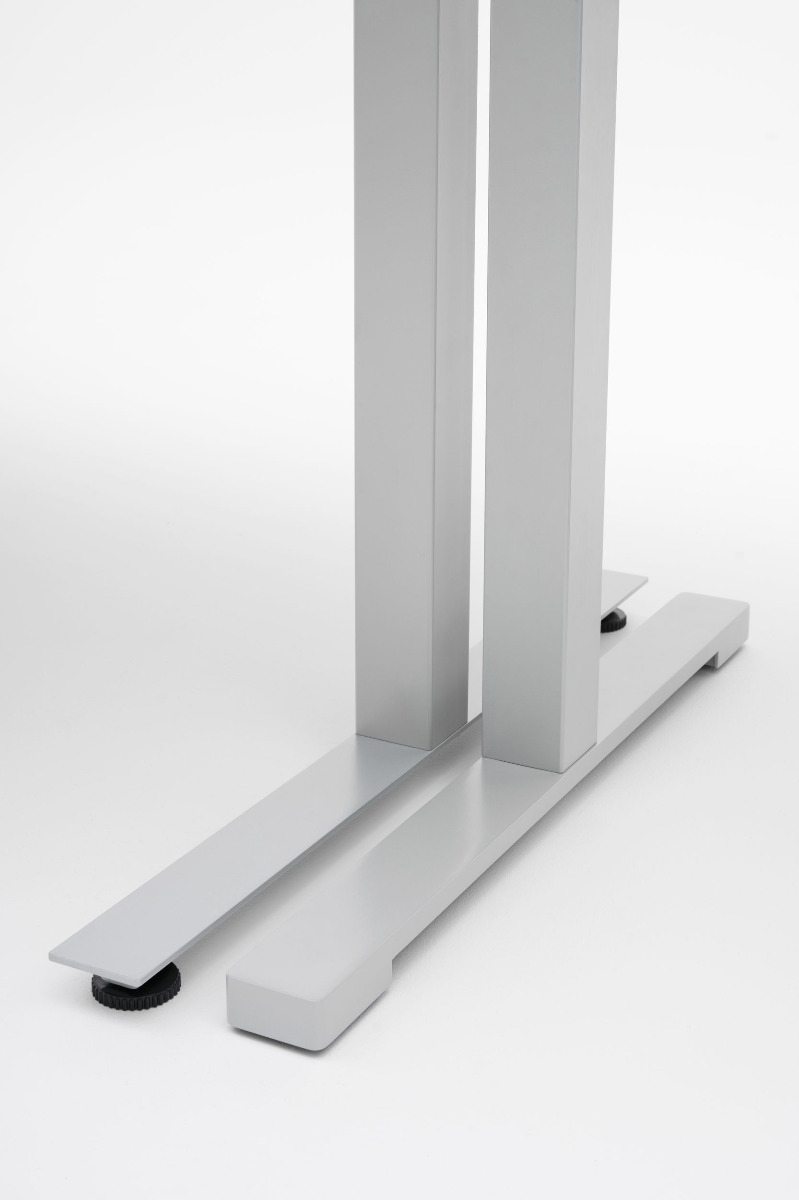

• Foot - Basic - powder-coated metal or Pro (option with extra charge) - aluminum, powder-coated or polished;
• Frame technical specification: height adjustment - 40 mm/sec Super Soft Start-Stop, drive - 2 synchronised motors with microprocessor, work control sensor, noise level - < 48dB, anti-colision mechanism, Standards - EN 527-2, EU Directives - 206/95EC, UI508 1999, UL 1004 R7 06, WE DC 2004/108WE, power supply - 230V, 300W, power consumption on Standby - 0.3W;
• Single-motor frame - electric height adjustment in the range of 720−1190 mm, steel, powder-coated, telescopic leg, 2 profiles 55 × 55 mm and 60 × 60 mm; extends the profiles by means of a metal connector under the worktop; maximum load on the desk is 100 kg at the minimum height of the tabletop and 30 kg at its maximum height;

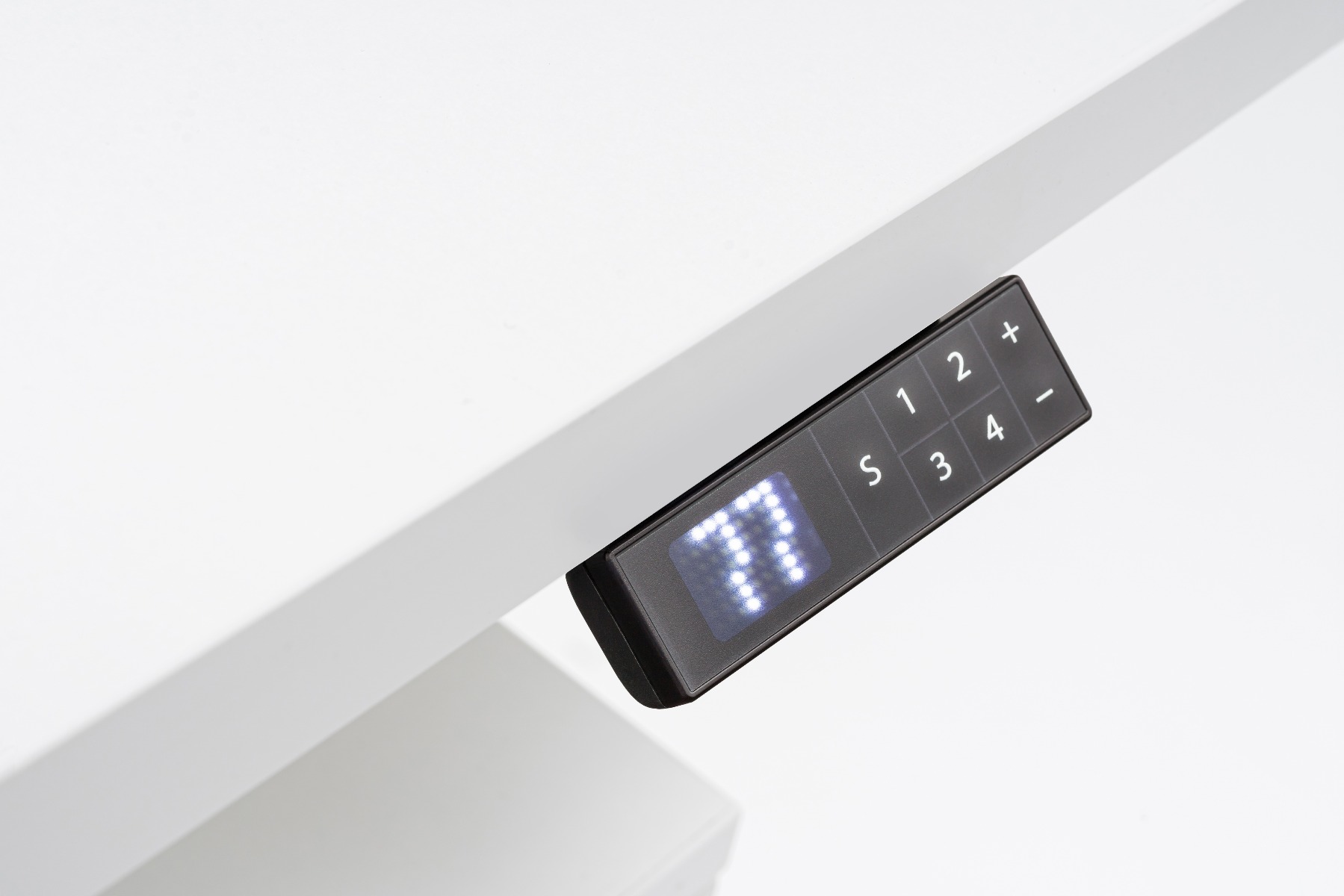

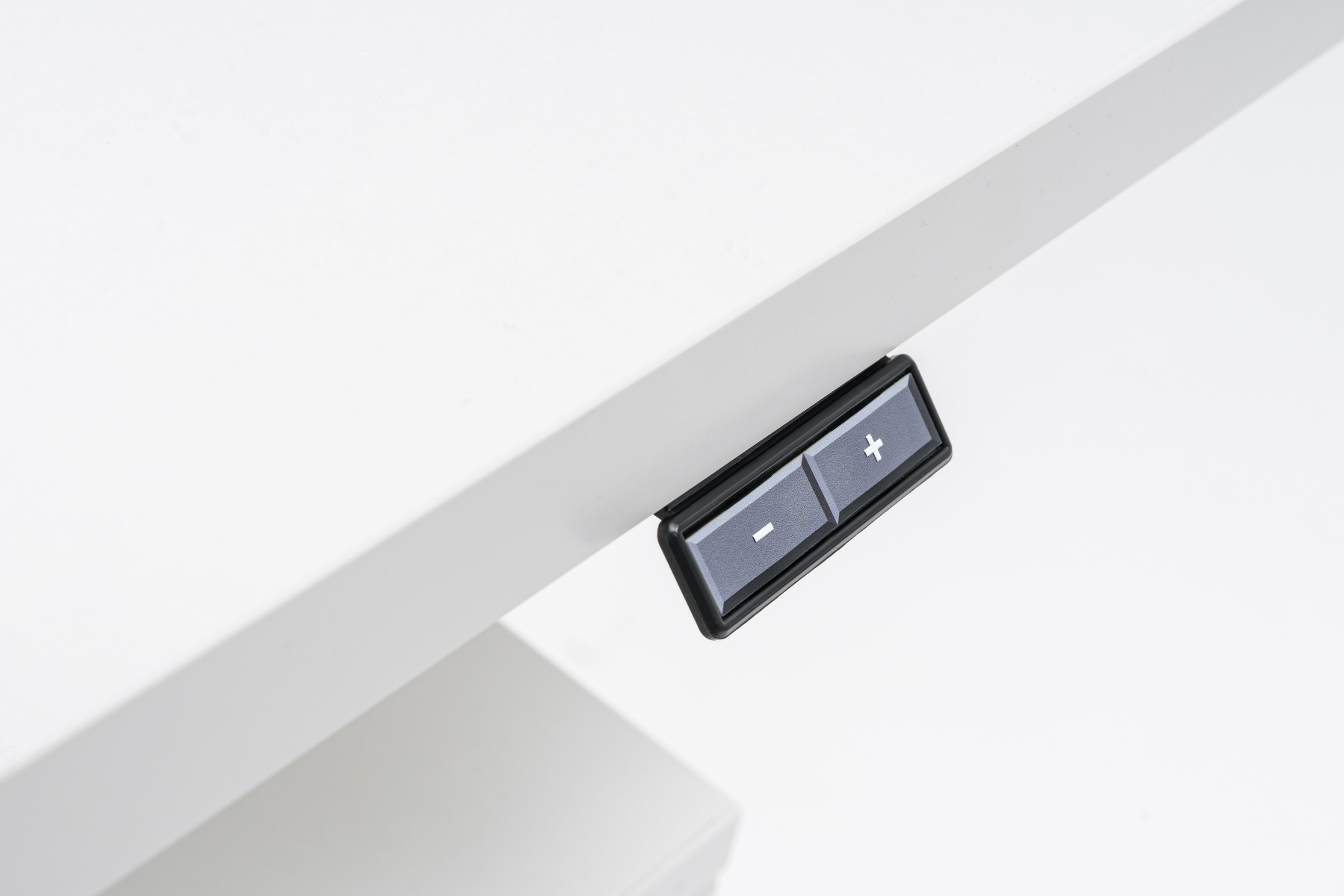

• Control panel (single-motor frame) - up and down keypad with memory; the ability to change the sensitivity of the anti-collision system within 3 levels: Low, Medium, High;
• Leveling feet - range 5 mm;

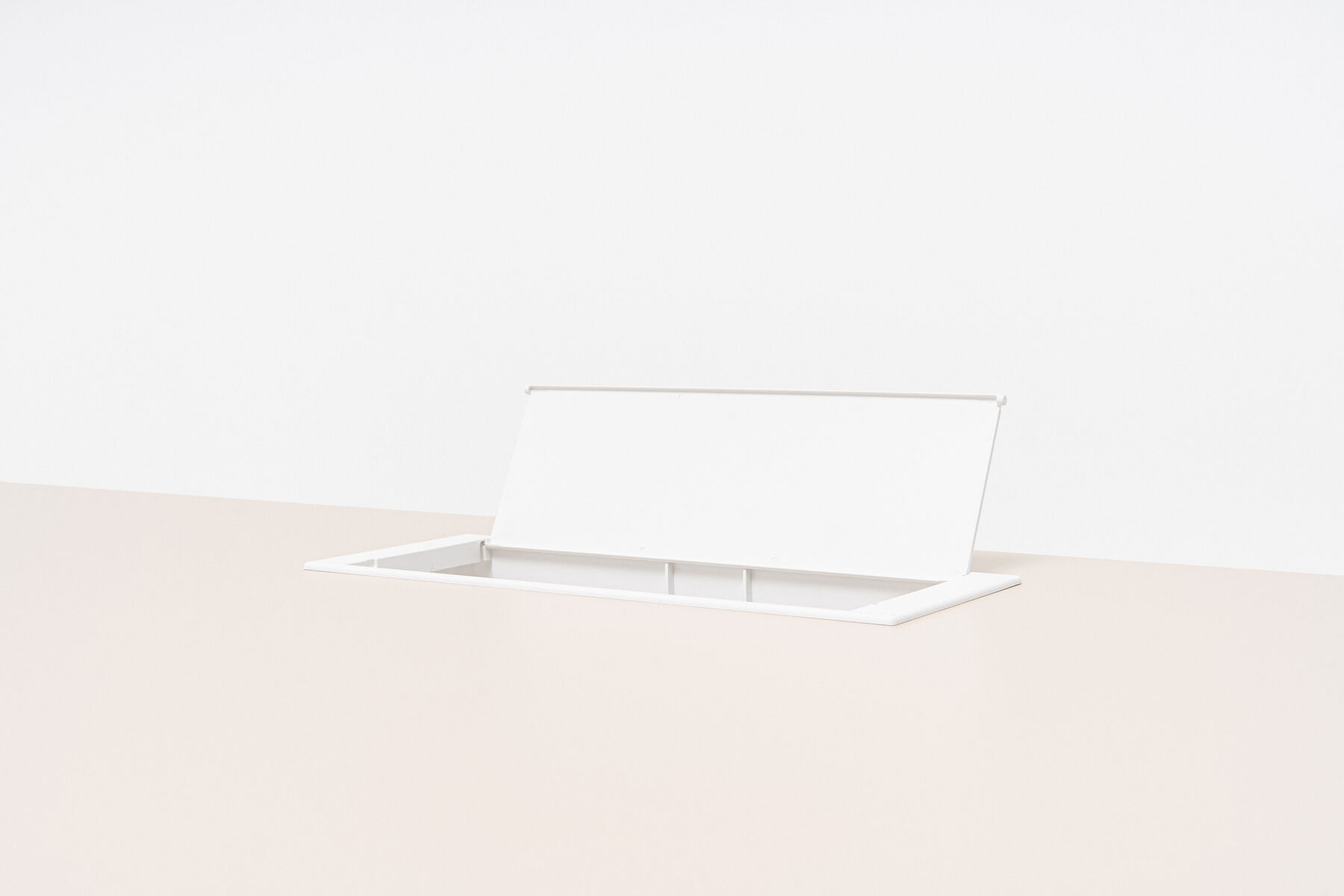

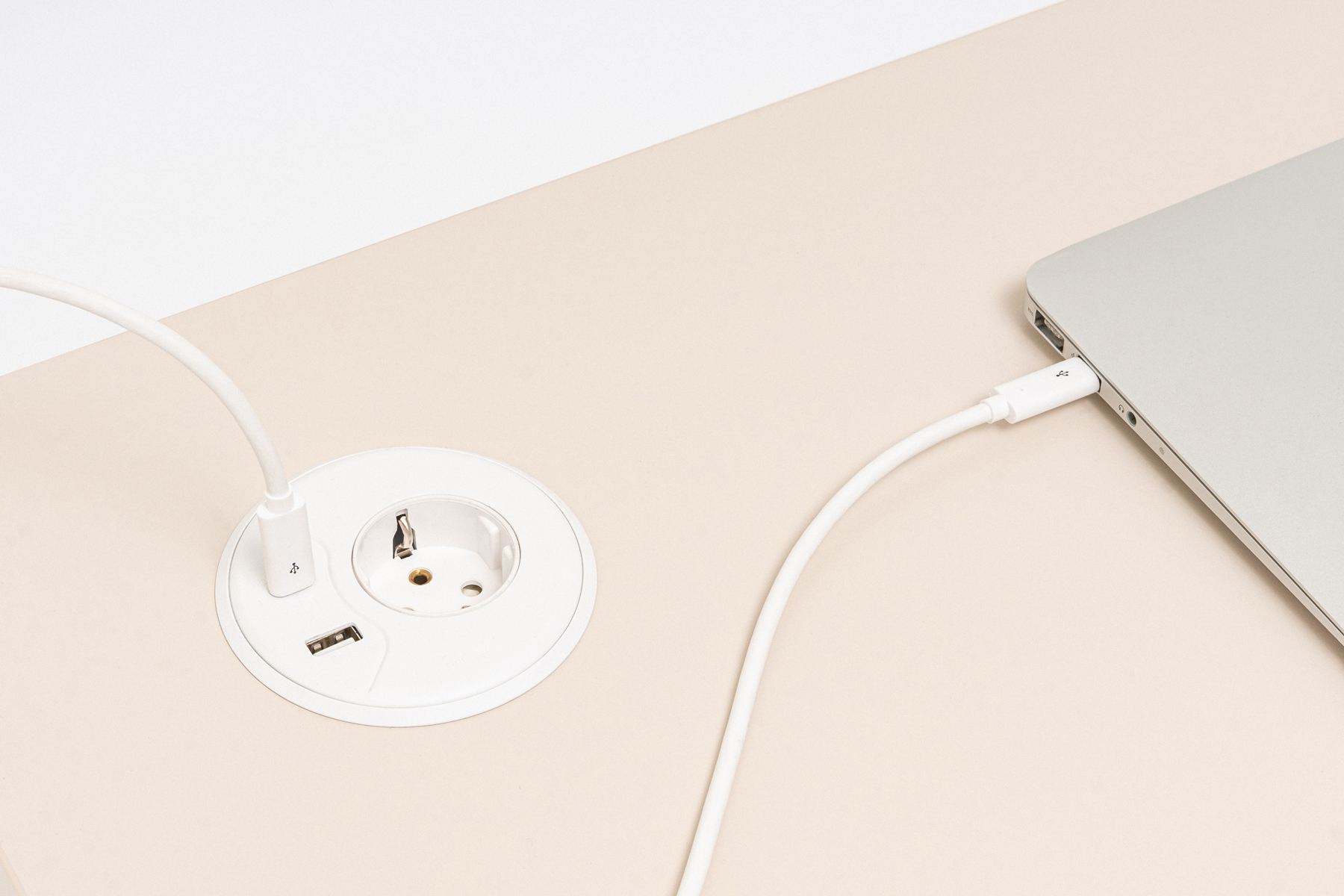

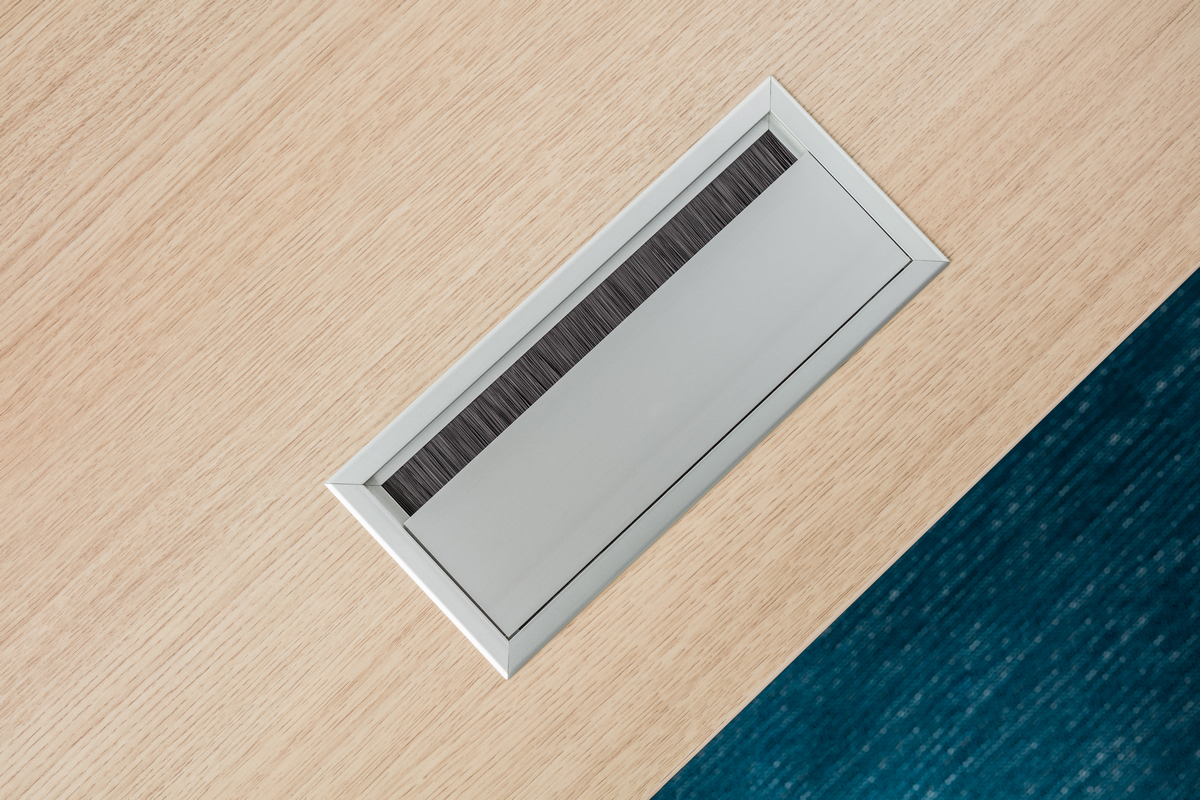

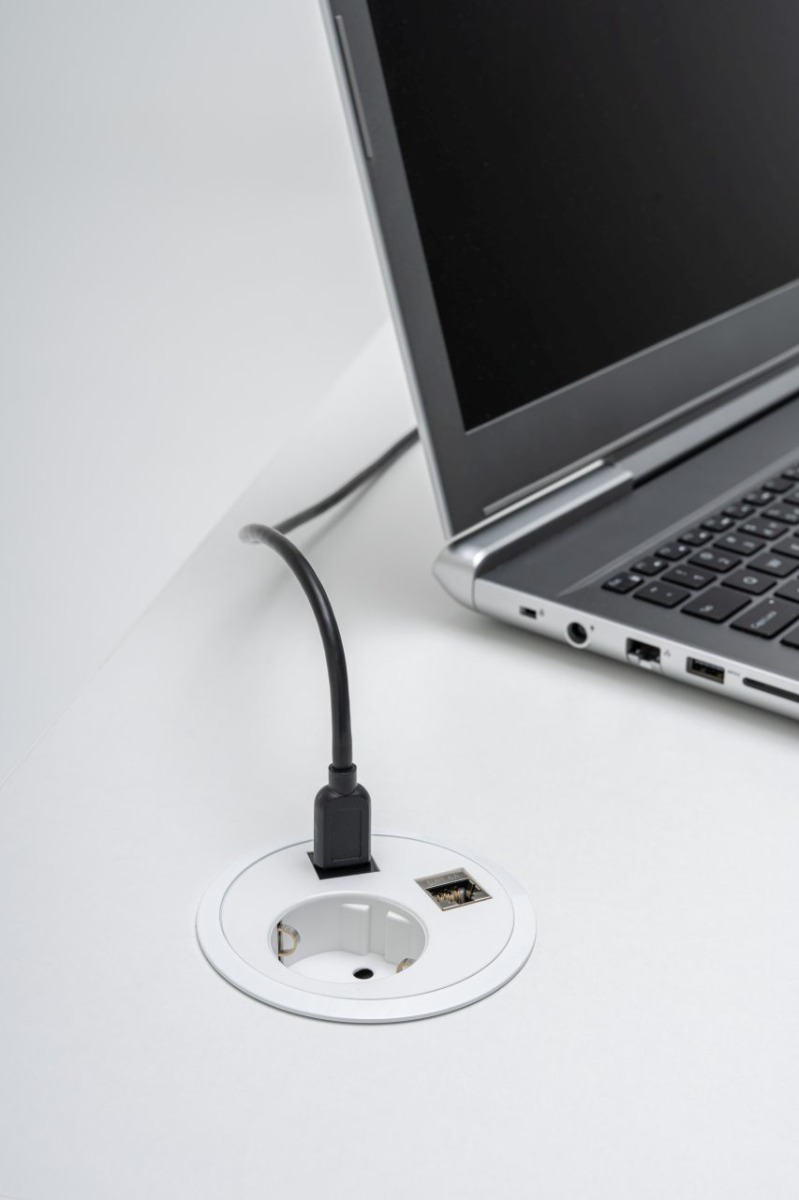

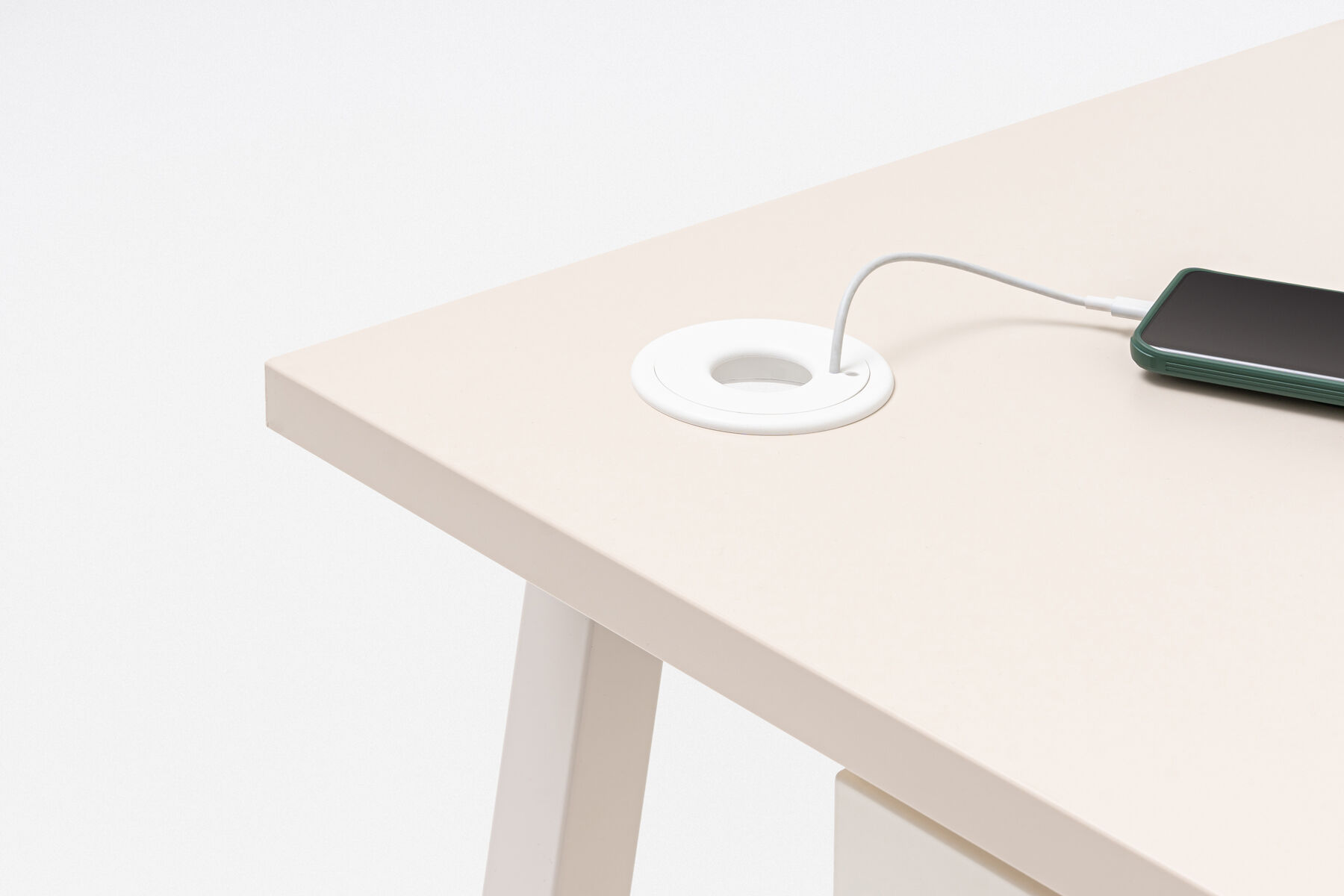

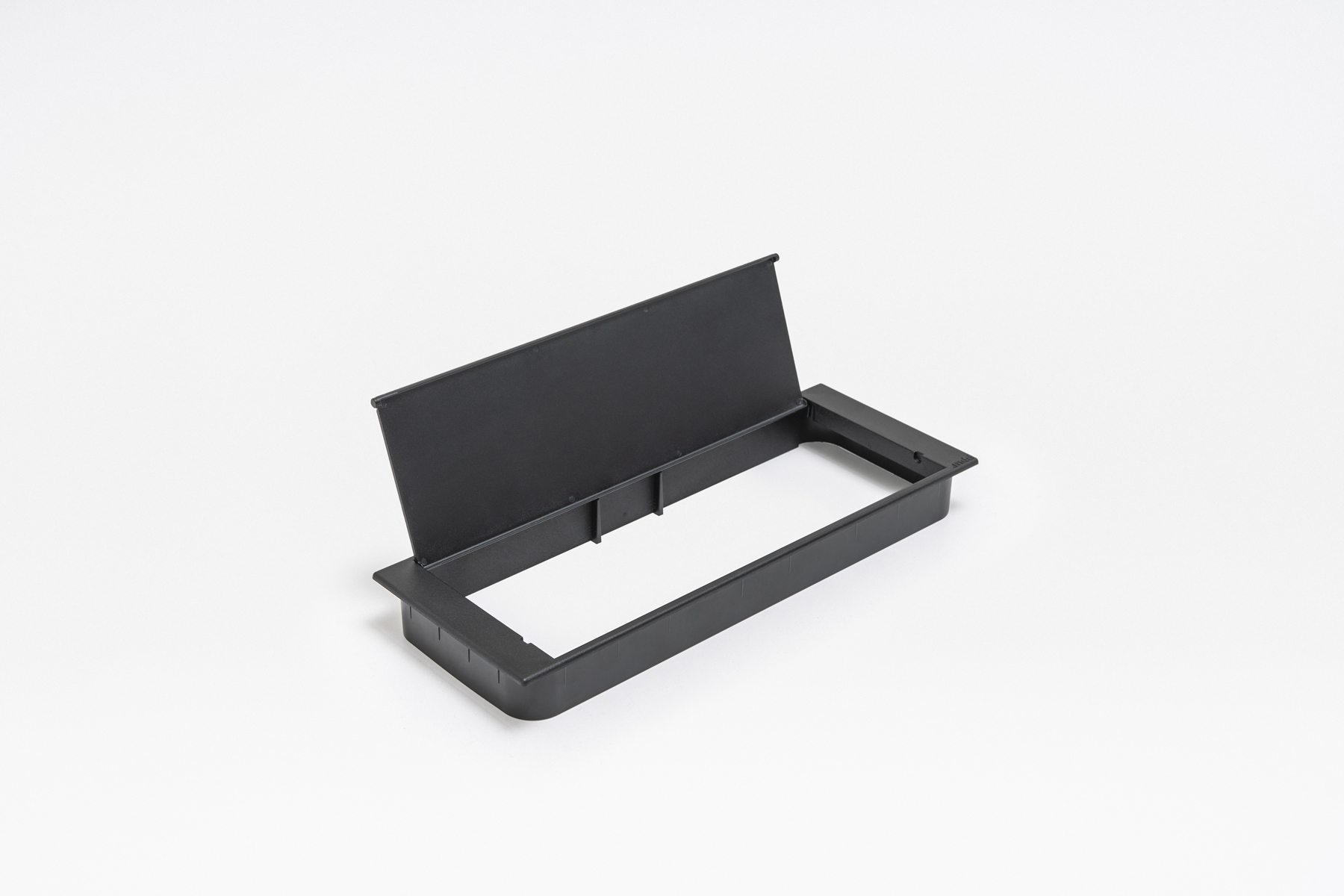

• Options with extra charge: grommet - 2 pcs, Ø 88 mm; mediabox M14H - plastic frame, 2 x RJ45 (class E, cat. 6); + 1 x USB + 1 x HDMI + 4 x 230V, dimensions: 305x155x150 mm, power cord: 2000 mm; mediabox M14 - plastic frame, 2 x RJ45 (class E, cat. 6); + 1 x USB + 4 x 230V, dimensions: 305x155x150 mm, power cord: 2000 mm; mediabox M071 - 1 x 230V + 1 x USB A charger + 1 x USB C charger, colours: black or white, mounted instead of the existing grommet Ø88 mm (PK80); top access M15 - plastic frame, dimensions: 292x112x18 mm; mediabox M04 - aluminium frame, 4 x 230V, 2 x RJ45, 1 x USB, power cord 2 m; mediabox M04H - aluminium frame, 4 x 230V, 2 x RJ45, 1 x USB, 1 x HDMI, power cord 2 m; top access M05 - aluminium frame;

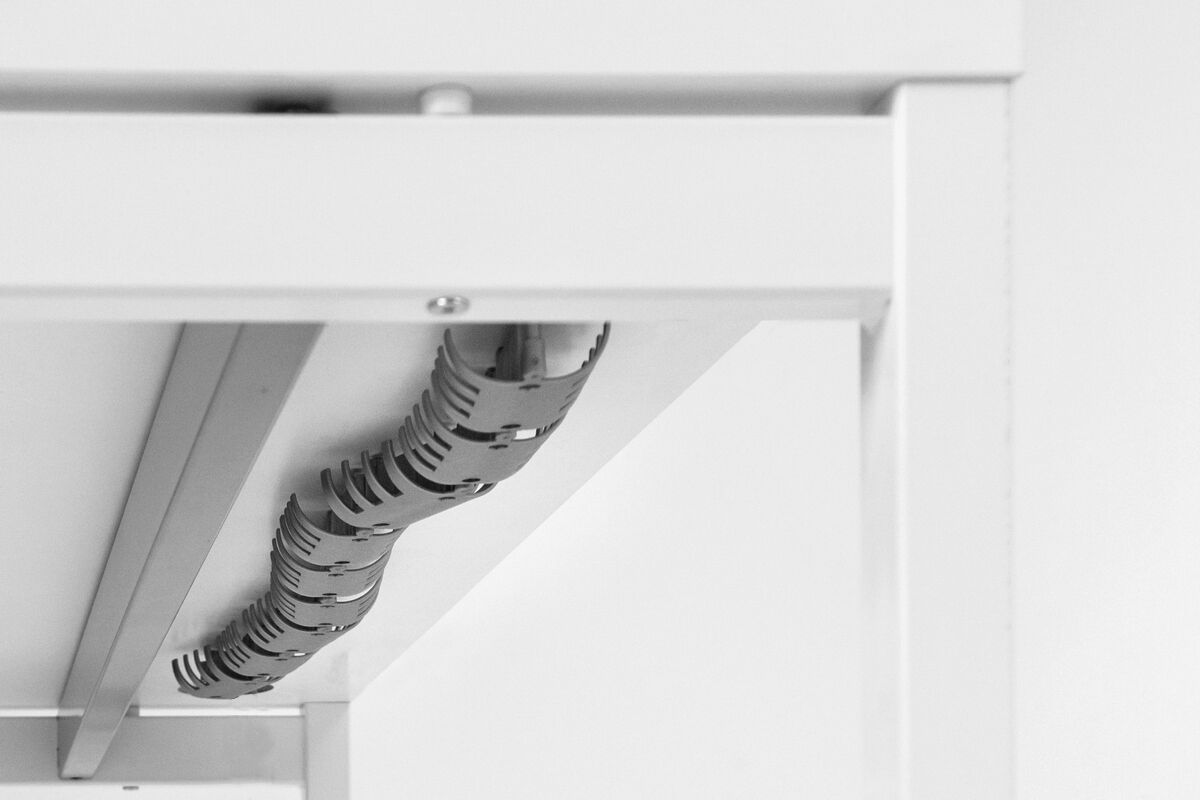

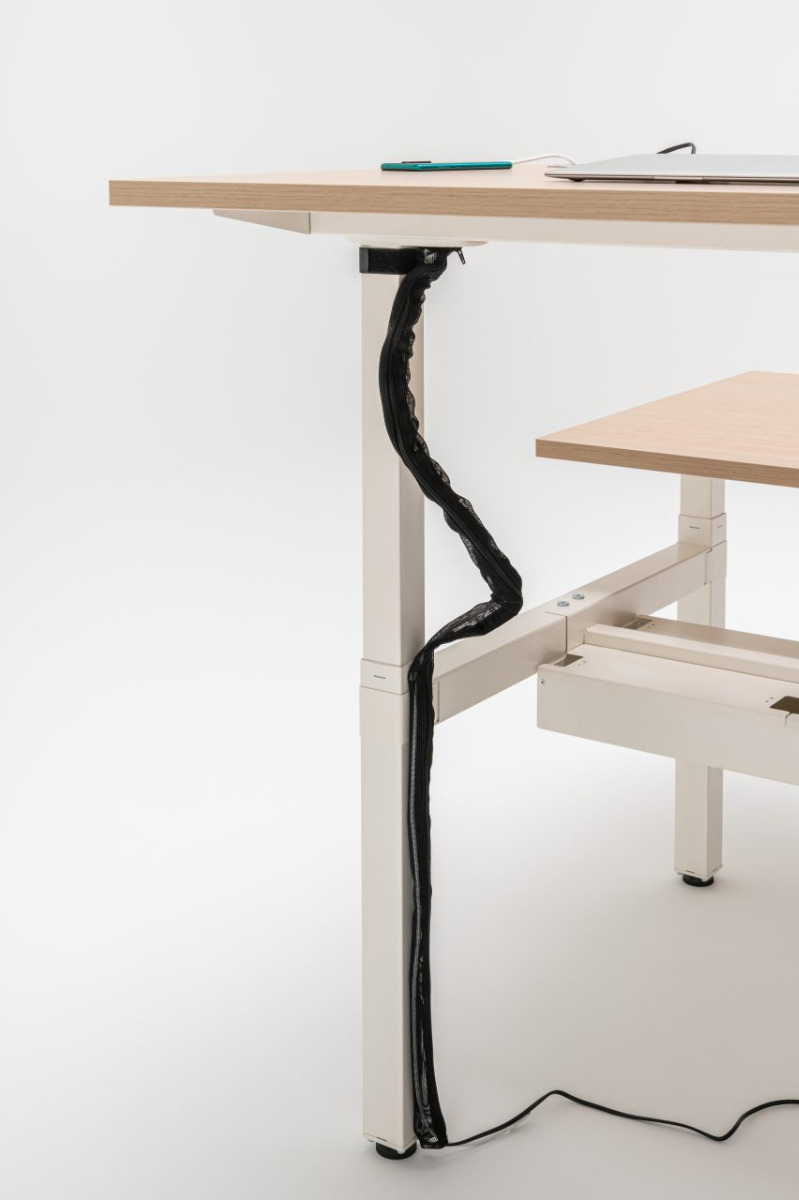

• Options with extra charge: horizontal cable tray S69 - powder-coated, colour: 09 - aluminum; single desk horizontal cable tray (SG12, SG16) - powder-coated metal, colour: M009 - aluminum semi-matt; horizontal cable tray E64 - powder-coated, colour: M009 - aluminium semi-matt; cable tray for bench desks Ogi Drive (SOD12, SOD14, SOD16, SOD18, SOD20) - powder-coated, colour: M009 - aluminium semi-matt;
• Edges can be attached using laser technology or PUR glue - please contact Customer Service if tender or project guidelines require laser edging.

Productkenmerken

• Available in nano-tech Fenix laminate;

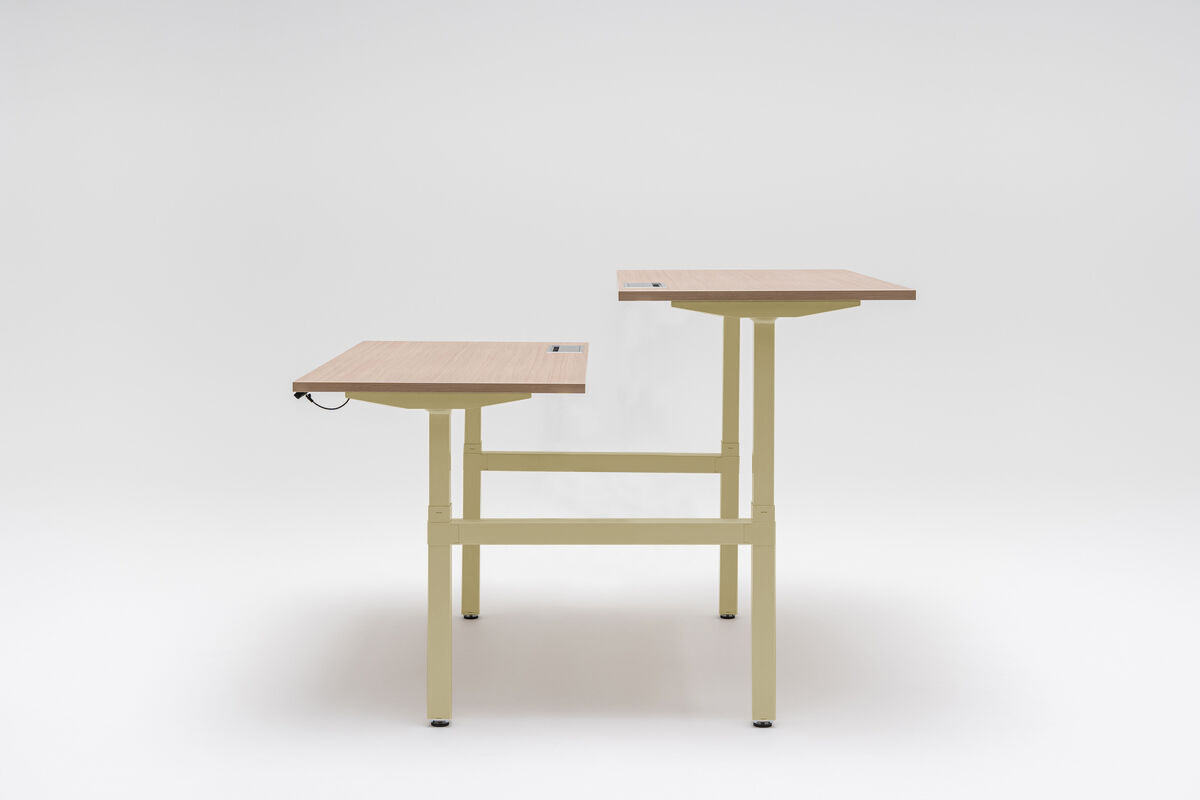

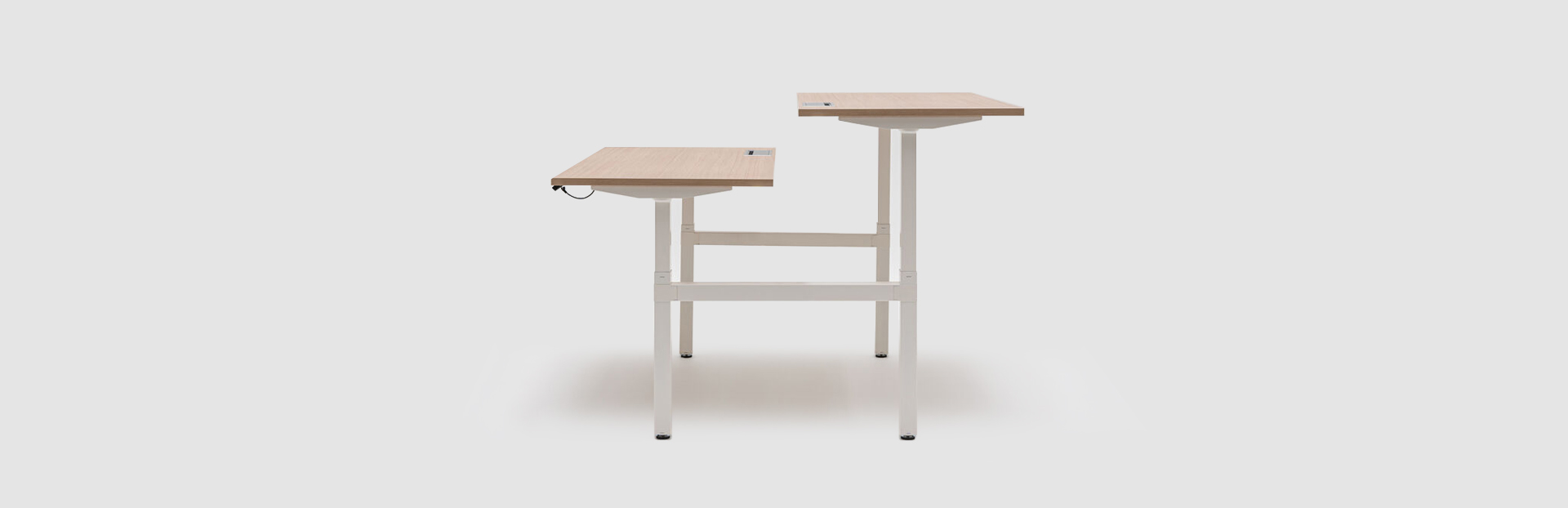

• Stepless electrical height adjustment in the range of 650-1300 mm;
• Available with adjustment range of 700-1200 mm – please contact our Customer Service;
• One of the most quiet motors on the market, only 48 dB;

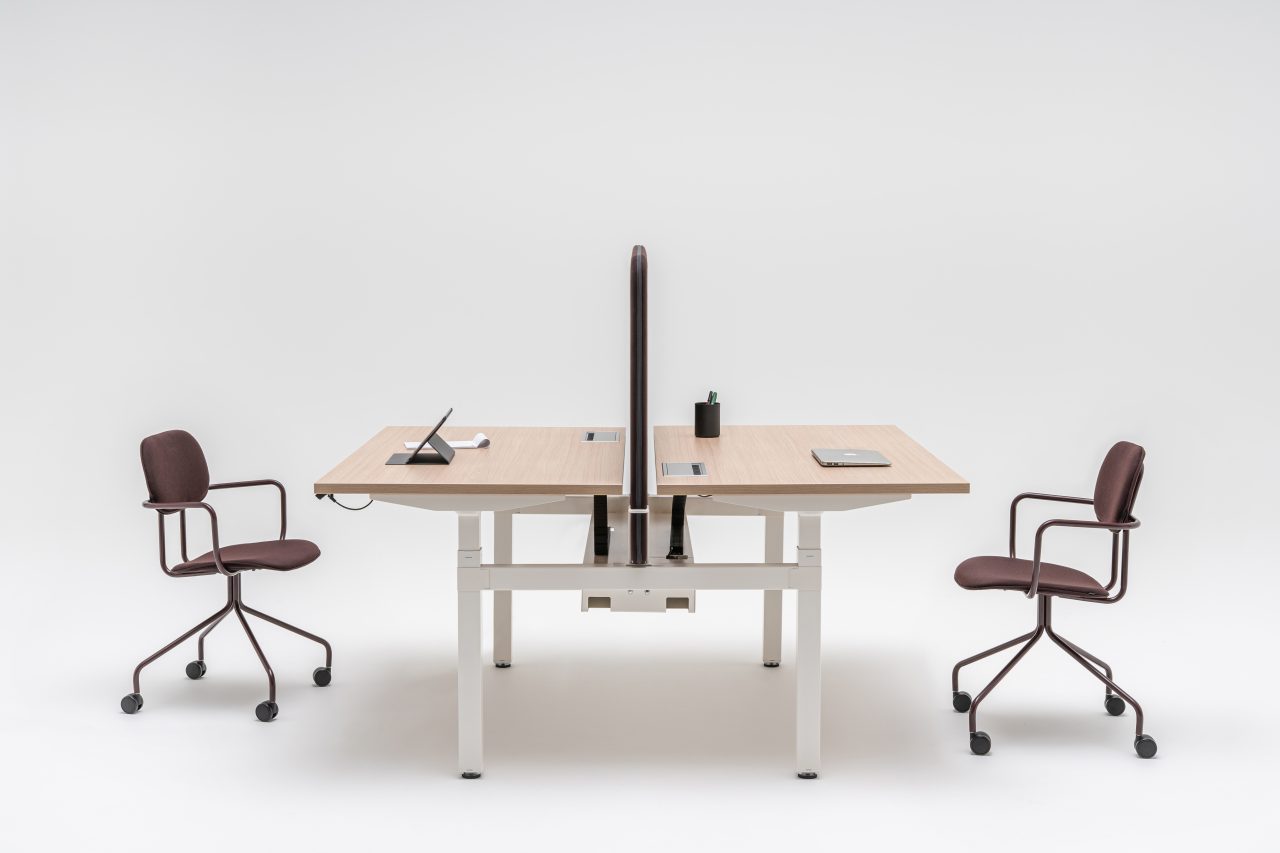

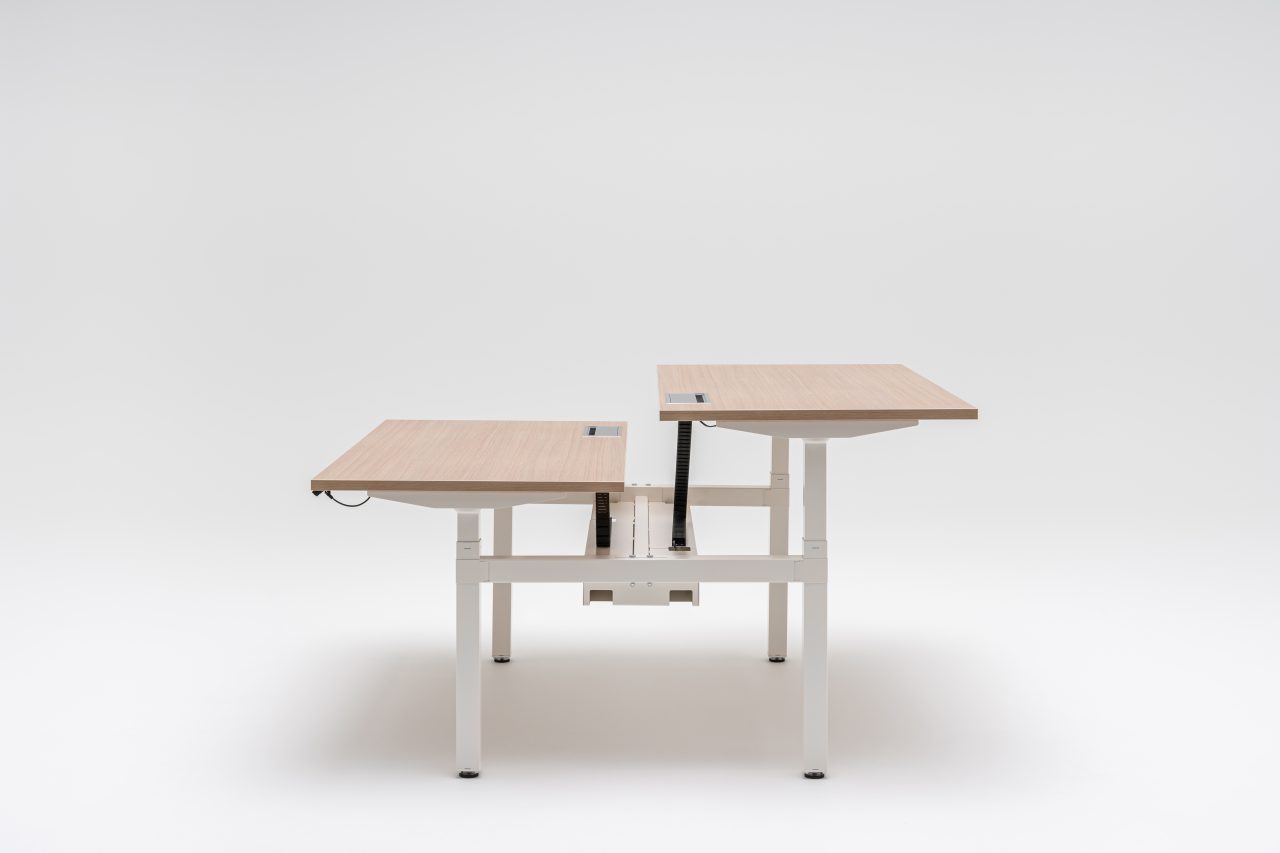

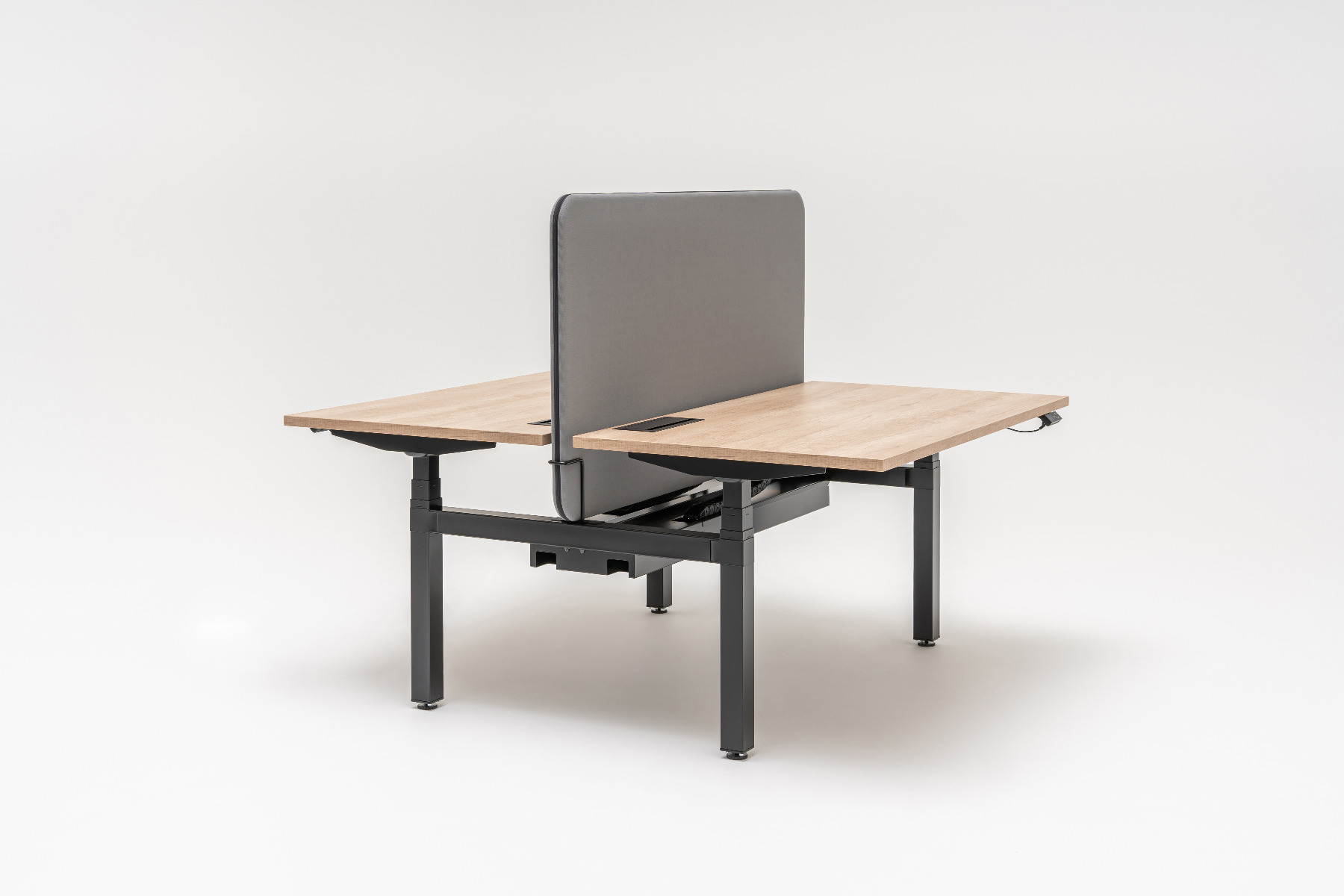

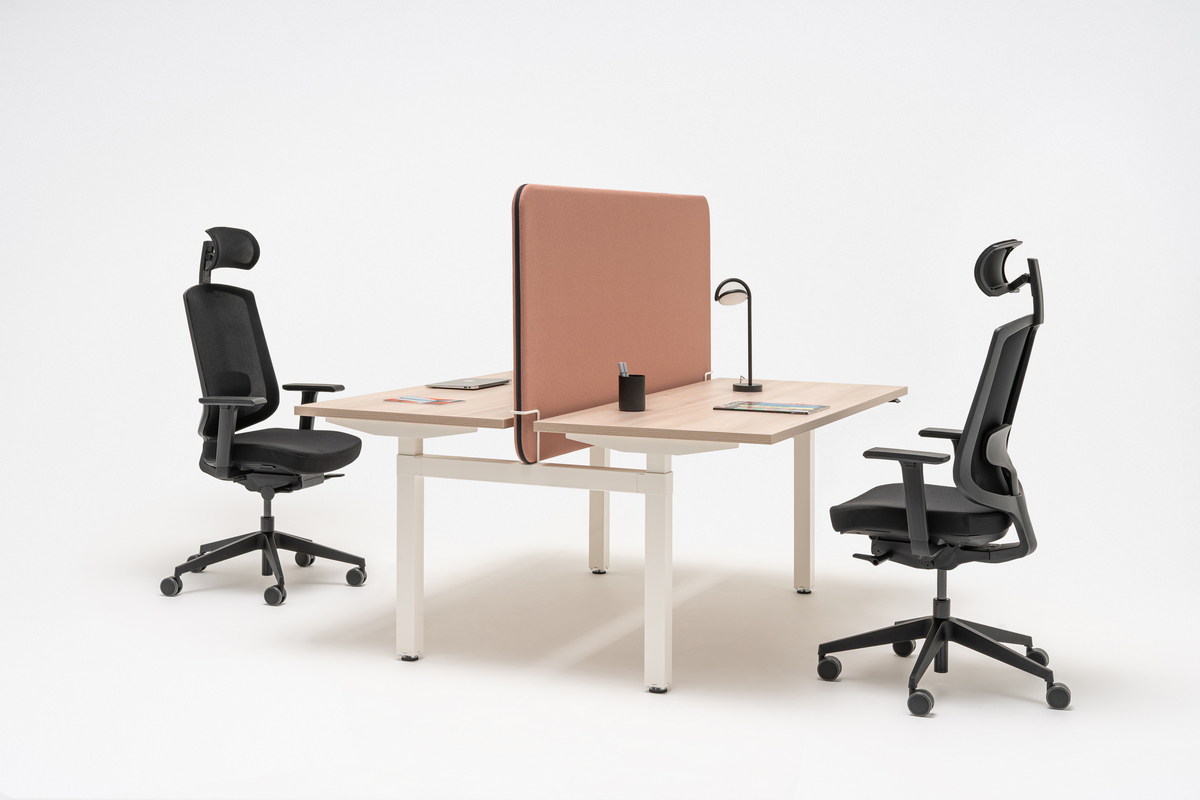

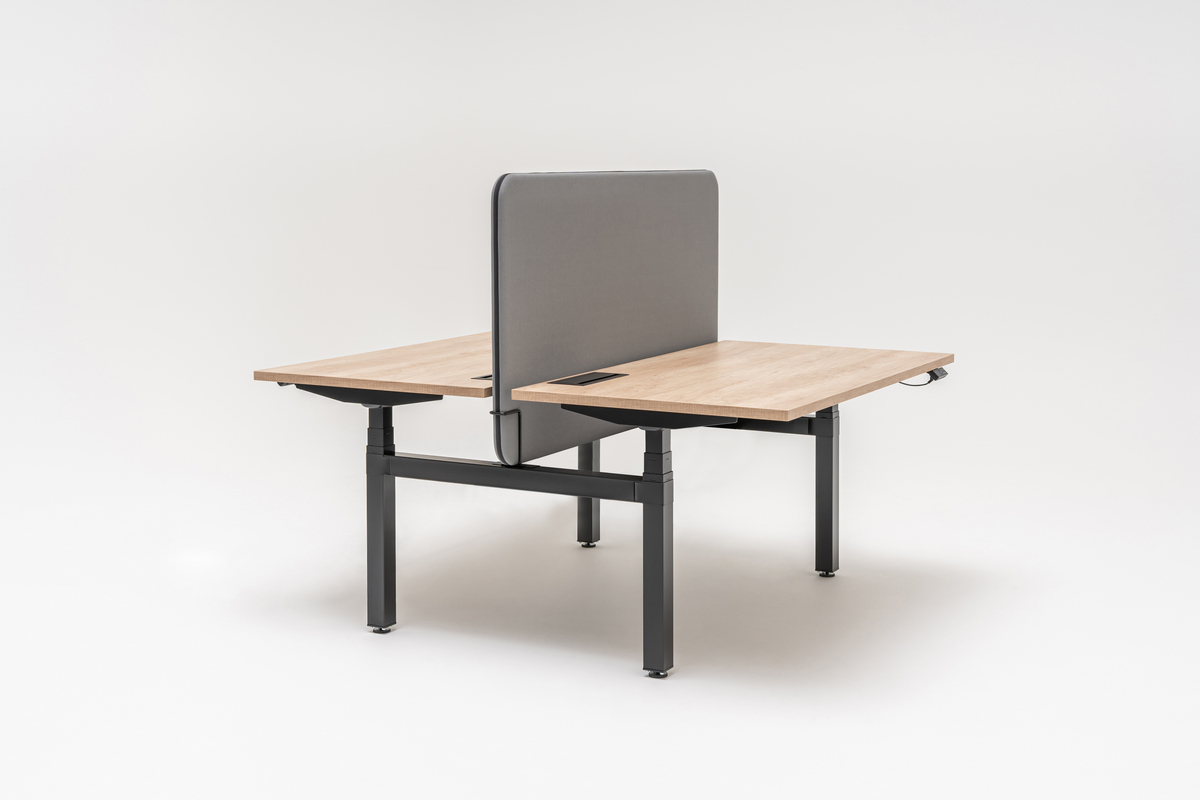

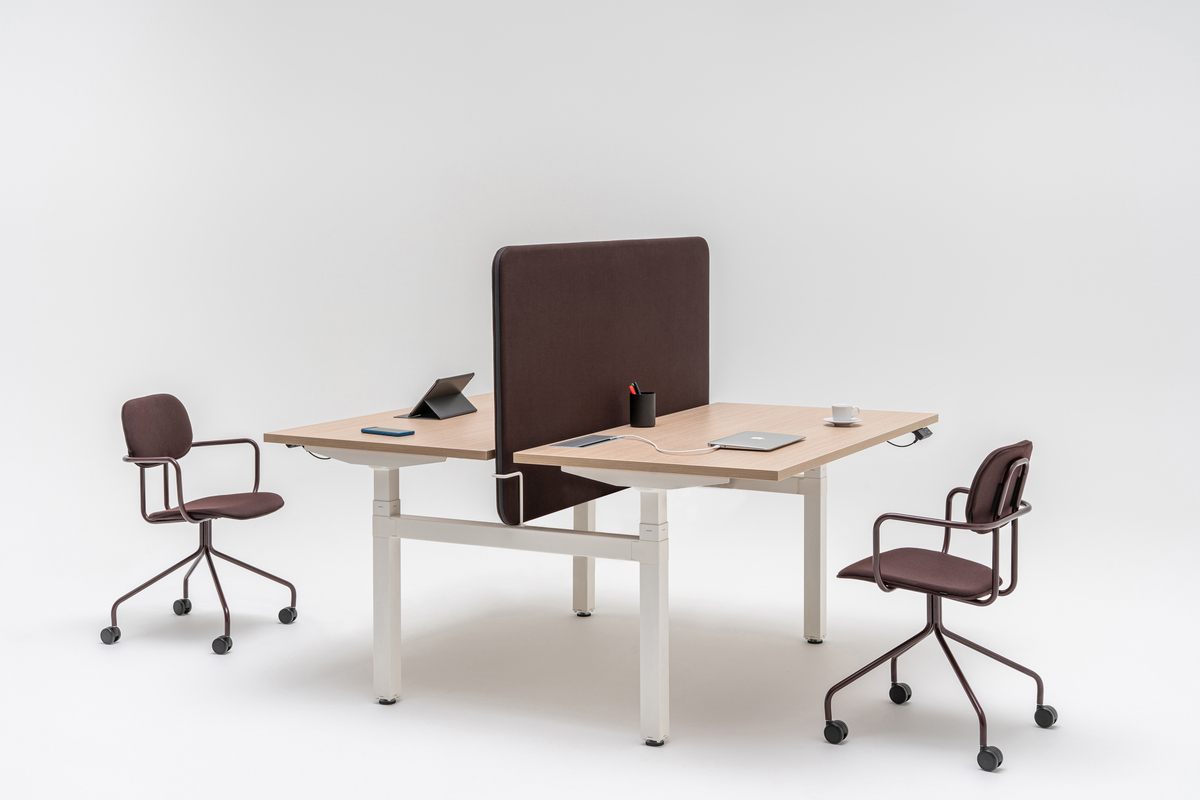

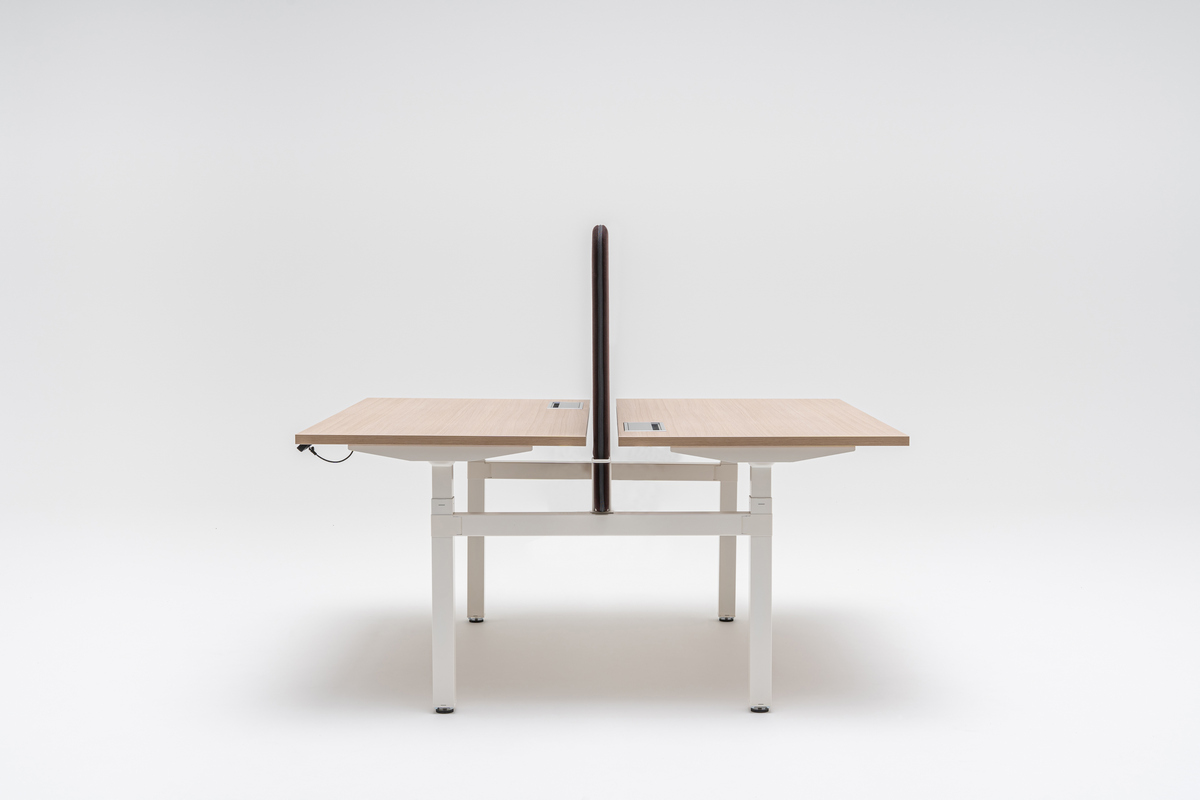

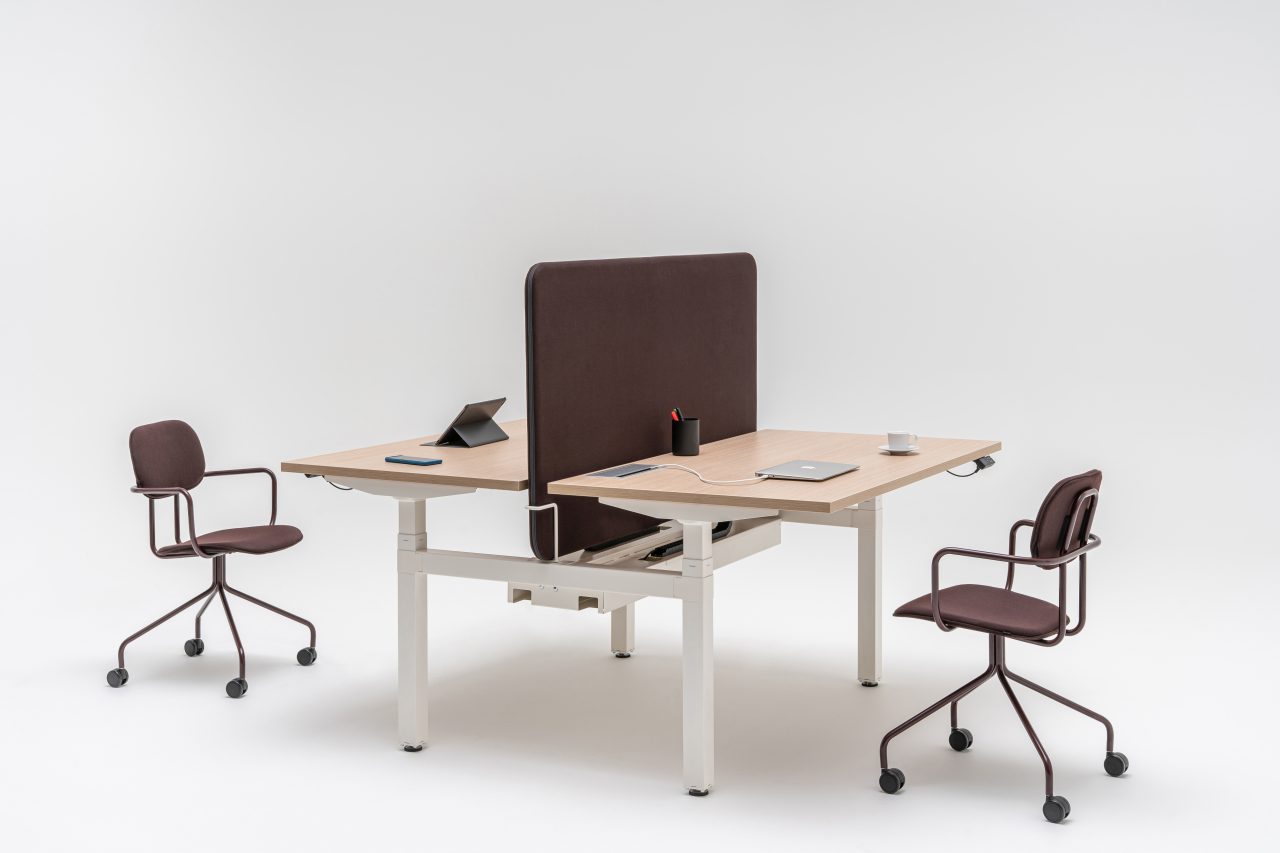

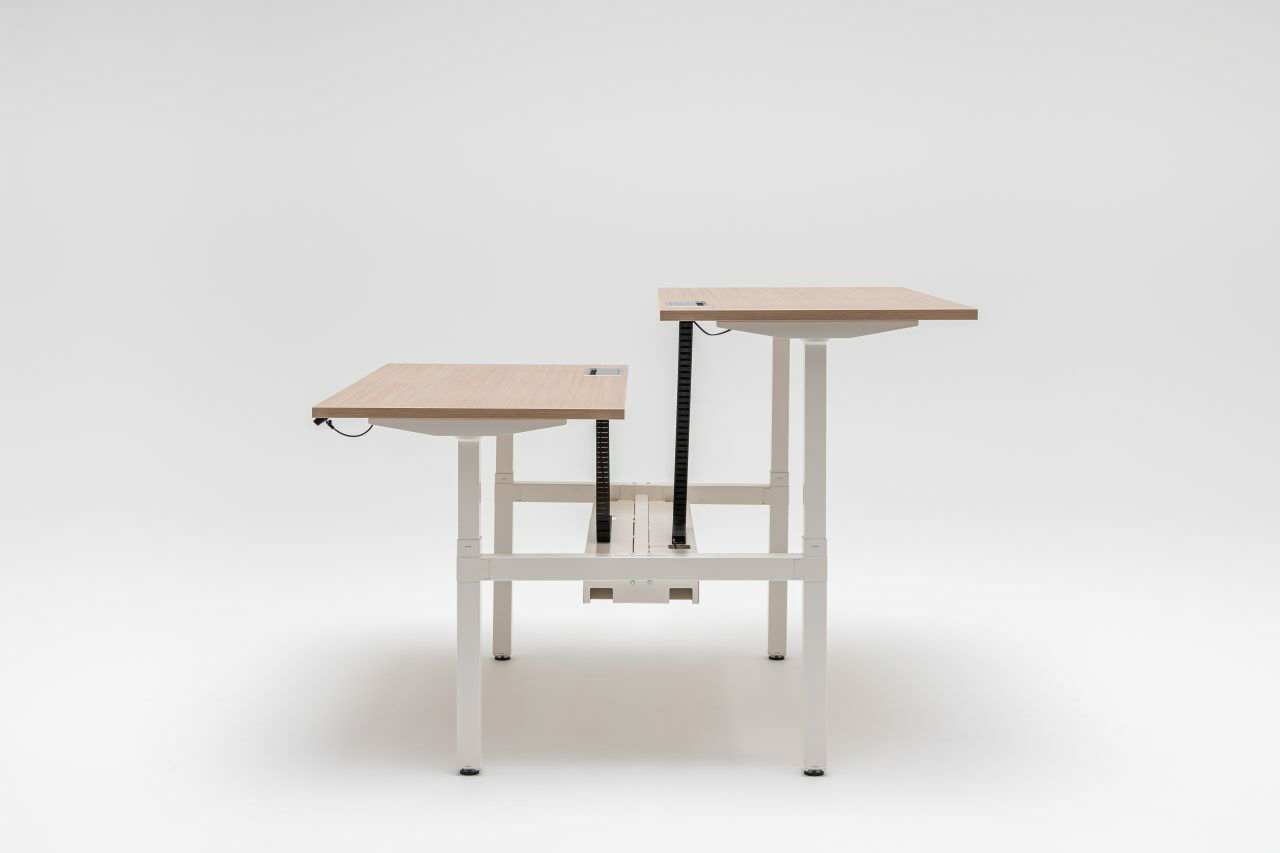

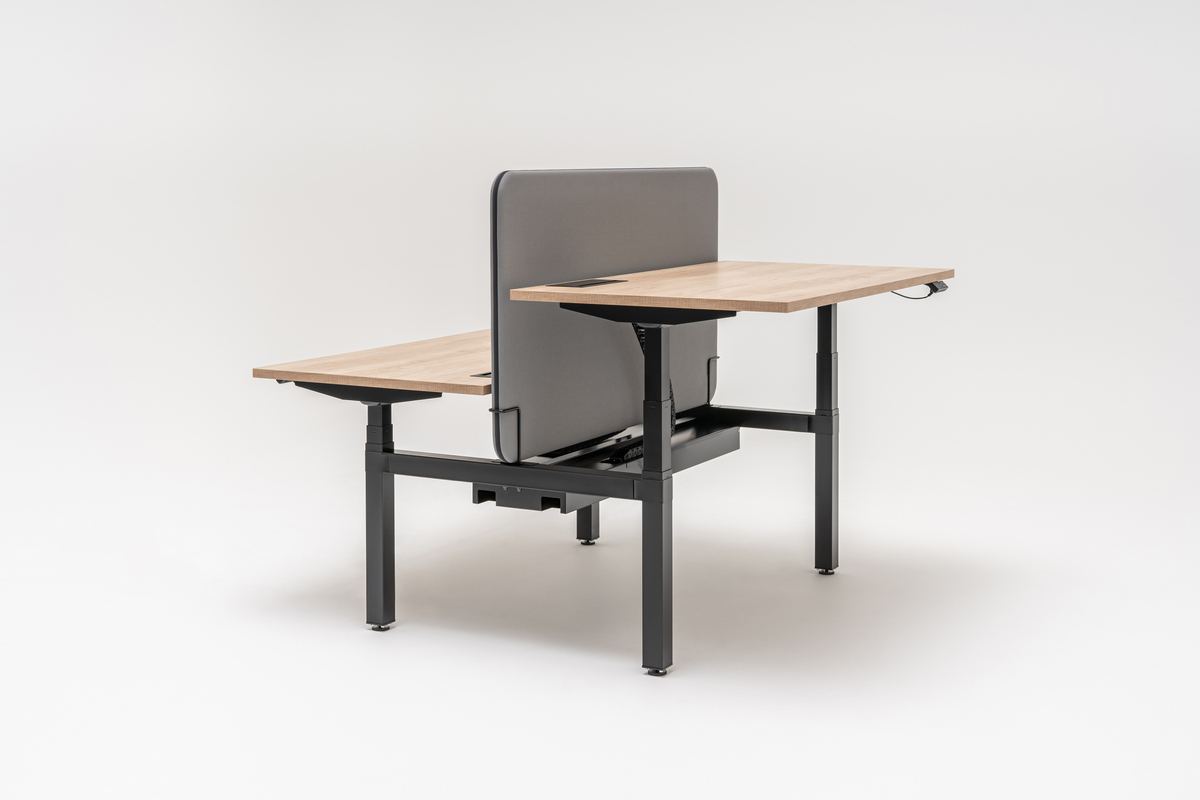

• Two work stations at one desk;
• Ideal match between height of the desk and user’s needs;
• Anti-collision system with counterweight and giroscope;
• A few sizes of the top and finishing materials to choose;
• Optional: practical accessories;
• Compliant with standards: DIN EN 13849-1:2007, Performance Level B; RoSH 2011/65/UE; LVD; EU Directive 2006/95/EC; EMC according to EU Directive 2004/108/EC; PN-EN 55014-1:2017-06; PN-EN 55014-2:2015-06; PN-EN 60204-1:2010P; PN-EN 61000-1-2:2016-11; PN-EN 61000-6-3:2008/A1:2012; PN-EN 60335-1:2012; PN-EN-ISO-12100_2012P;

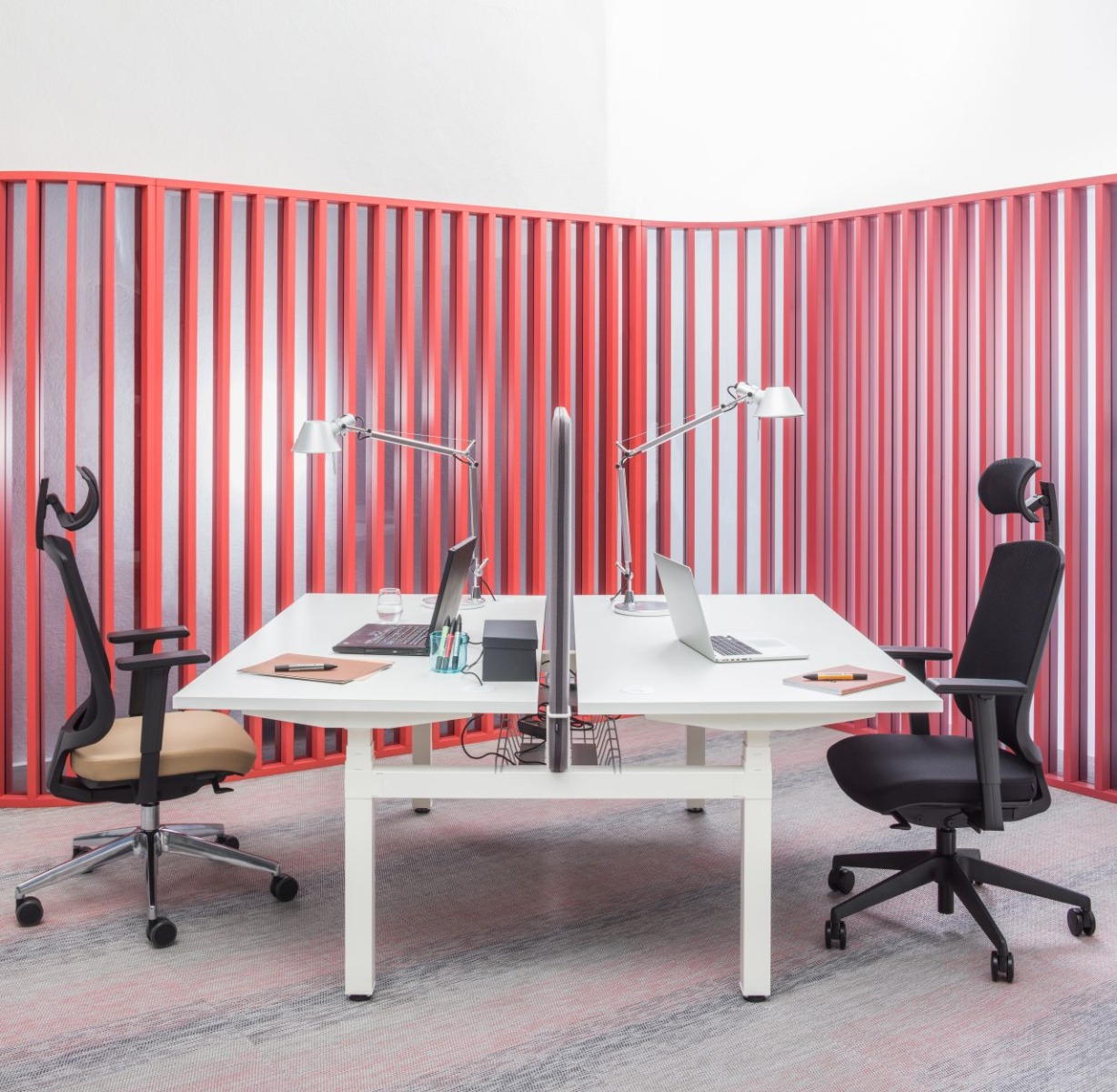

• For various working spaces: traditional offices, coworks, hot-desk spaces, as well as public interiors, eg. universities
