Akoestische cabine Hako

Name: Akoestische cabine Hako
Brand: .mdd
SKU: HAKO_new
Availability: InStock

0%
initializing...

Kleur disclaimer

Downloads voor de geselecteerde configuratie

3D-modellen downloaden van het collectieite

downloaden

toon dimensies

Screenshot

toon het interieur

animatie: bewegende grafische voorstelling vaak gebruikt in meubelconfiguratoren

gepersonaliseerde afmetingen

Geschat productgewicht: kg

Hako

HK01

W: 1150 D: 1400

H: 2341 mm

Kleur van de binnenmuren

MC-2497-66006 Marineblauw

toon filters

afrondingsbeschrijving

Runner

Skład: 100% poliester

Gramatura: 364/m2*510g/lm

Trudnozapalność: BS EN 1021 - 1:2006 (papieros), BS EN 1021 - 2:2006 California Bulletin CAL 117-E-Class 1

Mica

Go Check

Charles

Venice

Chopper

Medley

Silvertex +376€ netto

Synergy +376€ netto

Oceanic +376€ netto

Quest +376€ netto

Grain +376€ netto

Kleur van de binnenmuren - Go Check Plus

Go Check Plus +376€ netto

Nobel +676€ netto

MC-2497-60021 Grafiet

MC-2497-60000 Grijs

MC-2496-60000 Lichtgrijs

MC-2496-61008 Beige

MC-2496-64183 Roze

MC-2496-64146 Rood

MC-2497-64146 Donkerrood

MC-2497-64029 Bourgondië

MC-2496-62095 Mosterd

MC-2496-62096 Geel

MC-2496-66031 Lichtblauw

MC-2496-66030 Blauw

MC-2497-66006 Marineblauw

MC-2497-67042 Teal

MC-2497-67017 Flessengroen

MC-2497-68146 Groen

MC-2497-62048 Olijf

MC-2496-67015 Mint

MC-2496-62093 Licht olijf

Kleur van buitenmuren

MC-2497-66006 Marineblauw

MC-2497-60021 Grafiet

MC-2497-60000 Grijs

MC-2496-60000 Lichtgrijs

MC-2496-61008 Beige

MC-2496-64183 Roze

MC-2496-64146 Rood

MC-2497-64146 Donkerrood

MC-2497-64029 Bourgondië

MC-2496-62095 Mosterd

MC-2496-62096 Geel

MC-2496-66031 Lichtblauw

MC-2496-66030 Blauw

MC-2497-66006 Marineblauw

MC-2497-67042 Teal

MC-2497-67017 Flessengroen

MC-2497-68146 Groen

MC-2497-62048 Olijf

MC-2496-67015 Mint

MC-2496-62093 Licht olijf

Deur

Linkerdeur

Rechter deur

Vloer

Geen vloer

Vloer +384€ netto

Mediabox

Geen mediabox

Mediabox A +416€ netto

Mediabox C +416€ netto

Mediabox AC +832€ netto

Kleur van het frame

Antraciet semi-mat RAL 7043

Lichtgrijs halfmat RAL 7044

Antraciet semi-mat RAL 7043

Type van stekker

EU stekker

UK stekker

Schuko stekker

US stekker

Zwitserse stekker

niet toegepast

HK1P

plank voor hako stands

D: 250

H: 156 mm

+310€

Hako

Kleur van de binnenmuren

Mica

Kleur van buitenmuren

MC-2497-60021 Grafiet

Deur

Vloer

Mediabox

Kleur van het frame

Type van stekker

€ incl btw

9 600 € exclusief btw

er heeft zich een interne fout voorgedaan probeer het alstublieft opnieuw indien de fout aanhoudt neem dan contact op met onze klantenservice

levertijd 3-4 weken Product wordt geproduceerd op aanvraag.

Questions about this product?

Use our virtual assistant.

Chat with a virtual advisor

By using the chat, you consent to the storage of the data provided in the conversation. The administrator of personal data is .mdd Sp. z o.o. For more information, see our privacy policy.

How can I help you?

toon filters

afrondingsbeschrijving

Runner

Skład: 100% poliester

Gramatura: 364/m2*510g/lm

Trudnozapalność: BS EN 1021 - 1:2006 (papieros), BS EN 1021 - 2:2006 California Bulletin CAL 117-E-Class 1

niet toegepast

HK1P

plank voor hako stands

D: 250

H: 156 mm

+310€

laden

Selecteer een bestaande aanbieding of maak een nieuwe aan

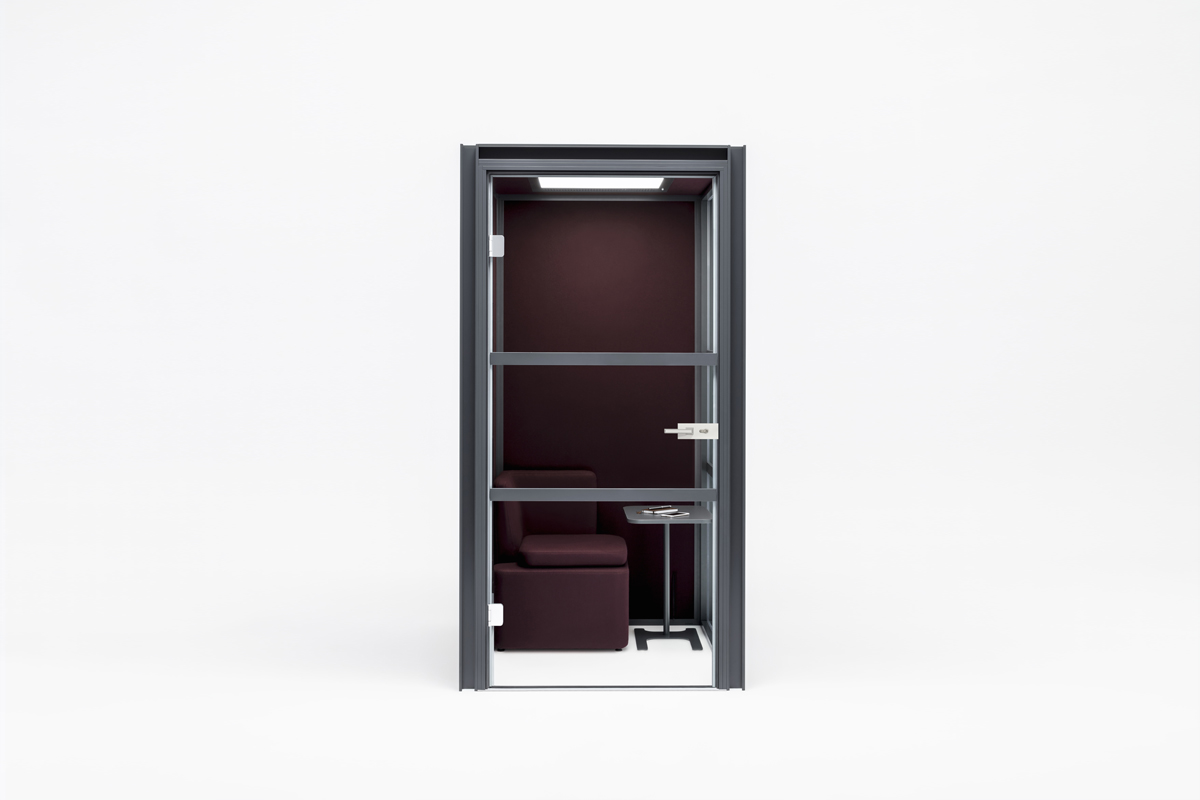

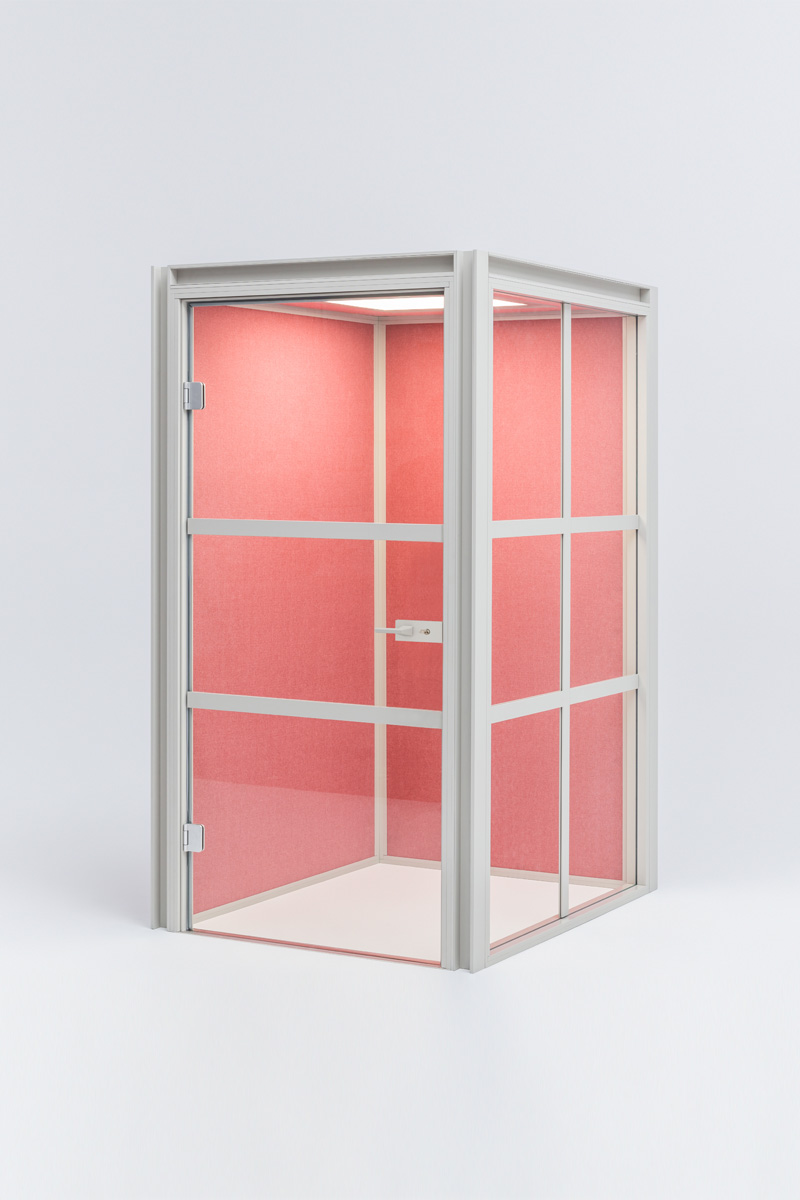

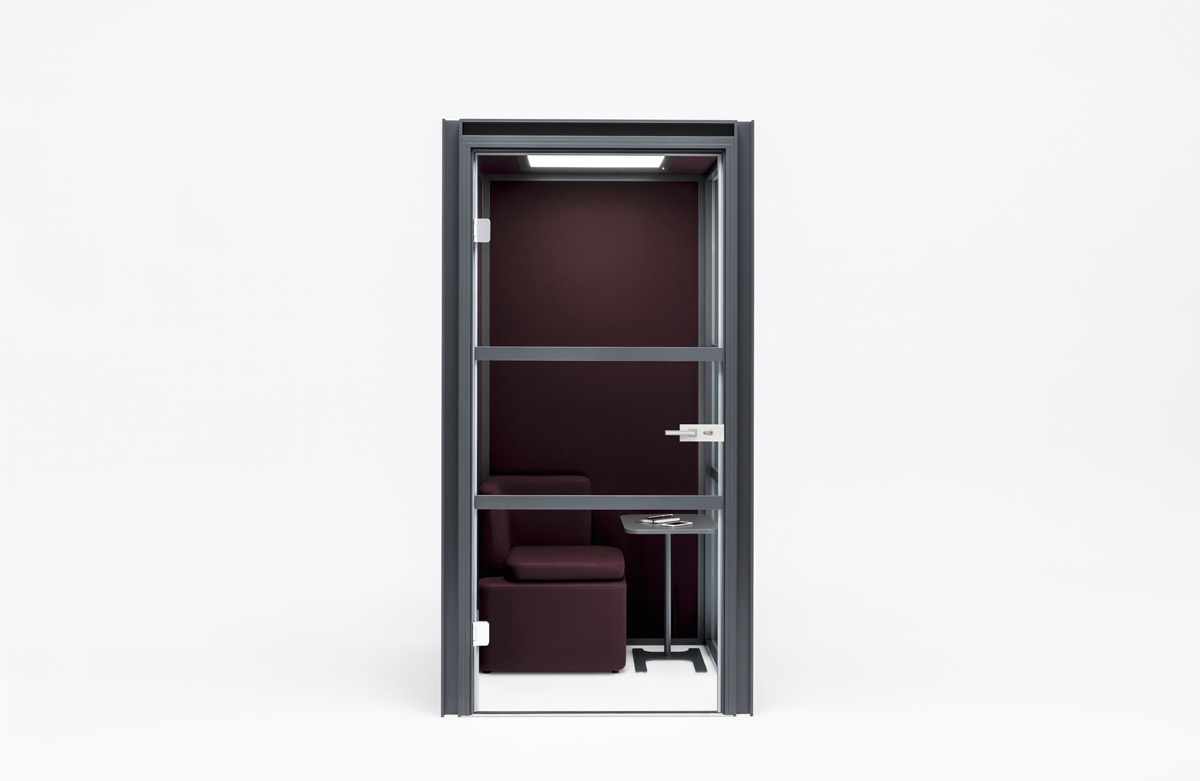

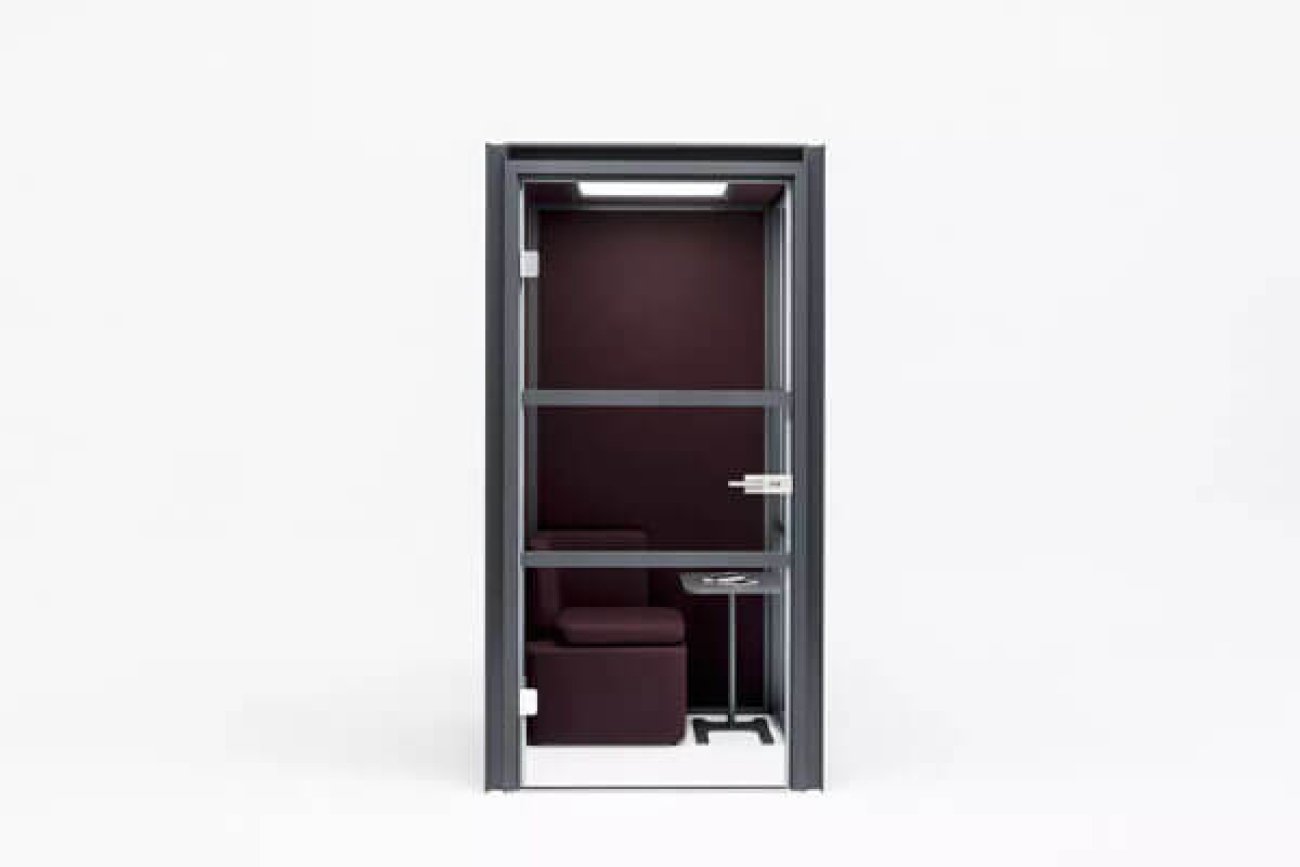

Akoestische Cabine Hako

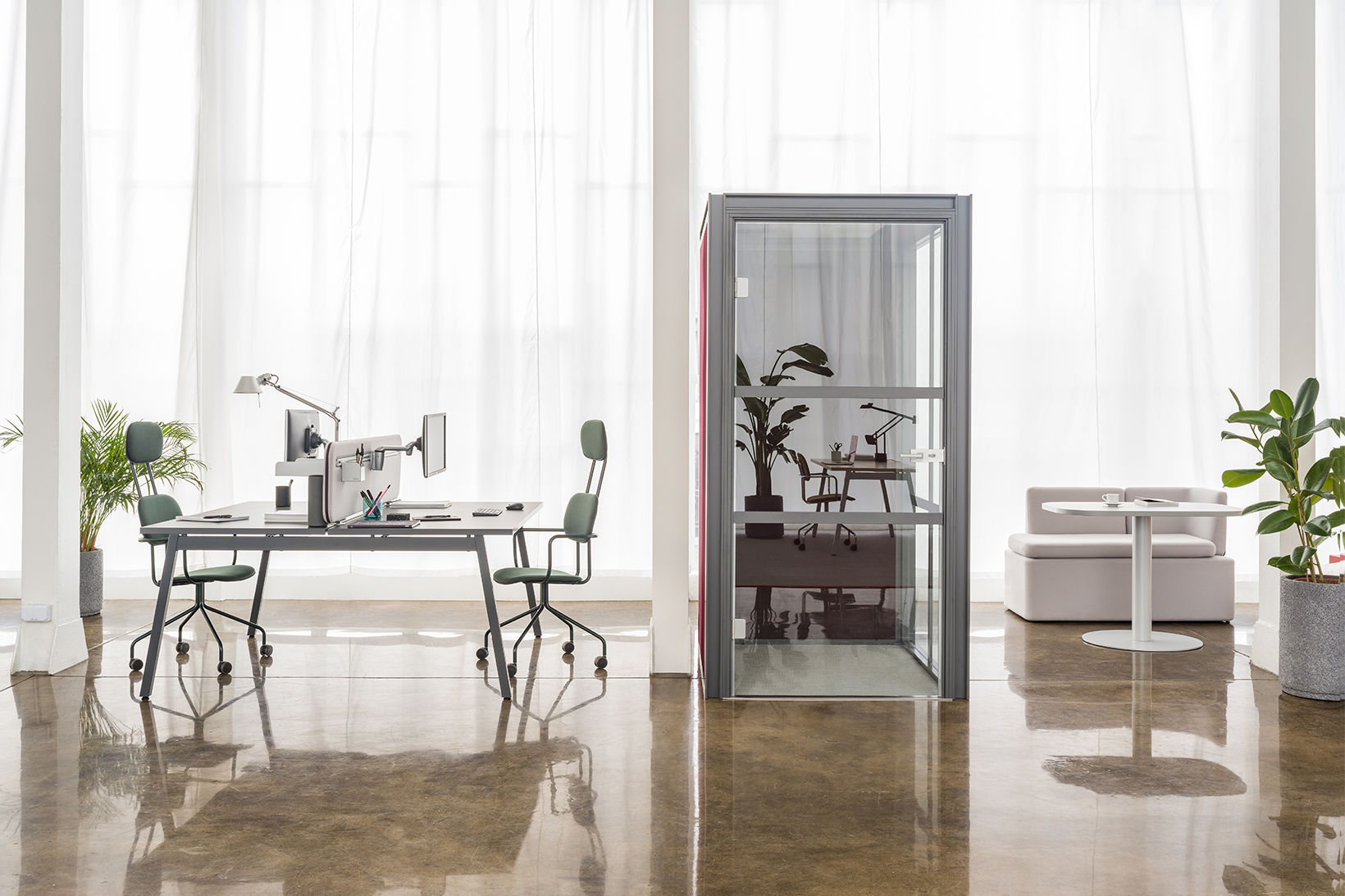

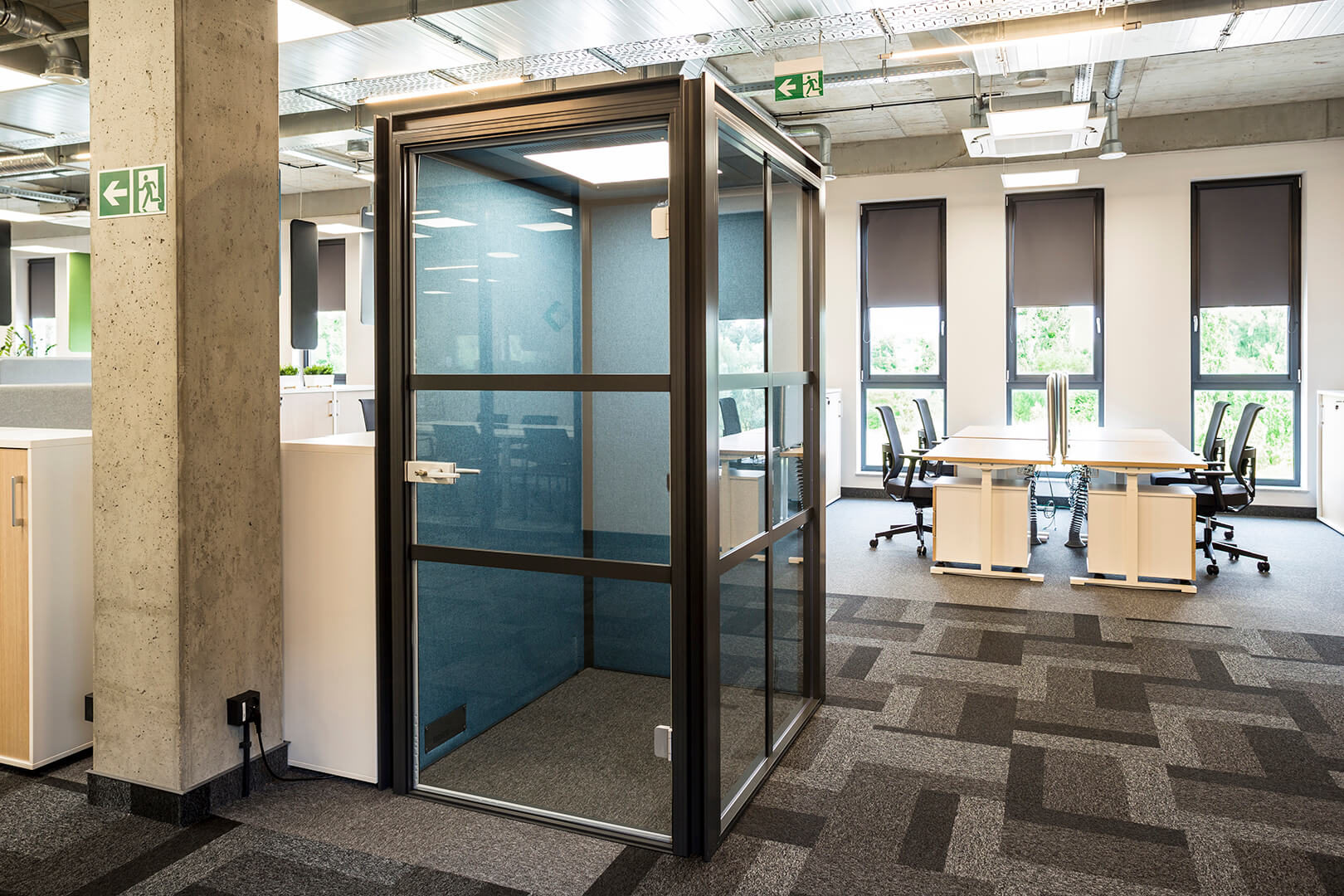

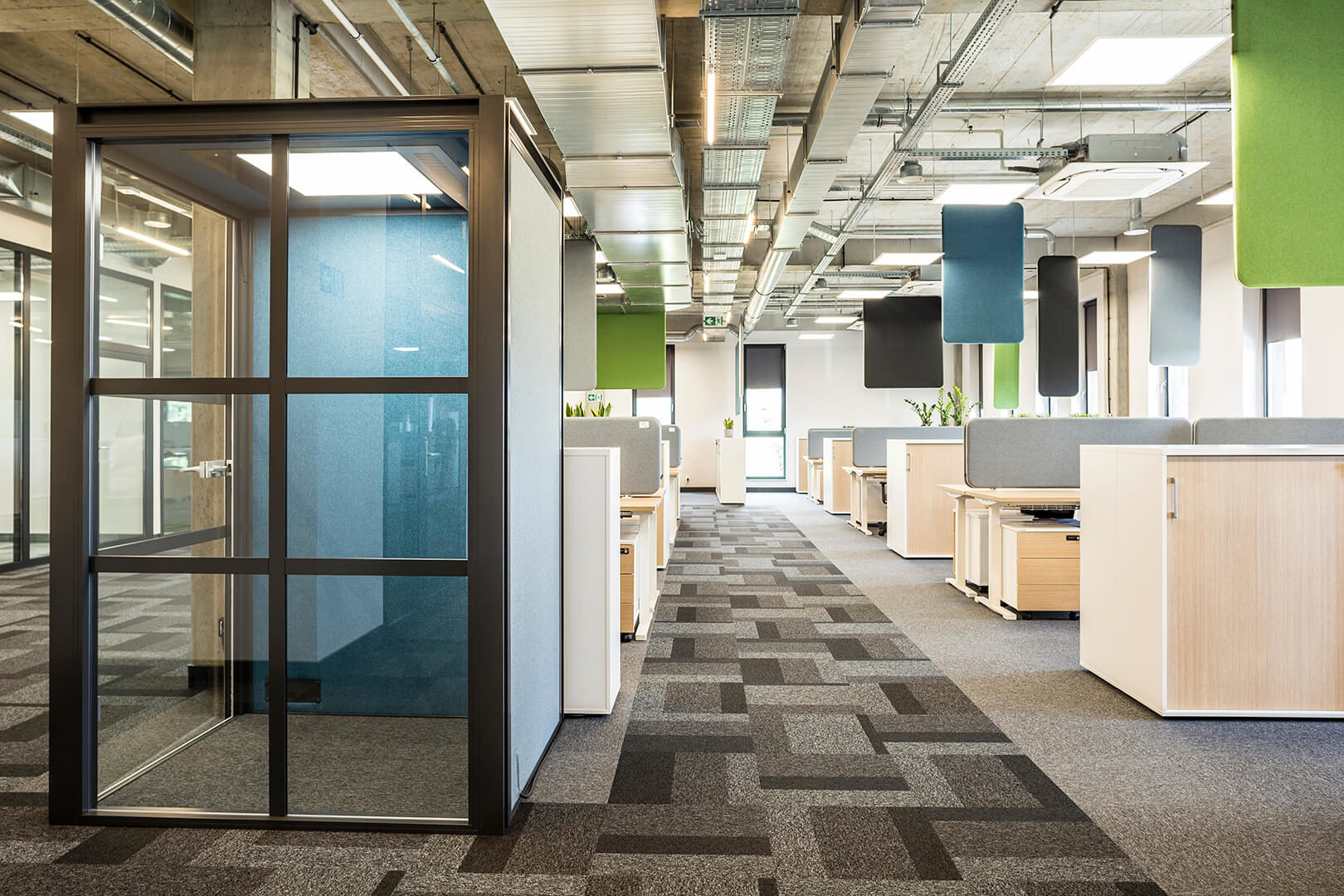

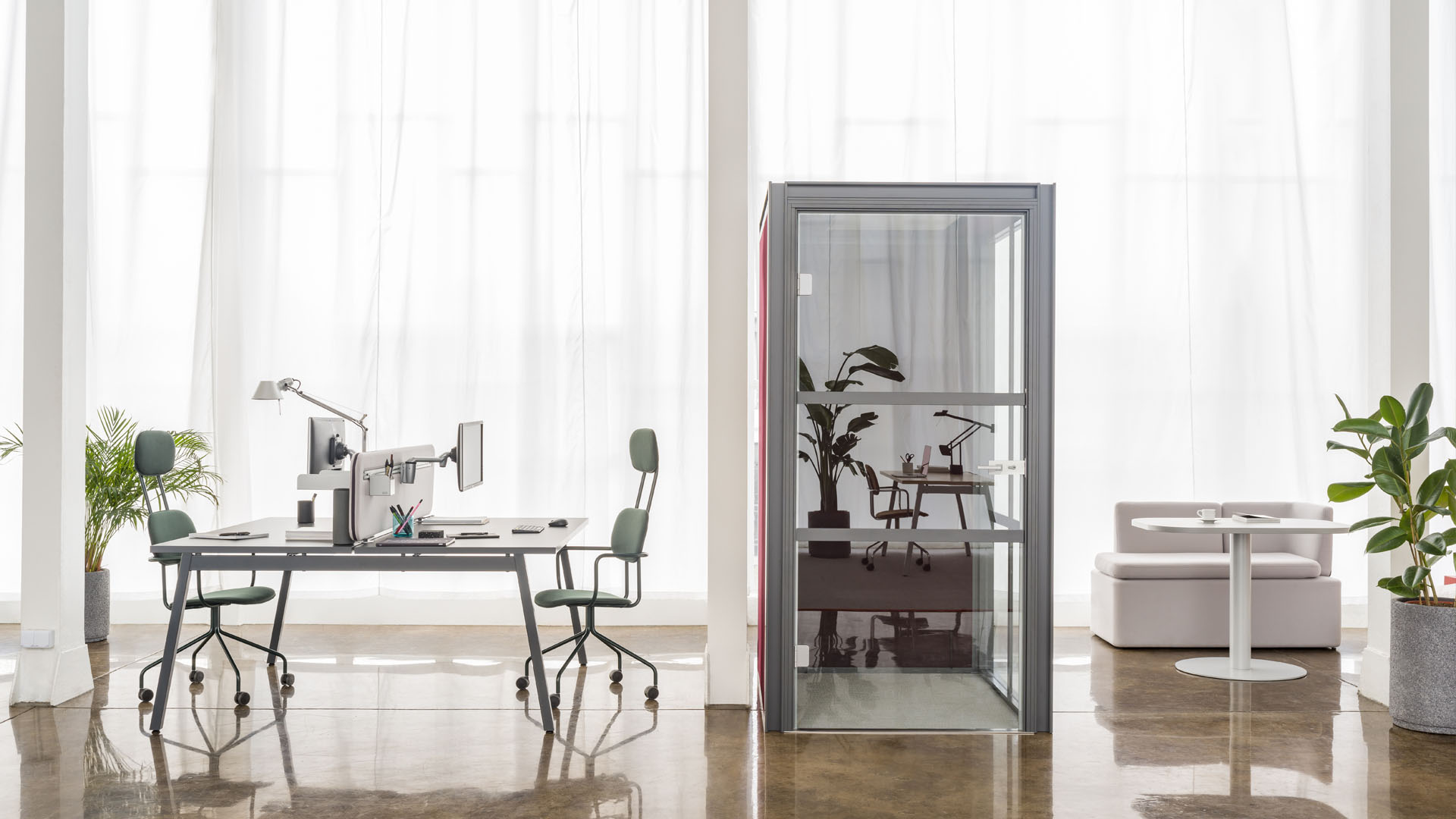

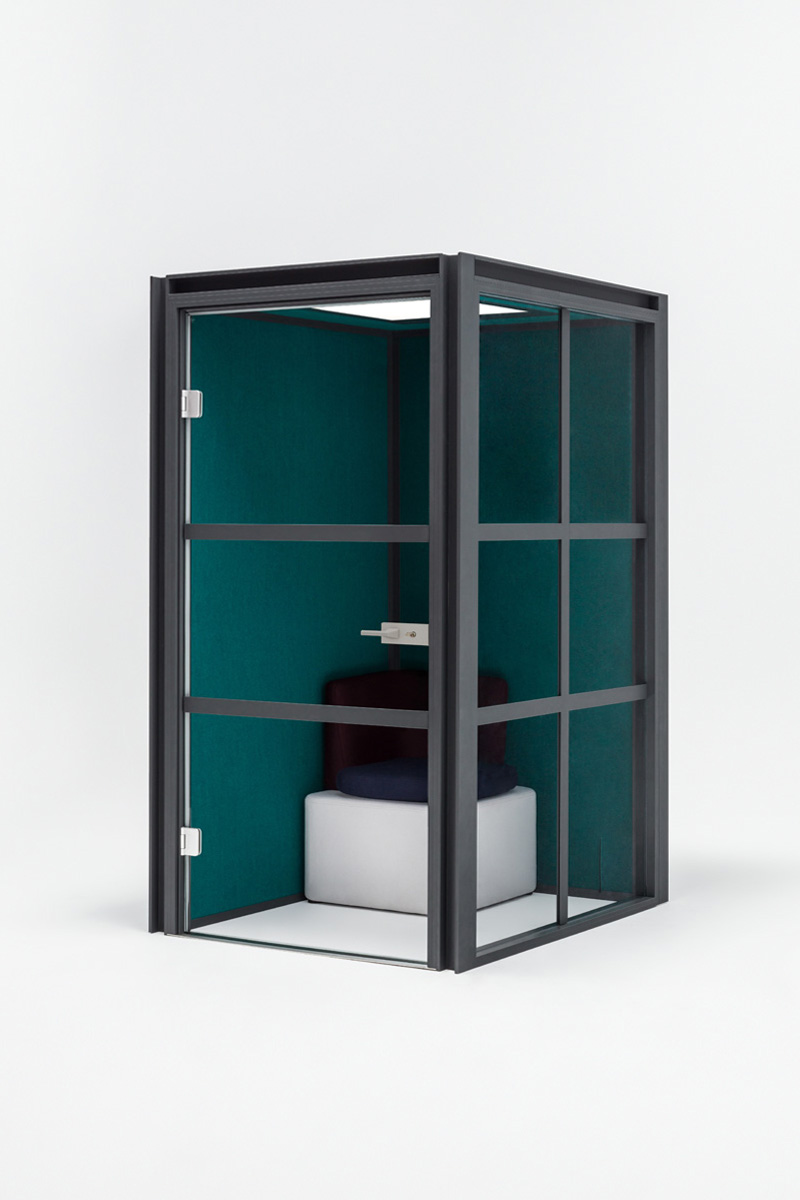

Inspired by industrial architecture and industrial style- the Hako acoustic pods support the acoustics of contemporary office spaces. In Japanese it means “a box” and refers to a traditional Japanese check that underlines the modular construction. Its successful design allowed MDD to eliminate the floor without losing the stability of the booth. It facilities cable management and makes it easier to move the booth. Hako is characterised by a wide range of possibilities: an office phone booth or a modular construction that also becomes an architectural structure. Lighting and silent fan boost the comfort of work. The acoustic pods ensure privacy of conversations and meetings; effectively create work zones without the need of putting up permanent walls.

Technische gegevens

Technische specificatie

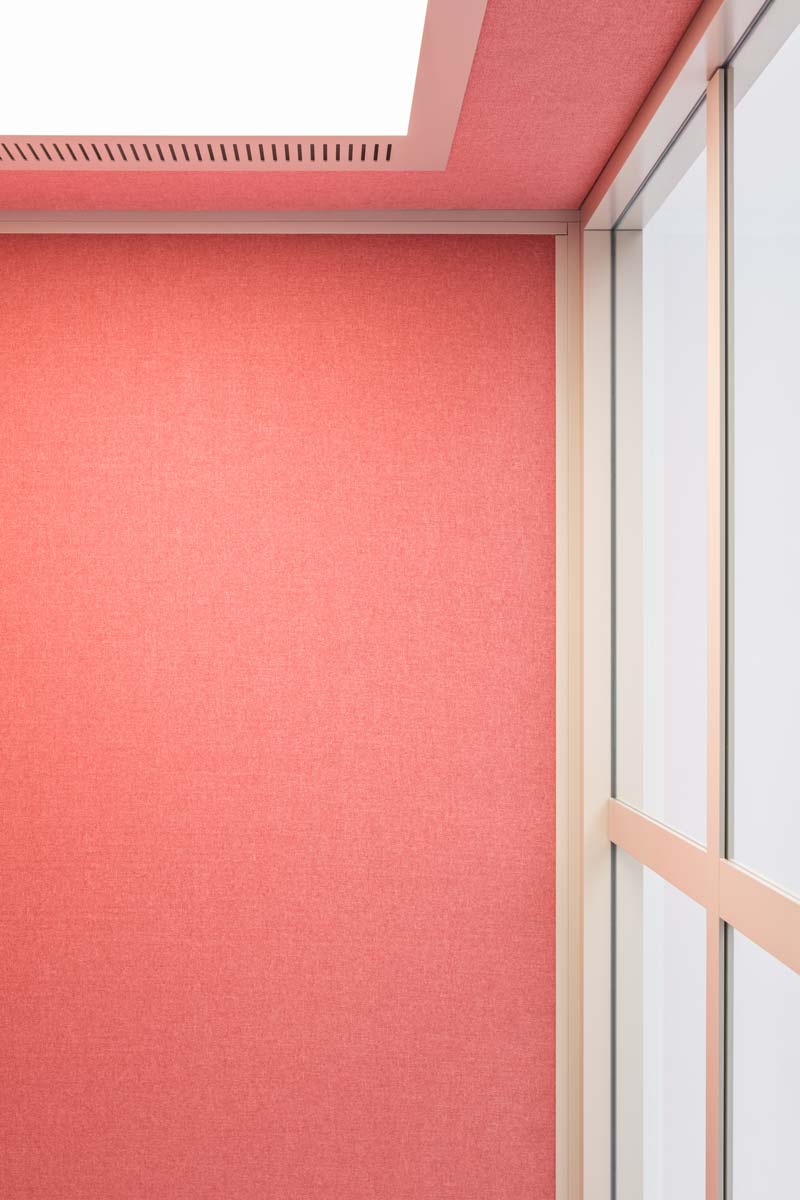

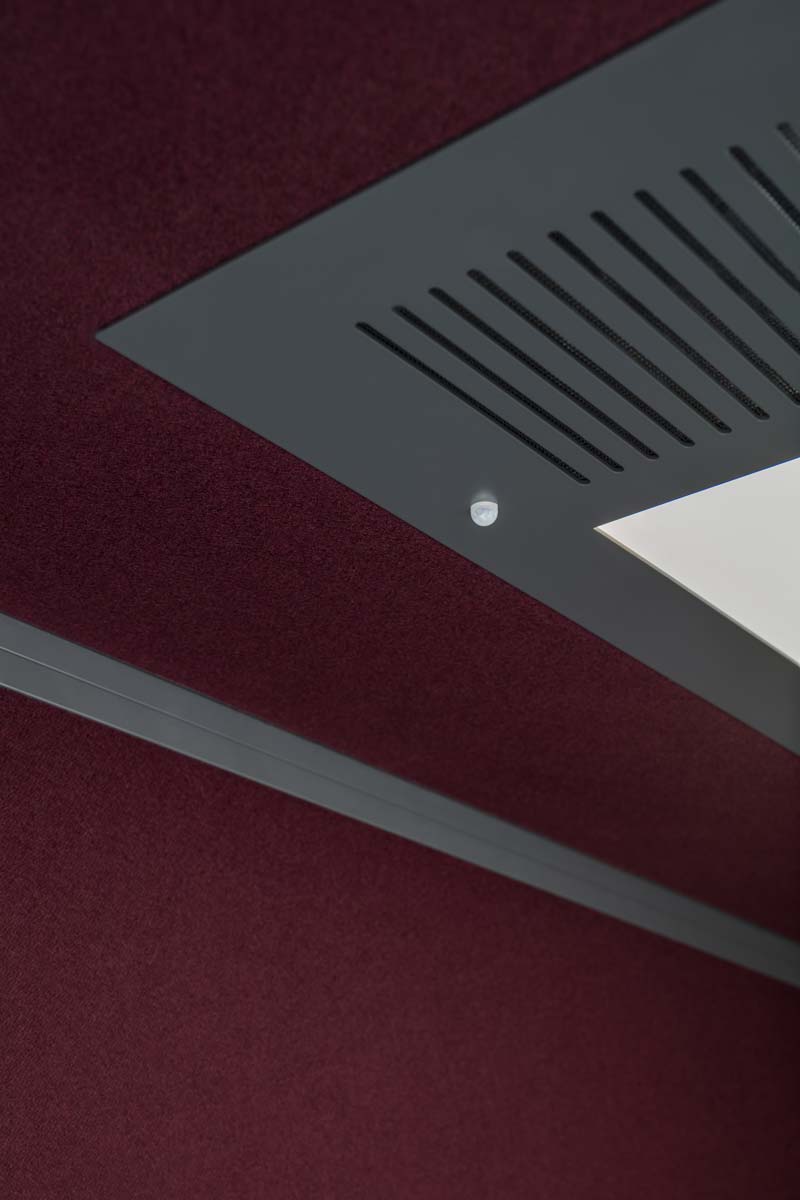

Ceiling - upholstered, equipped with lighting and exhaust fans;
Upholstered wall - full, 75 mm thick, upholstered on both sides acoustic filling with sound isolation properties;
Columns - 75x75 mm, powder coated;
Shelf (option with extra charge) - 12 mm MDF, colour: black, can be mounted only to upholstered walls with 1000 mm width;
Aluminium strips - 5 mm thick;
Glass wall - toughened glass, 6 mm thick;

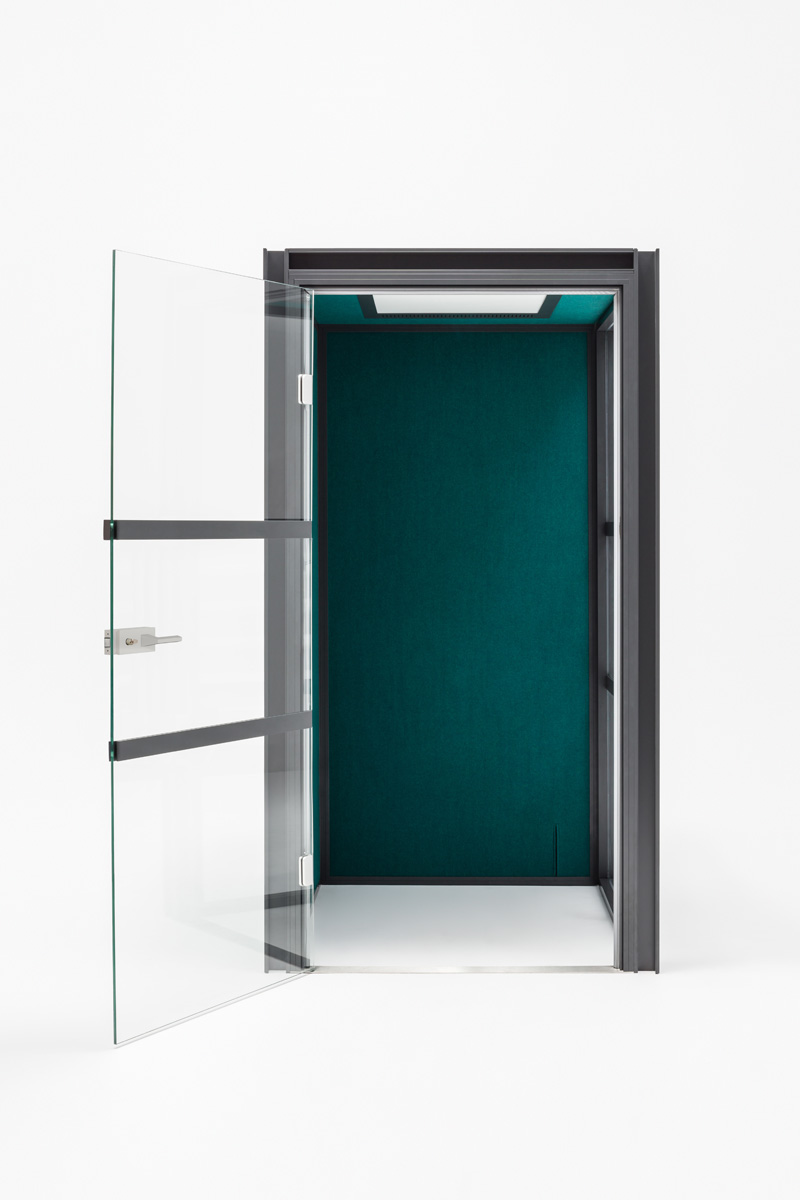

Glass door - toughened glass, 8 mm thick, equipped with hinges, handle with a lock and gaskets system improving the acoustic properties of the booth;
Floor - option with additional fee - melamine plate + acoustic covering (21mm thickness), colour: graphite;
Fans: in-take (near the floor) - can be turned on and off, with adjustable fan speed. The exact location can be found on the shop drawings; exhaust - integrated with the ceiling lamp;
Mediabox - 2x230V + 1xUSB + 1xUSB type C;
Additional information: multi-layer walls structure ensure ideal acoustic isolation; the remarkable acoustic parameters have been confirmed through a research done by an acreddited laboratory in accordance with ISO 23351-1:2020 acquiring a certificate with the DS,A result of 25,7 dB; air function – fans work for additional 5 minutes after leaving the booth; maximum air-flow: 260 m3/h; volume 27,5 dB (A); LED SLIM panel, 60x60 cm, external power supply; 40W, 3200lm, 4000k, 220-240V AC, 120’, RA>80, PF>0.9, white, STANDARD LINE;
Dimensions: 1400 x 1350 mm, h. 2341 mm
Made in Poland, EU

Productkenmerken

Door and walls– tempered glass, fitted with hinges and gasket system that improve sound insulation

Metal profiles – ensure easy cable management

Walls – upholstered, filled with material absorbing sound

No floor – uses the existing floor thanks to which fits into a room perfectly, increases mobility

Lighting

Quiet ventilation system

Ecologie

Materiaalsamenstelling inclusief verpakking

MFC: 76%
Wood: 5%
Steel: 5%
Glass: 8%
Plastic: 3%
Fabric: 2%
Polyurethane foam: 2%

*average values for a representative of the group.

Gerecyclede inhoud

Recyclebaarheid

Recycling: 12%
Downcycling: 88%

*average values for a representative of the group.

Verpakking

Structural elements of the booths are powder-coated to reduce the emission of Volatile Organic Compounds.
Profiles of the Hako booths are made of aluminum and can be easily recycled.

Montagehandleidingen

HK01

FAQ

What are the acoustic properties of the Hako booth?

The booth reduces the volume of the speech by 25.7 dB.

Does the Hako booth have a certificate of acoustics?

Yes, Hako has a certificate of acoustics, compliant with the ISO 23351-1:2020 standard.

What elements does the Hako booth consist of?

The booth is made of pre-assembled walls, connecting profiles and doors.

What elements does the wall of the Hako booth consist of?

The booth’s construction is based on a steel frame. Both glass and upholstered walls are fitted into it. The upholstered walls are filled with insulating material.

What are the features of the booth’s ventilation system?

The air extraction fans are located in the ceiling (integrated with the lamp). The supply fans are located in the walls.

What material is used for the metal structure?

The structure is made of powder-coated aluminium.

Is it possible to choose non-standard colours for the metal structure of the booth?

As standard, the structure of the Hako booth can have one of the three colours: anthracite, light grey or red. With an additional charge, it is possible to choose any other colour for the metal profiles.

Does the booth have to have a floor?

In the standard version, the Hako booth does not have a floor. It is possible to select a floor as an option with an additional charge – recommended if the floor in the planned location of the booth is hard.

Where inside the booth is the light switch located?

In the one-person booth, the light is activated by a motion sensor, that switches on the light and ventilation. In the multi-person booths, the light switch is located near the entrance.

How many people are required to assemble the booth?

Two people are needed to assemble the booth.

How long does it take to assemble the booth?

The assembly takes approximately 2 hours.

What is needed to assemble the booth?

A ladder will be needed to assemble the booth.

Does the room, where the booth will be assembled, have to be significantly higher?

No, the walls of the booth are mounted from the sides, there is no need to slide them from above.

What to prepare for the assembly of the booth?

A ladder will be needed to assembly the booth.

Does the room, where the pod is going to be assemble, have to be significantly higher?

No, the walls are mounted from the side, there is no need to slide them from the top.

Does the booth have to be mounted to the floor?

No. This way the booth does not damage the floor in the room.

Is an electrician required to connect the booth to electricity?

No, it is enough to simply plug the booth into a standard socket.

Where in the booth is the electrical connection located?

The electrical connection is located in the ceiling. The booth can be connected by pulling the cables from the floor to the ceiling, or by pulling the cable from the floor or the walls, using a zipped grommet located in the bottom part of each upholstered wall. The grommet allows the cables to be pulled through the wall and to access the opening C-shaped cut-out.

Is the booth adapted to the 110V voltage in the USA?

Yes, the booth automatically adapts to the voltage.

Can an already assembled booth be taken apart and reassembled elsewhere?

Yes, it is possible to take the booth apart and assemble it repeatedly.

How are the Hako booths packed?

The Hako booths are packaged in secure crates and their individual elements are fixed on wooden hangers. All panels are carefully secured with foil.

Are the Hako booths shipped in one piece?

No, the booths are not transported in one piece, but rather in parts that can be easily moved.

What are the dimensions and weight of the crate?

Dimensions: 2250 x 1479 x 870 mm, weight: Hako – 1 package – 360 kg, Hako Meeting – 1 package – 503 kg, Hako Meeting XL – 2 package – 855 kg. Depending on the configuration, Hako booths are shipped in 1 (HK01, HK02, HK04), w 2 (HK03, HK05) or 3 (HK06, HK07) crates.
