4-persoons geluidsdichte cabine Coda

Name: 4-persoons geluidsdichte cabine Coda
Brand: .mdd
SKU: CODA_ACOUSTIC_BOOTH_4PEOPLE
Availability: InStock

0%
initializing...

Kleur disclaimer

Downloads voor de geselecteerde configuratie

3D-modellen downloaden van het collectieite

downloaden

toon dimensies

Screenshot

toon het interieur

animatie: bewegende grafische voorstelling vaak gebruikt in meubelconfiguratoren

gepersonaliseerde afmetingen

Geschat productgewicht: kg

Coda

CD03

Stand voor individuele aanpassing

W: 2150 D: 1400

H: 2270 mm

CD02

Stand met meubels

W: 2150 D: 1400

H: 2270 mm

Kleur van de binnenmuren

NB-68303 Olijfgroen

toon filters

afrondingsbeschrijving

Runner

Skład: 100% poliester

Gramatura: 364/m2*510g/lm

Trudnozapalność: BS EN 1021 - 1:2006 (papieros), BS EN 1021 - 2:2006 California Bulletin CAL 117-E-Class 1

Venice

Medley +404€ netto

Atlantic +404€ netto

Mica +404€ netto

Go Check +404€ netto

Charles +404€ netto

Chopper +404€ netto

Synergy +878€ netto

Tessa +878€ netto

Oceanic +878€ netto

Quest +878€ netto

Grain +878€ netto

Kleur van de binnenmuren - Tkanina klienta

klantstof +878€ netto

Kleur van de binnenmuren - Go Check Plus

Go Check Plus +878€ netto

Nobel +1256€ netto

VC-0211 Zwart

VC-0230 Antraciet

VC-0231 Beige

VC-0220 Lichtgrijs

VC-0225 Donkergrijs

VC-0232 Aluminium

VC-0233 Donker beige

VC-0234 Hemelsblauw

VC-0218 Baksteenrood

VC-0235 Bourgondië

VC-0236 Donkergroen

VC-0219 Olijf

VC-0237 Lichtgeel

VC-0238 Geel

VC-0239 Donkerblauw

Plafondkleur

G-60084 Donker grafiet

Kleur van buitenmuren

Beige halfmat RAL 0608005

Wit halfmat RAL 9010

Donkergrijs halfmat RAL 7042

Donkergroen halfmat RAL 6012

Baksteenrood halfmat RAL 0404040

Beige halfmat RAL 0608005

Type van achterwand

Beklede achterwanden

Type van achterwand - Glazen achterwanden

Glazen achterwanden +288€ netto

Type van stekker

EU stekker

UK stekker

Schuko stekker

US stekker

Zwitserse stekker

Coda

Kleur van de binnenmuren

Venice

Plafondkleur

Kleur van buitenmuren

Type van achterwand

Type van stekker

€ incl btw

12 200 € exclusief btw

er heeft zich een interne fout voorgedaan probeer het alstublieft opnieuw indien de fout aanhoudt neem dan contact op met onze klantenservice

levertijd 10-11 weken Product wordt geproduceerd op aanvraag.

Heeft u vragen over dit product?

Maak gebruik van onze virtuele assistent

Chat met een virtuele adviseur

Door de chat te gebruiken, stem je in met het opslaan van de gegevens die in het gesprek worden verstrekt. De beheerder van persoonlijke gegevens is .mdd Sp. z o.o. Meer informatie vind je in ons privacybeleid.

Waar kan ik mee helpen?

toon filters

afrondingsbeschrijving

Runner

Skład: 100% poliester

Gramatura: 364/m2*510g/lm

Trudnozapalność: BS EN 1021 - 1:2006 (papieros), BS EN 1021 - 2:2006 California Bulletin CAL 117-E-Class 1

laden

Selecteer een bestaande aanbieding of maak een nieuwe aan

Kies een symbool

4-persoons geluidsdichte cabine Coda - CD02 - productafmetingen

4-persoons geluidsdichte cabine Coda - CD03 - productafmetingen

Productgewicht

1076.1 kg

Afmetingen van het pakket

L 2150 x W 1400 x H 2270 mm

Alle afmetingen zijn in mm opgegeven

Productgewicht

990 kg

Afmetingen van het pakket

L 2150 x W 1400 x H 2270 mm

Alle afmetingen zijn in mm opgegeven

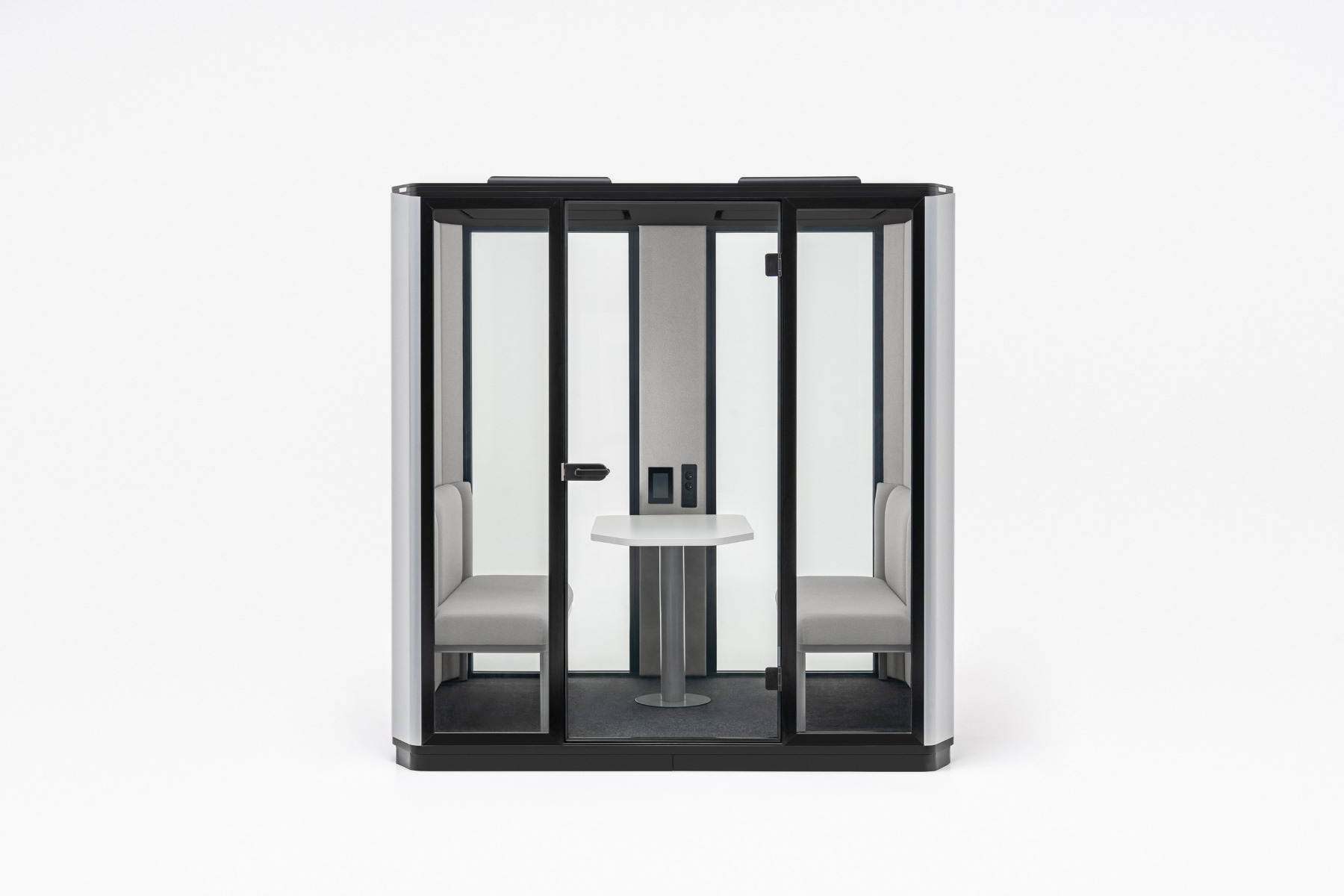

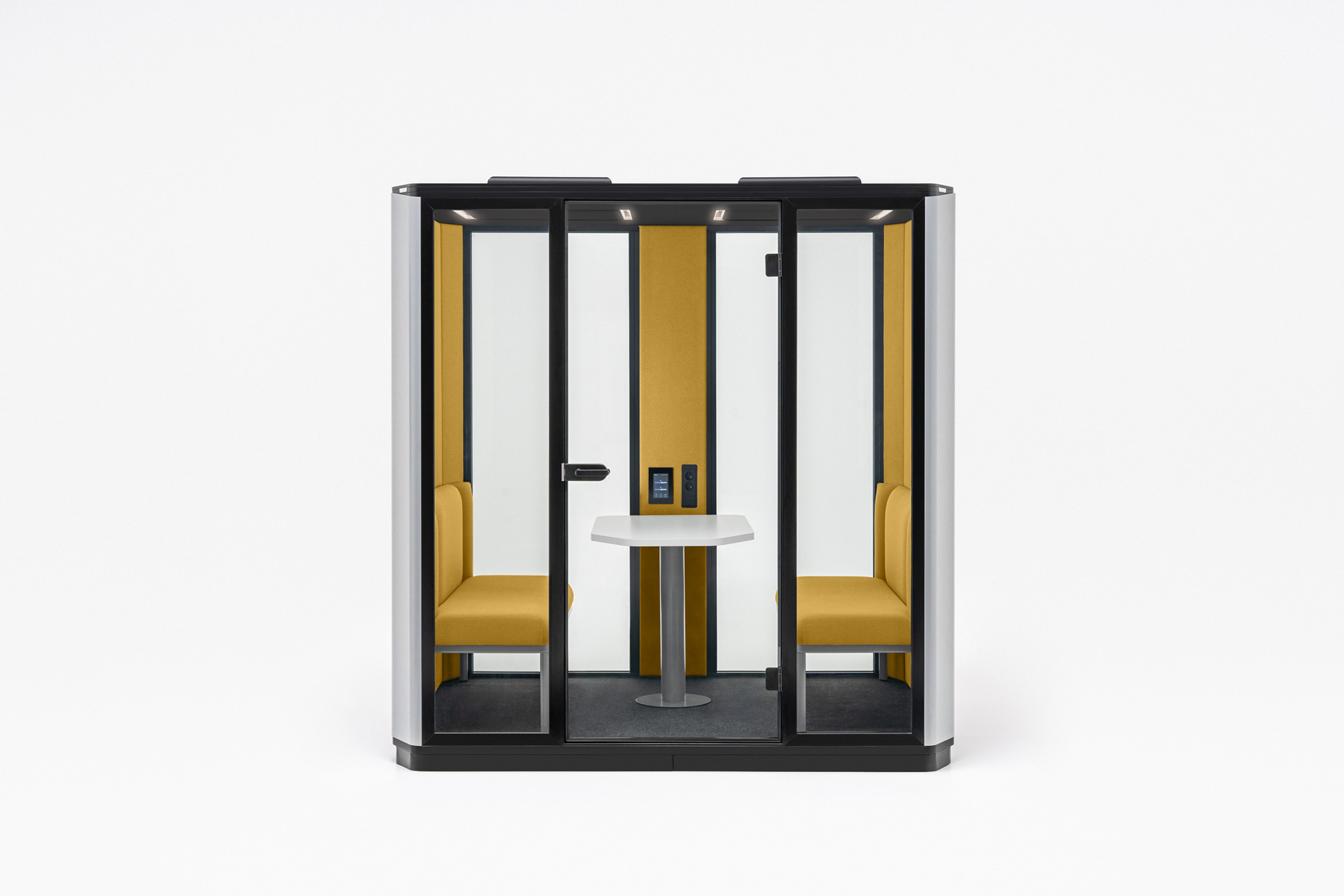

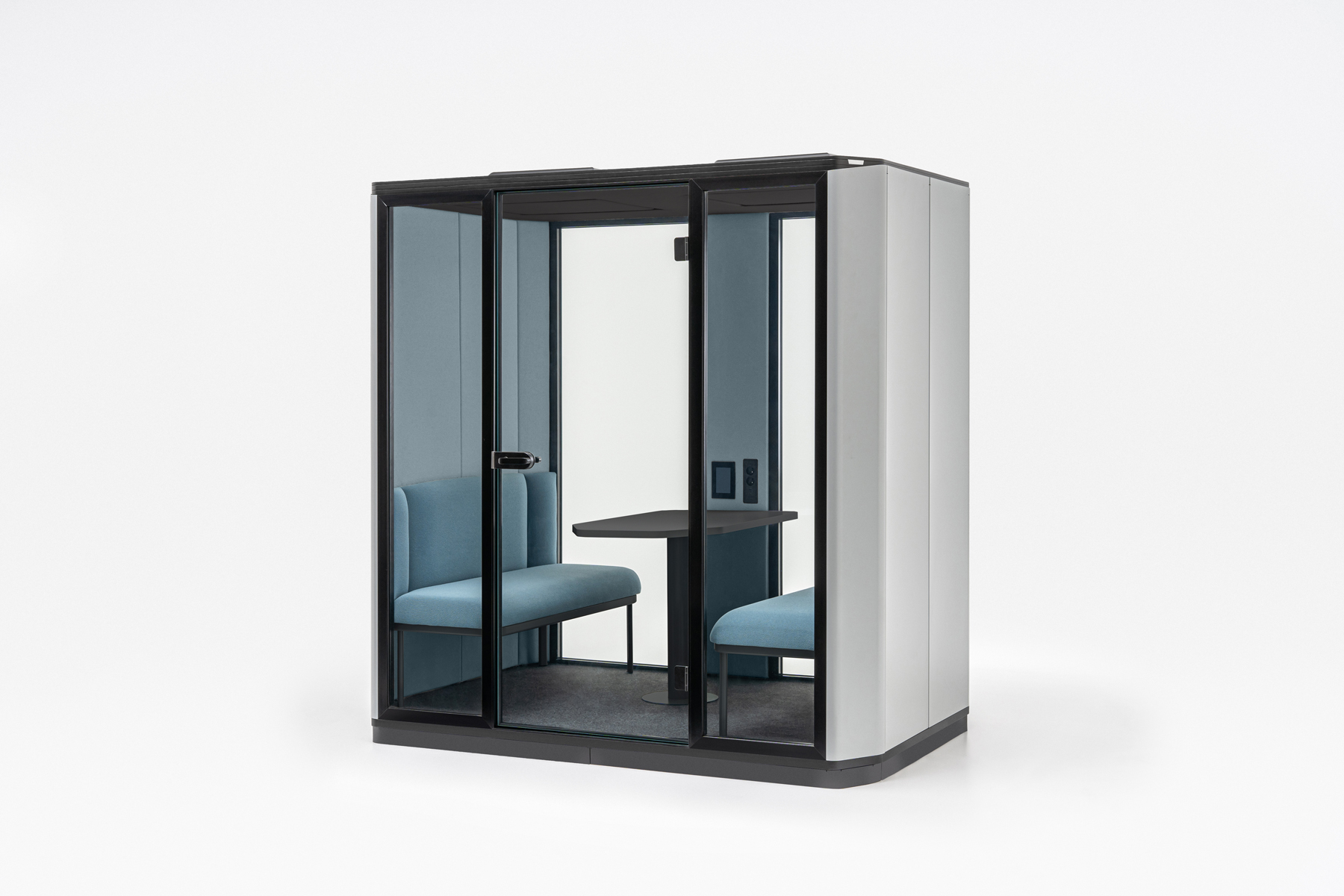

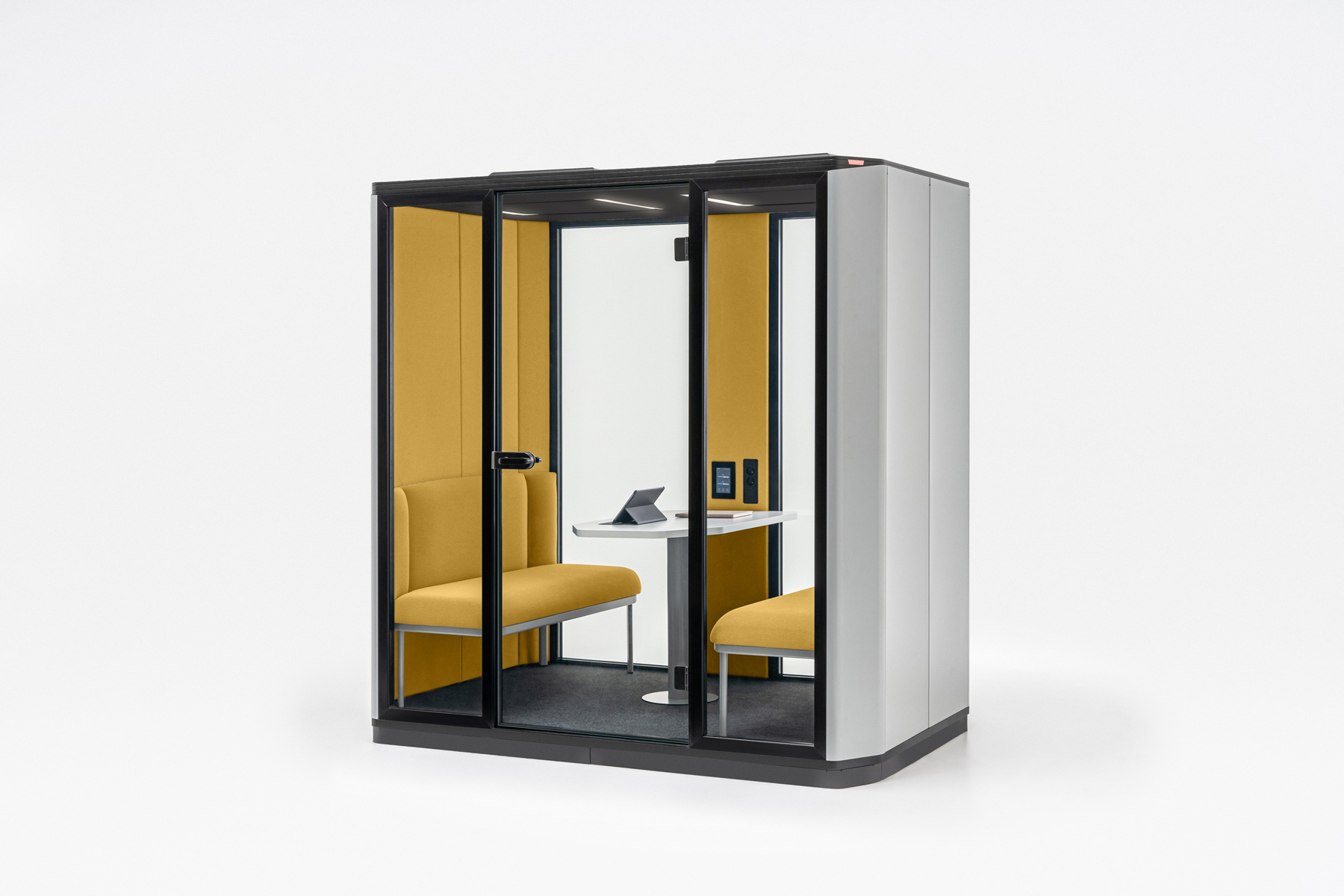

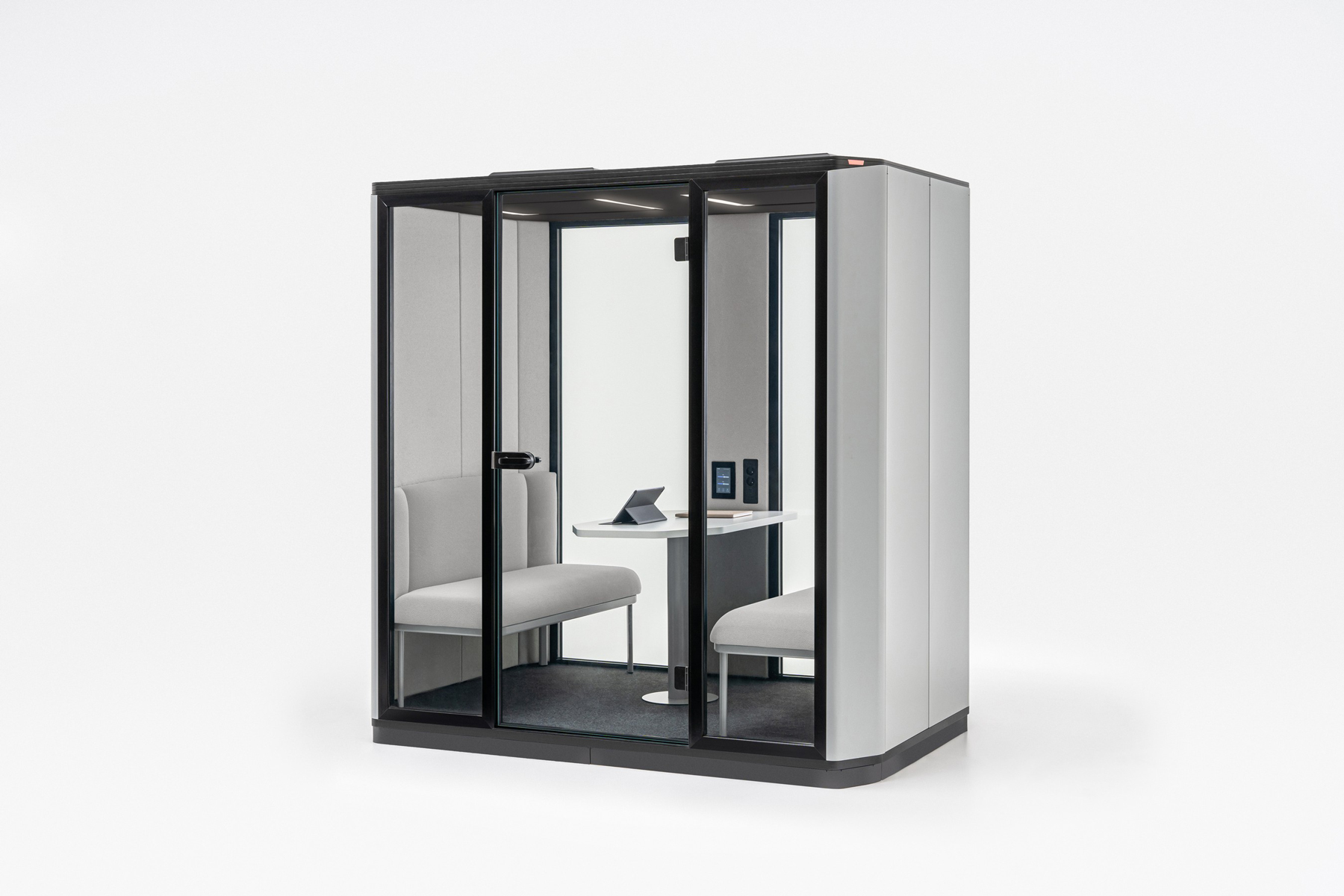

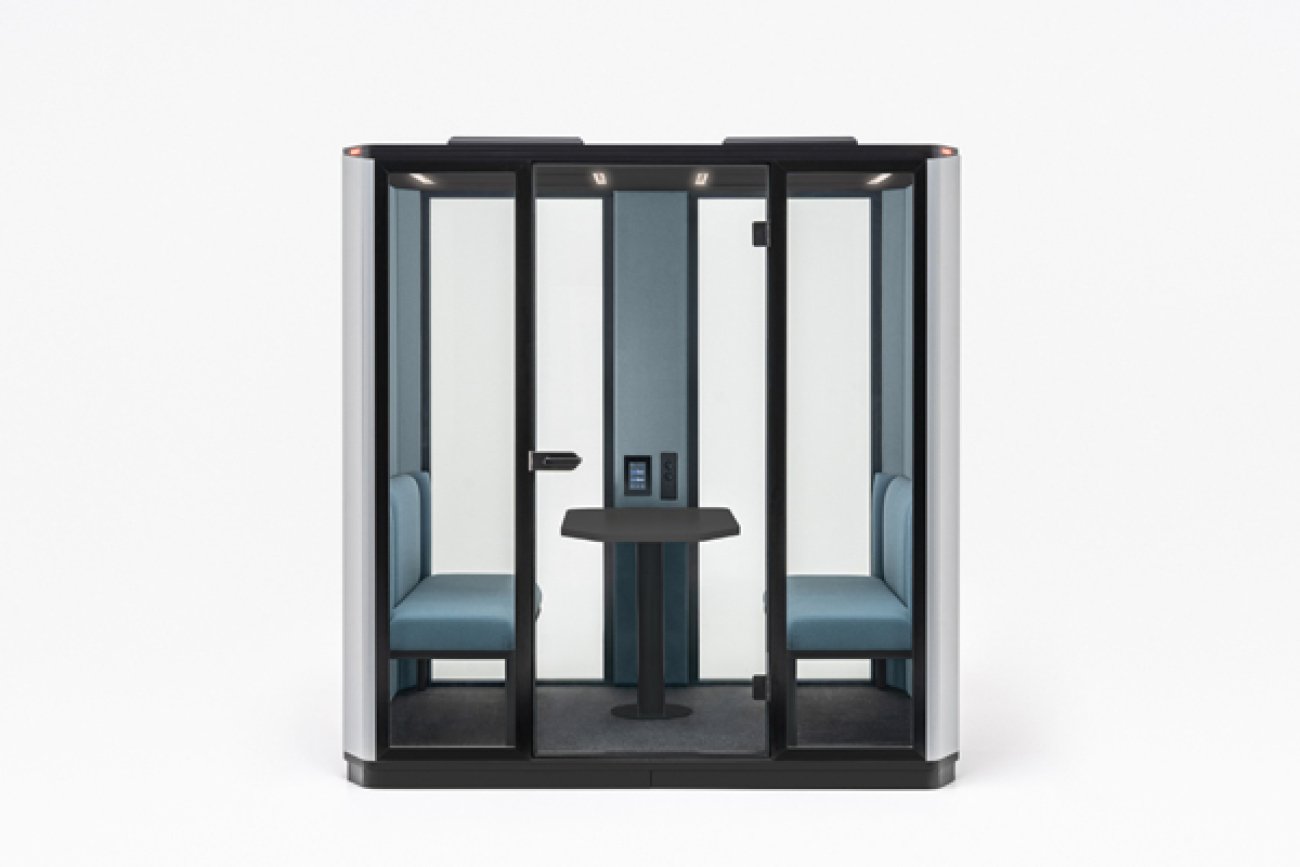

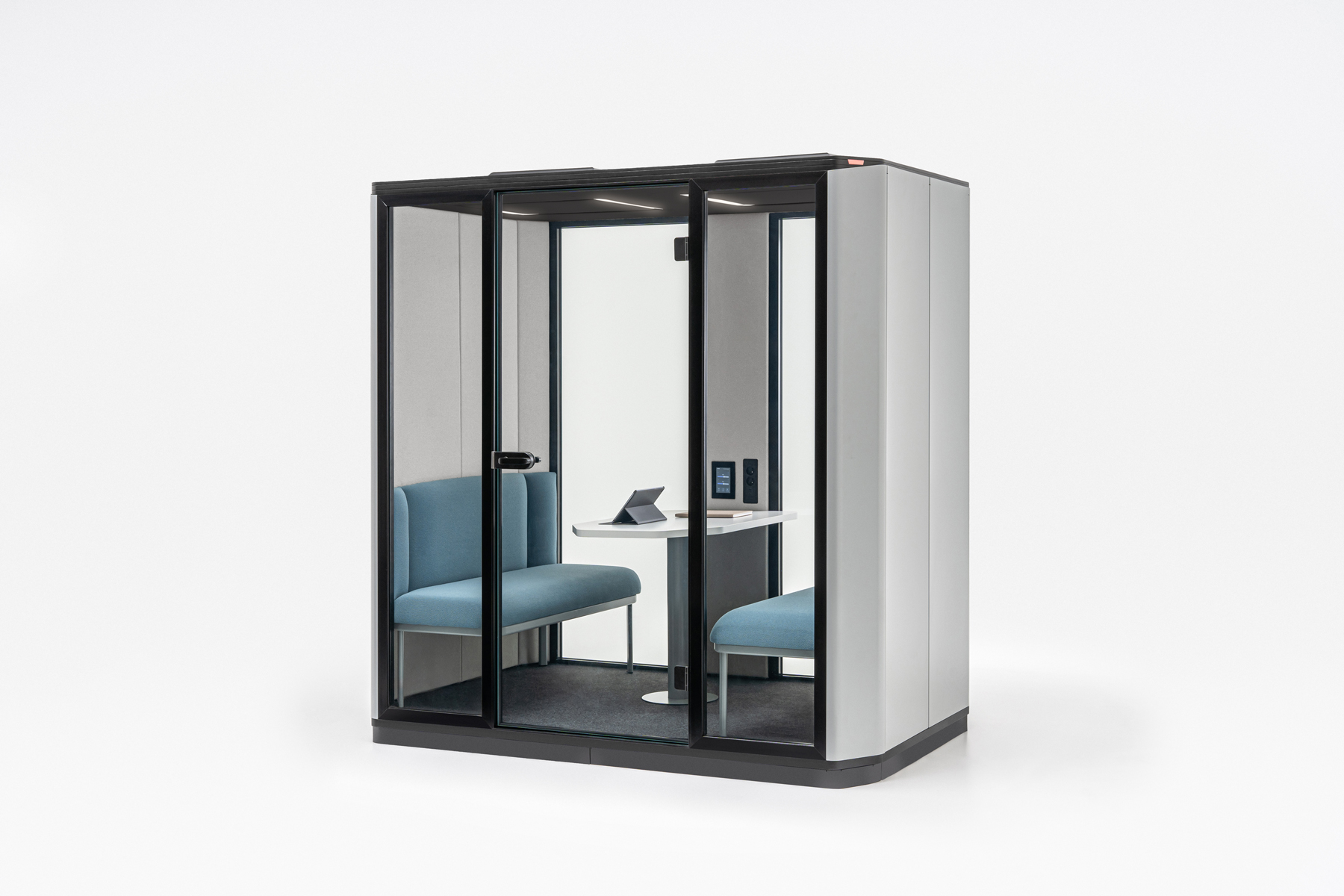

4-Persoons Geluidsdichte Cabine Coda

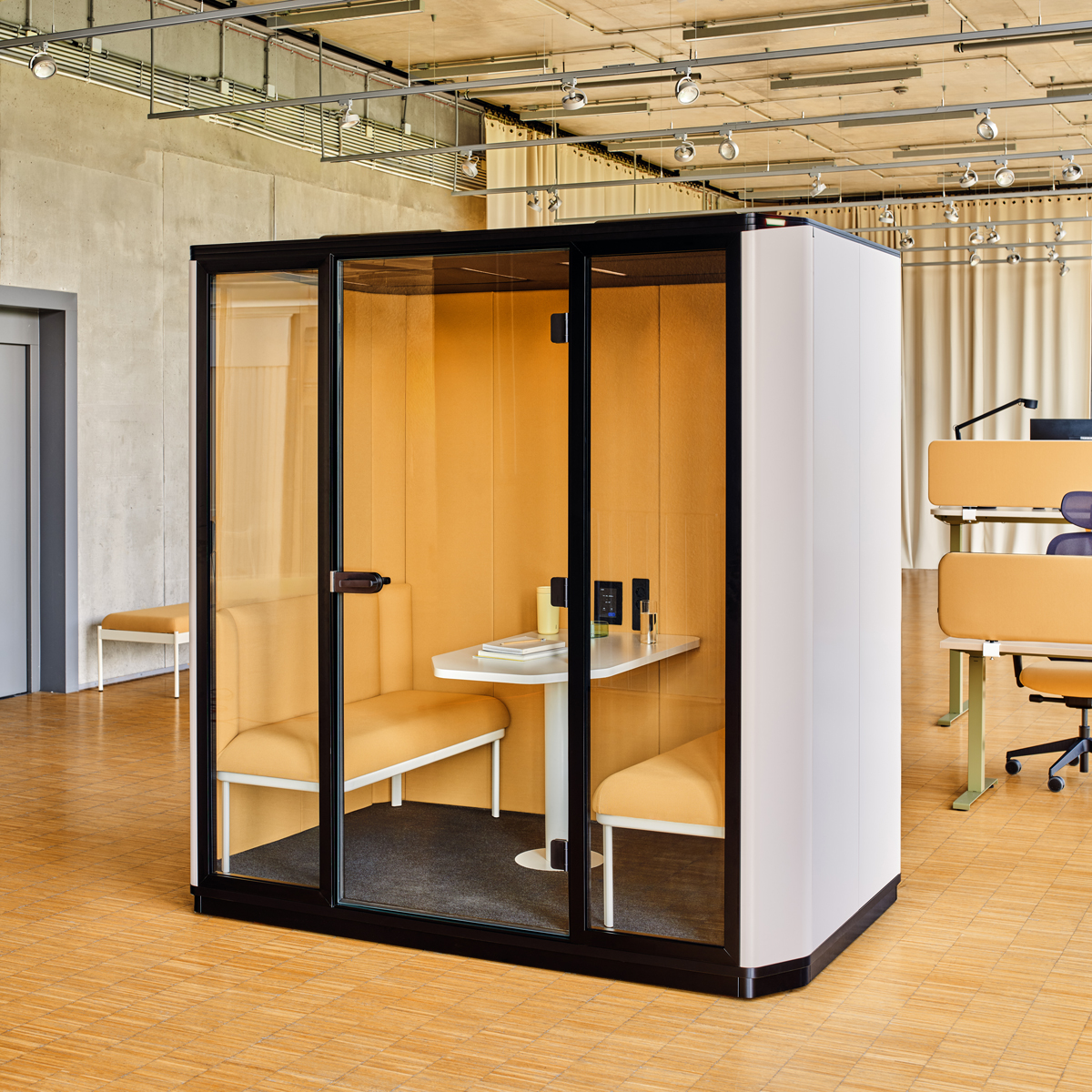

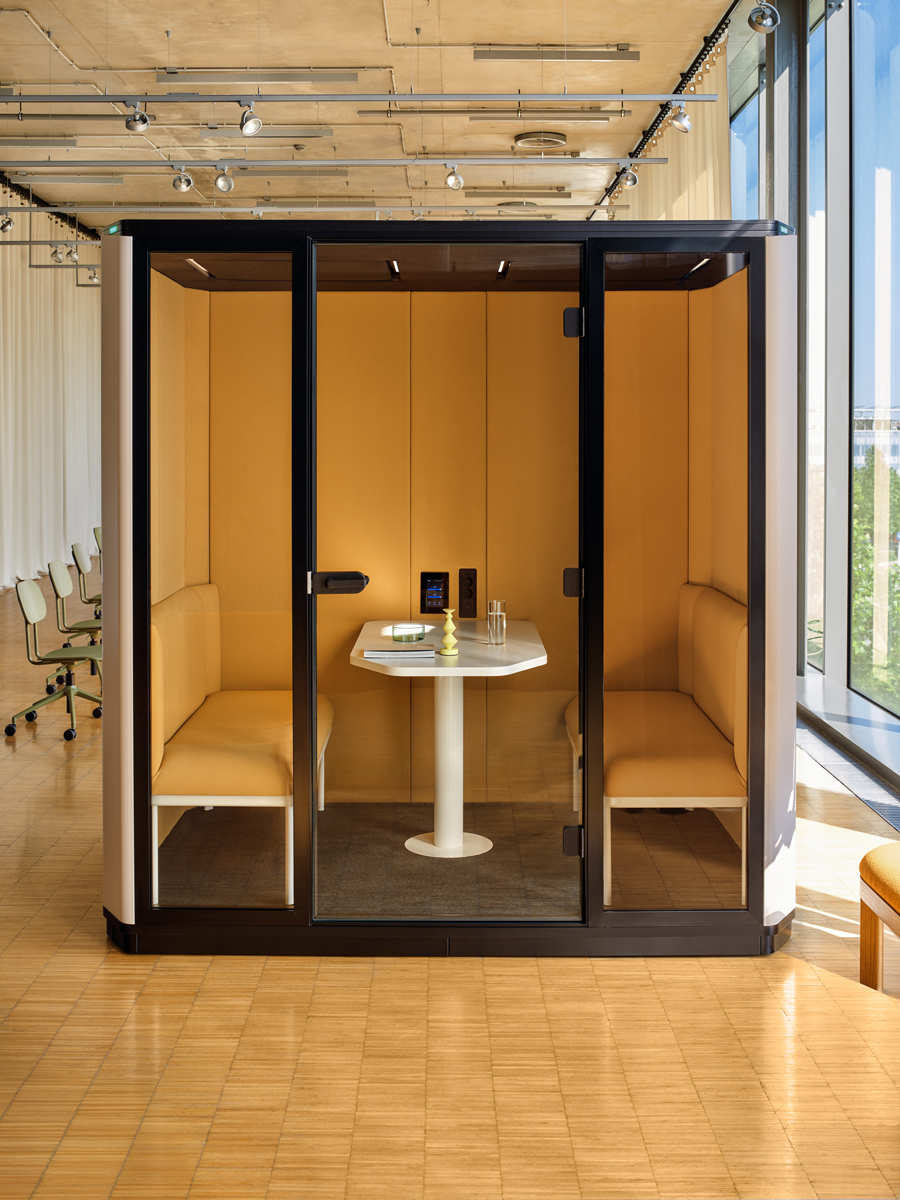

Coda booth is a functional solution for modern offices and public spaces. Designed for groups of four, it provides a comfortable, quiet and private meeting and working zone, even in noisy open-space areas. It has all the benefits of its smaller counterpart and even more! Adjustable lighting and ventilation, quiet fans, occupancy indicator lights, acoustic glass windows and sound-absorbing fabrics are complemented by built-in seating and tables, providing a comfortable place to talk and work.

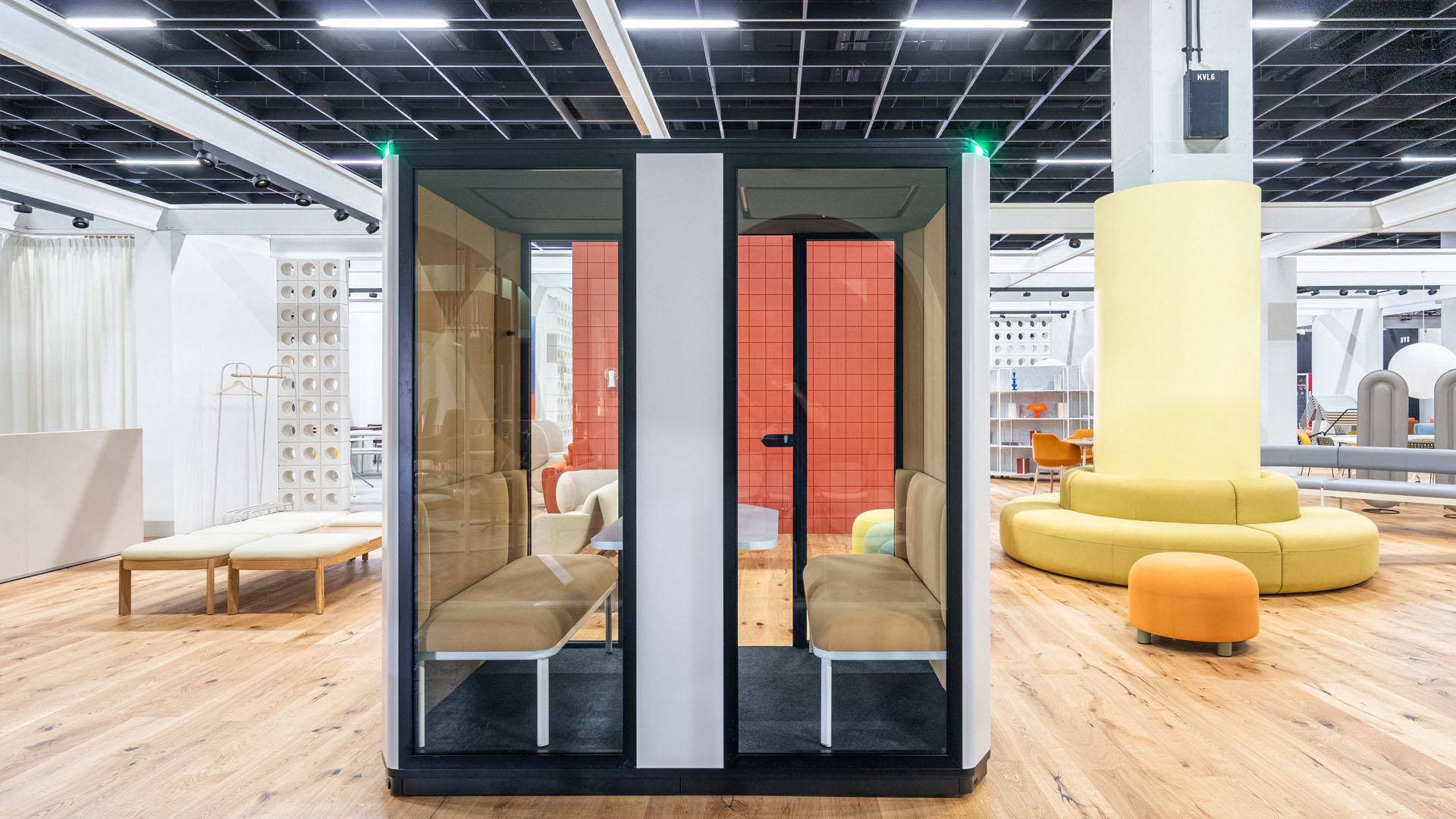

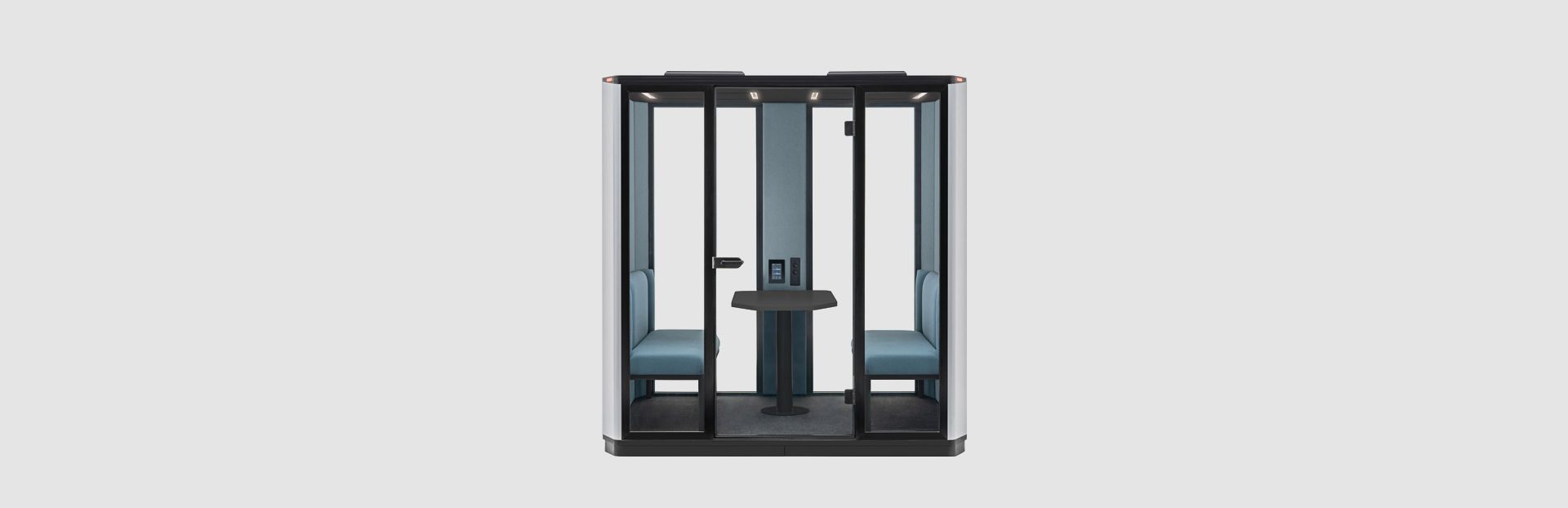

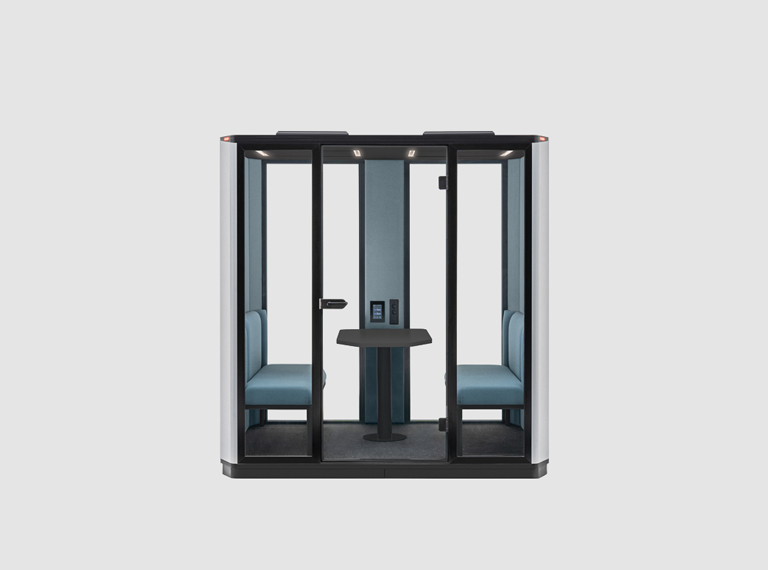

4-persoons geluidsdichte cabine Coda - lookbook

Technische gegevens

Technische specificatie

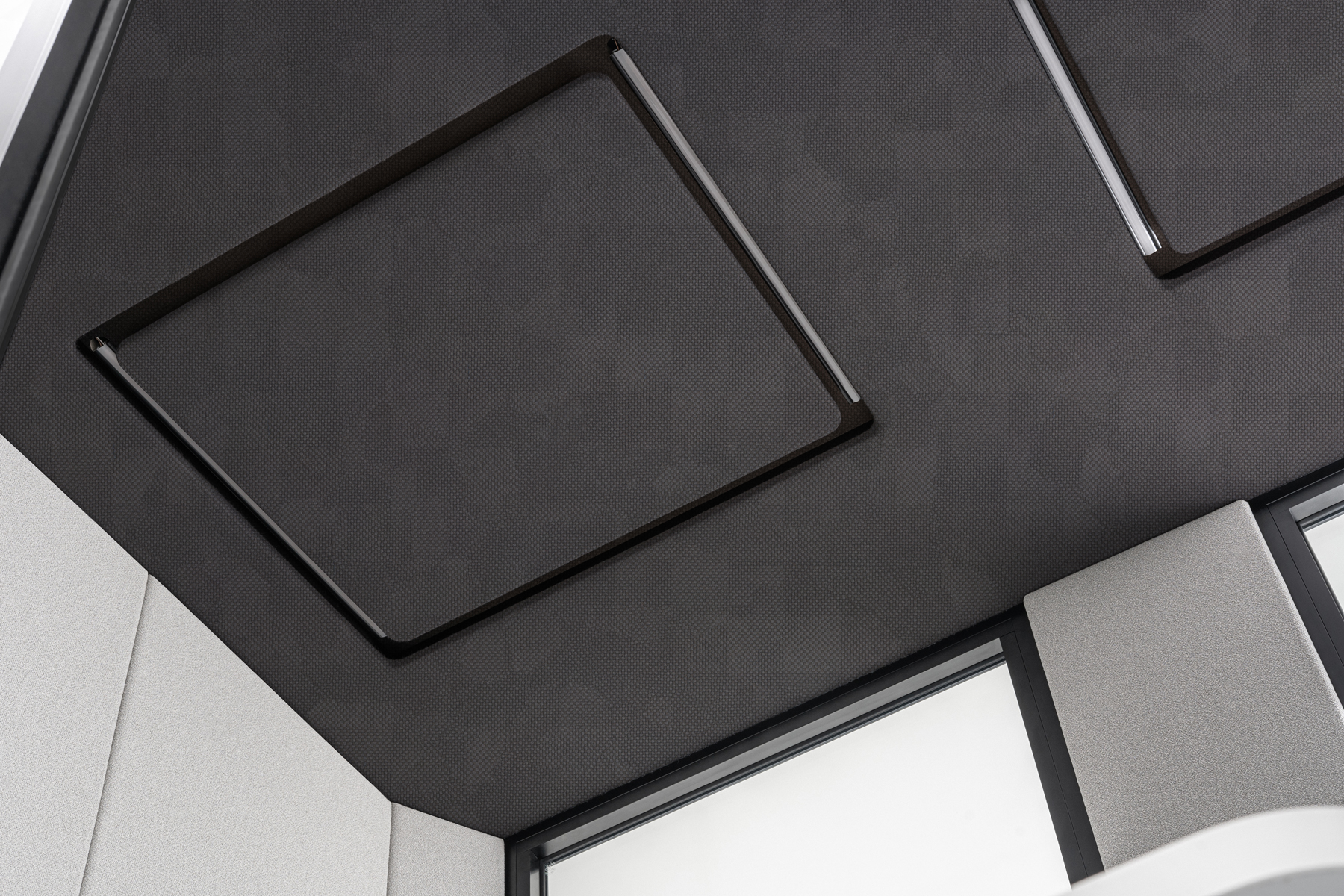

Ceiling - varnished MDF board, upholstered, colour: G-60084 - dark graphite; fitted with lighting and fan;
Ventilator - ceiling-mounted fan with airflow adjustment;
Signal lamps - 4 pcs.; red light - occupied, green light - free;
Motion sensor - activation of lighting, fans, touch panel and signal lamps;

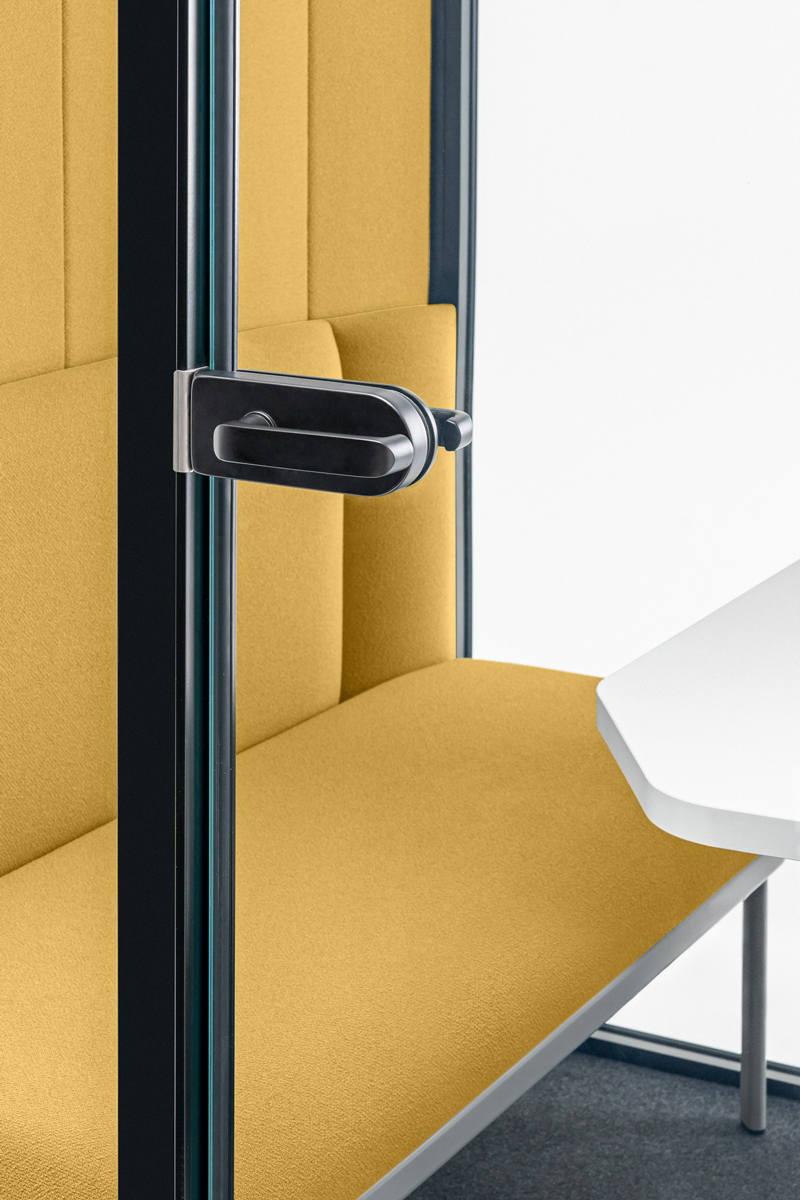

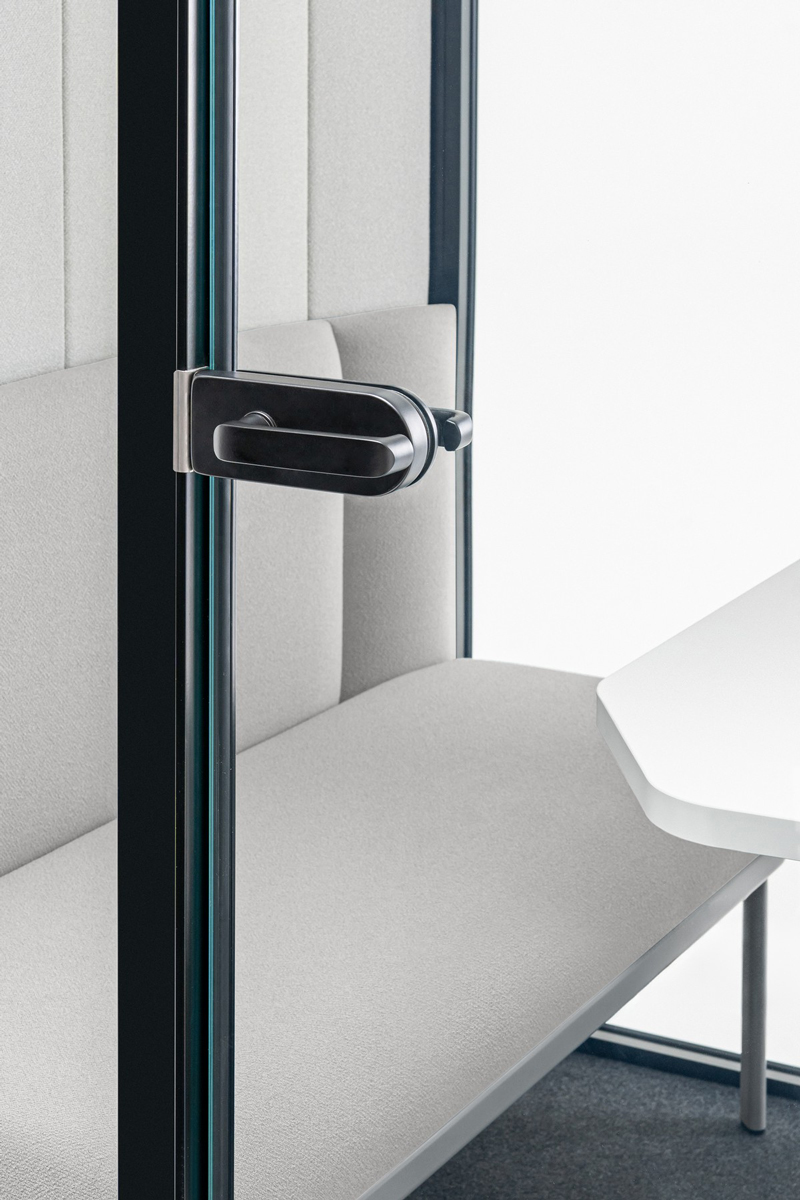

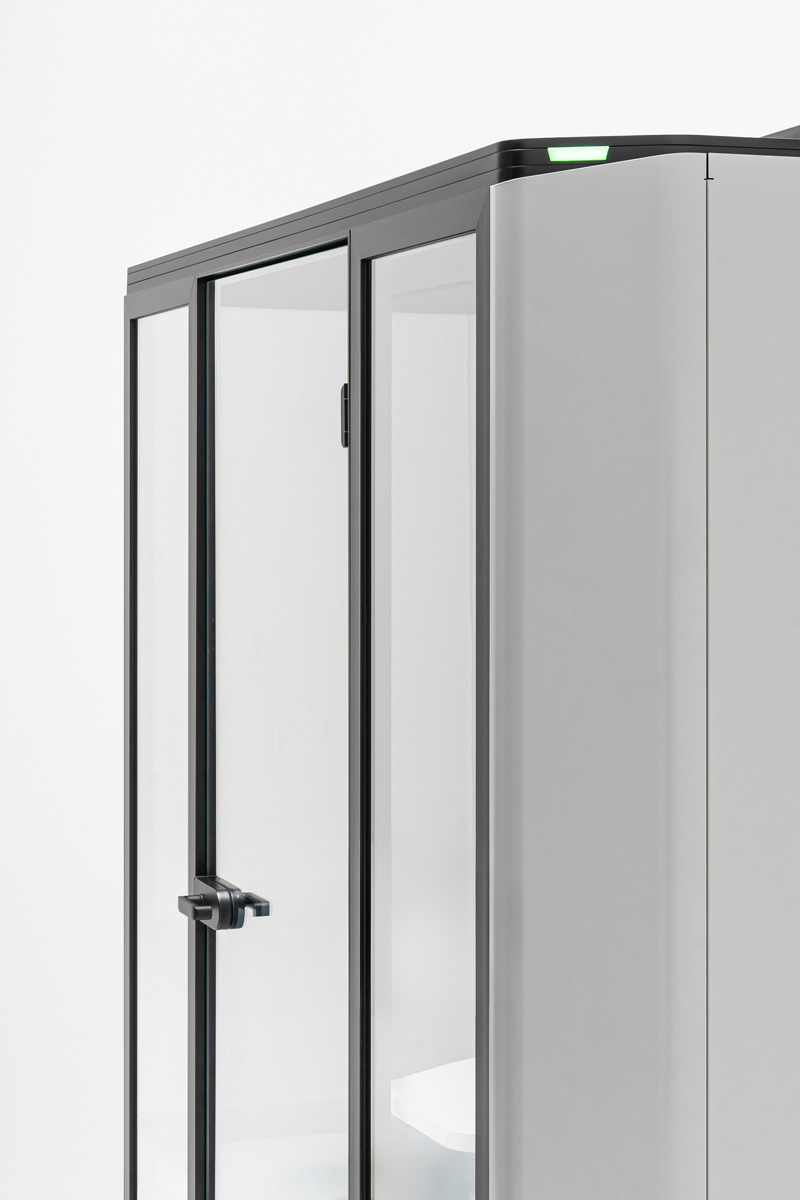

Glass doors - acoustic safe glass, thickness 10mm; equipment: hinges, handle and seal system;
Internal wall - filled with acoustic foam, upholstered;
Glass wall (option with extra charge) - acoustic safety glass, thickness 1 0mm, aluminum profile 52x45 mm;

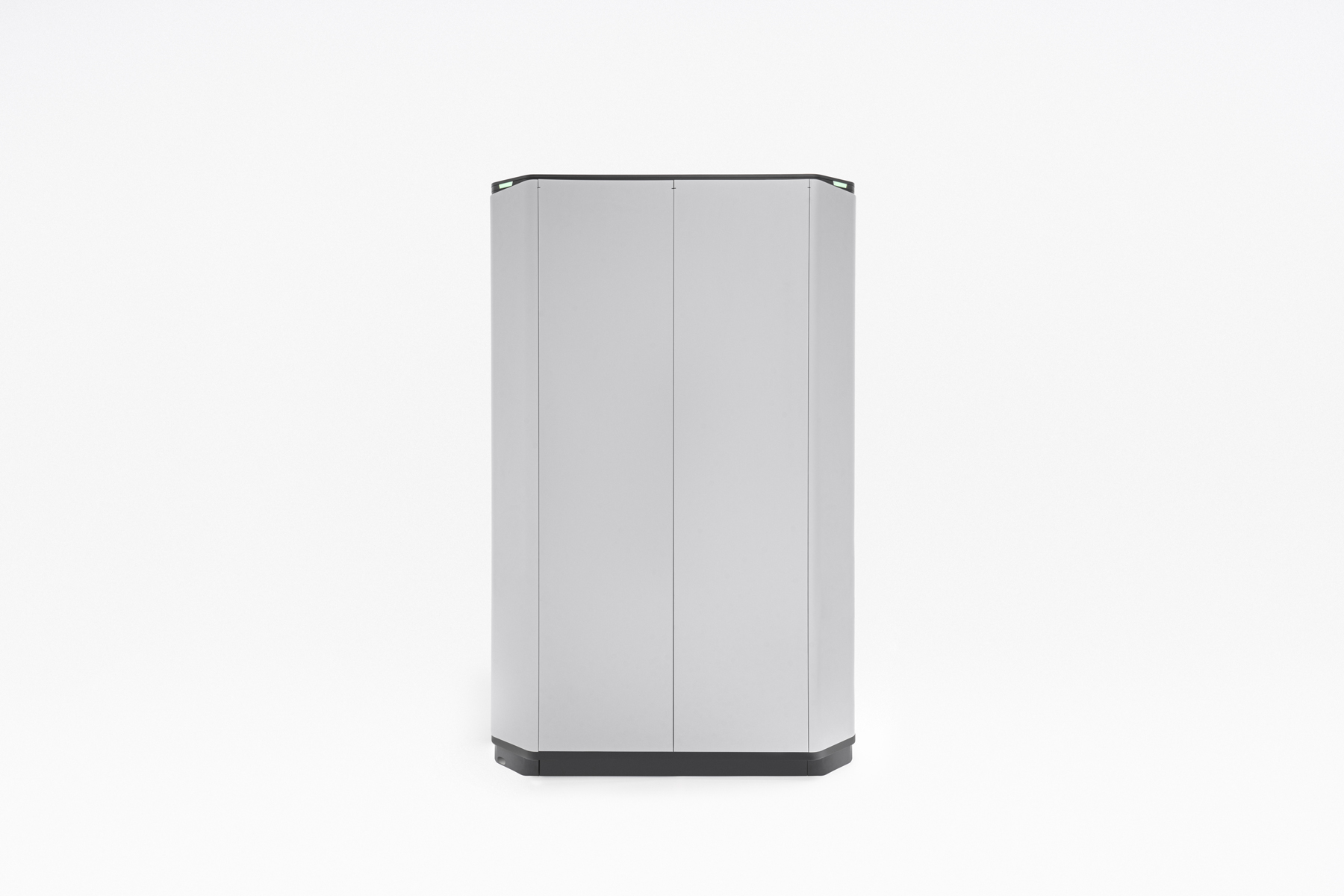

External wall - powder coated steel; 1 mm thick;
Control panel - regulation of lighting intensity and air flow;

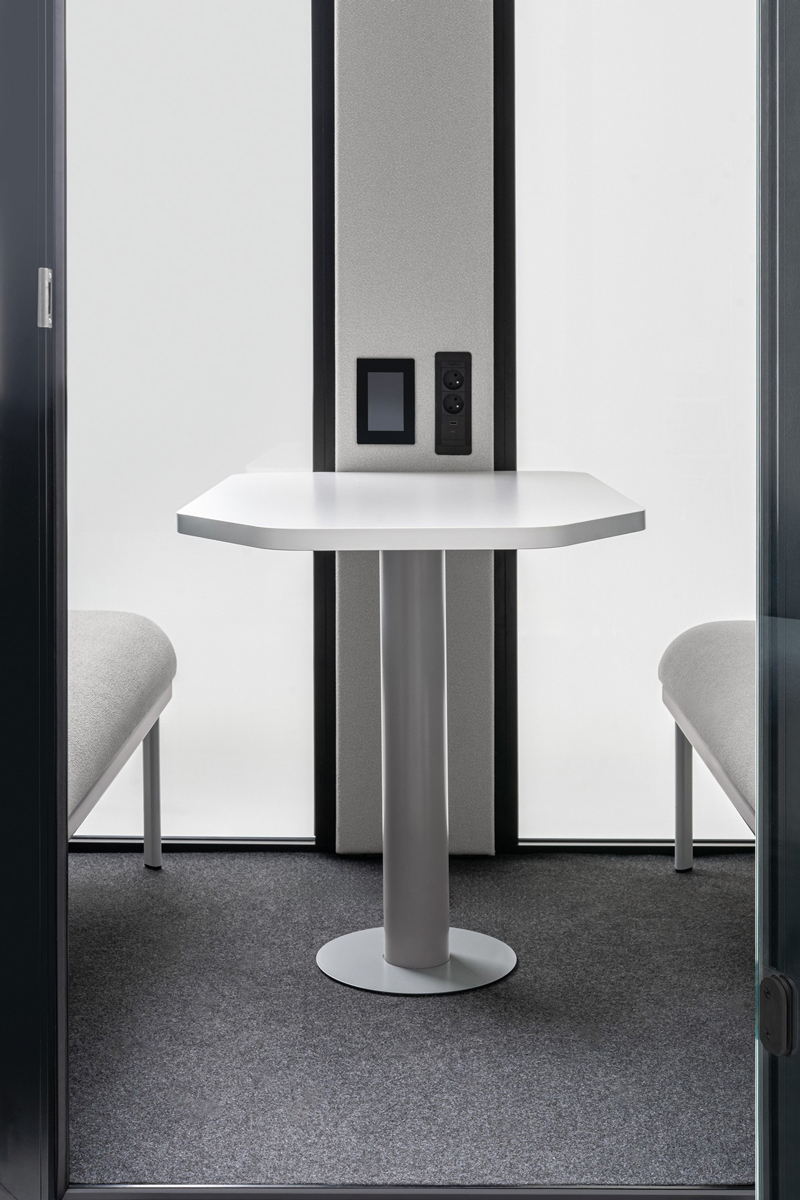

Mediabox - 2x230V + 1 x USB A + 1 x USB C;

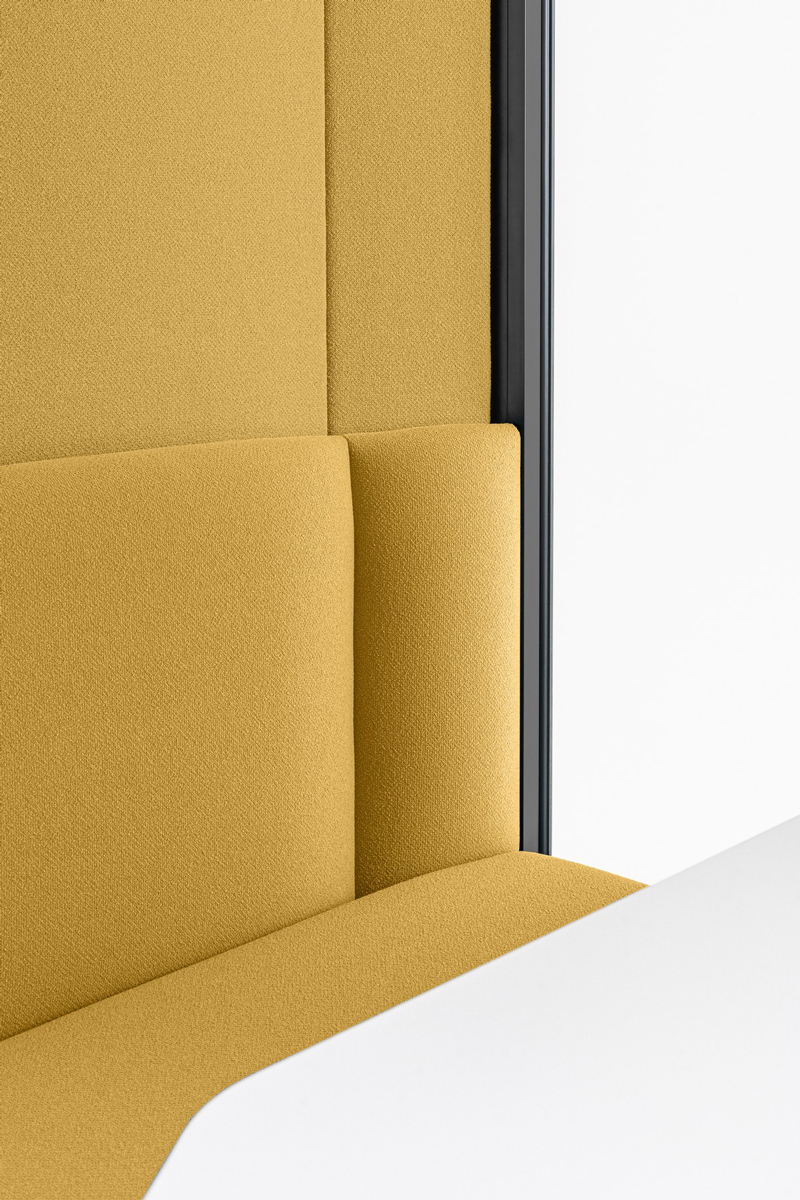

Seat, backrest - cut foam with a density of 25 kg/m³, upholstered;

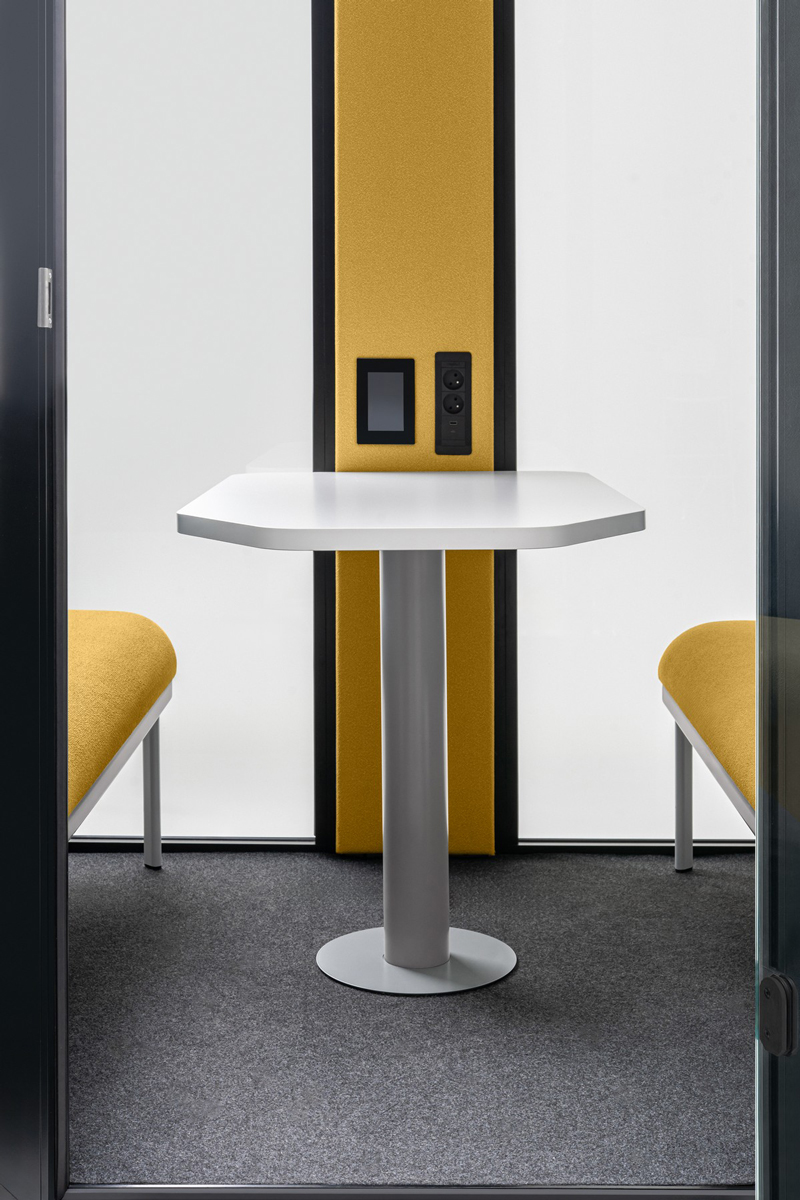

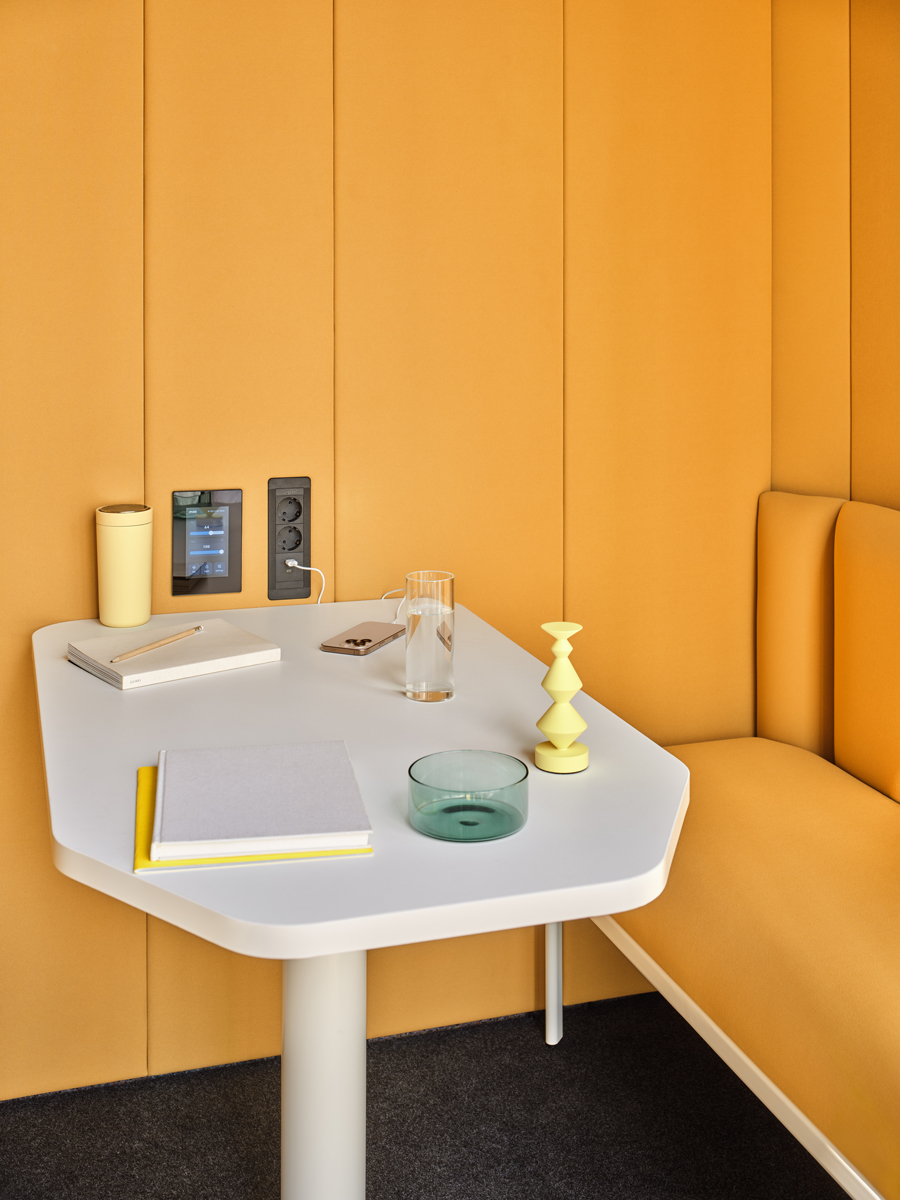

Table - MFC 28 mm, ABS edge 2 mm; column, disc - powder-coated steel;
Floor - MDF 31 mm + acoustic fitted carpet;
Wheels - covered with a plinth, allow the booth to be easily moved before the final assembly;
Electrical connection - cable outlet in the roof or plinth

Productkenmerken

High acoustic properties promote concentration and ensure privacy;

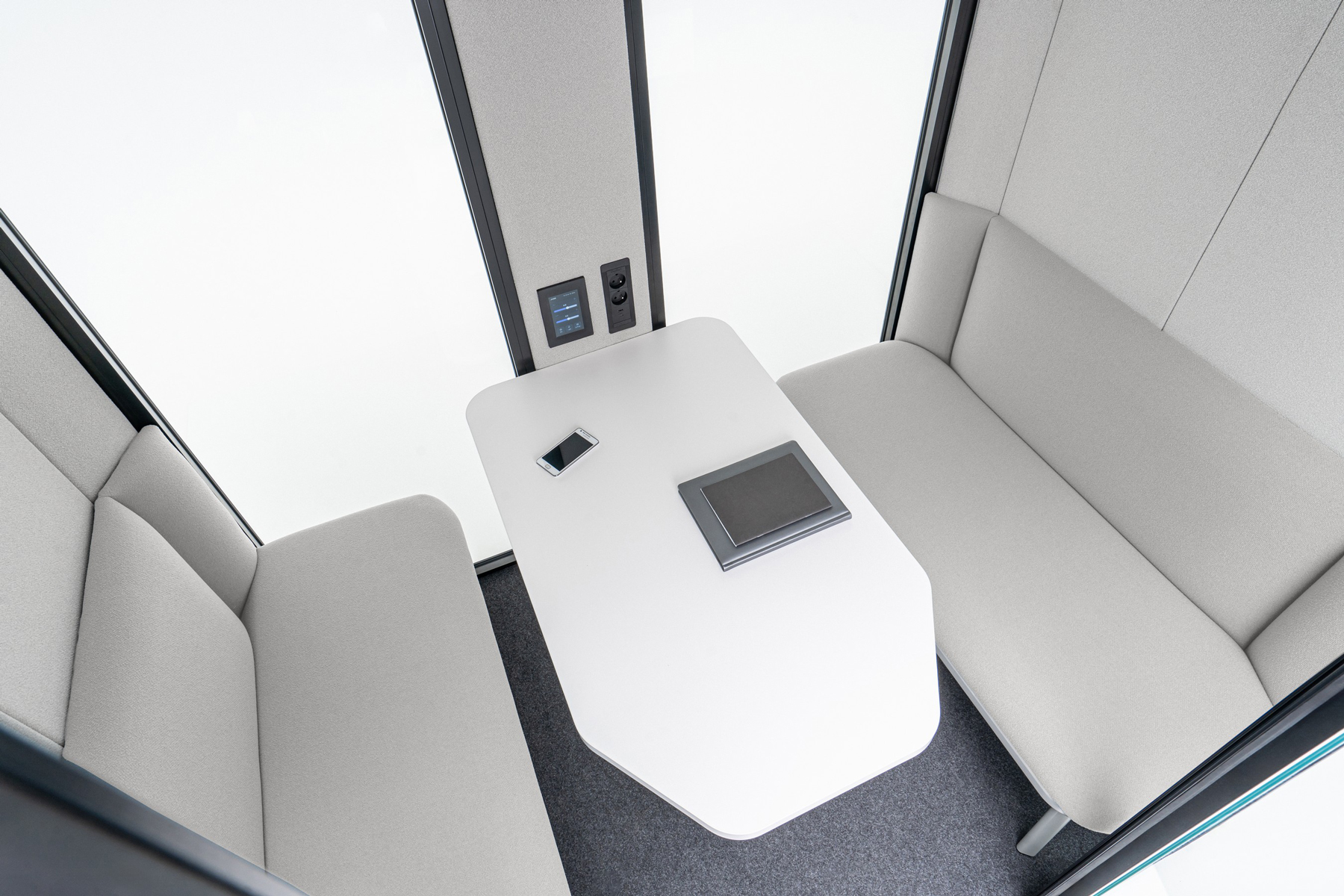

Built-in seating and table provide a comfortable place to work or talk for up to 4 people;
Interior is finished with sound-absorbing upholstery materials and elements made of acoustic glass enhance the sound-proofing properties of the booth;
The airflow of low-noise fans can be adjusted;
External lighting signals the availability of the booth;
The control panel allows the lighting and ventilation to be adjusted to the user's needs;
Steel construction ensures stability of the booth;

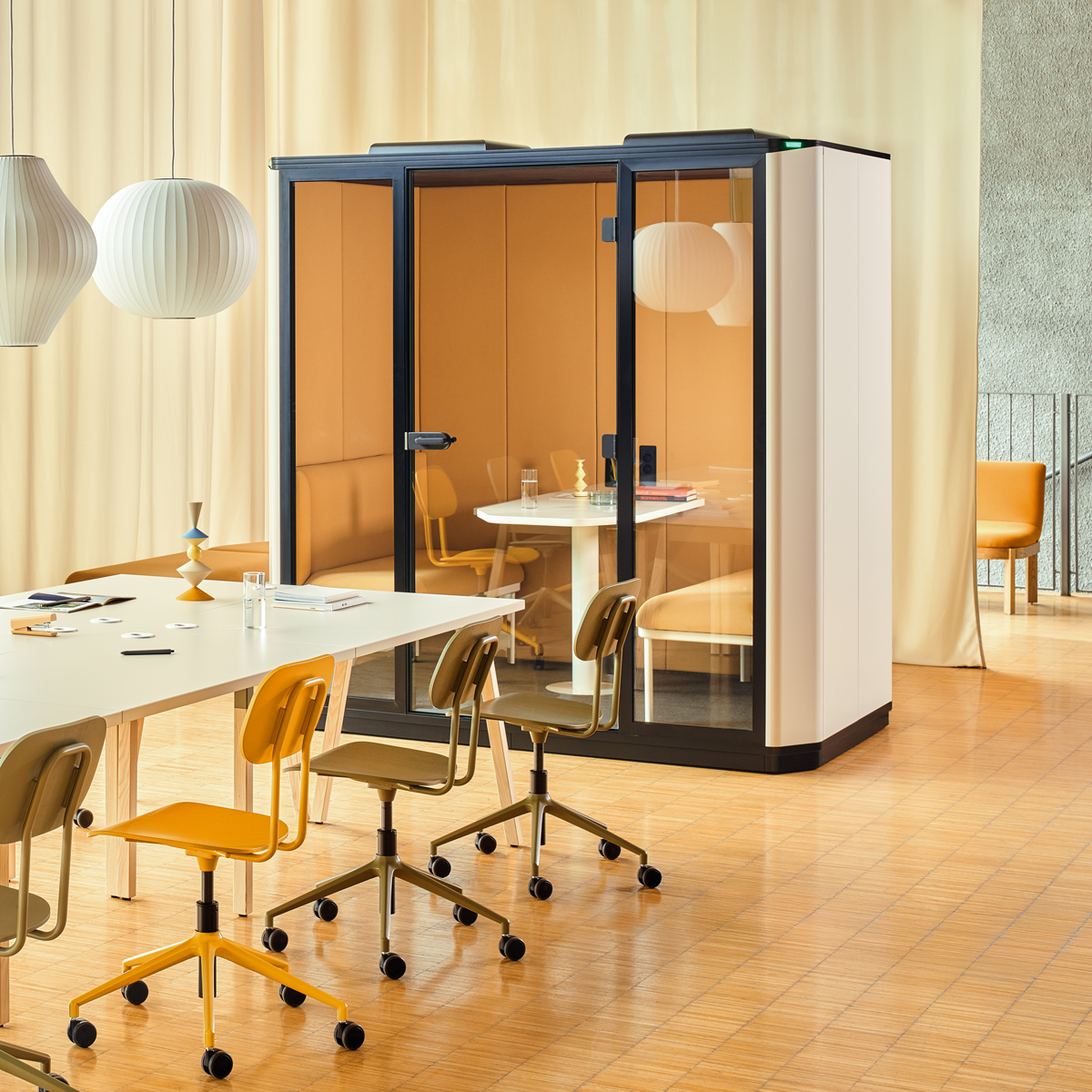

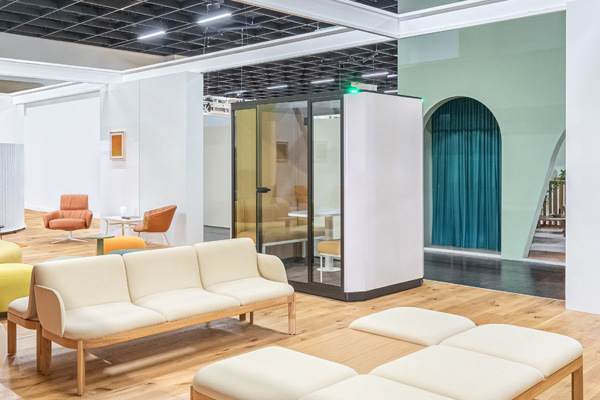

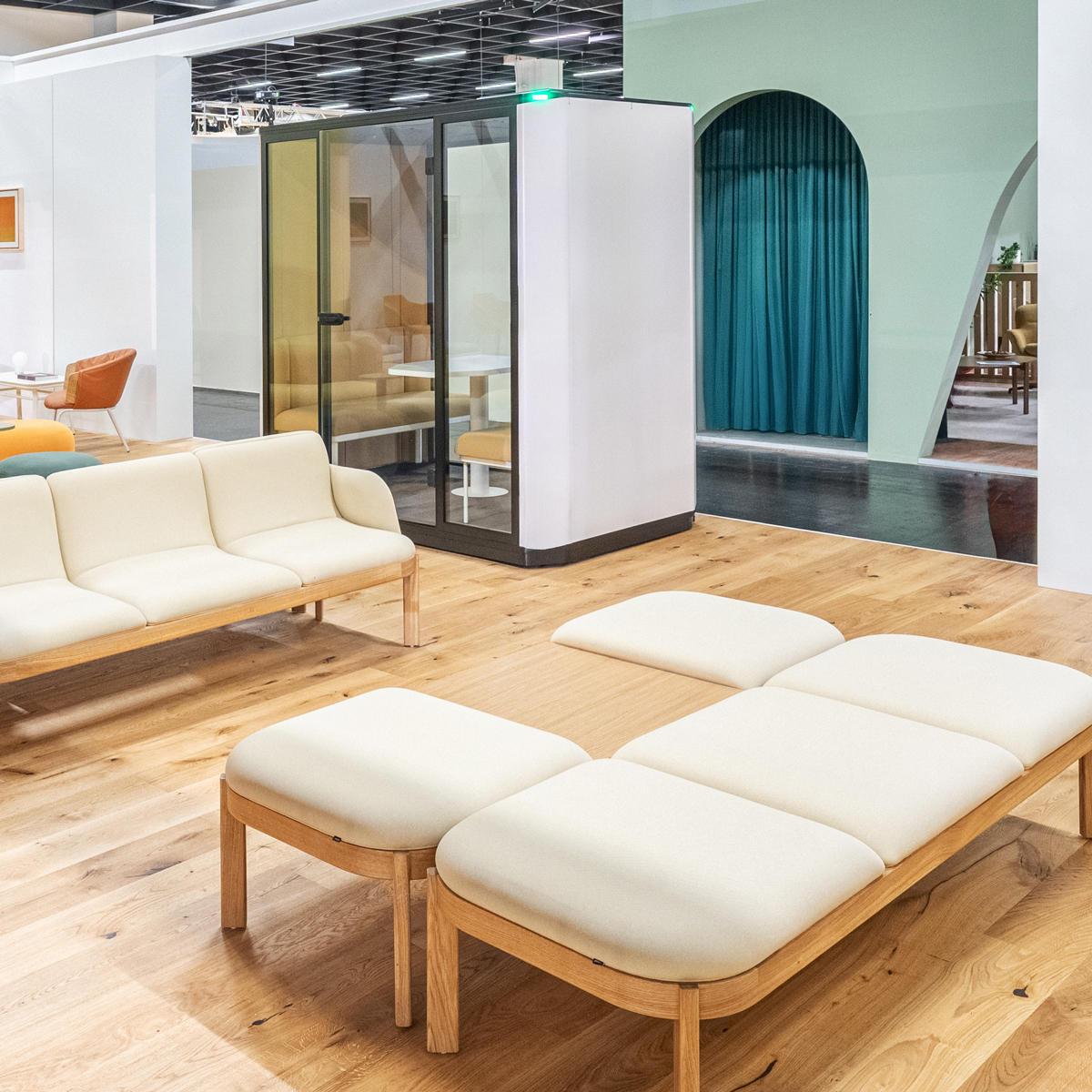

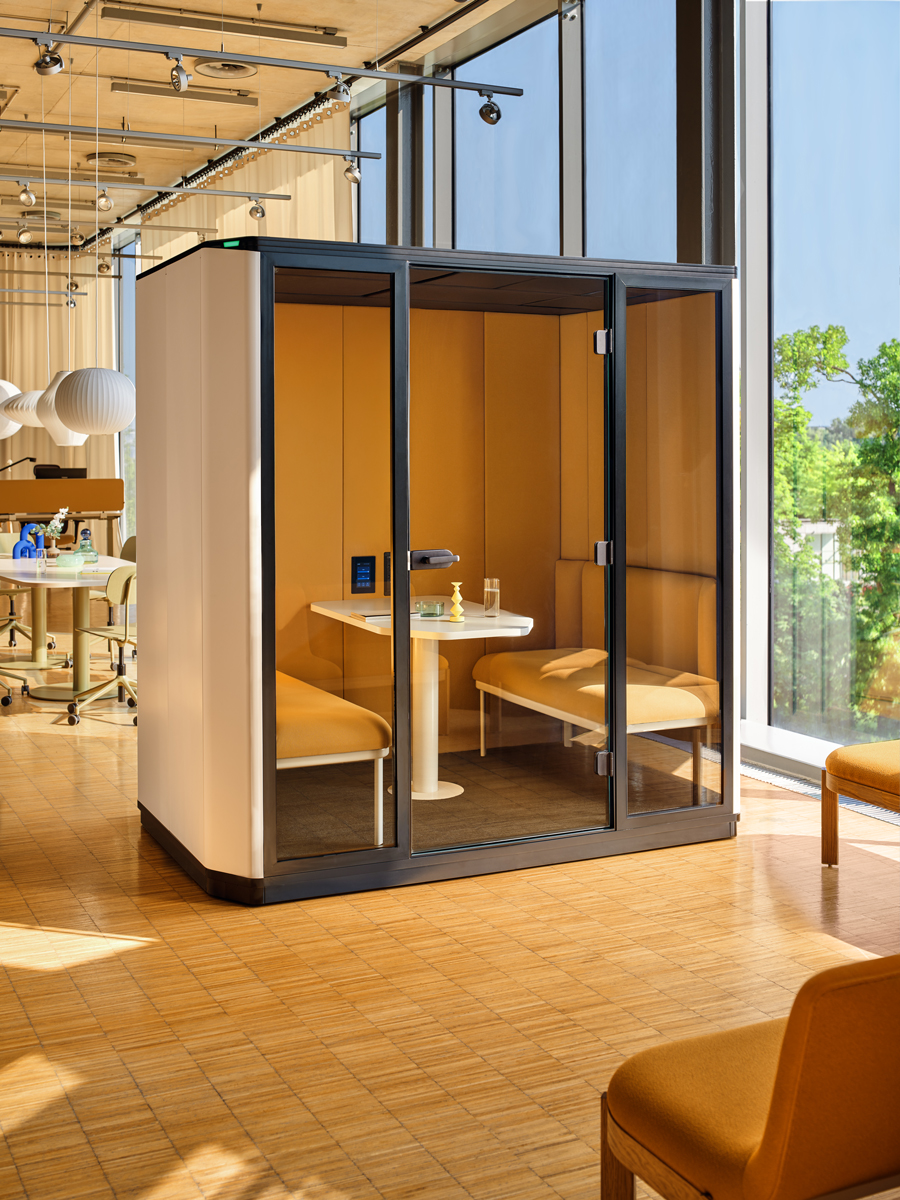

Designed for open spaces in offices and public interiors

Ecologie

Materiaalsamenstelling inclusief verpakking

MFC: 6%
MDF: 40%
Plywood: 1%
Steel: 28%
Aluminium: 9%
Glass: 4%
Plastic: 2%
Fabric: 2%
Polyurethane foam: 7%
Other: 2%

*average values for a representative of the group.

Gerecyclede inhoud

Recyclebaarheid

Recycling: 12%
Downcycling: 88%

*average values for a representative of the group.

Duurzame productie

Structural elements of the booths are powder-coated to reduce the emission of Volatile Organic Compounds.
Wood-based materials used in the production of our furniture are acquired from FSC-certified producers.

Downloaden

Photos Lookbook Catalogue

Download 3D-modellen van alle symbolen uit de collectie

2D dwg 3D dwg 3D 3ds

Montagehandleidingen

CD02 CD03

FAQ

Is acoustic glass used in the Coda booth?

Yes, both the door and the back panel are made of acoustic glass.

What elements does the Coda booth consist of?

The top and bottom parts are made of multi-layer MDF, upholstered on the inside. External walls are made of powder-coated sheet metal with acoustic–insulating filling and the internal walls are upholstered. The door is made of acoustic glass and the floor is made of acoustic lining. The back panel can be glass (made of acoustic glass, with an upholstered centre) or fully upholstered.

What elements does the wall of the Coda booth consist of?

The wall of the booth consists of tin panels, bolted together from the inside.

What are the features of the booth’s ventilation system?

In the Coda booth, the supply fan is located in the ceiling and the air outlet – between the floor and the upholstered walls. The air intake can be adjusted using the control panel.

How many times per hour is the air exchanged in the booth?

73 CFM (186 m3/h).

Where inside the booth is the light switch located?

The light is activated by a motion sensor, that switches on the light, ventilation and the illumination of the control panel.

How much power does the booth consume in the standby mode?

In the standby mode, the booth consumes ca. 0,9W: power supply - 0,1W, display of the control panel - 0,4W (10% of which is the backlight), PCB board – 0,04W, green lights – 0,4W.

How long does it take to assemble the booth?

The assembly takes approximately 2,5 hours.

How many people are required to assemble the booth?

Two people are needed to assemble the booth.

What is needed to assemble the booth?

A ladder will be needed to assemble the booth.

Does the room, where the booth will be assembled, have to be significantly higher?

Only around 0,5 m of free space is needed to install the ceiling, so the booth can be placed in interiors that are at least 2,8 m high.

Does the booth have to be mounted to the floor?

No. This way the booth does not damage the floor in the room. Additionally, Coda is equipped with integrated transport castors – after placing it in the final location, the regulators are turned up, so that the castors lift up and stabilise the booth.

Is an electrician required to connect the booth to electricity?

No, it is enough to simply plug the booth into a standard socket.

Where in the booth is the electrical connection located?

The Coda booth can be plugged in from the ceiling or from the floor – the decision has to be made during assembly.

Can an already assembled booth be taken apart and reassembled elsewhere?

Yes, it is possible to take the booth apart and assemble it repeatedly.

How are the Coda booths packed?

The individual elements of the Coda booth are packed in secure parcels and placed in a transport crate.

Does the Coda booth have a media port?

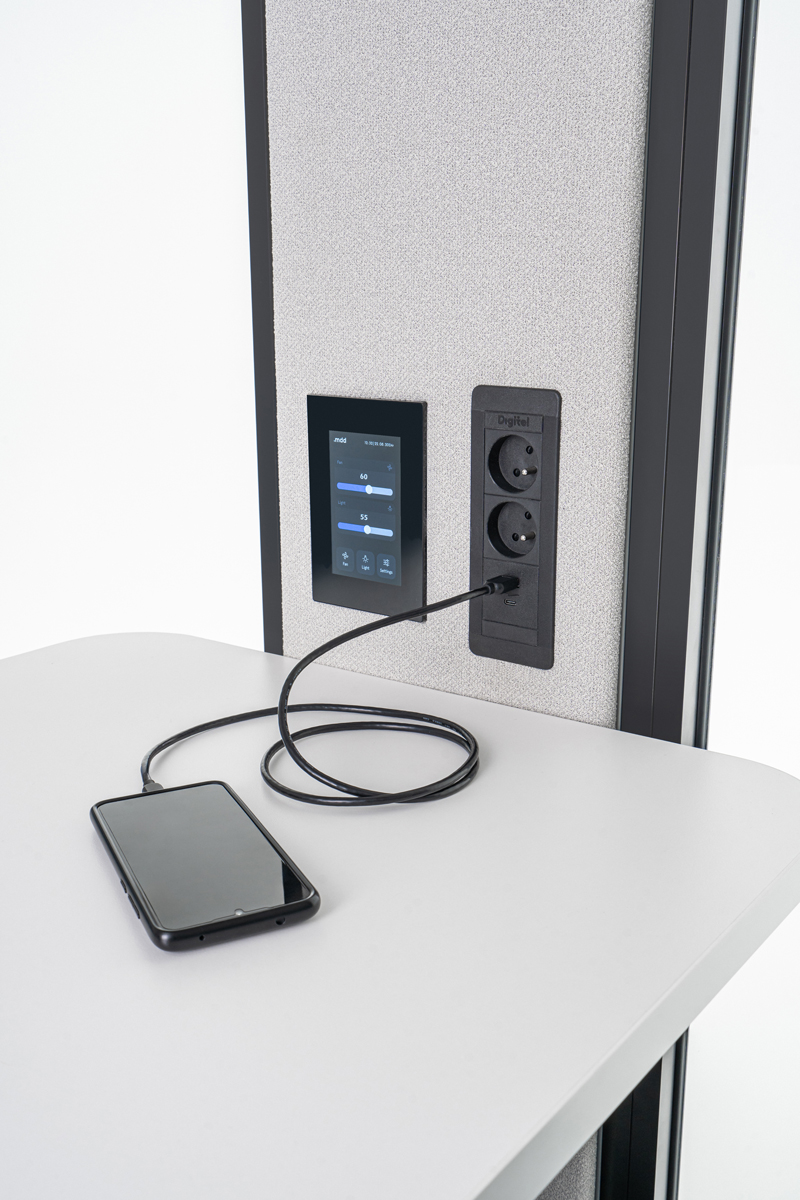

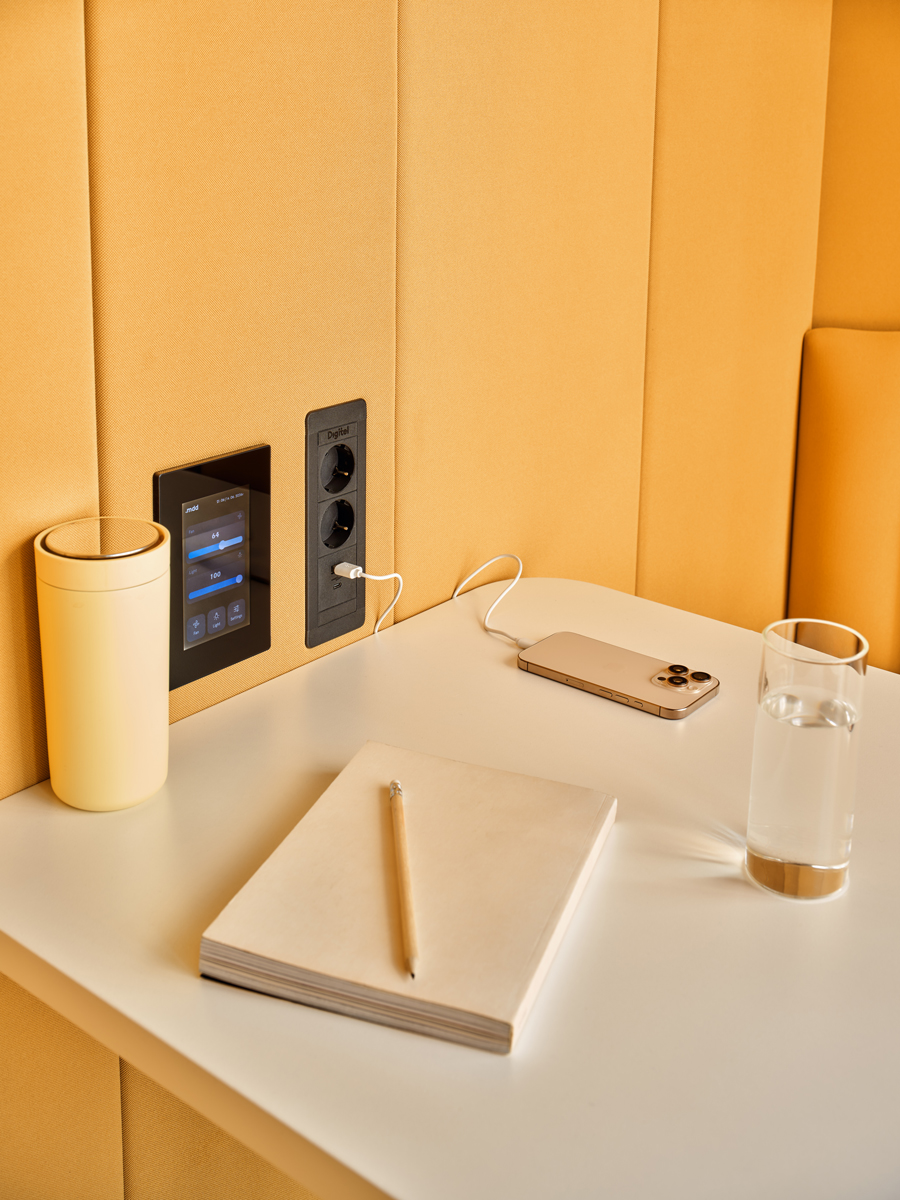

The booth has a media port equipped with two 230V power sockets, a USB A charger and a USB C charger. The media port is integrated into the booth’s electrical system and requires no additional power supply.

Where is the internal lightning of the booth located?

Two LED strips are placed on the ceiling recess. The intensity of the light can be adjusted using the control panel.

What are the booth’s external lights for?

This is an indication of the booth’s availability – once the user enters the booth, the green signal changes into red (activated by the motion sensor).

Does the Coda booth have any additional equipment?

The booth is also equipped with upholstered seats and a table.
