In hoogte verstelbaar bureau Mito Fenix

Name: In hoogte verstelbaar bureau Mito Fenix
Brand: .mdd
SKU: MITO_WITH_HA_FENIX
Availability: InStock

0%
initializing...

Kleur disclaimer

Downloads voor de geselecteerde configuratie

3D-modellen downloaden van het collectieite

downloaden

toon dimensies

Screenshot

toon het interieur

animatie: bewegende grafische voorstelling vaak gebruikt in meubelconfiguratoren

gepersonaliseerde afmetingen

Geschat productgewicht: kg

Mito Fenix

MITF28RL

W: 1990 D: 2080

H: 760 - 1300 mm

MITF28RP

W: 1990 D: 2080

H: 760 - 1300 mm

MITF27RL

W: 2190 D: 2080

H: 760 - 1300 mm

MITF27RP

W: 2190 D: 2080

H: 760 - 1300 mm

Kleur van het tafelblad

FENIX zwart mat

Type van basis

Zwart mat

Kleur van het lichaam

Robinia

Amber eiken

Robinia

Zwart mat +642€ netto

Type van stekker

EU stekker

UK stekker

US stekker

Type van mediabox

Geen mediabox

Mediabox S91E EU (2x230V 2xRJ45) x 1

Mediabox S91E EU (2x230V 2xRJ45) x 1 +408€ netto

Mediabox S91E Schuko (2x230V 2xRJ45) x 1

Mediabox S91E Schuko (2x230V 2xRJ45) x 1 +408€ netto

Mediabox S91E UK (2x230V 2xRJ45) x 1

Mediabox S91E UK (2x230V 2xRJ45) x 1 +408€ netto

Mediabox S91E Swiss (2x230V 2xRJ45) x 1

Mediabox S91E Swiss (2x230V 2xRJ45) x 1 +408€ netto

Mediabox S91E USA (2x230V 2xRJ45) x 1

Mediabox S91E USA (2x230V 2xRJ45) x 1 +408€ netto

Mito Fenix

Kleur van het tafelblad

FENIX zwart mat

Type van basis

Zwart mat

Kleur van het lichaam

Amber eiken

Type van stekker

Type van mediabox

€ incl btw

5 620 € exclusief btw

er heeft zich een interne fout voorgedaan probeer het alstublieft opnieuw indien de fout aanhoudt neem dan contact op met onze klantenservice

levertijd 9-10 weken Product wordt geproduceerd op aanvraag.

Questions about this product?

Use our virtual assistant.

Chat with a virtual advisor

By using the chat, you consent to the storage of the data provided in the conversation. The administrator of personal data is .mdd Sp. z o.o. For more information, see our privacy policy.

How can I help you?

toon filters

afrondingsbeschrijving

Runner

Skład: 100% poliester

Gramatura: 364/m2*510g/lm

Trudnozapalność: BS EN 1021 - 1:2006 (papieros), BS EN 1021 - 2:2006 California Bulletin CAL 117-E-Class 1

laden

Selecteer een bestaande aanbieding of maak een nieuwe aan

Kies een symbool

In hoogte verstelbaar bureau Mito Fenix - MITF27RL - productafmetingen

In hoogte verstelbaar bureau Mito Fenix - MITF27RP - productafmetingen

In hoogte verstelbaar bureau Mito Fenix - MITF28RL - productafmetingen

In hoogte verstelbaar bureau Mito Fenix - MITF28RP - productafmetingen

Productgewicht

464.18 kg

Afmetingen van het pakket

L 2190 x W 2080 x H 760 mm

Alle afmetingen zijn in mm opgegeven

Productgewicht

453.63 kg

Afmetingen van het pakket

L 2190 x W 2080 x H 760 mm

Alle afmetingen zijn in mm opgegeven

Productgewicht

454.53 kg

Afmetingen van het pakket

L 1990 x W 2080 x H 760 mm

Alle afmetingen zijn in mm opgegeven

Productgewicht

443.98 kg

Afmetingen van het pakket

L 1990 x W 2080 x H 760 mm

Alle afmetingen zijn in mm opgegeven

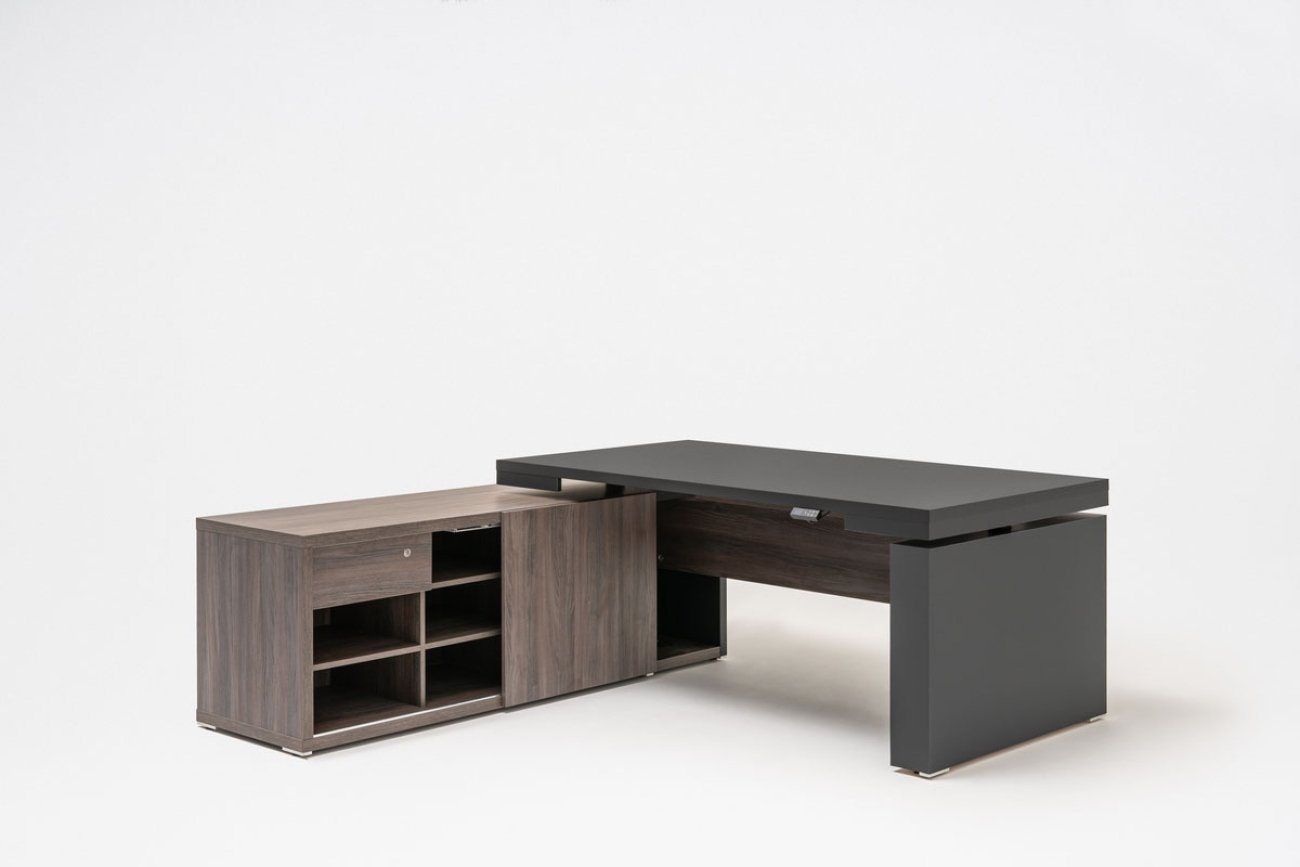

In Hoogte Verstelbaar Bureau Mito Fenix

by Simone Bernocchi

The classic and elegant Mito executive desk will highlight the style of any room. The collection is intended for demanding people who value quality and comfort. Equipped with an electric height adjustable worktop, the desk gives the opportunity to work in both the sitting and standing position. The control panel allows for easy and quick adaptation of the desk to the preferences of the user. The desk is available in two colours: amber oak and robinia that can be matched with white and black matte varnished details which emphasise the prestige of the collection.

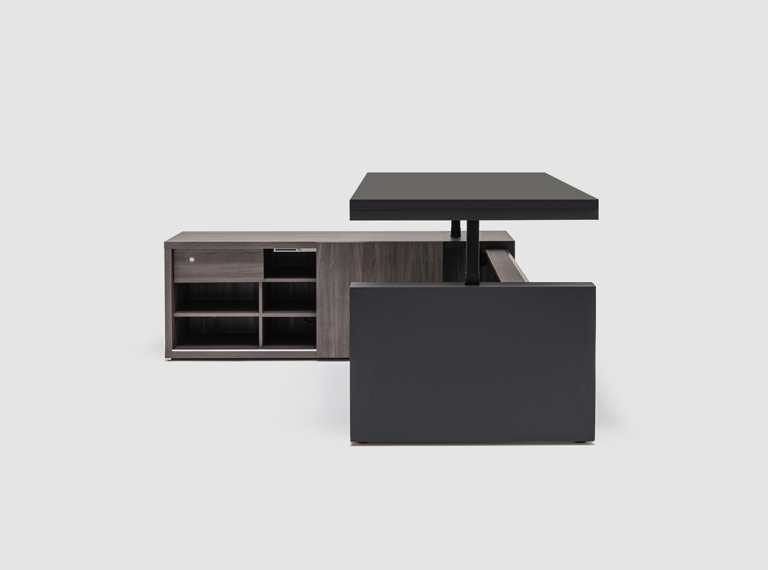

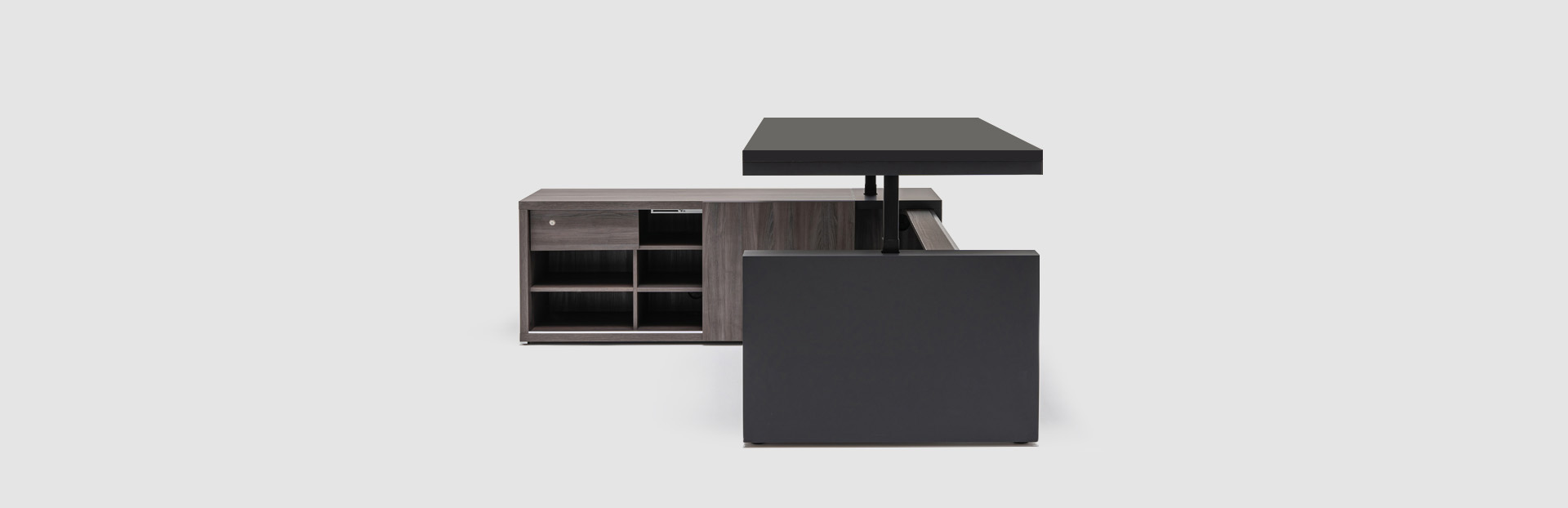

In hoogte verstelbaar bureau Mito Fenix - lookbook

Technische gegevens

Technische specificatie

Worktop - MFC 38 mm, ABS edge 2mm;
Electric height adjustable frame - powder coated steel, load 100 kg, telescopic leg 60/60, 50/50, 40/40 mm; control panel: A - up and down keypad with memory; the ability to change the sensitivity of the anti-collision system within 3 levels: Low, Medium, High;
Frame technical specification: height adjustment - 40 mm/sec Super Soft Start-Stop; drive - 2 synchronised motors with microprocessor, work control sensor; ISP - Intelligent System Protection; standards - EN 527-2, EU directives - 206/95EC, UI508 1999, UL 1004 R7 06, WE DC 2004/108WE; power supply - 230V, 300W, power consumption on Standby - 0.3W;
Managerial cabinet: top - MFC 38 mm, ABS edge; bottom - MFC 38 mm, ABS edge; body MFC 18 mm, ABS edge; sliding front - MFC 18 mm, ABS edge; drawer - MFC 18 mm, ABS edge, possible to change location;
Mediaport S91E - 2x 230V, 2x RJ45; grommets

Productkenmerken

Compliant with standards: PN-EN 527-2+A1:2019-08, PN-EN 14073-2:2006;
Electric frame with height adjustment in the scope of 760-1300 mm;
Height adjustment mechanism with Super Soft Start-Stop mode and 2 synchronised motors;
Safety systems of the height adjustment mechanism: microprocessor with work control sensor, thermal sensor, Intelligent System Protection;
Finish: nano-tech FENIX laminate;
Fingerprint-proof coating;
Optional S91E mediaport;
Certificate - MFC: FSC, PEFC;
Designed for executive offices

Ecologie

Materiaalsamenstelling inclusief verpakking

MFC: 89%
HPL: 3%
Steel: 4%
Plastic: 1%
Cardboard: 3%

*average values for a representative of the group.

Gerecyclede inhoud

Recyclebaarheid

Recycling: 10%
Downcycling: 90%

*average values for a representative of the group.

Verpakking

Wood-based materials used in the production of our furniture are acquired from FSC-certified producers.

Montagehandleidingen

MITF27RL MITF27RP MITF28RL MITF28RP

FAQ

How long is the power cable?

The length of the cable is 3 m.

How to use various functions of the desk’s control panel?

Below you can find video instructions for the most common functions of the PRO control panel:

a. Restoring factory settings ▶ Instructional video (0:28)

b. Setting the sensitivity of the anti-collision system ▶ Instructional video (0:30)

c. Saving worktop positions and memory operations ▶ Instructional video (0:35)

d. Activation of the One Touch Go function ▶ Instructional video (0:36)

e. Locking and unlocking ▶ Instructional video (0:25)

What should I do if the desk rises unevenly?

Check if the control panel is installed correctly and correct its installation if needed. You can check how to correctly install the panel in the assembly manuals: Assembly manuals single motor frame

Why is the desk less stable in the highest position than in the lowest one?

A desk raised to the highest position will not be as stable as in the lowest position due to the telescopic design of its frame. This design allows the tabletop to move up and down. To be able to safely raise the top to its maximum height, place the desk on a flat surface during initial assembly. If necessary, adjust the position of the desk using the levelling feet, which are adjustable within 5 mm.

What does a sound coming from the legs or controller when the desk is stationary mean?

A sound coming from the desk when it is not in the process of raising/lowering the desk top probably means that the electrical components (motor, controller or control panel) of the desk are overloaded. If there are lifts or photovoltaic systems installed in the building, these can affect the electrical system of the desk and cause it to sound. In a situation when a desk makes a self-contained sound:

a. sure that the correct control panel is connected to the model of your desk;

b. make sure that the voltage in the socket to which the desk is connected is appropriate (it should not exceed +/- 40V from the nominal voltage, i.e. 110V for a single-motor desk);

c.check that the electrical components of the desk (motor, controller, control panel) are not damaged or worn out.

If all these items are correct and the problem persists, contact our Customer Service:

a. if the order included assembly our assembly team will arrive to replace the faulty part;

b. if the order did not include assembly, Customer Service will send a dispatch with instructions on how to replace the part - an assembly service is available for an additional charge;

c. if, after replacing the faulty part with a new one, the above-mentioned problem persists, it is possible to have the entire desk checked at the factory by our fitters. If the desk is checked and found to be free of defects, the customer shall bear the transport costs (collection and re-dispatch).
