Bureau met elektrische hoogteverstelling Ogi One

Name: Bureau met elektrische hoogteverstelling Ogi One
Brand: .mdd
SKU: OGI_DRIVE_SINGLE_LEG
Availability: InStock

0%
initializing...

Bureau met elektrische hoogteverstelling Ogi One

Kleur disclaimer

Downloads voor de geselecteerde configuratie

3D-modellen downloaden van het collectieite

downloaden

toon dimensies

Screenshot

toon het interieur

animatie: bewegende grafische voorstelling vaak gebruikt in meubelconfiguratoren

gepersonaliseerde afmetingen

Geschat productgewicht: kg

Ogi One

BOD100

W: 1000 D: 600

H: 629 - 1337 mm

Kleur van het tafelblad

Honing eiken

Wit pastel

Aluminium satijn

Antraciet

Zwart

Poolse berk

Acacia

Laagland walnoot

Canadese eik

Cacao

Donkere walnoot

Grijze eik

Natuurlijke eik

Honing eiken

Beige mat

Kleur van het tafelblad - FENIX zwart mat

FENIX zwart mat +108€ netto

Lichtgrijs

Kleur van de bovenste randafwerking

Honing eiken

Kleur van het frame

Zwart halfmat RAL 9005

Wit halfmat RAL 9010

Aluminium semi-mat RAL 9006

Antraciet semi-mat RAL 7043

Zwart halfmat RAL 9005

Kleur van het frame - Olijf semi-mat RAL 6013

Olijf semi-mat RAL 6013 +75€ netto

Kleur van het frame - Blauwe halfmatte RAL 5003

Blauwe halfmatte RAL 5003 +75€ netto

Kleur van het frame - Baksteenrood halfmat RAL 0404040

Baksteenrood halfmat RAL 0404040 +75€ netto

Kleur van het frame - Geel halfmat RAL 0807060

Geel halfmat RAL 0807060 +75€ netto

Kleur van het frame - Beige halfmat RAL 0608005

Beige halfmat RAL 0608005 +75€ netto

Wielen

Voetteksten

Wielen +8€ netto

Type van stekker

EU stekker

UK stekker

US stekker

Type van bedieningspaneel

Bedieningspaneel

Bedieningspaneel met hoogtegeheugen +51€ netto

Type van bedieningspaneel - Rond paneel met hoogtegeheugen

Rond paneel met hoogtegeheugen +49€ netto

Ogi One

Kleur van het tafelblad

Wit pastel

Kleur van de bovenste randafwerking

Honing eiken

Kleur van het frame

Wit halfmat RAL 9010

Wielen

Type van stekker

Type van bedieningspaneel

€ incl btw

414 € exclusief btw

er heeft zich een interne fout voorgedaan probeer het alstublieft opnieuw indien de fout aanhoudt neem dan contact op met onze klantenservice

levertijd 9-10 weken Product wordt geproduceerd op aanvraag.

Questions about this product?

Use our virtual assistant.

Chat with a virtual advisor

By using the chat, you consent to the storage of the data provided in the conversation. The administrator of personal data is .mdd Sp. z o.o. For more information, see our privacy policy.

How can I help you?

toon filters

afrondingsbeschrijving

Runner

Skład: 100% poliester

Gramatura: 364/m2*510g/lm

Trudnozapalność: BS EN 1021 - 1:2006 (papieros), BS EN 1021 - 2:2006 California Bulletin CAL 117-E-Class 1

laden

Selecteer een bestaande aanbieding of maak een nieuwe aan

Bureau met elektrische hoogteverstelling Ogi One - BOD100 - productafmetingen

Productgewicht

24.1 kg

Afmetingen van het pakket

L 1000 x W 600 x H 629 mm

Alle afmetingen zijn in mm opgegeven

Bureau Met Elektrische Hoogteverstelling Ogi One

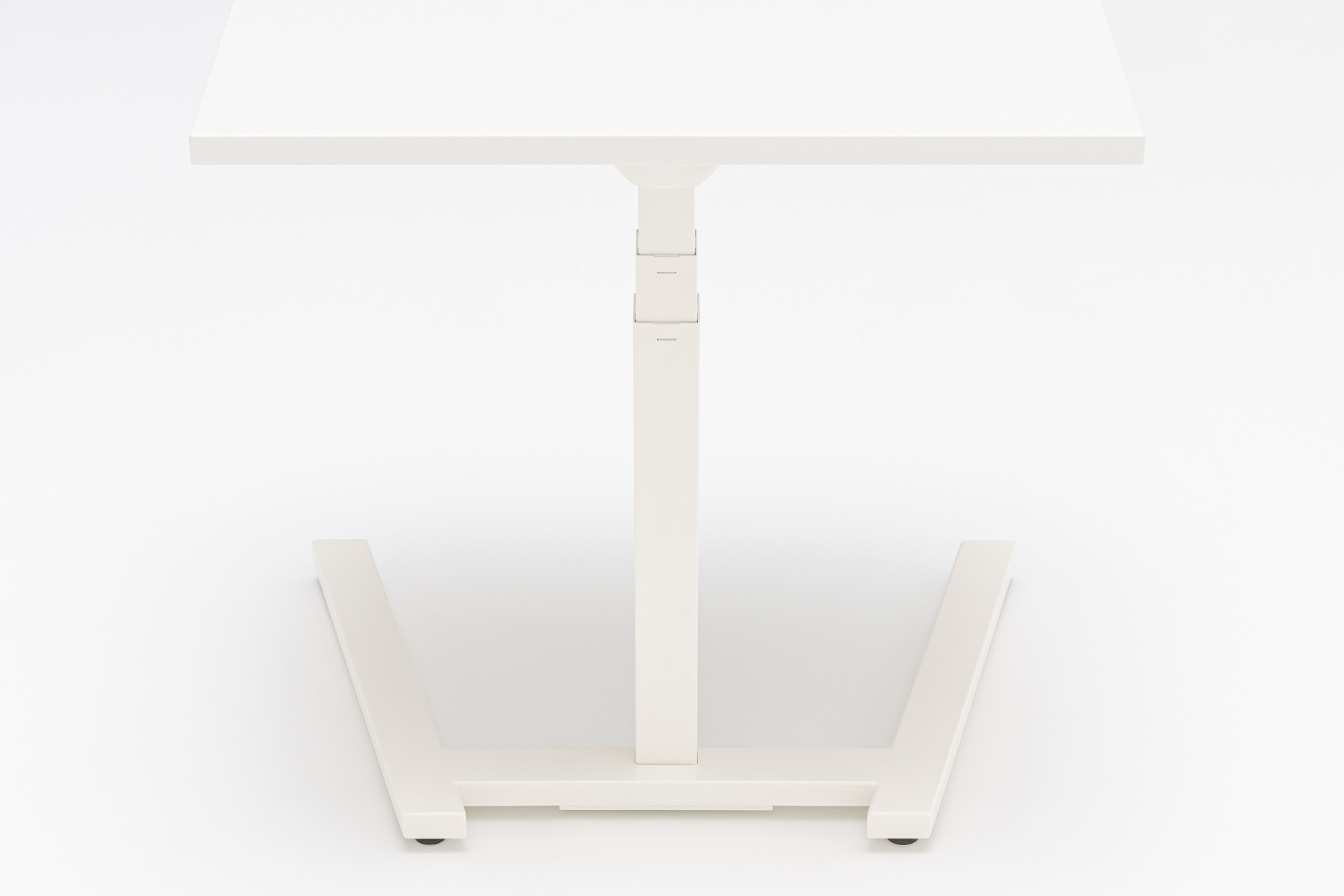

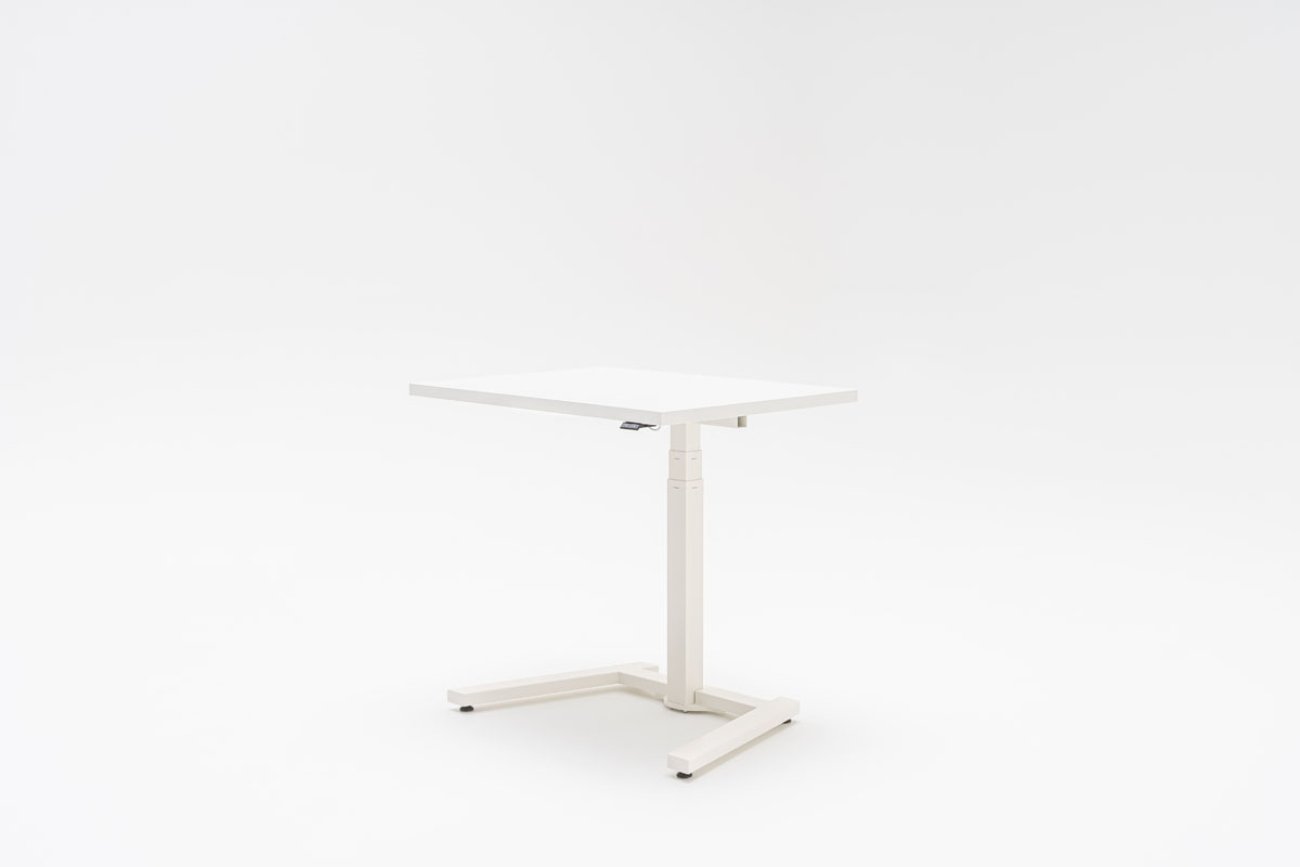

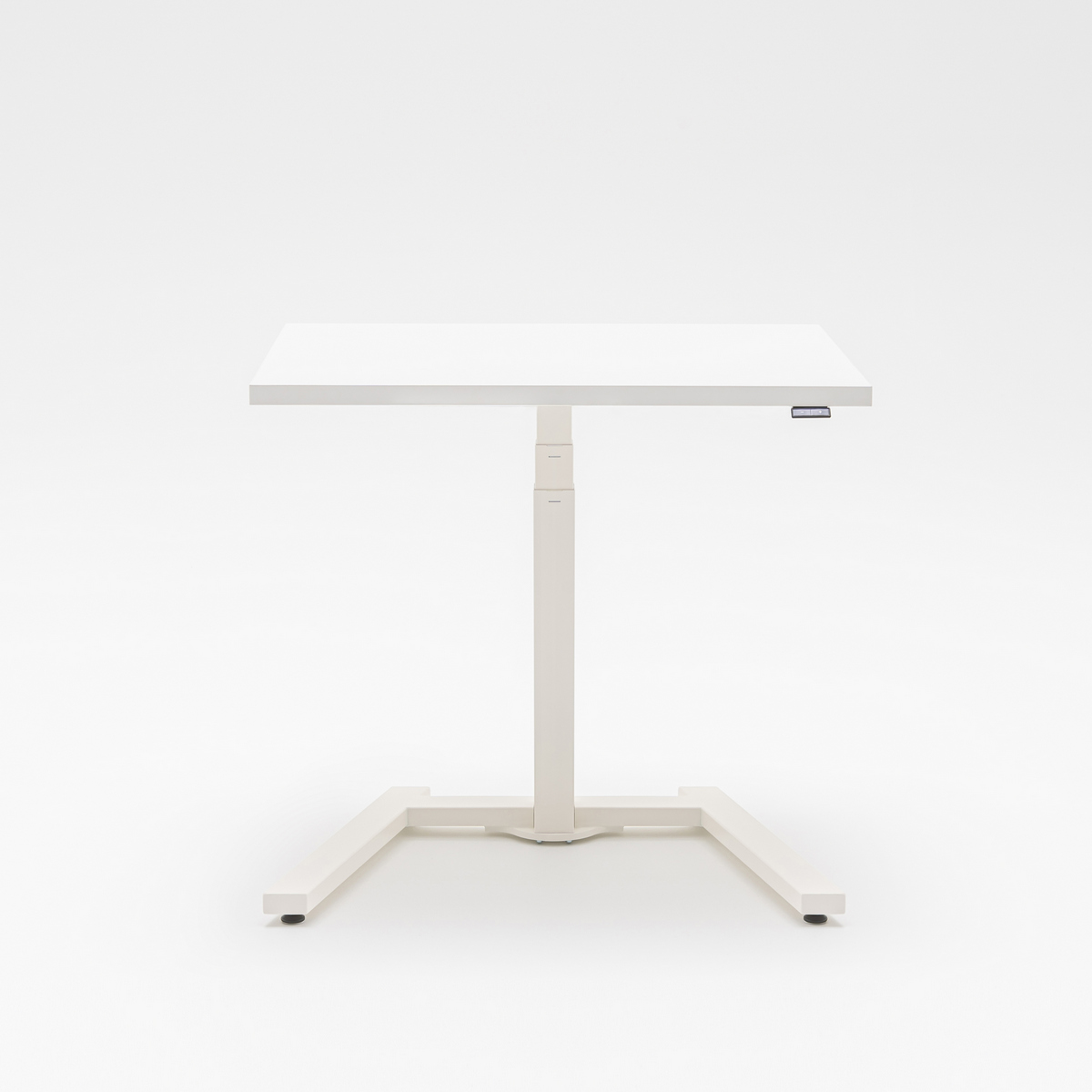

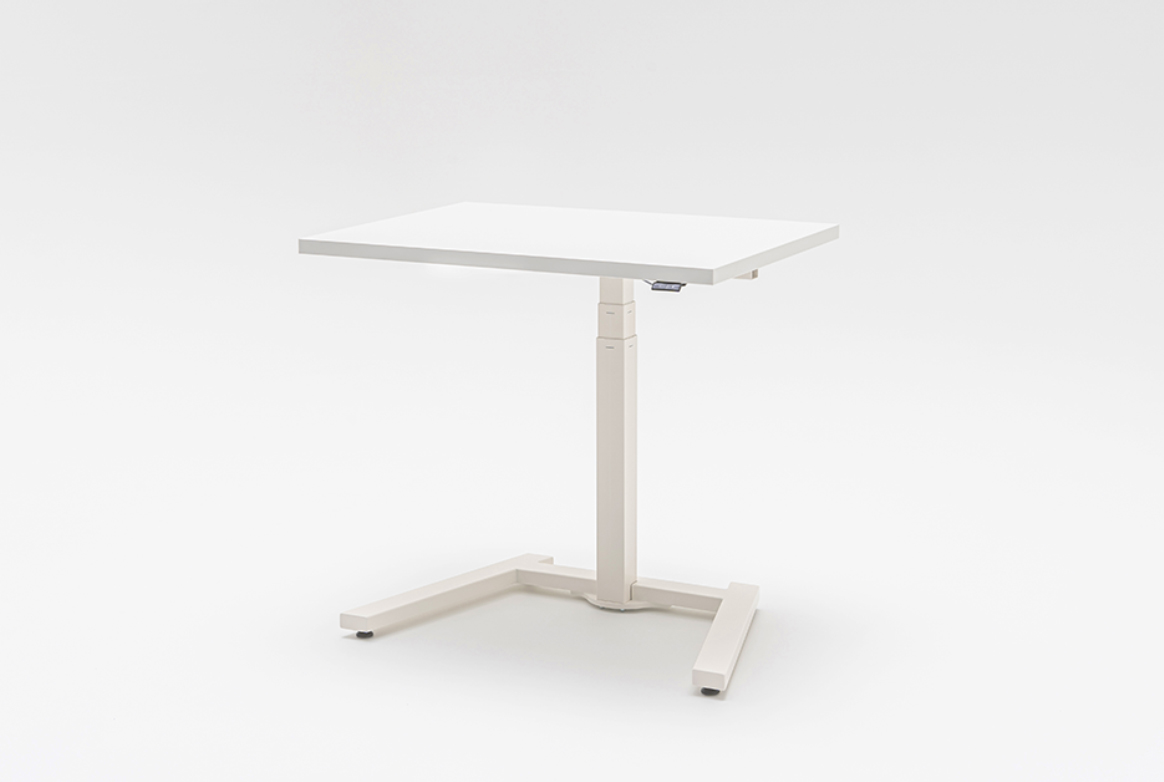

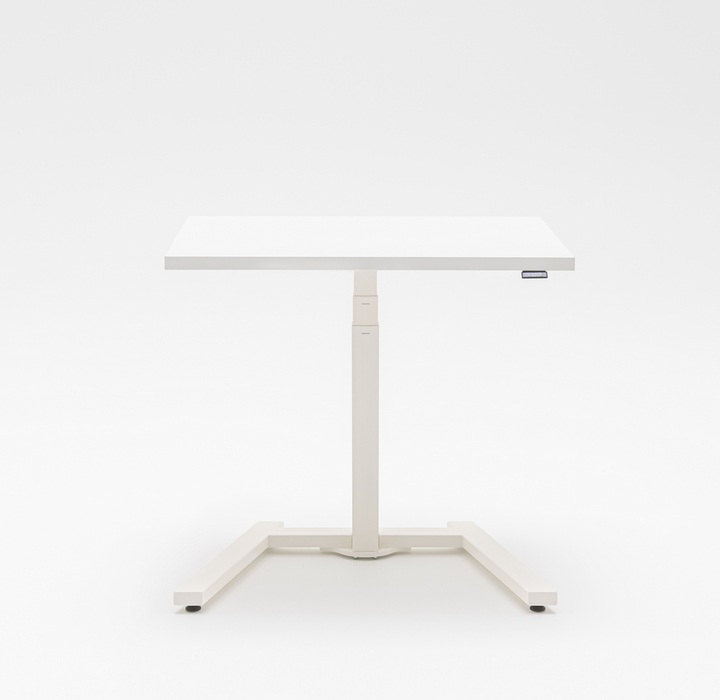

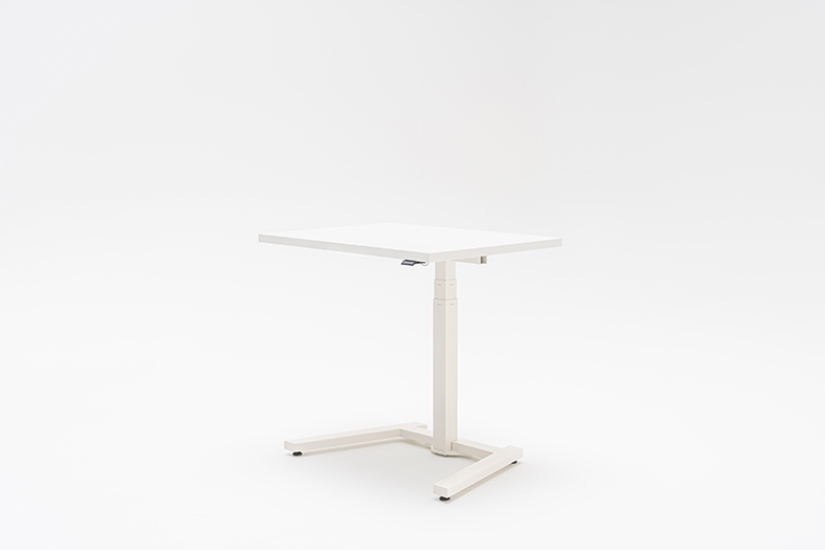

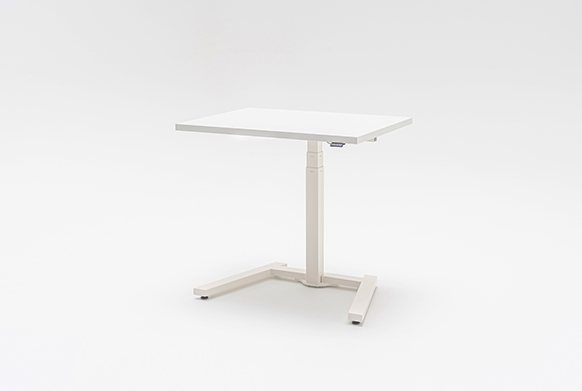

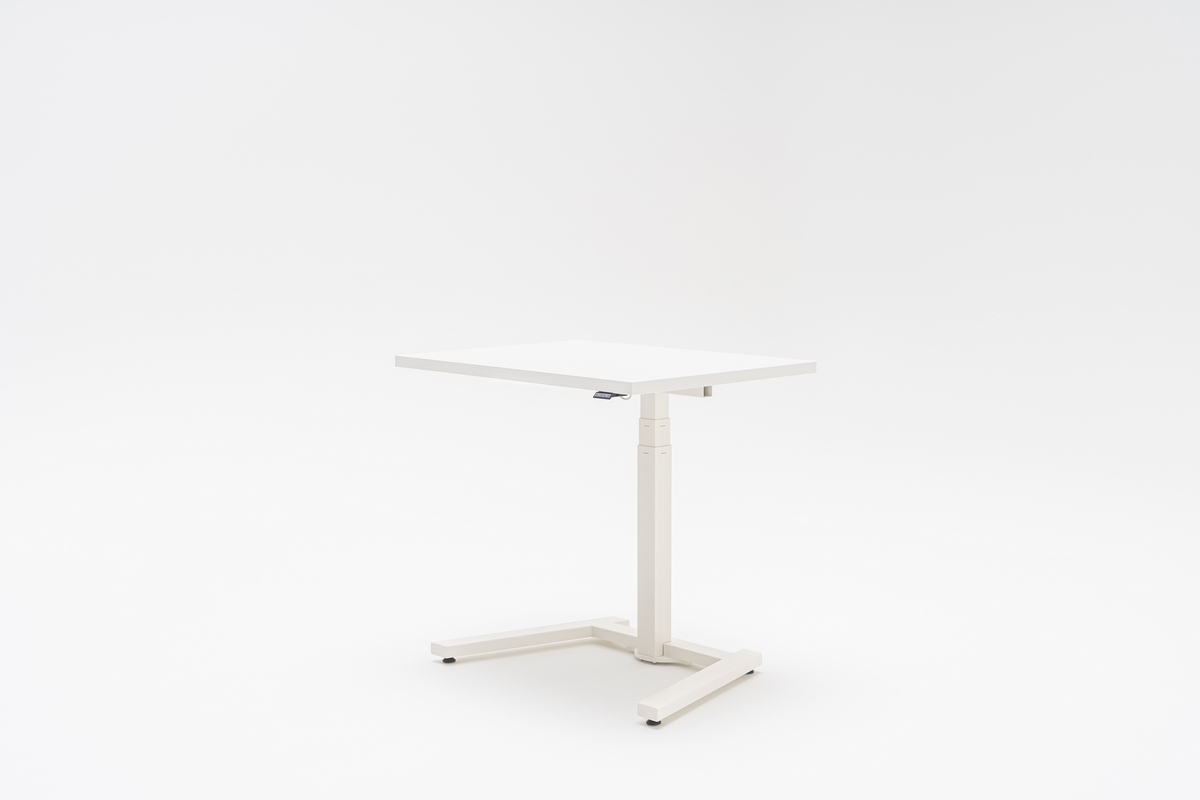

The ergonomic Ogi One desk is a solution designed for smaller office spaces, home office environments as well as conference rooms where it can be used as a lectern. The electric height adjustment allows for individually setting the height of the worktop what grants a smooth transition from sitting to standing position. The compact size and minimalism of the design create arrangement opportunities in various office and conference spaces.

Bureau met elektrische hoogteverstelling Ogi One - lookbook

Technische gegevens

Technische specificatie

Worktop - MFC 28 mm, ABS edge 2 mm;
Frame with electric height adjustment - metal, powder-coated, 3 profiles: 50 × 50 mm, 55 × 55 mm and 60 × 60 mm;
Foot - powder-coated metal;
Control panel - stepless height adjustment: A - basic control panel, the sensitivity of the anti-collision system is set to Medium; options with extra charge: B - up and down keypad with memory, the ability to change the sensitivity of the anti-collision system within 3 levels: Low, Medium, and High; C - round control panel with memory, the ability to change the sensitivity of the anti-collision system within 3 levels: Low, Medium, and High, mounted to the worktop;
Levelling - 10 mm range; option with extra charge - castors;
Edges can be attached using laser technology or PUR glue - please contact Customer Service if tender or project guidelines require laser edging

Productkenmerken

Electrical height adjustment in the range of 650-1300 mm;
Available with adjustment range of 700-1200 mm – please contact our Customer Service;
One of the most quiet motors on the market, only 48 dB;
Ideal match between height of the desk and user’s needs;
Anti-collision system with counterweight and giroscope;
A few sizes of the top and finishing materials to choose;
Optional: practical accessories;
Compliant with standards: DIN EN 13849-1:2007, Performance Level B; RoSH 2011/65/UE; LVD; EU Directive 2006/95/EC; EMC according to EU Directive 2004/108/EC; PN-EN 55014-1:2017-06; PN-EN 55014-2:2015-06; PN-EN 60204-1:2010P; PN-EN 61000-1-2:2016-11; PN-EN 61000-6-3:2008/A1:2012; PN-EN 60335-1:2012; PN-EN-ISO-12100_2012P;
For various working spaces: traditional offices, coworks, hot-desk spaces, as well as public interiors, eg. universities

Ecologie

Materiaalsamenstelling inclusief verpakking

MFC: 48%
Steel: 46%
Plastic: 2%
Cardboard: 4%

*average values for a representative of the group.

Gerecyclede inhoud

43%

Recyclebaarheid

Recycling: 50%
Downcycling: 50%

*average values for a representative of the group.

Verpakking

VOC Testing – we make sure that our furniture is safe for both the environment and the users. Ogi desks are tested for the presence of Volatile Organic Compounds using the chamber method in accordance with PN-EN ISO 16000-9.
Formaldehyde Testing – to meet the highest standards, we are constantly improving our production methods and the raw materials used. The levels of formaldehyde emission in our desks are now significantly below the requirements in accordance with the PN-EN 717-1:2006.
Safety, strength and durability – we believe in creating durable and timeless furniture. All desks in the Ogi family comply with the PN-EN 527-2+A1:2019-08.
Sustainable production – we are not indifferent to the environmental impact of our furniture, therefore we provide the essential information on the life cycle of Ogi desks through the Environmental Product Declaration (EPD).
Sustainable production – we are not indifferent to the environmental impact of our furniture, therefore we provide the essential information on the life cycle of our products through the Environmental Product Declarations (EPD).

Montagehandleidingen

BOD100

FAQ

How long is the power cable?

The length of the cable is 3 m.

How to use various functions of the desk’s control panel?

Below you can find video instructions for the most common functions of the PRO control panel:

a. Restoring factory settings ▶ Instructional video (0:28)

b. Setting the sensitivity of the anti-collision system ▶ Instructional video (0:30)

c. Saving worktop positions and memory operations ▶ Instructional video (0:35)

d. Activation of the One Touch Go function ▶ Instructional video (0:36)

e. Locking and unlocking ▶ Instructional video (0:25)

What should I do if the control panel does not work properly?

If the control panel does not work as it should, check the error code and apply appropriate solution. Most common errors are:

E05 – displays if the table/desk is blocked. Make sure that the desk/table is not blocked by any obstacle and that the control panel is fixed correctly. Correct the mounting of the control panel if necessary. Release the button and reset the desk;

Other error codes of the control panel and their solutions can be found in the manual: Assembly manuals sin

The desk is raising or lowering on its own, what should I do?

An arbitrary rise or fall of a tabletop can occur when too many other devices are connected to the same power supply as the desk. Overloading the power supply can cause short circuits and thus arbitrary movements of the tabletop. To avoid this, do not connect too many devices to the power supply unit to which your desk is connected.

What should I do if there is oil leaking from the frame?

There are friction points in the desk’s legs which are lubricated with oil during initial assembly at the factory. This ensures that they function properly. Leakage can occur if too much oil has been applied. It is sufficient to wipe off the dripping excess with a cloth. If the problem persists, contact our Customer Service to replace the frame.

What does a sound coming from the legs or controller when the desk is stationary mean?

A sound coming from the desk when it is not in the process of raising/lowering the desk top probably means that the electrical components (motor, controller or control panel) of the desk are overloaded. If there are lifts or photovoltaic systems installed in the building, these can affect the electrical system of the desk and cause it to sound. In a situation when a desk makes a self-contained sound:

a. sure that the correct control panel is connected to the model of your desk;

b. make sure that the voltage in the socket to which the desk is connected is appropriate (it should not exceed +/- 40V from the nominal voltage, i.e. 110V for a single-motor desk);

c.check that the electrical components of the desk (motor, controller, control panel) are not damaged or worn out.

If all these items are correct and the problem persists, contact our Customer Service:

a. if the order included assembly our assembly team will arrive to replace the faulty part;

b. if the order did not include assembly, Customer Service will send a dispatch with instructions on how to replace the part - an assembly service is available for an additional charge;

c. if, after replacing the faulty part with a new one, the above-mentioned problem persists, it is possible to have the entire desk checked at the factory by our fitters. If the desk is checked and found to be free of defects, the customer shall bear the transport costs (collection and re-dispatch).
