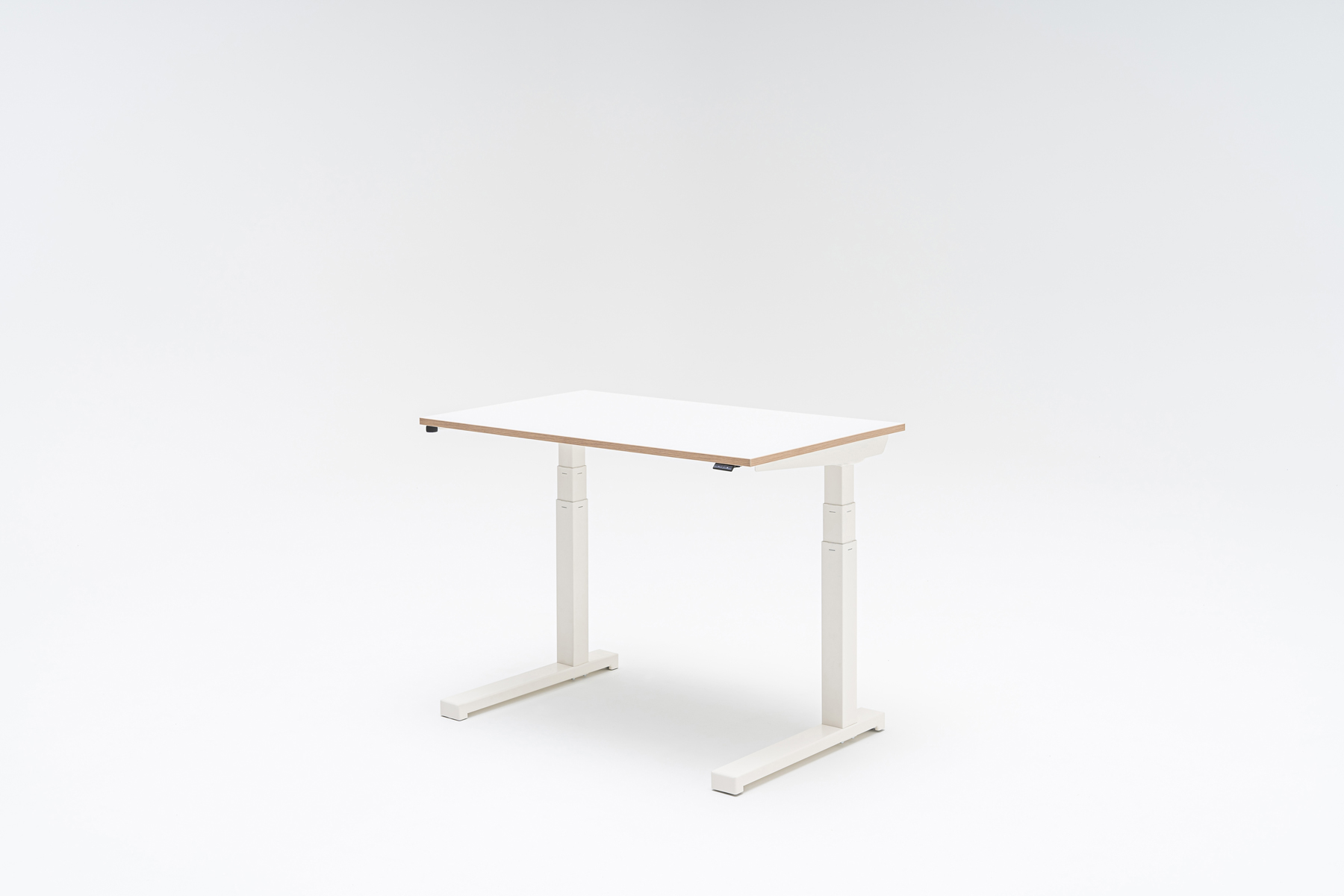

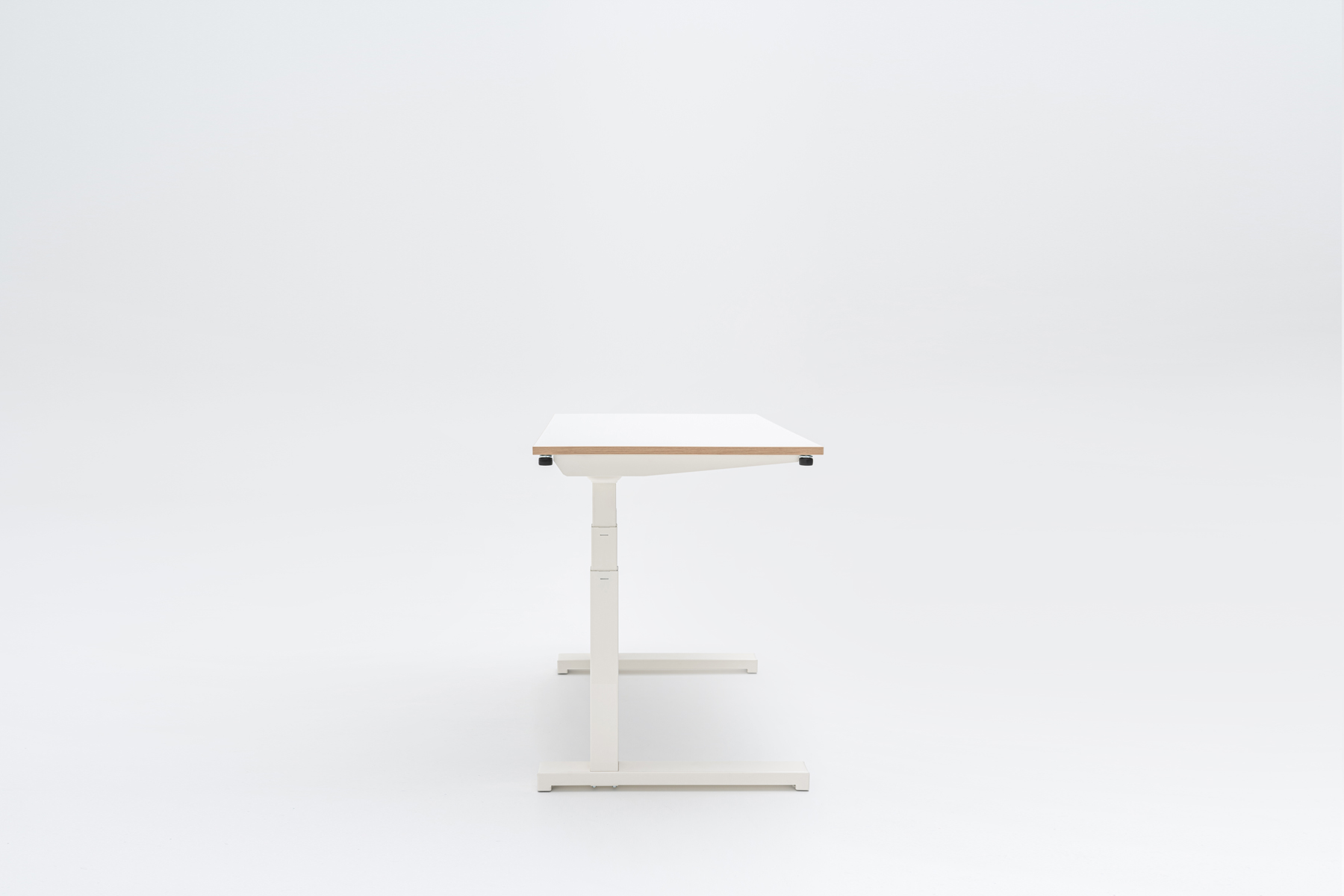

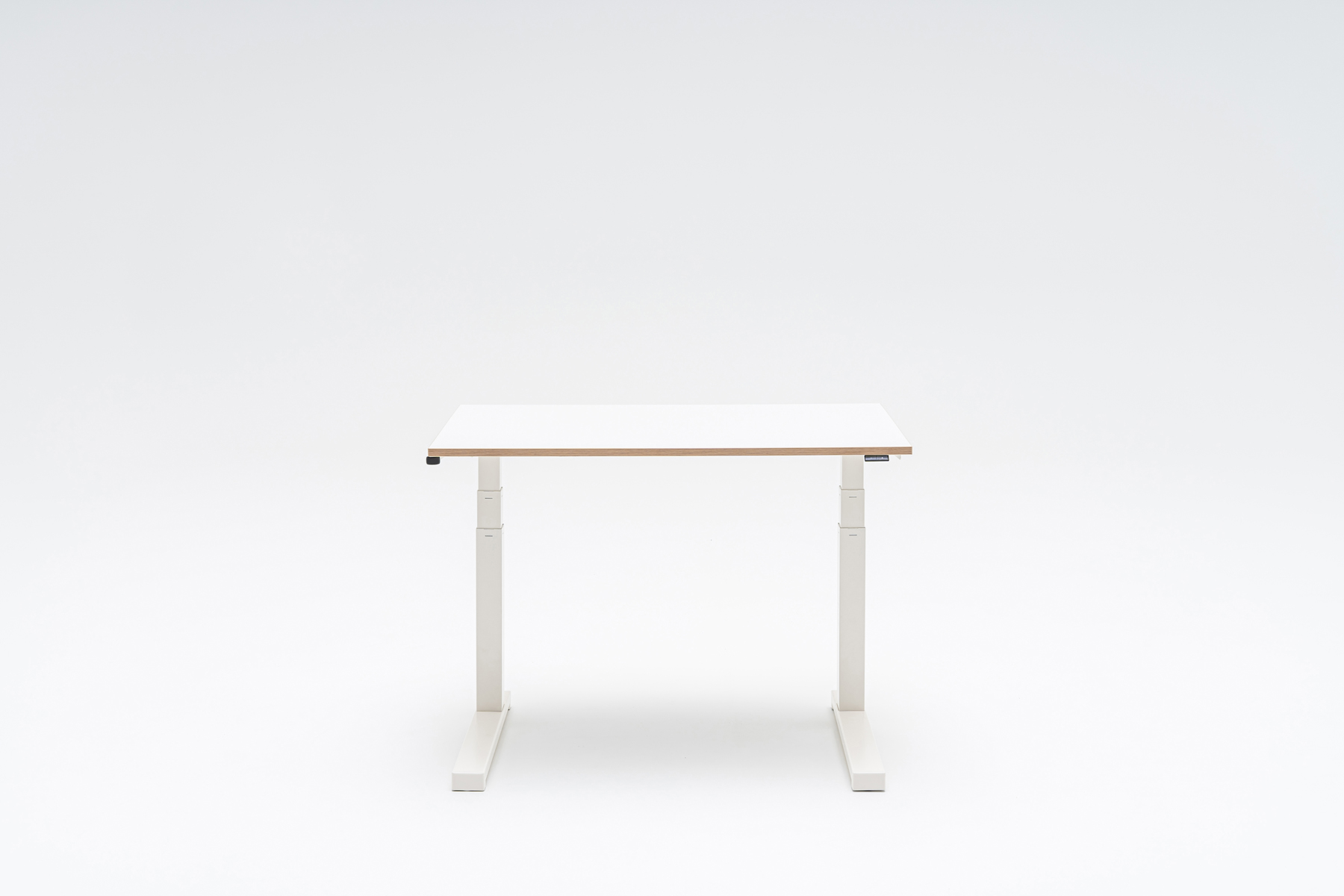

Compact Drive

Product details

• Product features
• • electrical height adjustment in the range of 540-1190 mm;
  • one of the most quiet motors on the market, only 48 dB;
  • small dimensions and easy arrangement;
  • foldable legs;
  • easy and stepless height adjustment;
  • optional setting memory and Bluetooth app;
  • anti-collision system;
  • a few sizes of the top and finishing materials to choose;

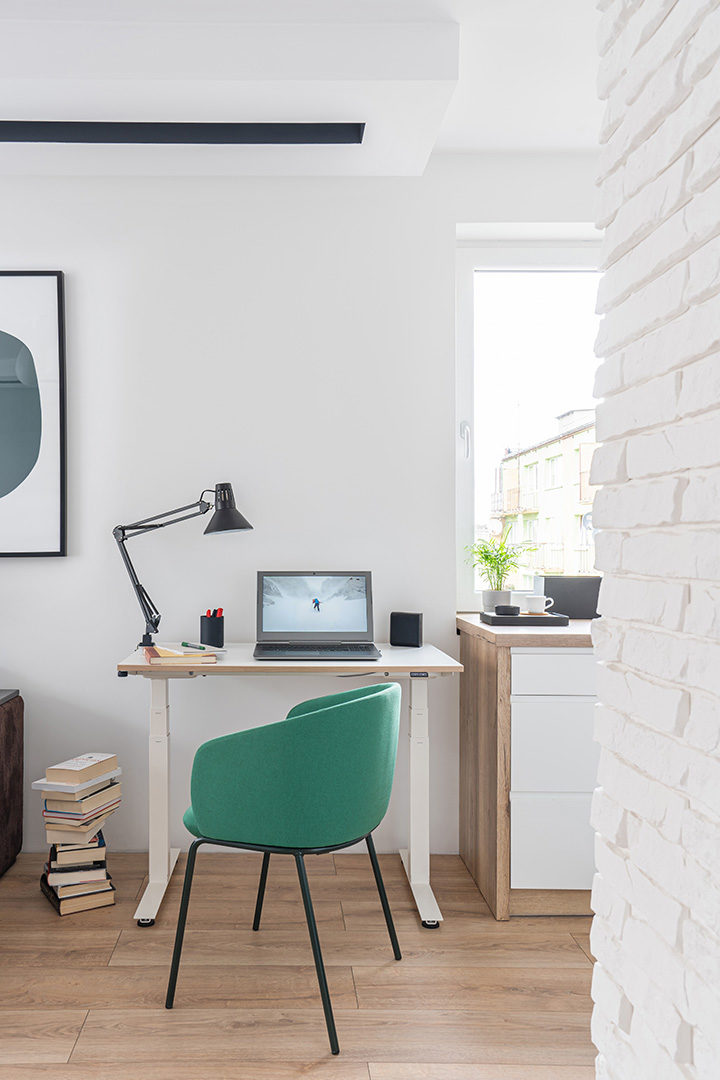

  • designed for offices, home office spaces and temporary working places
• Technical Data
• • Top - MFC 18 mm, black, ABS edges 2 mm;
  • Transport wheels - allow moving the desk in the folded position;
  • Electric height adjustable frame - in the range of 575 - 1225 mm, sit-stand, powder-coated steel, 3 profiles 50 × 50 mm, 55 × 55 mm and 60 × 60 mm, load 100 kg, telescopic leg, folding;

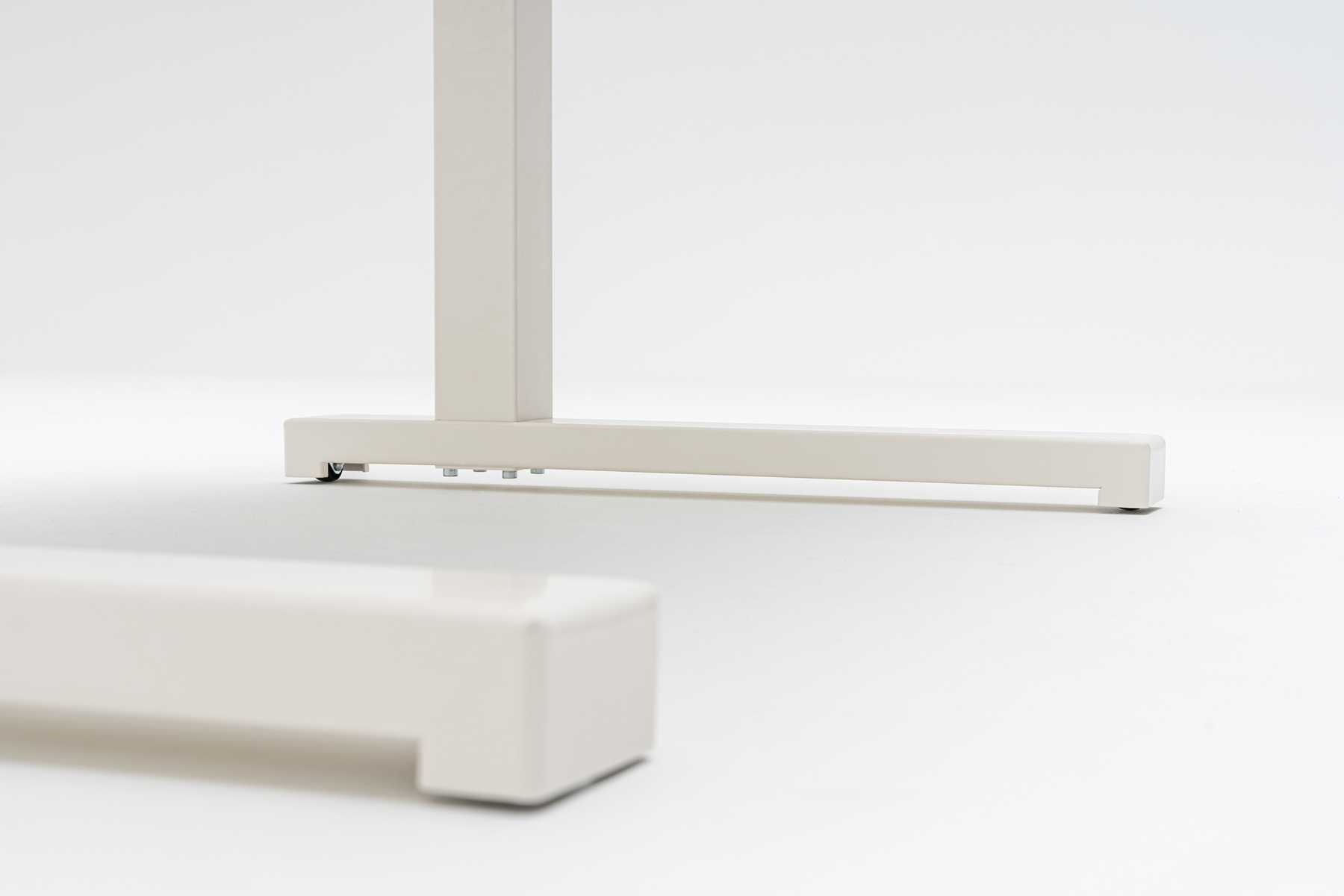

  • Foot: feet - only on the right hand side leg; transport wheels - only on the left hand side leg;

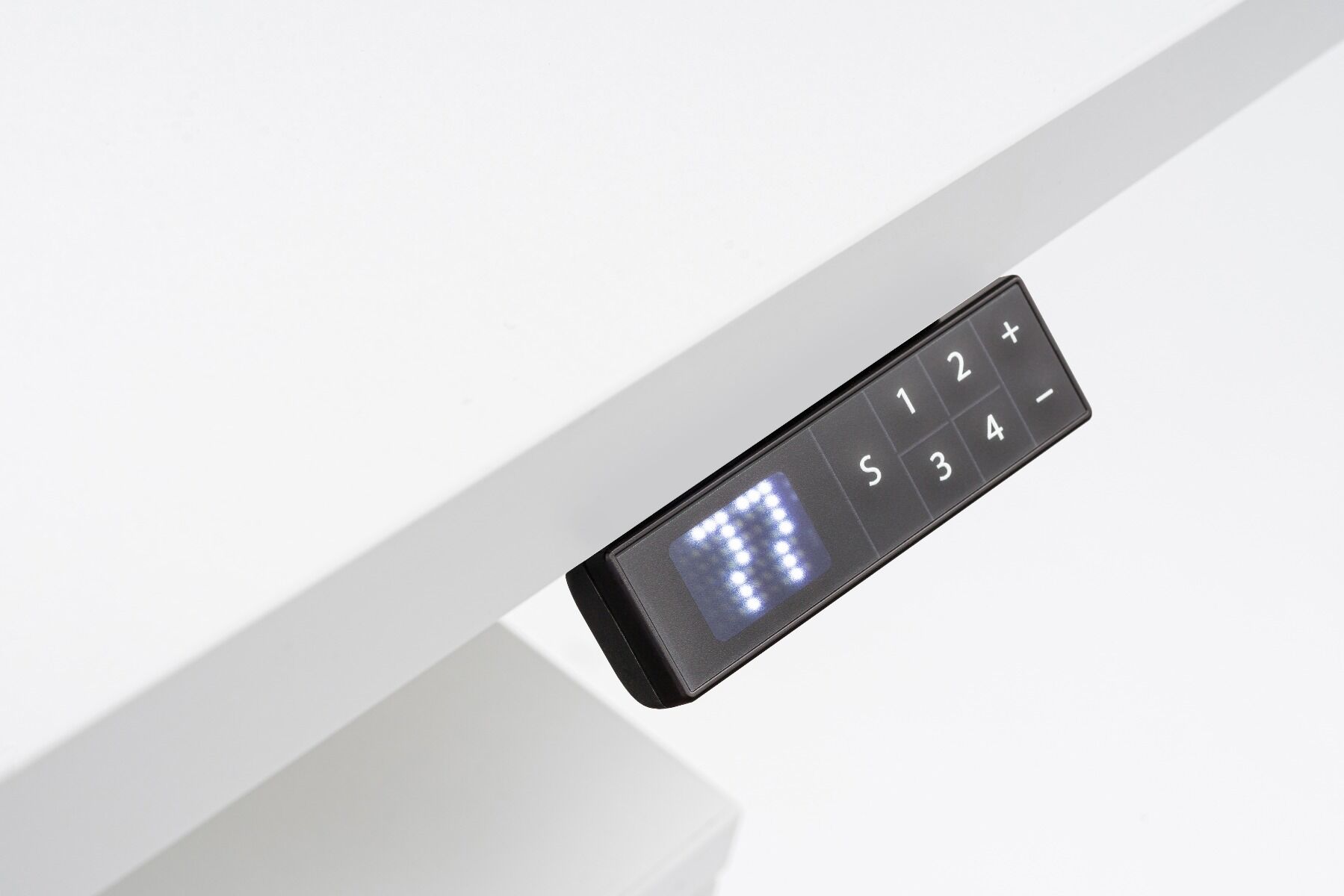

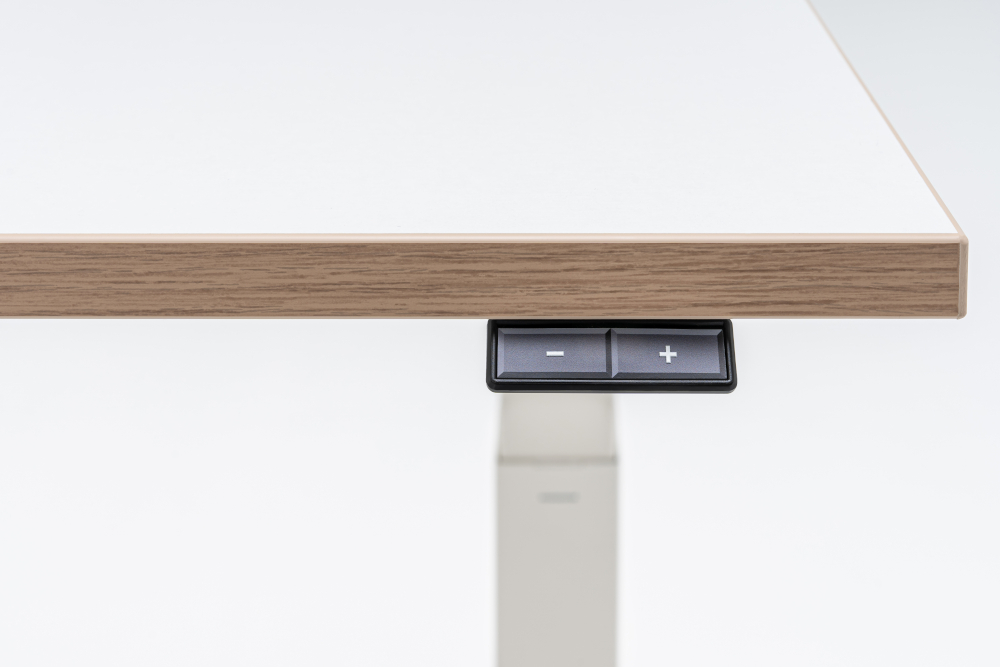

  • Control panel - stepless height adjustment: basic control panel; the sensitivity of the anti-collision system is set to Medium; option with extra charge - up and down keypad with memory; the ability to change the sensitivity of the anti-collision system within 3 levels: Low, Medium, High; option with extra charge - Bluetooth module: compatible with both panels, the ability to change the sensitivity of the anti-collision system within 3 levels: Low, Medium, High, control via MDD Desk BT application (downloadable from Google Play or App Store). The app has a time interval function that informs the user about the need of changing body position (from sitting to standing or standing to sitting);
  • Frame technical specification: height adjustment - 40 mm/sec Super Soft Start-Stop, drive - 2 synchronised motors with microprocessor, work control sensor, noise level - < 48dB, anti-colision mechanism, standards - EN 527-2 EU, directives - 206/95EC, UI508 1999, UL 1004 R7 06, WE DC 2004/108WE, power supply - 230V, 300W, power consumption on Standby - 0.3W
• Downloads

• Lookbook

  Photos

• Finishes
• Assembly manuals

• Assembly manuals

• Sustainability
• Material composition

  • MFC: 48%
  • Steel: 46%
  • Plastic: 2%
  • Cardboard: 4%

  *average values for a representative of the group.

  Carbon footprint

  56,5 kg

  Recycled content

  43%

  Recyclability

  • Recycling: 50%
  • Downcycling: 50%

  *average values for a representative of the group.

  Certificates

  • Environmental Product Declaration Type III
  • FSC/PEFC







  Sustainable production

  • Sustainable production – we are not indifferent to the environmental impact of our furniture, therefore we provide the essential information on the life cycle of our products through the Environmental Product Declarations (EPD).

  Packaging

  Materials: cardboard

  Recyclability: 100%
