compact acoustic booth Hana

Name: compact acoustic booth Hana
Brand: .mdd
SKU: HANA_new
Availability: InStock

compact acoustic booth - HANA - acoustic pod

0%
initializing...

Colour disclaimer

Downloads for the selected configuration

Download 3D models of all indexes in the collection

Download

Show dimensions

Screenshot

Show the inside

Animation

Custom dimensions

Approximate product weight: kg

Hana

HN01

W: 1184 D: 1092

H: 2217 mm

HN01Q

Production time: 5 days

W: 1184 D: 1092

H: 2217 mm

Colour 1

NB-68303 Olive green

Show filters

Finish description

Runner

Skład: 100% poliester

Gramatura: 364/m2*510g/lm

Trudnozapalność: BS EN 1021 - 1:2006 (papieros), BS EN 1021 - 2:2006 California Bulletin CAL 117-E-Class 1

Venice

Medley +412₤ netto

Mica +412₤ netto

Go Check +412₤ netto

Charles +412₤ netto

Chopper +412₤ netto

Silvertex +894₤ netto

Synergy +894₤ netto

Oceanic +894₤ netto

Quest +894₤ netto

Grain +894₤ netto

Customer`s fabric +894₤ netto

Go Check Plus +894₤ netto

Nobel +1278₤ netto

VC-0211 Black

VC-0230 Anthracite

VC-0231 Beige

VC-0220 Light grey

VC-0225 Dark grey

VC-0232 Aluminium

VC-0233 Dark beige

VC-0234 Sky blue

VC-0218 Brick red

VC-0235 Burgundy

VC-0236 Dark green

VC-0219 Olive

VC-0237 Light yellow

VC-0238 Yellow

VC-0239 Dark blue

Colour 2

M-68005 Dark olive green

MC-2497-60021 Graphite

MC-2497-60000 Grey

MC-2496-60000 Light grey

MC-2496-61008 Beige

MC-2496-64183 Pink

MC-2496-64146 Red

MC-2497-64146 Dark red

MC-2497-64029 Burgundy

MC-2496-62095 Mustard

MC-2496-62096 Yellow

MC-2496-66031 Light blue

MC-2496-66030 Blue

MC-2497-66006 Navy blue

MC-2497-67042 Teal

MC-2497-67017 Bottle green

MC-2497-68146 Green

MC-2497-62048 Olive

MC-2496-67015 Mint

MC-2496-62093 Light olive

Type of plug

UK plug

Hana

Colour 1

Venice

Colour 2

VC-0211 Black

Type of plug

₤ Incl. import tax

5 210 ₤ Excl. import tax

An internal error occurred, please try again. If the error persists, contact our Customer Service.

Delivery time 15-16 working days Product made to customer's order.

Questions about this product?

Use our virtual assistant.

Chat with a virtual advisor

By using the chat, you consent to the storage of the data provided in the conversation. The administrator of personal data is .mdd Sp. z o.o. For more information, see our privacy policy.

How can I help you?

Show filters

Finish description

Runner

Skład: 100% poliester

Gramatura: 364/m2*510g/lm

Trudnozapalność: BS EN 1021 - 1:2006 (papieros), BS EN 1021 - 2:2006 California Bulletin CAL 117-E-Class 1

Select an existing offer or create a new one

Choose a symbol

compact acoustic booth Hana - HN01 - product dimensions

compact acoustic booth Hana - HN01Q - product dimensions

Product weight

362 kg

Package dimensions

L 1184 x W 1092 x H 2217 mm

All dimensions are given in mm

Product weight

362 kg

Package dimensions

L 1184 x W 1092 x H 2217 mm

All dimensions are given in mm

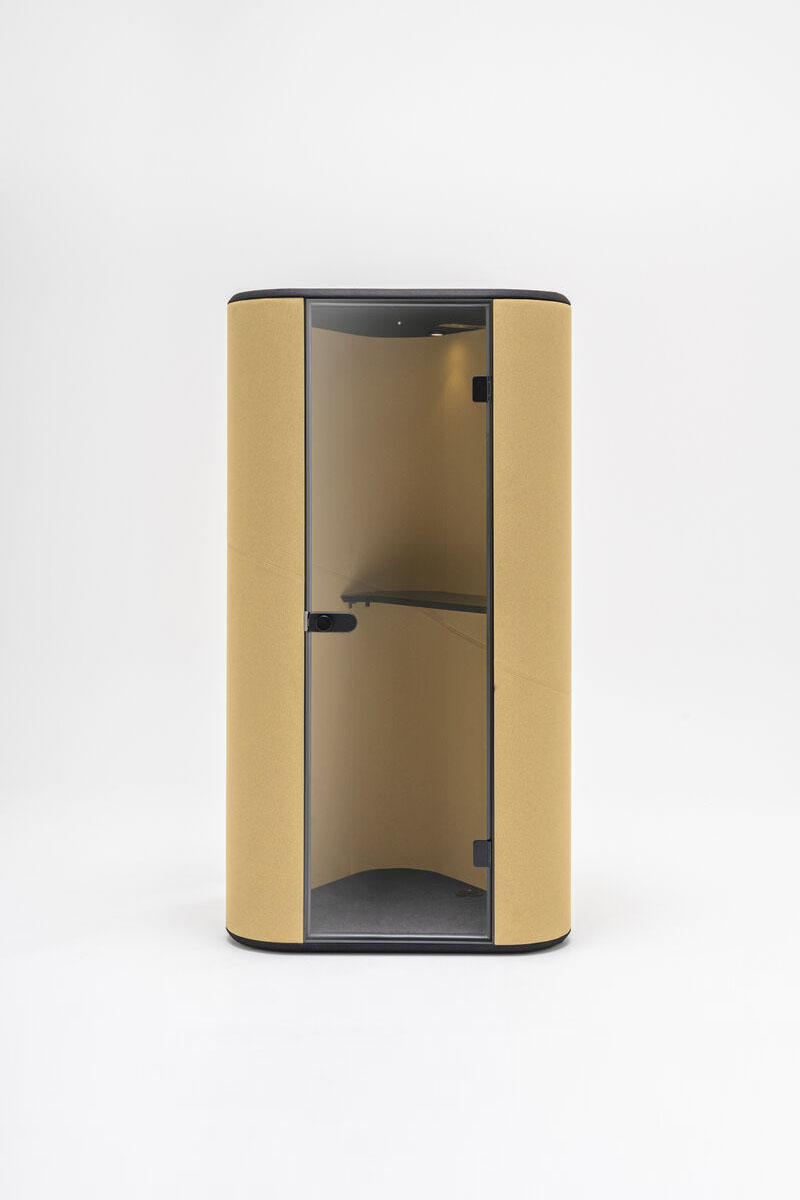

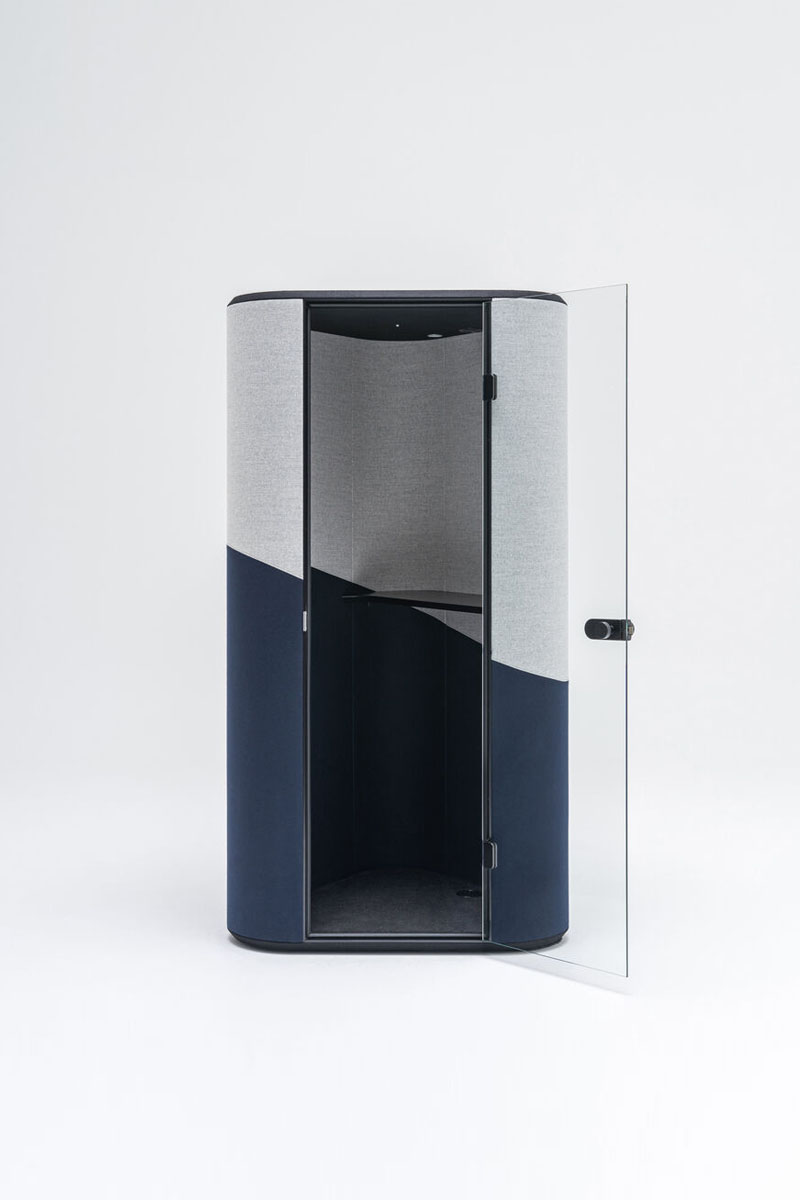

Compact Acoustic Booth Hana

by Dymitr Malcew

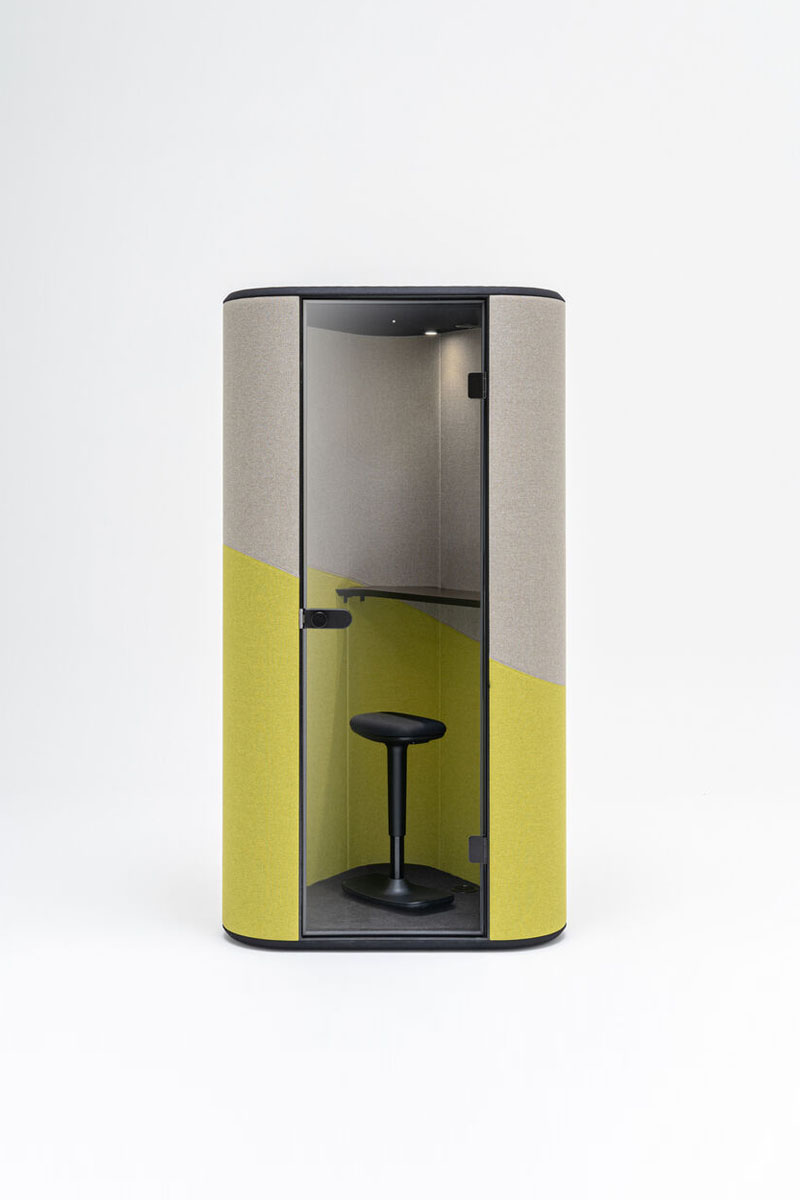

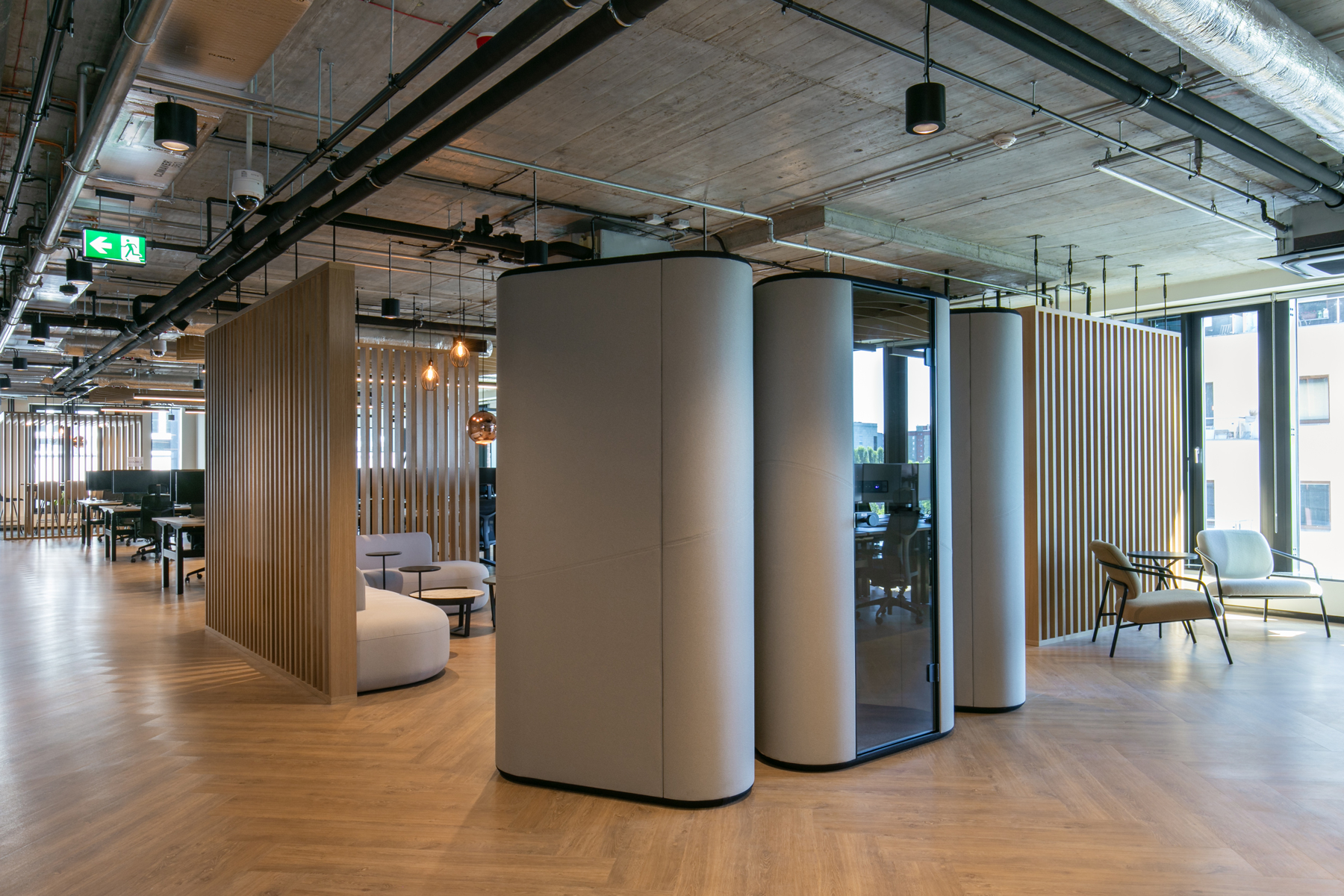

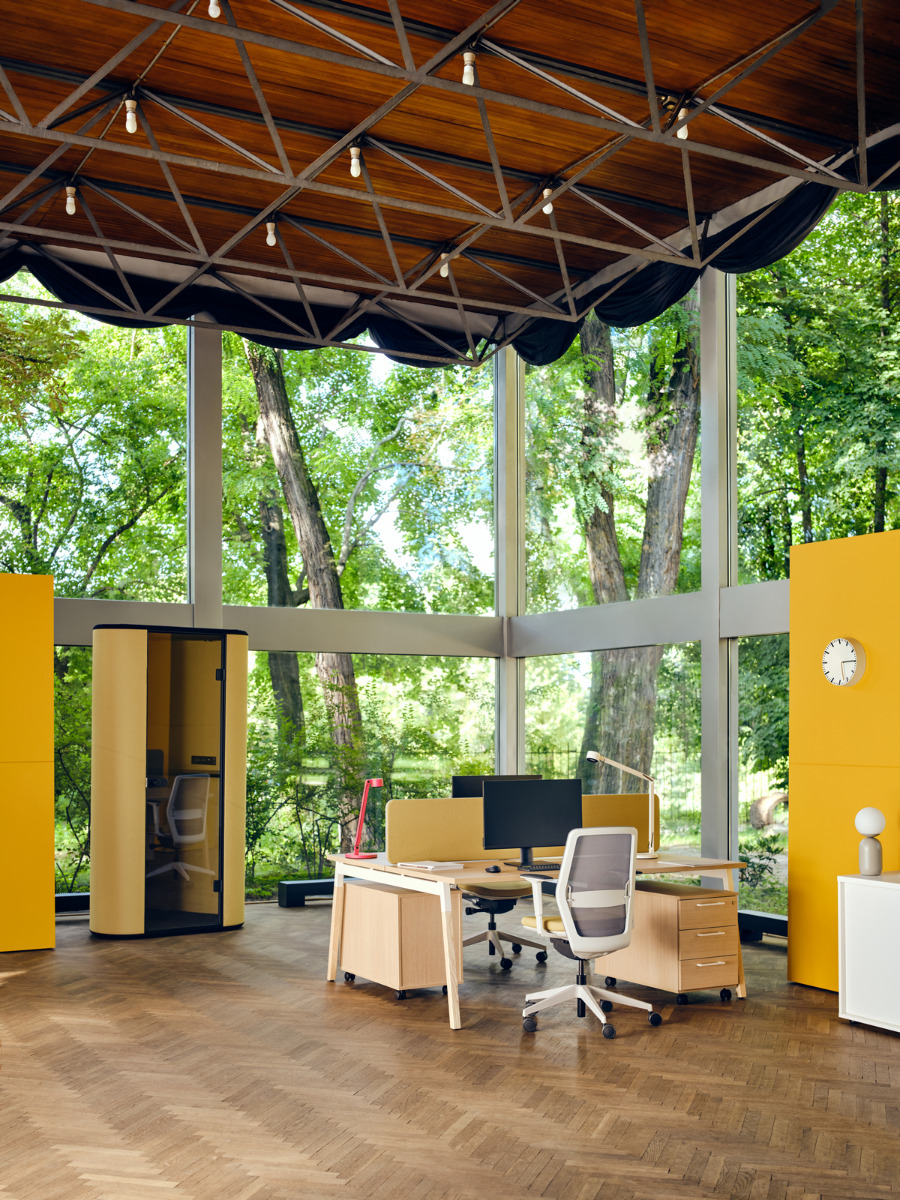

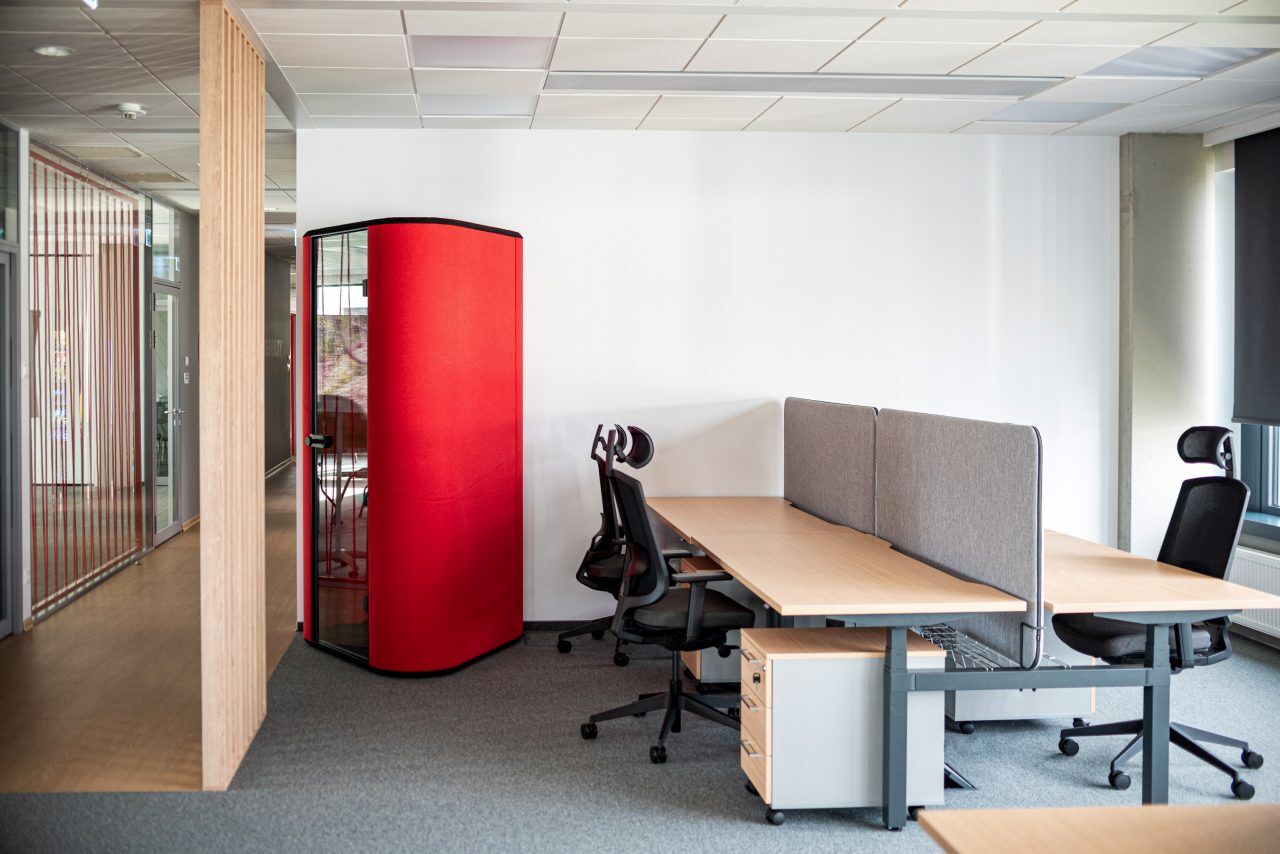

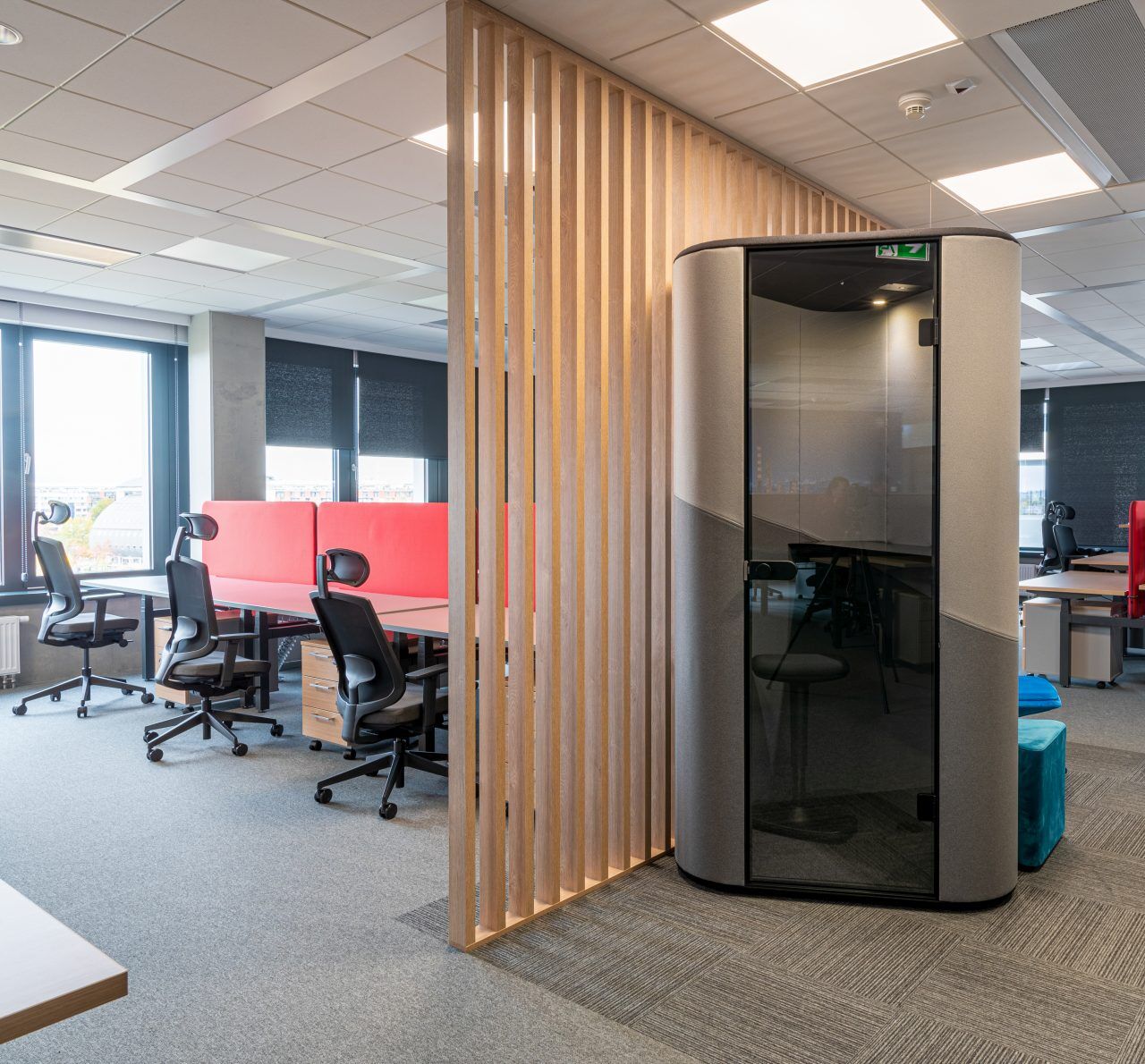

Quiet zones in demanding, buzzing offices spaces- the Hana acoustic booths perform well even in the most dynamic spaces. Thanks to the compact construction and ergonomic form of a phone booth, Hana will work in an even small room. The Hana booth ensures space for phone conversations and creates ideal environment that improves concentration and guarantees privacy in noisy open space.

Top panel

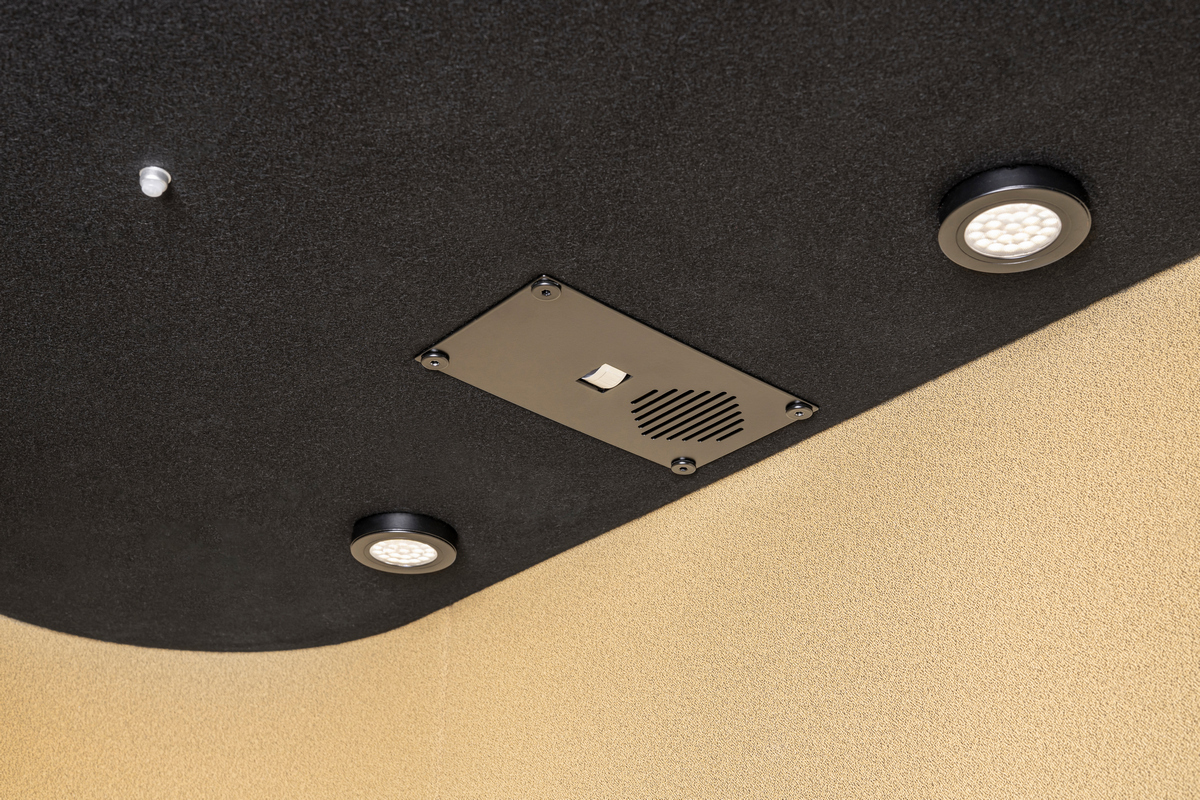

outside - MDF 28 mm, upholstered, clour: LDS27 - black; inside - chipboard 12 mm upholstered, colour: LDS27 - black, two-point lighting; exhaust fan activated by a motion detector (adjustable ventilation speed); ventilation grate in the floor

Top panel

Technical data

Technical specification

Top panel: outside - MDF 28 mm, upholstered, clour: LDS27 - black; inside - chipboard 12 mm upholstered, colour: LDS27 - black, two-point lighting; exhaust fan activated by a motion detector (adjustable ventilation speed); ventilation grate in the floor;
Body - 58 mm, upholstered walls with acoustic filling;
Shelf - MDF board 28 mm, lacquered, measurements: 1070 x 388 x 28 x 28 mm, colour: black;

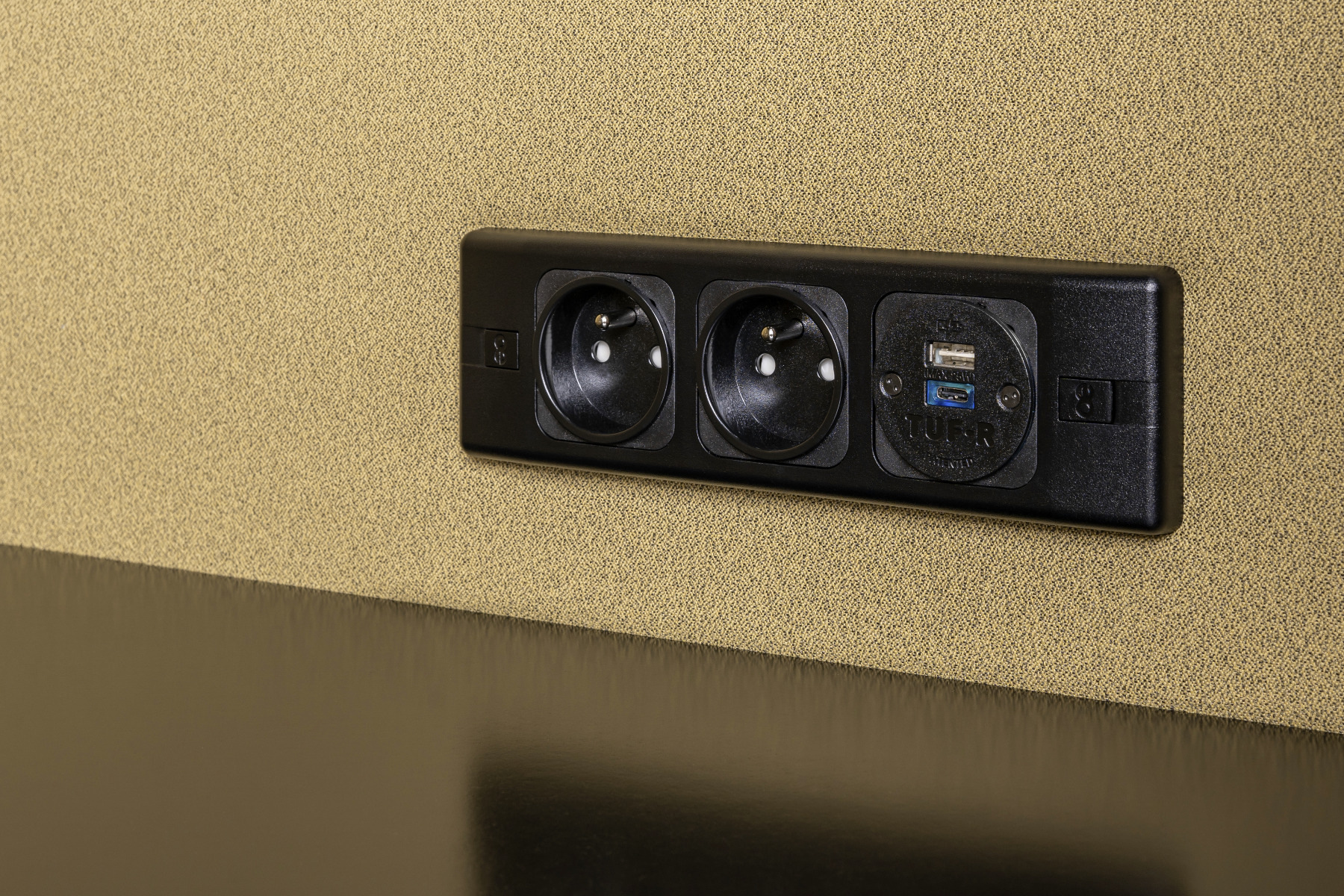

Mediabox - 2x230V + 1xUSB + 1xUSB type C;

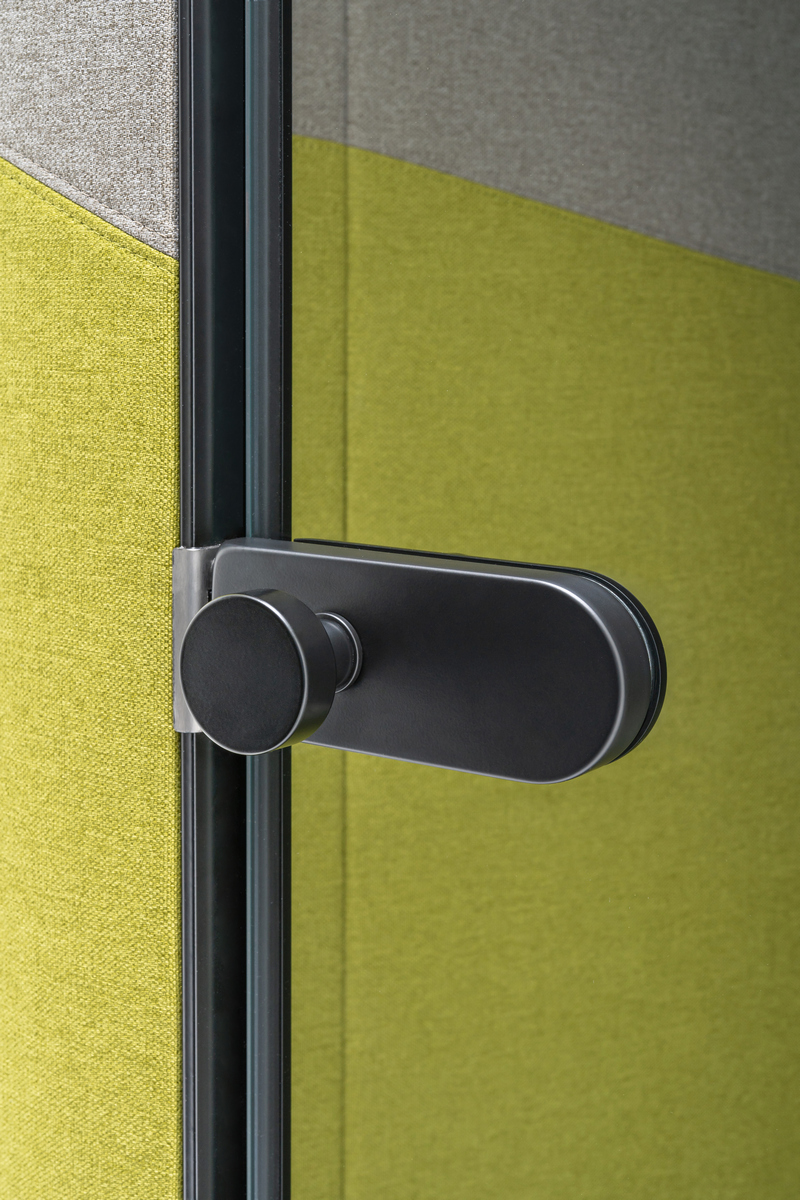

Rotary knob - powder coated steel, colour: black;

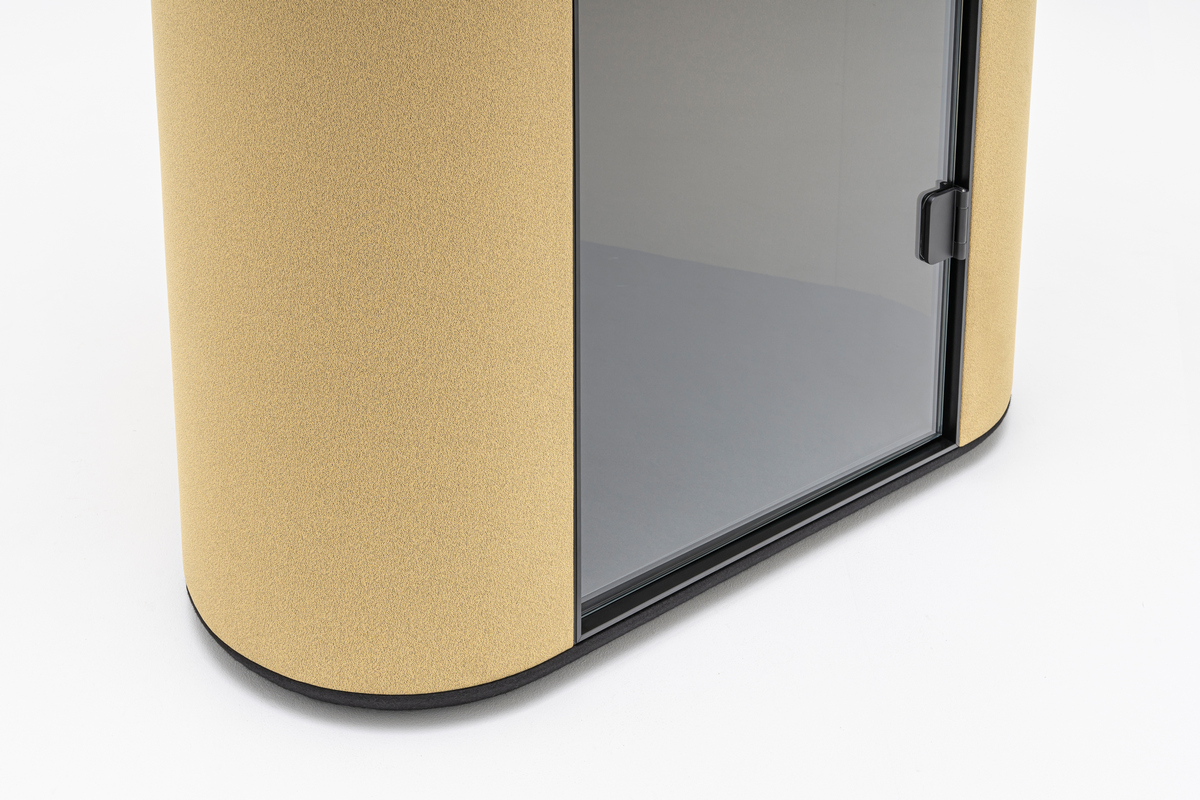

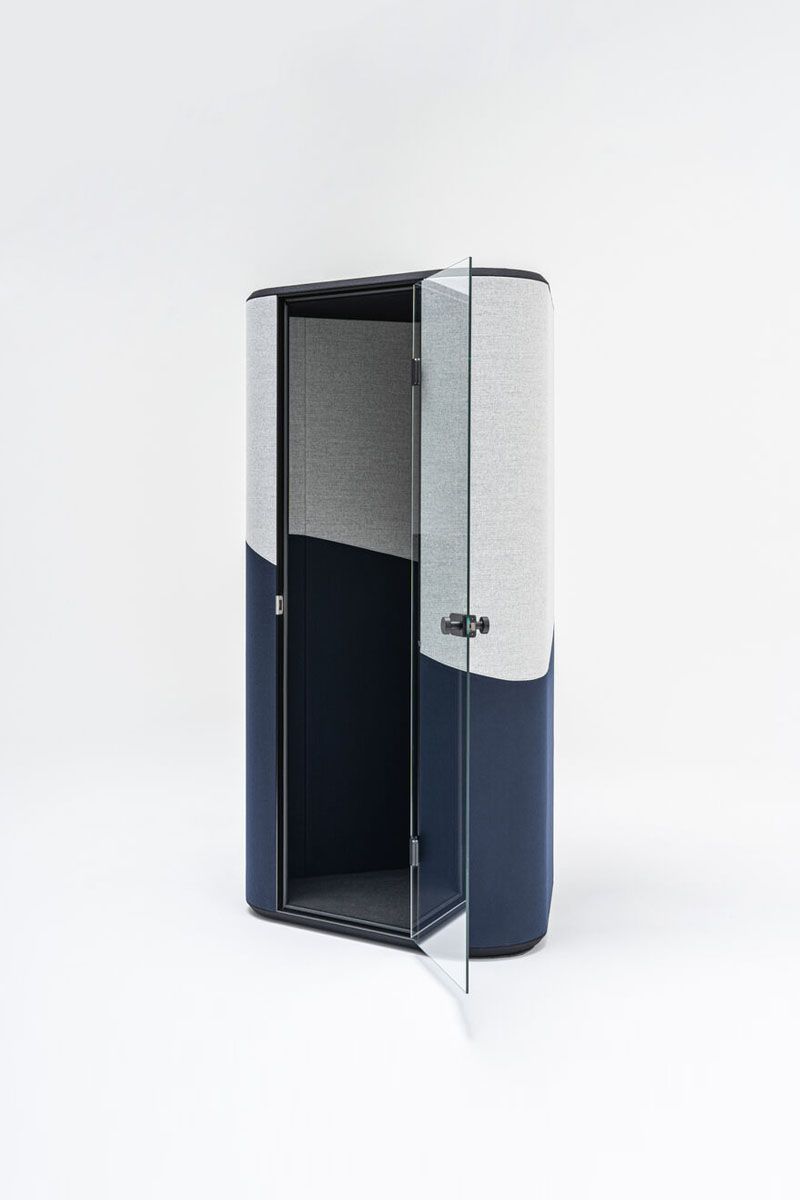

Door - toughened glass 8 mm, clear;
Bottom rim: outside - MDF 28 mm, upholstered, clour: LDS27 - black; inside - chipboard 18 mm, carpet, colour: graphite;
Electric hook-up. Electric systems available: EU, USA, Schuki, UK, Ch;
Additional information: Sonic technology structure with A-class acoustics certificate; automatic light switch simultaneously activating the ventilation system; 2 fans: 1 intake and 1 exhaust; volume 14dB, efficiency 90m3/h;
Acoustic booth with faster production time HN01Q - control panel with manual (knobs) adjustment of lighting and ventilation;
Dimensions: 1132 x 1184 mm, h. 2199
Made in Poland, EU

Product features

The booth is ideal for telephone calls, as it provides privacy and quiet;
Wall were made with the Sonic technology, with the A-class acoustic certificate;
Upholstery fabrics on the outside and inside of the walls increase sound absorption;

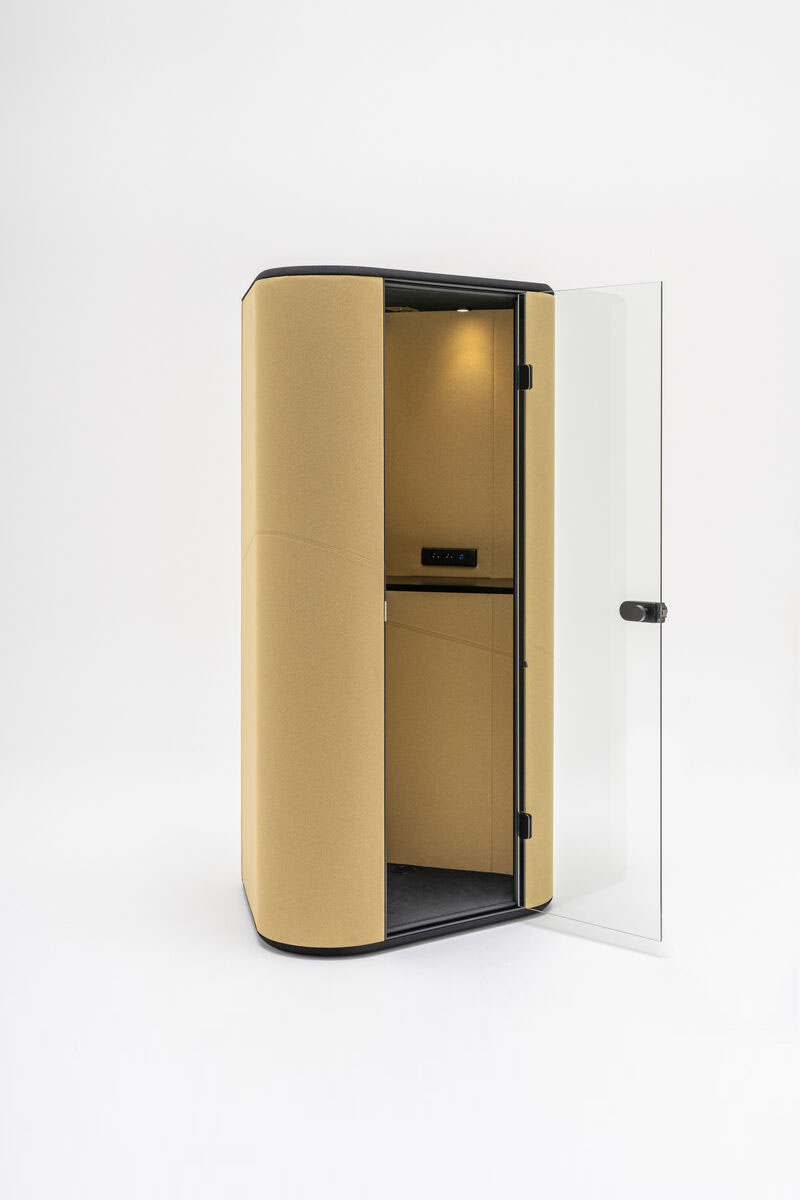

Two-point lighting and ventilation switch on and off automatically;

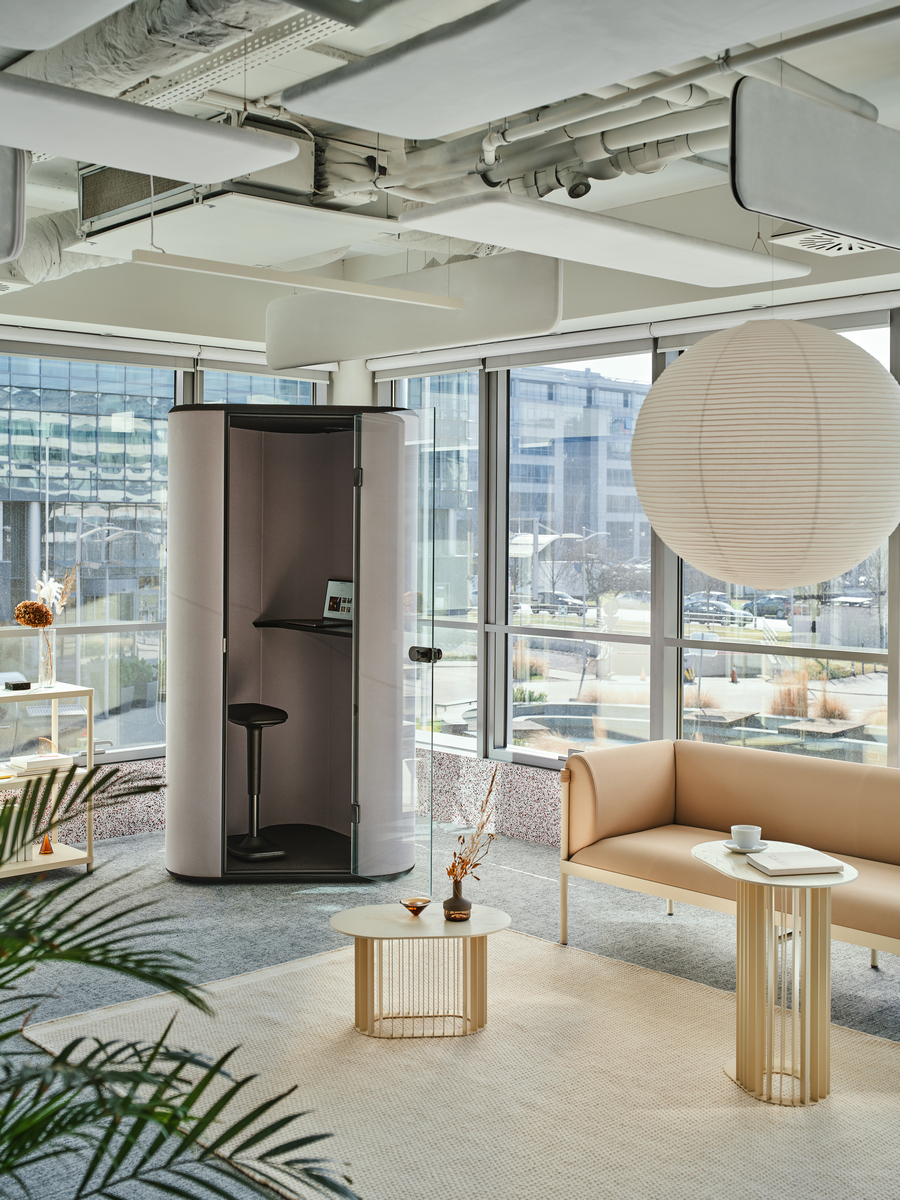

A practical shelf and mediabox enable comfortable work on a laptop or tablet;
Compact dimensions allow for placing the booth even in smaller interiors;
Designed for open spaces in offices and public interiors

Ecology

Material composition including packaging

MFC: 76%
Wood: 5%
Steel: 5%
Glass: 8%
Plastic: 3%
Fabric: 2%
Polyurethane foam: 2%

*average values for a representative of the group.

Recycled content

Recyclability

Recycling: 12%
Downcycling: 88%

*average values for a representative of the group.

Sustainable production

Sustainable production – we are not indifferent to the environmental impact of our furniture, therefore we provide the essential information on the life cycle of our products through the Environmental Product Declarations (EPD).

Download

Lookbook Photos Safety rules

Download 3D models of all symbols in the collection

2D dwg 3D dwg 3D 3ds fbx skp BIM

Assembly manuals

HN01 HN01Q

FAQ

Does the pod have certificate of acoustics?

Yes the pod is made in Certificate Sonic Technology, which is also used in acoustic panels.

What are the acoustic properties?

The wall fillings have the highest class of acoustics - A.

What elements does the Hana pod consist of?

Hana pod consists of two upper tops (internal and external), two lower tops (internal and external), worktop and glass door.

What materials are used to build the construction?

The frame is made from MDF, a chipboard and HDF. The whole construction is filled with acoustic material. Upper and lower tops – lacquered MDF.

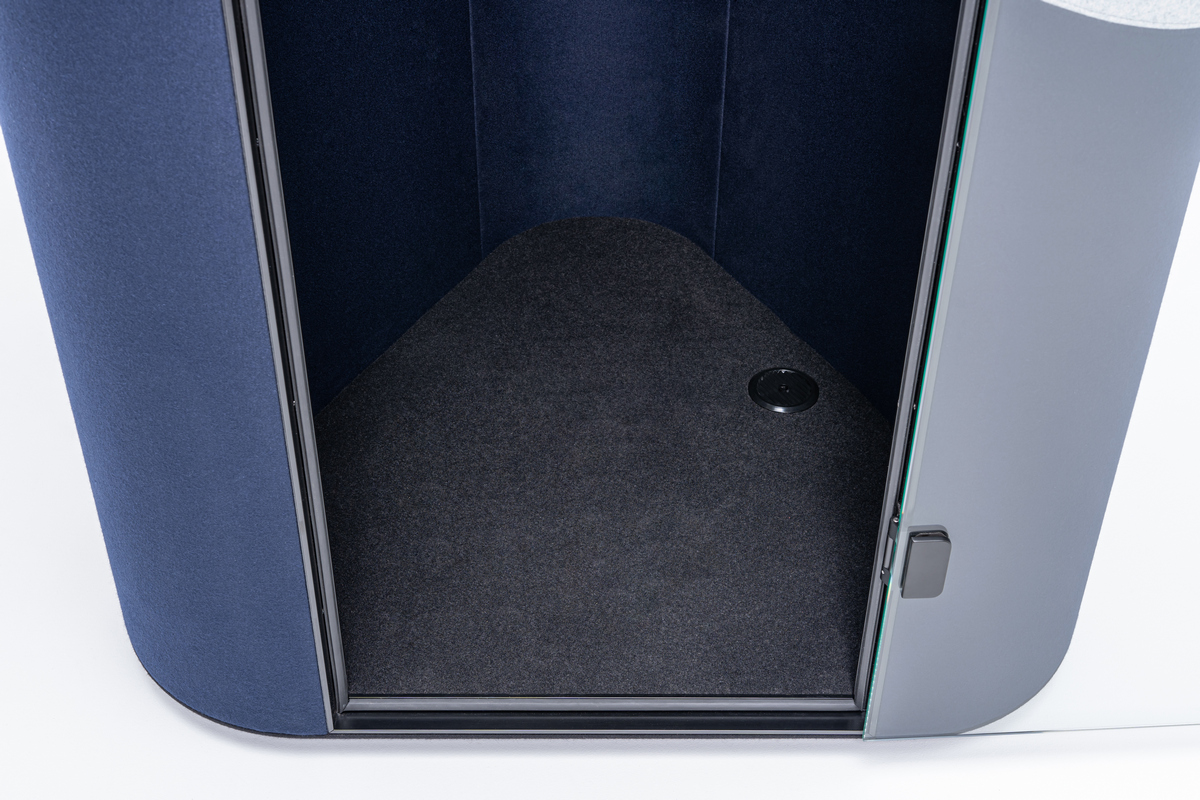

Does the pod have a floor?

Yes, the pod has the floor-covering.

Where is the light switch?

The light works on the motion detector which switches the light and the fans on.

What are the ventilation parameters?

2 fans- intake and exhaust; Volume 14 dB, efficiency 90m3/h

How long does it take to assemble the pod?

The assembly takes approx. 2 hours.

How many people are required to assemble the pod?

It requires two people to assemble the pod.

What to prepare for the assembly of the booth?

A ladder will be needed to assembly the booth.

Does the room, where the pod is going to be assemble, have to be significantly higher?

The recommended height of the room is at least 3 meters.

Does the floor have be assembled to the floor?

No, the pod is detached.

Is the door universal and can be assembled as left-hand or right-hand door?

No, the door can only be assembled on the right-hand side.

Is an electrician required to plug in the pod?

No, it is enough to plug the pod to the standard socket.

Where is the electrical connection located?

The electrical connection is on the roof, the power cord comes out from the lower top.

Is the pod adapted to the 110V voltage in the USA?

Yes, it automatically adapts to that voltage.

Can the already assembled pod be taken into pieces and reassembled in a different place?

Yes, it is possible to assemble the pod repeatedly.

Can the Hana pod be moved?

Yes, but for safety reasons it is recommended that it is done by at least 4 people.

Does the Hana pod come in piece?

No, it does not come in one piece, it consists of elements that can be easily moved to every room.

How do we pack our Hana pods?

Hana pods are packed in wooden crates that are divided into two sections – in one section we will find the tops and in the other the pod walls. All the elements are carefully secured and fixed so they do not move during the transport.

What are the dimensions and weight of the crates?

Dimensions: 2185 × 1415 × 800 mm. Weight: 315 kg.
