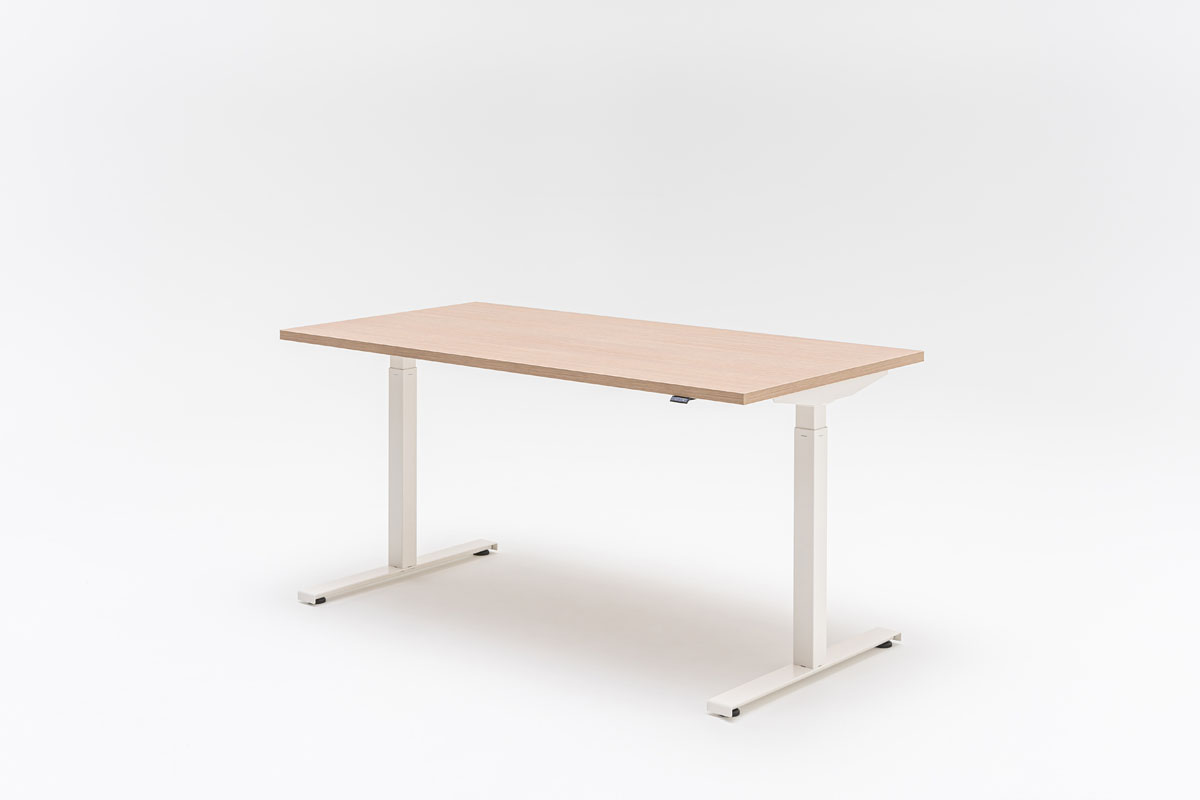

Ogi Drive

Product details

• Product features
• • Electrical height adjustment in the range of 650-1300 mm;
  • Available with adjustment range of 700-1200 mm – please contact our Customer Service;
  • One of the most quiet motors on the market, only 48 dB;
  • Ideal match between height of the desk and user’s needs;
  • Optional setting memory and Bluetooth app;
  • Anti-collision system with counterweight and giroscope;
  • A few sizes of the top and finishing materials to choose;
  • Optional: practical accessories;
  • Compliant with standards: DIN EN 13849-1:2007, Performance Level B; RoSH 2011/65/UE; LVD; EU Directive 2006/95/EC; EMC according to EU Directive 2004/108/EC; PN-EN 55014-1:2017-06; PN-EN 55014-2:2015-06; PN-EN 60204-1:2010P; PN-EN 61000-1-2:2016-11; PN-EN 61000-6-3:2008/A1:2012; PN-EN 60335-1:2012; PN-EN-ISO-12100_2012P;
  • For various working spaces: traditional offices, coworks, hot-desk spaces, as well as public interiors, eg. universities
• Technical Data
• • Worktop - MFC 28 mm, ABS edge;
  • Options with extra charge: grommet - 2 pcs, Ø 80 mm; mediabox M04H - 2 x RJ45 (class E, cat. 6); + 1 x USB + 1 x HDMI + 4 x 230V; mediabox M04 - 2 x RJ45 (class E, cat. 6); + 1 x USB + 4 x 230V; mediabox M07 - 1 x 230V + 1 x USB charger + 1 x RJ45, colour: black, white, mounted instead of the existing grommet Ø80 mm (PK80); top access M05; cable way - the width of the opening is proportional to the width of the worktop;
  • Frame with electric height adjustment - in the range of 650−1300 mm, metal, powder coated, 3 profiles 50 × 50 mm, 55 × 55 mm and 60 × 60 mm; - in the range of 700−1200 mm, metal, powder coated, 2 profiles 55 × 55 mm and 60 × 60 mm; powder coated steel, load 100 kg, telescopic leg;
  • Option with extra charge: ZD panel - accoustic class A, zip fastener, pinable; fixing element - powder coated metal;
  • Metal element for legs connecting;
  • Leveling feet - range 5 mm;
  • Control panel - stepless height adjustment: basic control panel; the sensitivity of the anti-collision system is set to Medium; option with extra charge: up and down keypad with memory, the ability to change the sensitivity of the anti-collision system within 3 levels: Low, Medium, High; option with extra charge: round control panel with memory; the ability to change the sensitivity of the anti-collision system within 3 levels: Low, Medium, High, mounted to the worktop; option with extra charge: Bluetooth module: compatible with both panels, the ability to change the sensitivity of the anti-collision system within 3 levels: Low, Medium, High, control via MDD Desk BT application (downloadable from Google Play or App Store). The app has a time interval function that informs the user about the need of changing body position (from sitting to standing or standing to sitting);
  • Options with extra charge: horizontal cable tray S69 - powder coated, colour: 09 - aluminum; single desk horizontal cable tray (SG12, SG16) - powder coated metal, colour: M009 - aluminum semi-matt; horizontal cable tray E64 - powder coated, colour: M009 - aluminium semi-matt
• Downloads

• Photos

  Lookbook

  Catalogue

  Technical description

  Dimensions and symbols

• Blocks

• 2D dwg

  3D dwg

  3D 3ds

  fbx

  obj

  skp

• Finishes

• Textures

  Order swatches

• Assembly manuals

• Assembly manuals

• Sustainability
• Material composition

  • MFC: 48%
  • Steel: 46%
  • Plastic: 2%
  • Cardboard: 4%

  *average values for a representative of the group.

  Carbon footprint

  56,5 kg

  Recycled content

  43%

  Recyclability

  • Recyclable: 50%
  • Downcyclable: 50%

  *average values for a representative of the group.

  Certificates

  • Environmental Product Declaration Type III
  • FSC/PEFC







  • Testing of formaldehyde emission by the chamber method according to EN 717- 1:2006 standard.
  • Test of volatile organic compounds (VOC) emission by the chamber method according to PN-EN ISO 16000-9.
  • PN-EN 15371:2016-12. Furniture. Strength, durability and safety. Requirements for non-domestic tables.

  Sustainable production

  • VOC Testing – we make sure that our furniture is safe for both the environment and the users. Ogi desks are tested for the presence of Volatile Organic Compounds using the chamber method in accordance with PN-EN ISO 16000-9.
  • Formaldehyde Testing – to meet the highest standards, we are constantly improving our production methods and the raw materials used. The levels of formaldehyde emission in our desks are now significantly below the requirements in accordance with the PN-EN 717-1:2006.
  • Safety, strength and durability – we believe in creating durable and timeless furniture. All desks in the Ogi family comply with the PN-EN 527-2+A1:2019-08.
  • Sustainable production – we are not indifferent to the environmental impact of our furniture, therefore we provide the essential information on the life cycle of our products through the Environmental Product Declarations (EPD).
