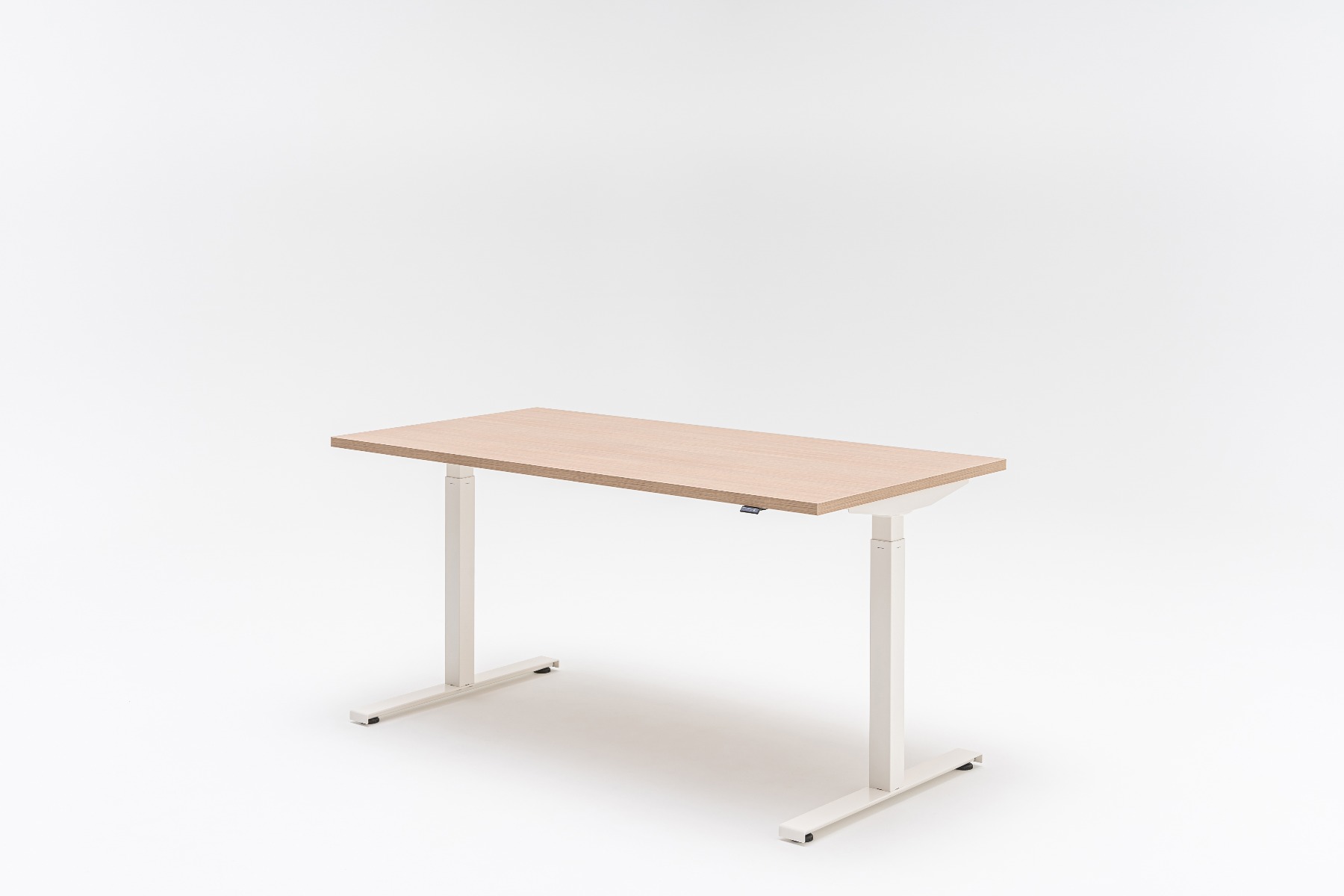

desk manual height adjustment Ogi Drive

Desk manual height adjustment Ogi Drive

Product details

• Product features
• • Compliance with the PN-EN 527-2+A1:2019-08 standard guarantees that the desk is safe;
  • The 650-1000 mm height-adjustable frame allows the desk to be customised to individual needs and work in sit-stand mode, healthier for the user;
  • Manual height adjustment system ensures complete silence when the worktop is raised;
  • The possibility to choose the size of the worktop makes it easy to adapt the desk to an existing or planned arrangement and the needs of users;
  • Accessories, such as mediaboxes, cable trays, grommets, hangers, organisers and panels, help create an ergonomic and functional workstation;
  • Designed for various working spaces: traditional offices, coworks, hot-desk spaces, as well as public interiors, eg. universities
• Technical Data
• • Worktop - MFC 28 mm, ABS edge 2 mm;
  • Edges can be attached using laser technology or PUR glue - please contact Customer Service if tender or project guidelines require laser edging;
  • Frame with manual height adjustment - metal, powder-coated, 2 profiles 50x50 mm i 60x60 mm, adjustment in the range of 650-1000 mm;
  • Foot - Basic, powder-coated metal, Pro (option with extra charge), aluminium, powder-coated or polished;
  • Leveling feet - range 5 mm;
  • Hand crank - hidden handle, mounted only on the right side, colour: black, stepless adjustment in the range of 650-1000 mm, rotation 2,25 mm, profiles 60 x 60 mm, 50 x 50 mm;
  • Options with extra charge: horizontal cable tray S69 - powder-coated, colour: 09 - aluminum; single desk horizontal cable tray (SG12, SG16) - powder-coated metal, colour: M009 - aluminum semi-matt; horizontal cable tray E64 - powder-coated, colour: M009 - aluminium semi-mat;
  • Options with extra charge: grommet - 2 pcs, Ø 88 mm; mediabox M14H - plastic frame, 2 x RJ45 (class E, cat. 6); + 1 x USB + 1 x HDMI + 4 x 230V, dimensions: 305x155x150 mm, power cord: 2000 mm; mediabox M14 - plastic frame, 2 x RJ45 (class E, cat. 6); + 1 x USB + 4 x 230V, dimensions: 305x155x150 mm, power cord: 2000 mm; mediabox M071 - 1 x 230V + 1 x USB A charger + 1 x USB C charger, colours: black or white, mounted instead of the existing grommet Ø88 mm (PK80); top access M15 - plastic frame, dimensions: 292x112x18 mm; mediabox M04 - aluminium frame, 4 x 230V, 2 x RJ45, 1 x USB, power cord 2 m; mediabox M04H - aluminium frame, 4 x 230V, 2 x RJ45, 1 x USB, 1 x HDMI, power cord 2 m; top access M05 - aluminium frame;
  • Made in Poland, EU
• Downloads

• Photos

  Lookbook

  Catalogue

• Finishes
• Instructions

• Assembly manuals

• Sustainability
• Material composition & packaging

  • MFC: 48%
  • Steel: 46%
  • Plastic: 2%
  • Cardboard: 4%

  *average values for a representative of the group.

  Carbon footprint

  56,5 kg

  Recycled content

  43%

  Recyclability

  • Recycling: 50%
  • Downcycling: 50%

  *average values for a representative of the group.

  Certificates

  • Environmental Product Declaration Type III
  • FSC/PEFC







  • Testing of formaldehyde emission by the chamber method according to EN 717- 1:2006 standard.
  • Test of volatile organic compounds (VOC) emission by the chamber method according to PN-EN ISO 16000-9.
  • PN-EN 15371:2016-12. Furniture. Strength, durability and safety. Requirements for non-domestic tables.

  Sustainable production

  • VOC Testing – we make sure that our furniture is safe for both the environment and the users. Ogi desks are tested for the presence of Volatile Organic Compounds using the chamber method in accordance with PN-EN ISO 16000-9.
  • Formaldehyde Testing – to meet the highest standards, we are constantly improving our production methods and the raw materials used. The levels of formaldehyde emission in our desks are now significantly below the requirements in accordance with the PN-EN 717-1:2006.
  • Safety, strength and durability – we believe in creating durable and timeless furniture. All desks in the Ogi family comply with the PN-EN 527-2+A1:2019-08.
  • Sustainable production – we are not indifferent to the environmental impact of our furniture, therefore we provide the essential information on the life cycle of Ogi desks through the Environmental Product Declaration (EPD).
  • Sustainable production – we are not indifferent to the environmental impact of our furniture, therefore we provide the essential information on the life cycle of our products through the Environmental Product Declarations (EPD).


  See more

  Packaging

  Materials: cardboard

  Recyclability: 100%
