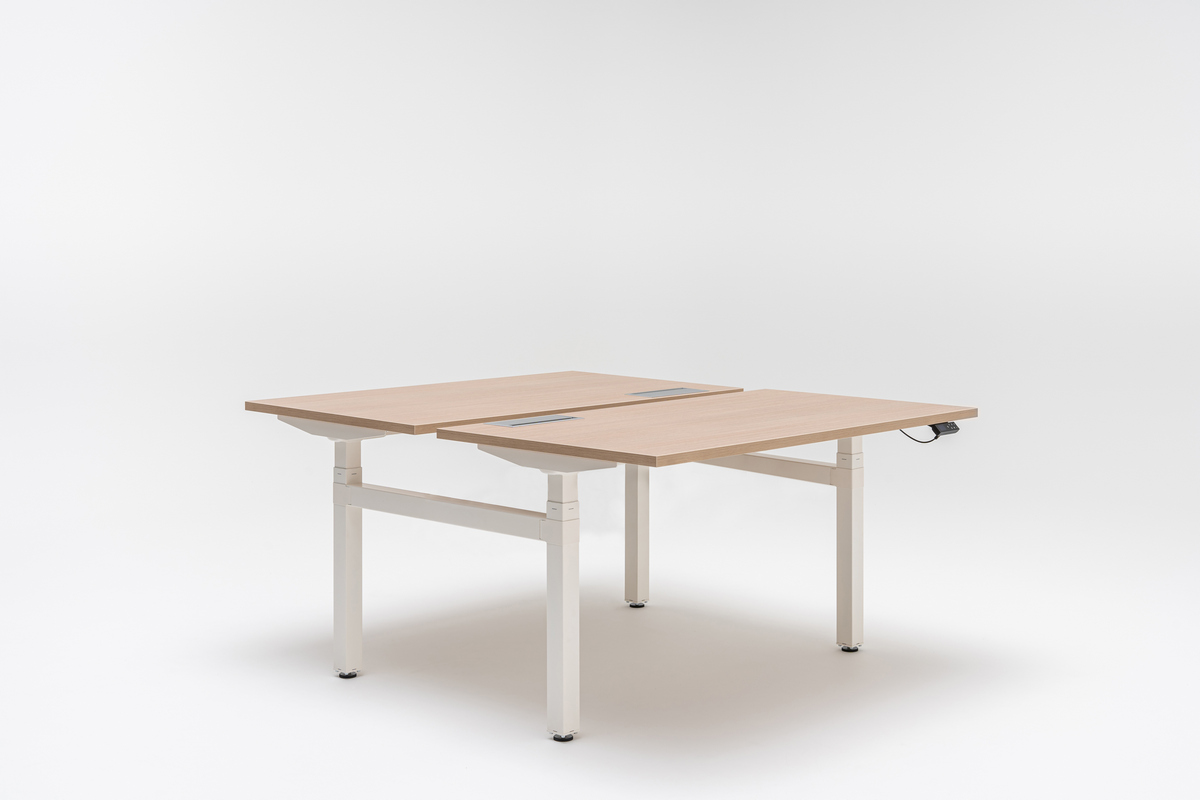

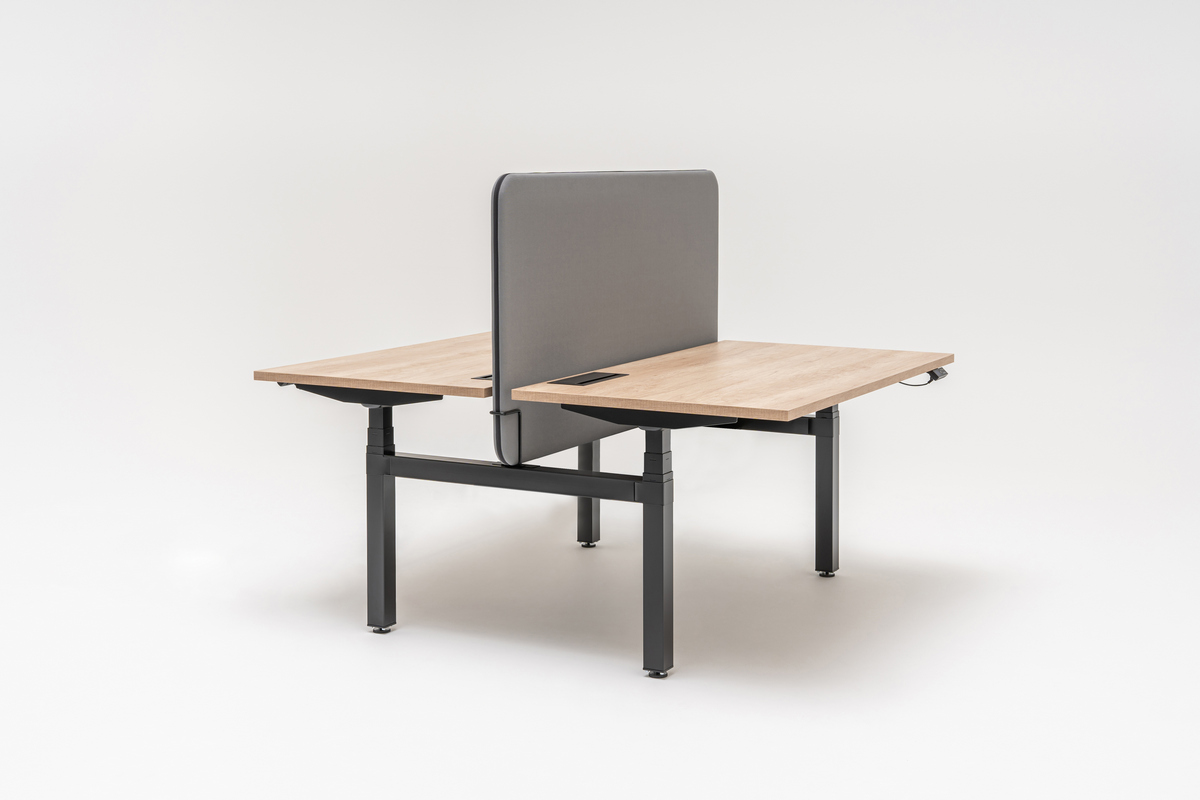

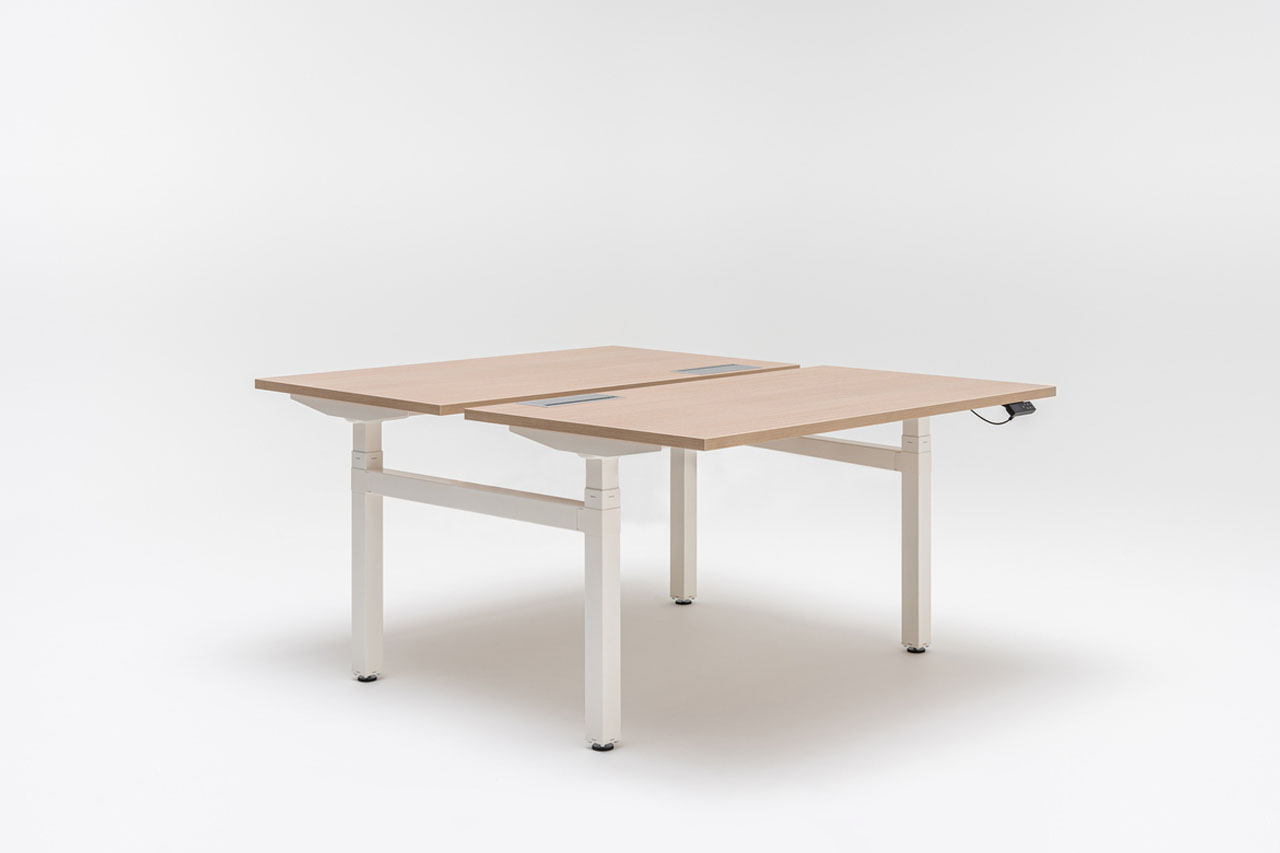

Ogi Drive Bench

Product details

• Product features
• • Available in nano-tech Fenix laminate;

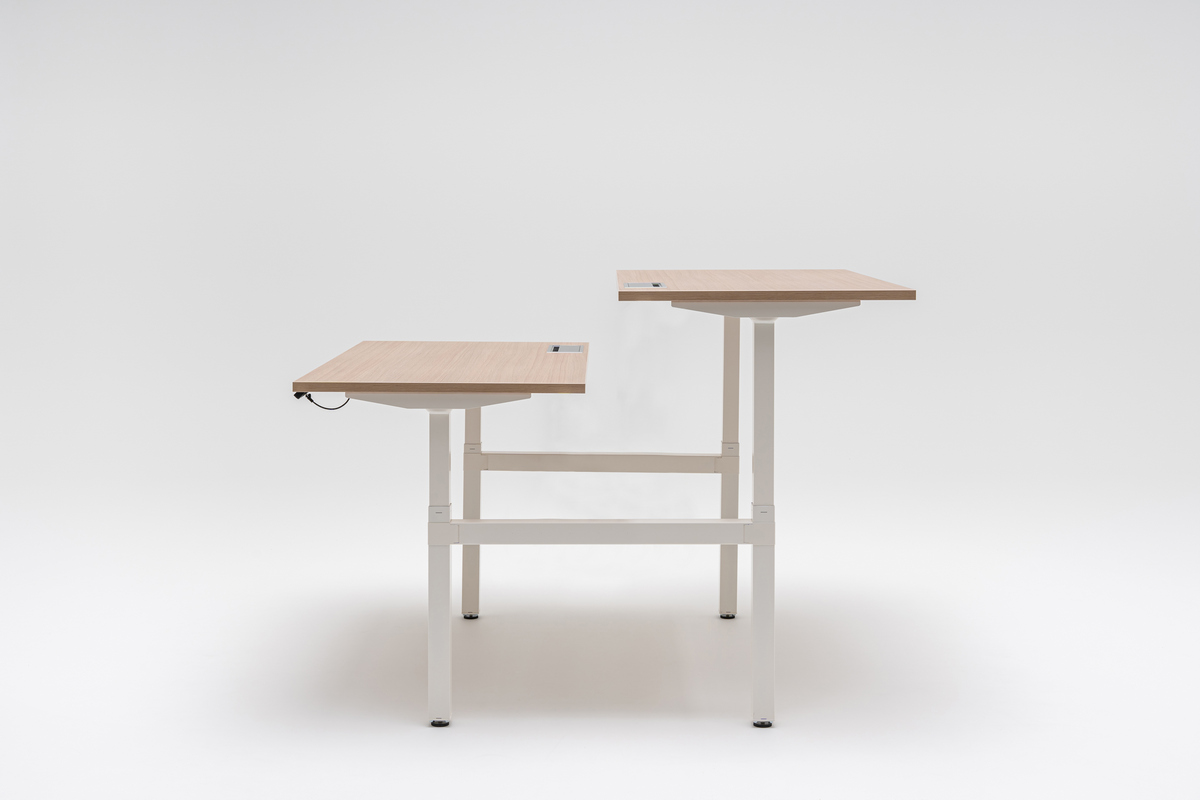

  • Stepless electrical height adjustment in the range of 650-1300 mm;
  • Available with adjustment range of 700-1200 mm – please contact our Customer Service;
  • One of the most quiet motors on the market, only 48 dB;

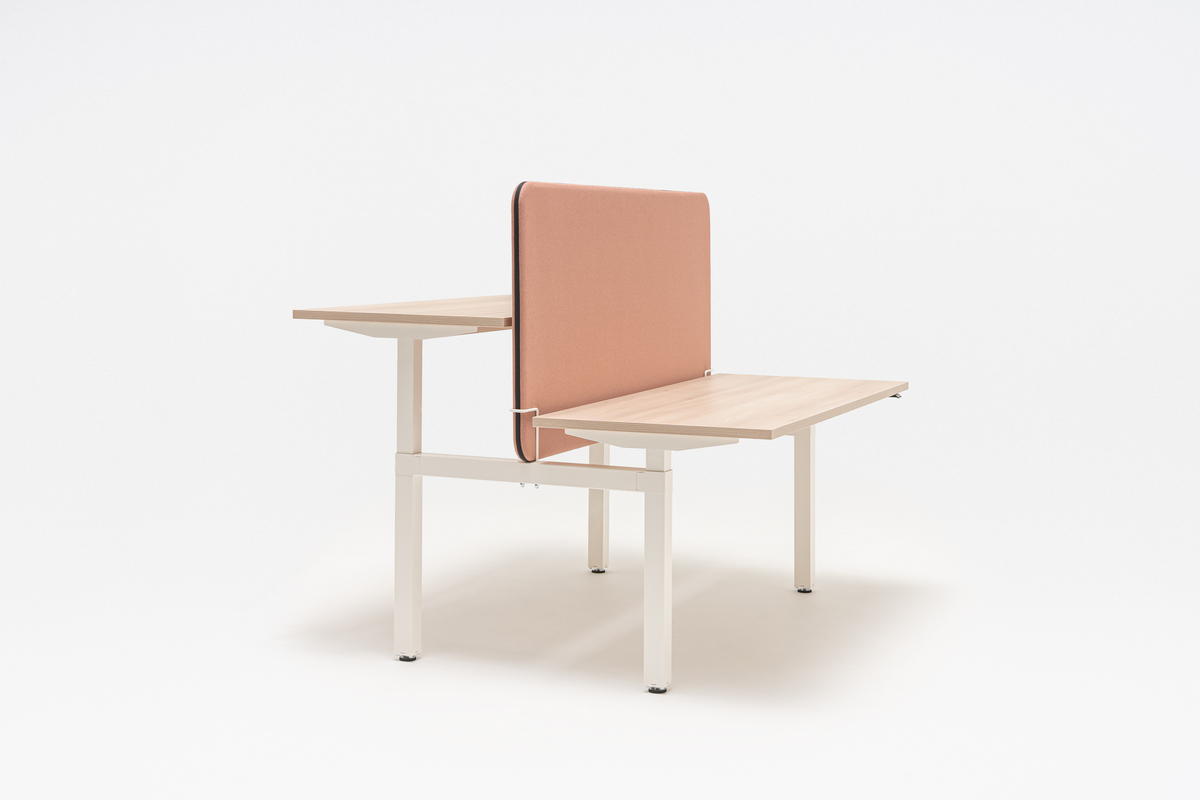

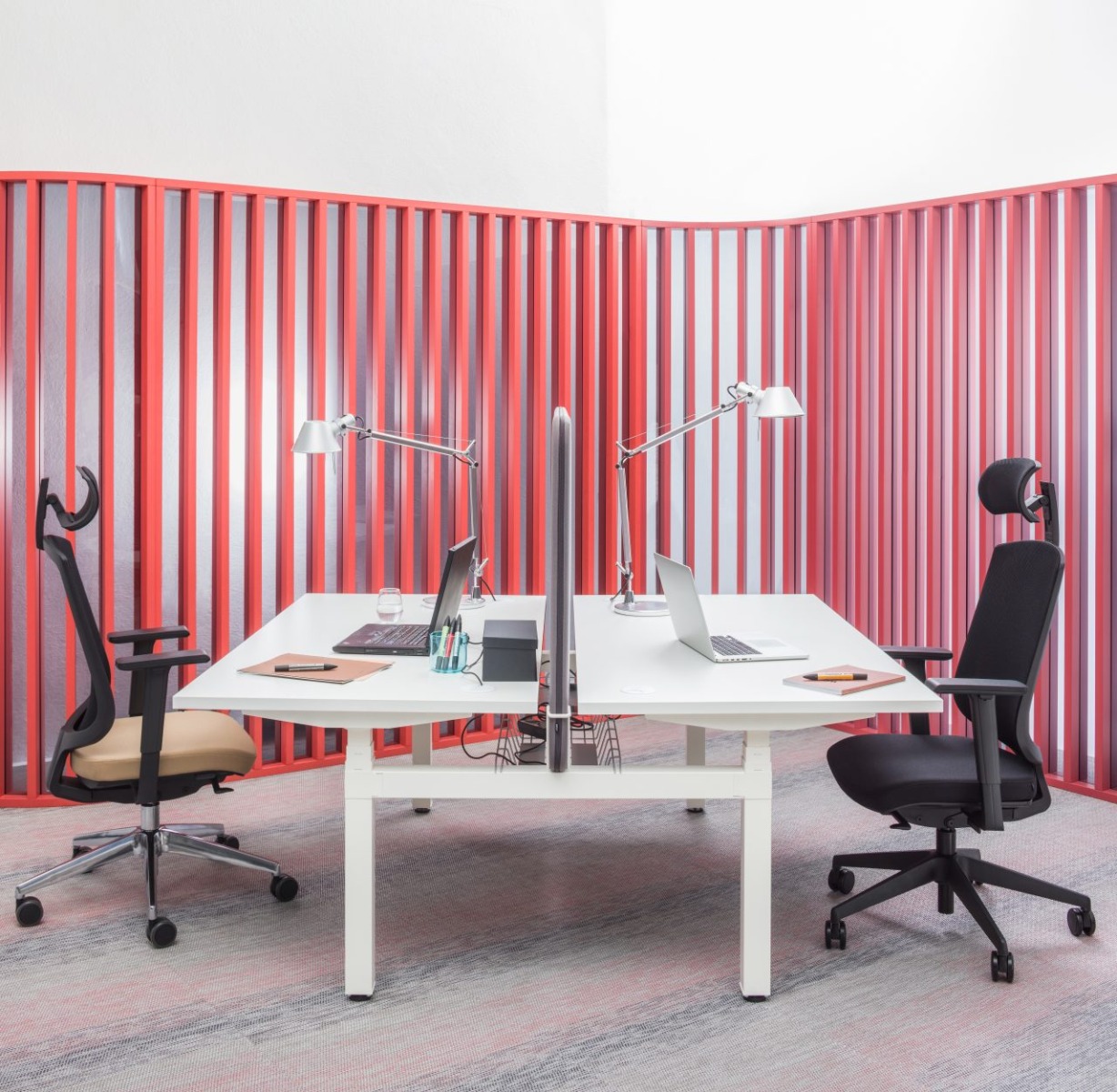

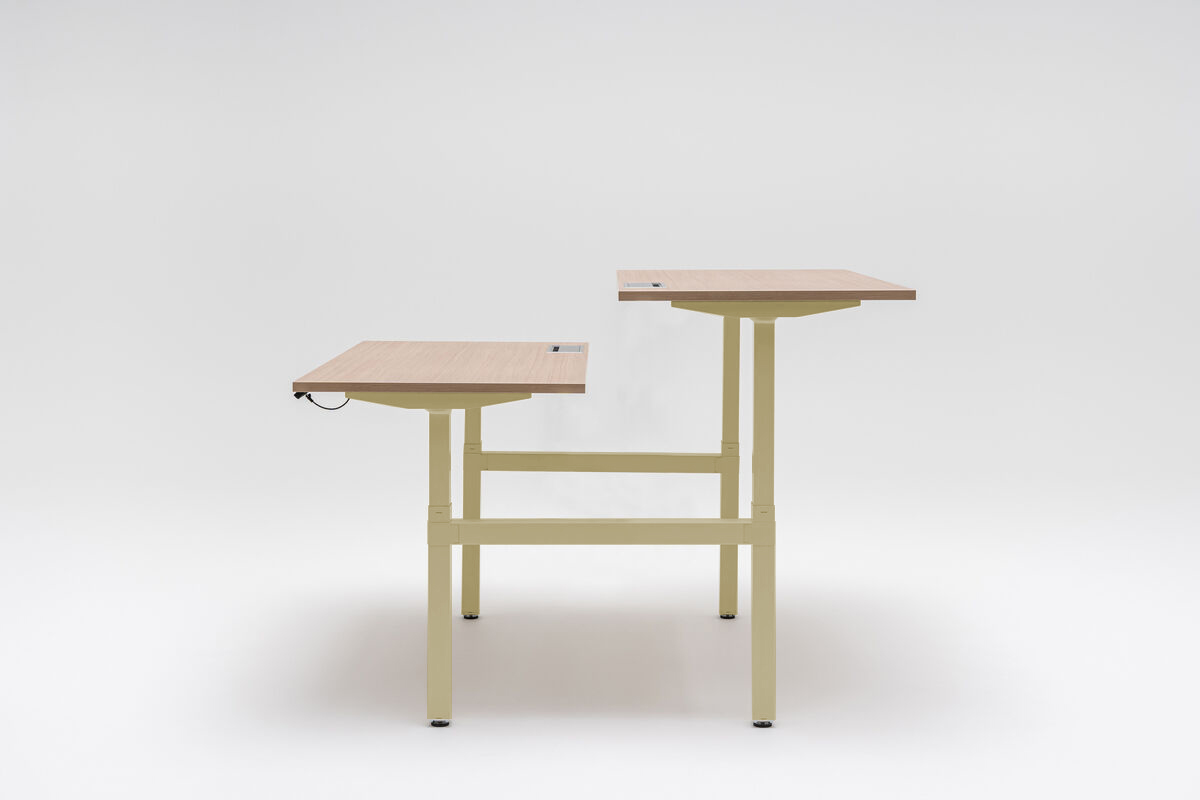

  • Two work stations at one desk;
  • Ideal match between height of the desk and user’s needs;
  • Anti-collision system with counterweight and giroscope;
  • A few sizes of the top and finishing materials to choose;
  • Optional: practical accessories;
  • Compliant with standards: DIN EN 13849-1:2007, Performance Level B; RoSH 2011/65/UE; LVD; EU Directive 2006/95/EC; EMC according to EU Directive 2004/108/EC; PN-EN 55014-1:2017-06; PN-EN 55014-2:2015-06; PN-EN 60204-1:2010P; PN-EN 61000-1-2:2016-11; PN-EN 61000-6-3:2008/A1:2012; PN-EN 60335-1:2012; PN-EN-ISO-12100_2012P;
  • For various working spaces: traditional offices, coworks, hot-desk spaces, as well as public interiors, eg. universities
• Technical Data
• • Worktop - MFC 28 mm, ABS edge;
  • Edges can be attached using laser technology or PUR glue - please contact Customer Service if tender or project guidelines require laser edging;

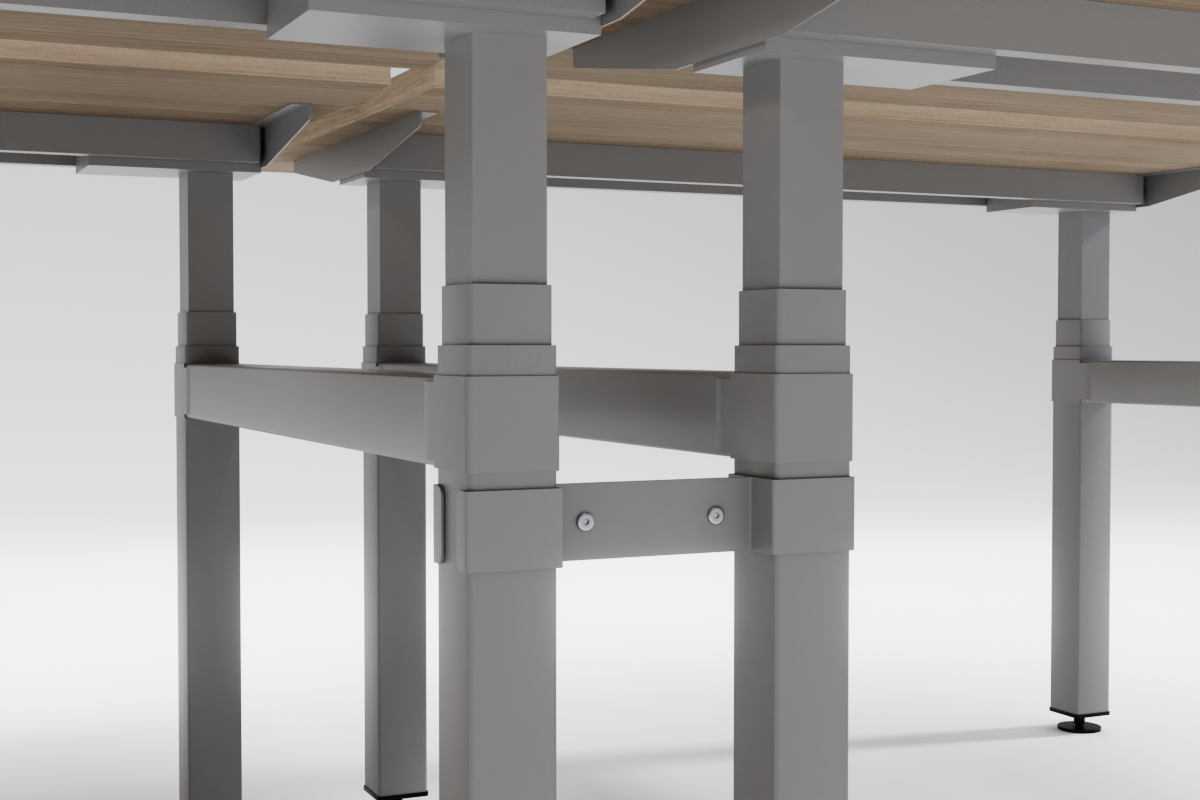

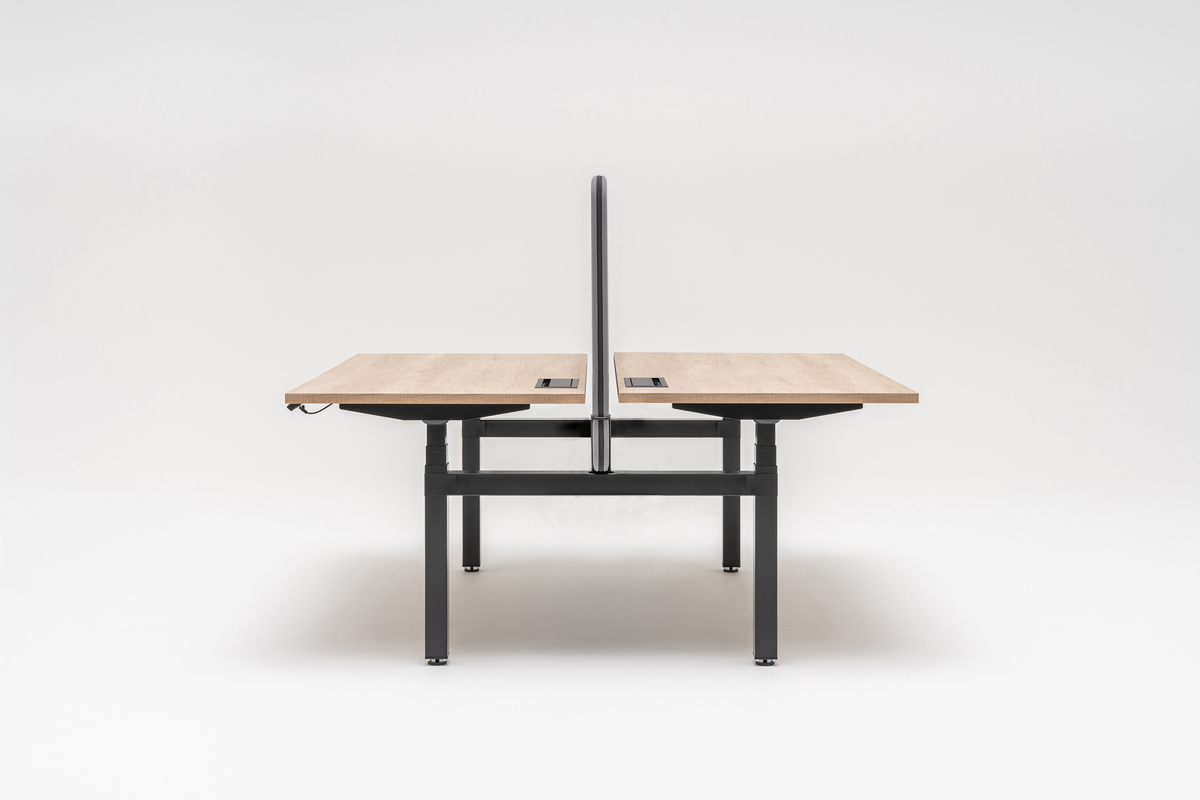

  • Twin-motor frame - electric height adjustment in the range of: - 650−1300 mm, steel, powder-coated, 3 profiles 50 × 50 mm, 55 × 55 mm and 60 × 60 mm, load 100 kg, telescopic leg; - 700−1200 mm, steel, powder-coated, 2 profiles 55 × 55 mm and 60 × 60 mm, load 100 kg, telescopic leg;

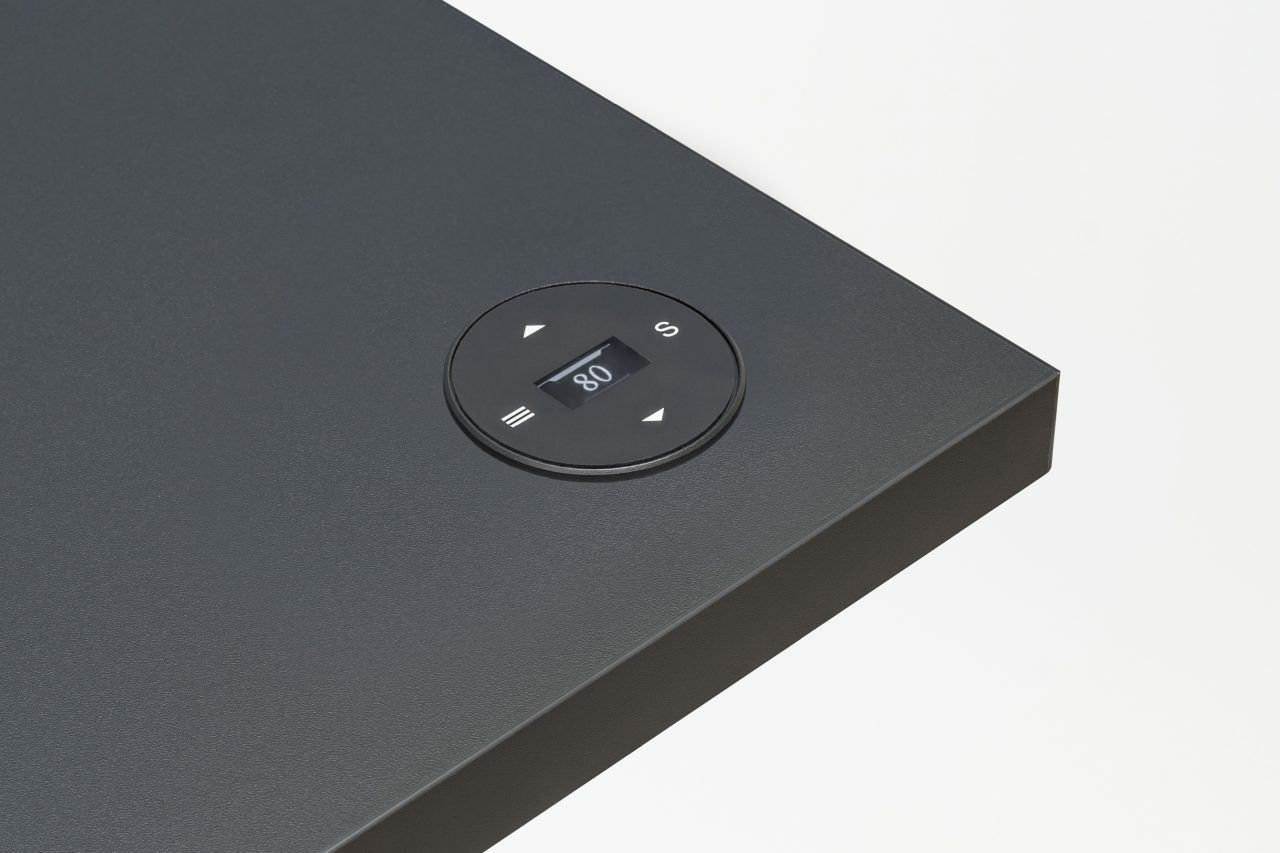

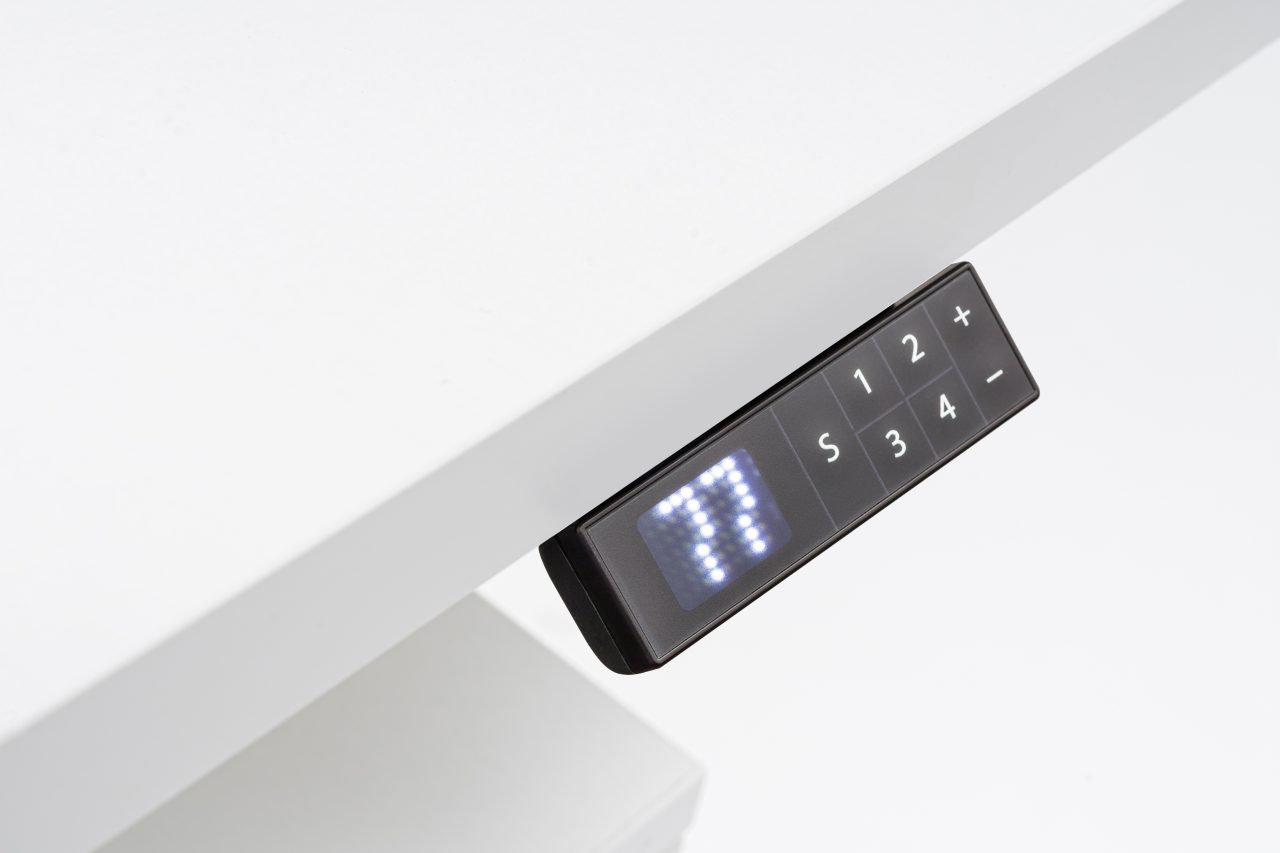

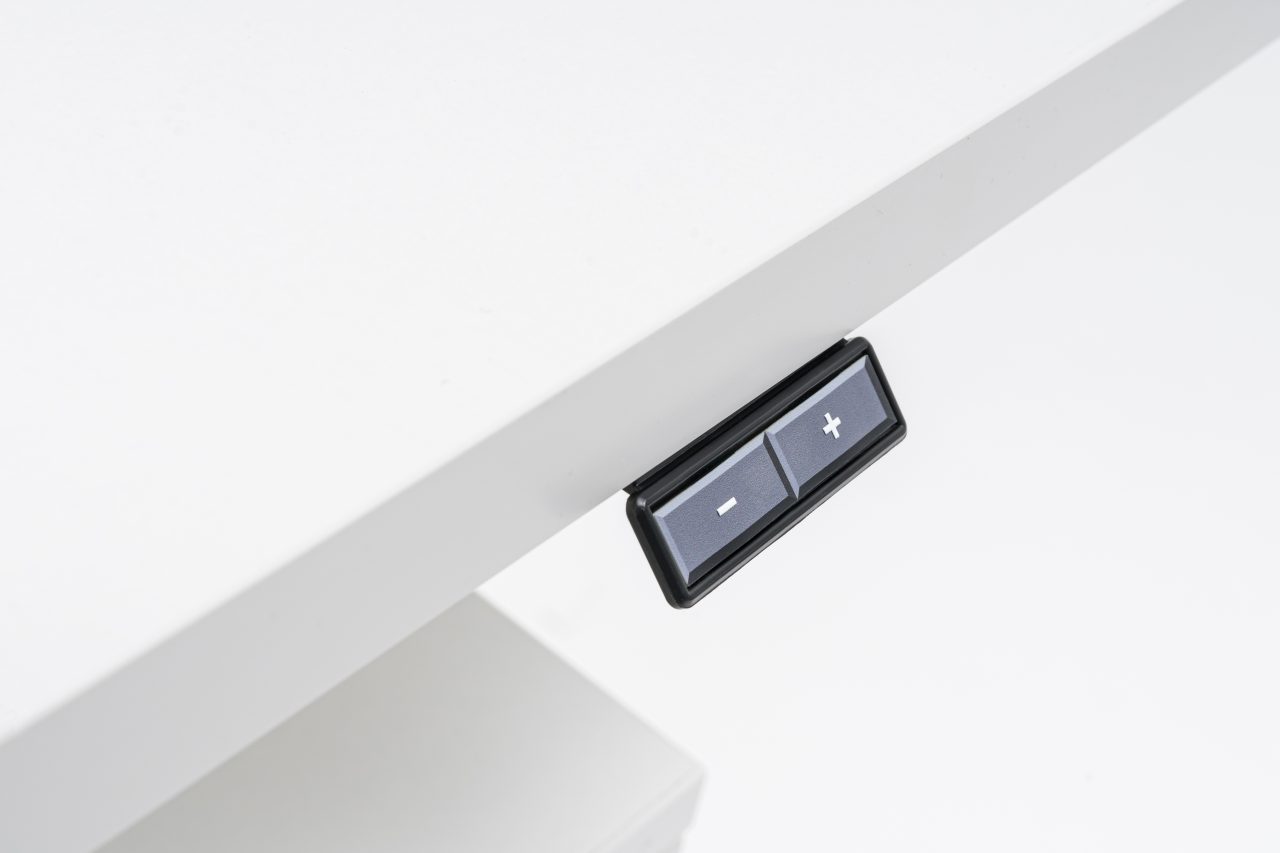

  • Control panel (twin-motor frame) - stepless height adjustment: A - basic control panel, the sensitivity of the anti-collision system is set to Medium; B (option with extra charge) - up and down keypad with memory, the ability to change the sensitivity of the anti-collision system within 3 levels: Low, Medium, High; C (option with extra charge) - round control panel with memory, the ability to change the sensitivity of the anti-collision system within 3 levels: Low, Medium, High; mounted to the worktop;
  • Foot - Basic - powder-coated metal or Pro (option with extra charge) - aluminum, powder-coated or polished;
  • Frame technical specification: height adjustment - 40 mm/sec Super Soft Start-Stop, drive - 2 synchronised motors with microprocessor, work control sensor, noise level - < 48dB, anti-colision mechanism, Standards - EN 527-2, EU Directives - 206/95EC, UI508 1999, UL 1004 R7 06, WE DC 2004/108WE, power supply - 230V, 300W, power consumption on Standby - 0.3W;
  • Single-motor frame - electric height adjustment in the range of 720−1190 mm, steel, powder-coated, telescopic leg, 2 profiles 55 × 55 mm and 60 × 60 mm; extends the profiles by means of a metal connector under the worktop; maximum load on the desk is 100 kg at the minimum height of the tabletop and 30 kg at its maximum height;
  • Control panel (single-motor frame) - up and down keypad with memory; the ability to change the sensitivity of the anti-collision system within 3 levels: Low, Medium, High;
  • Leveling feet - range 5 mm;

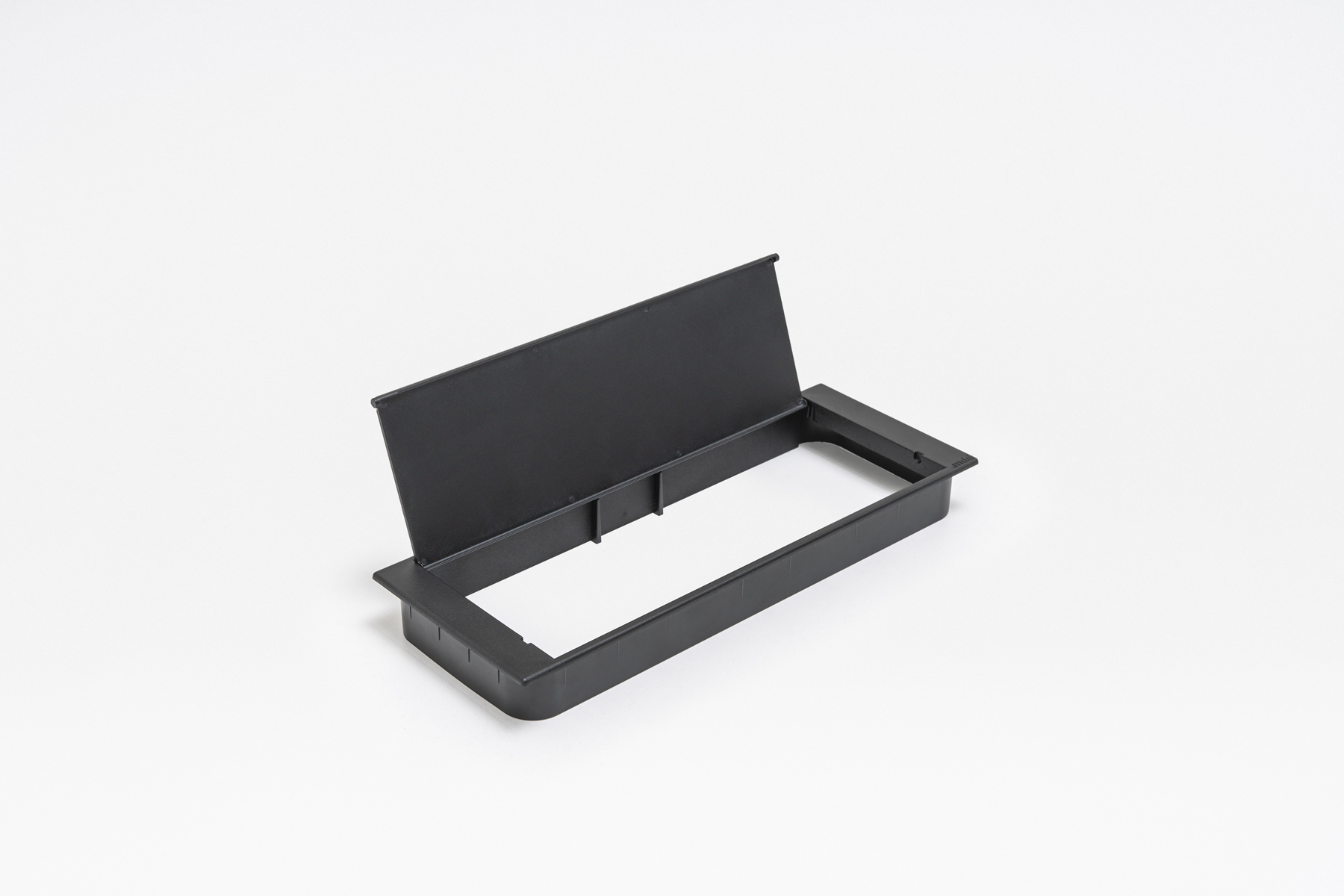

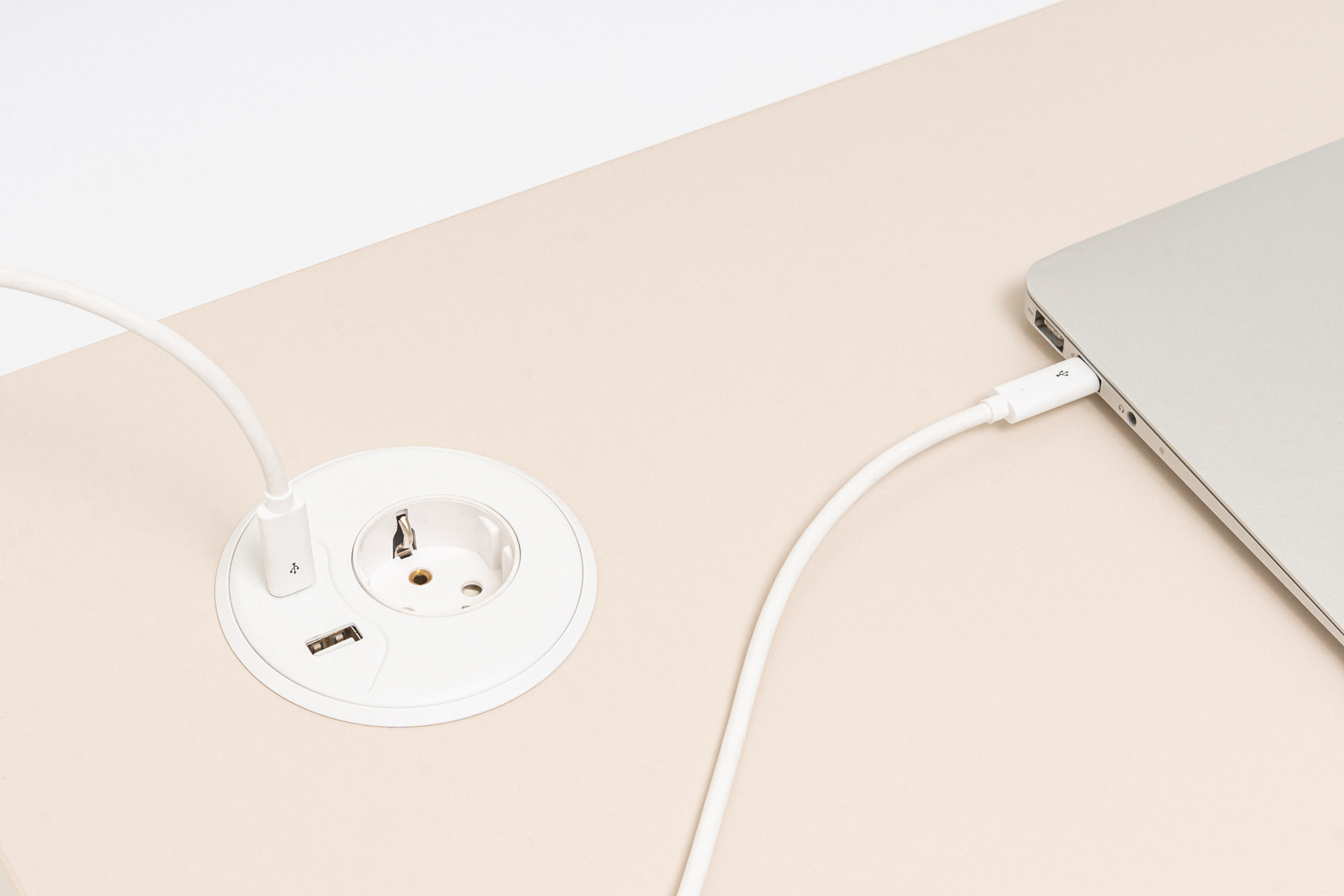

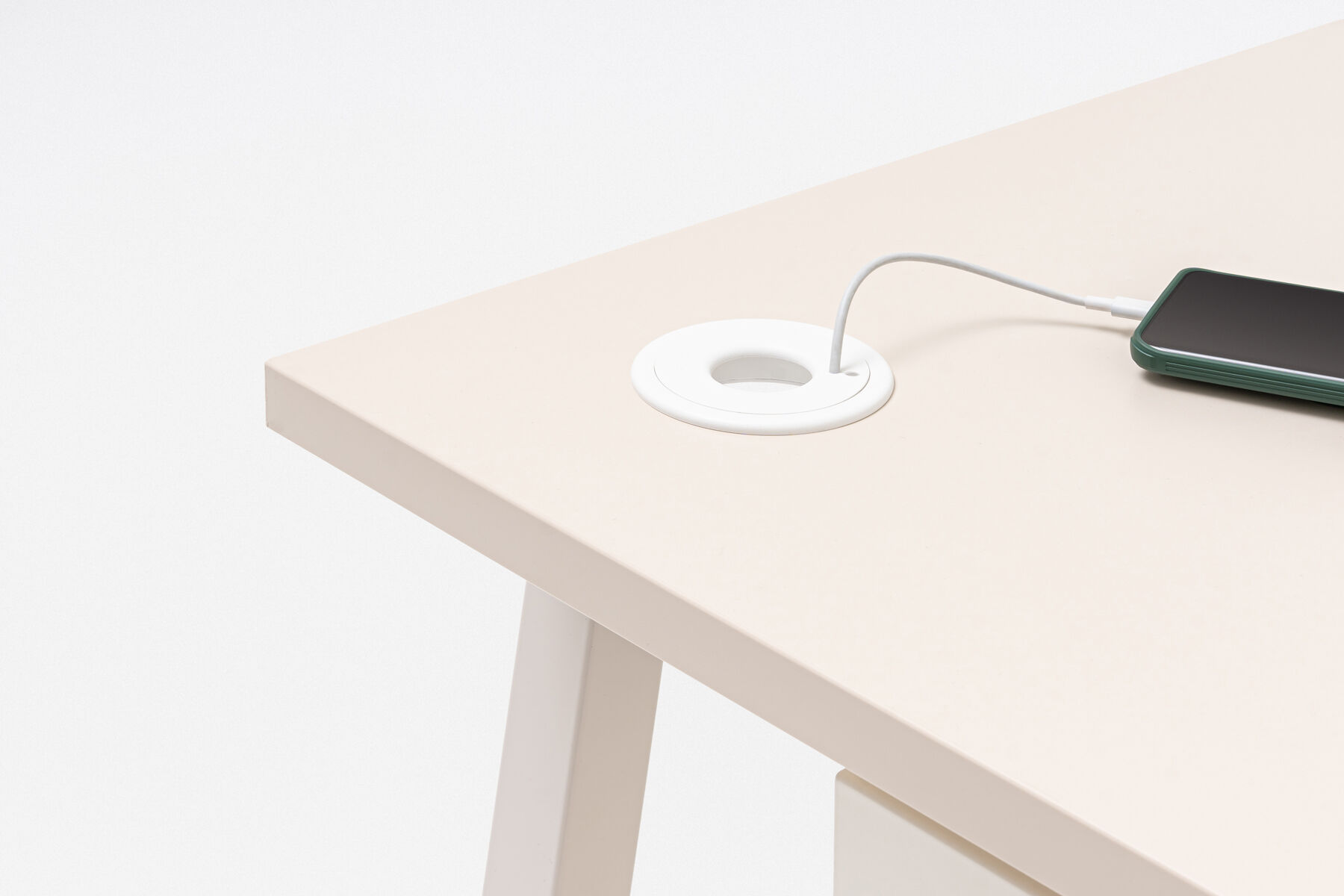

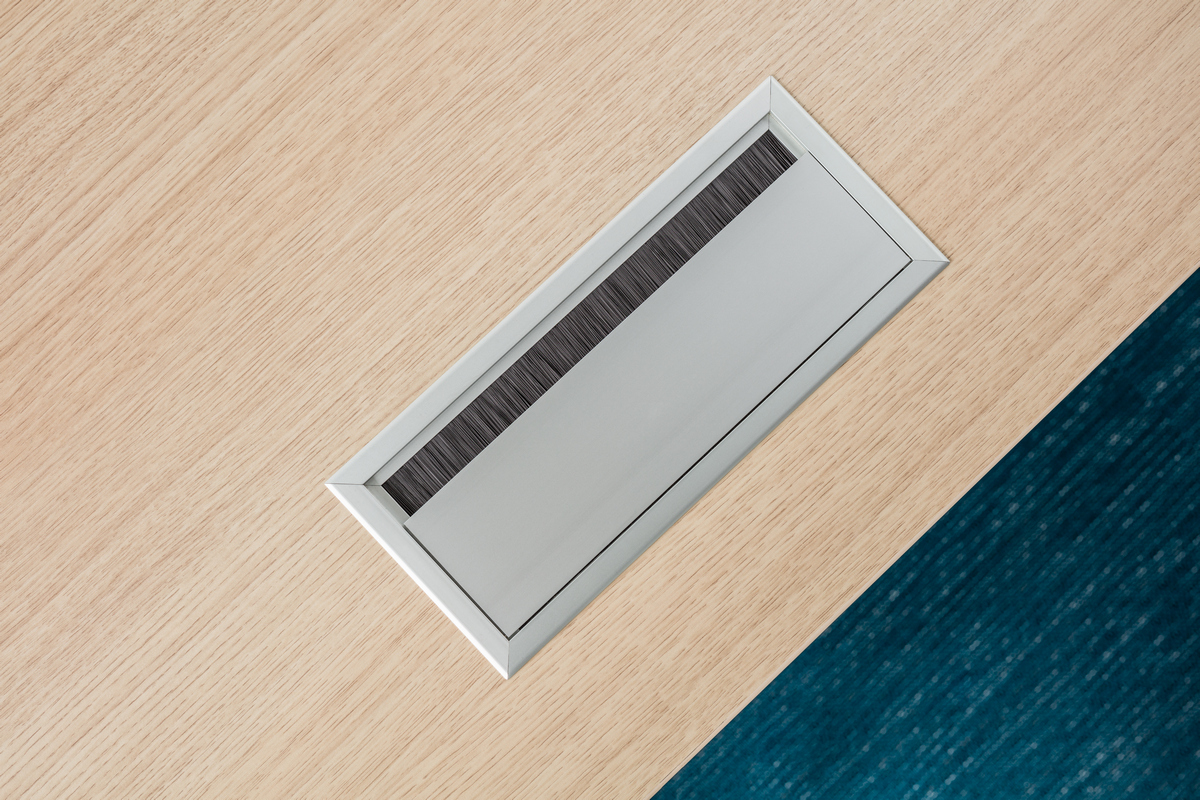

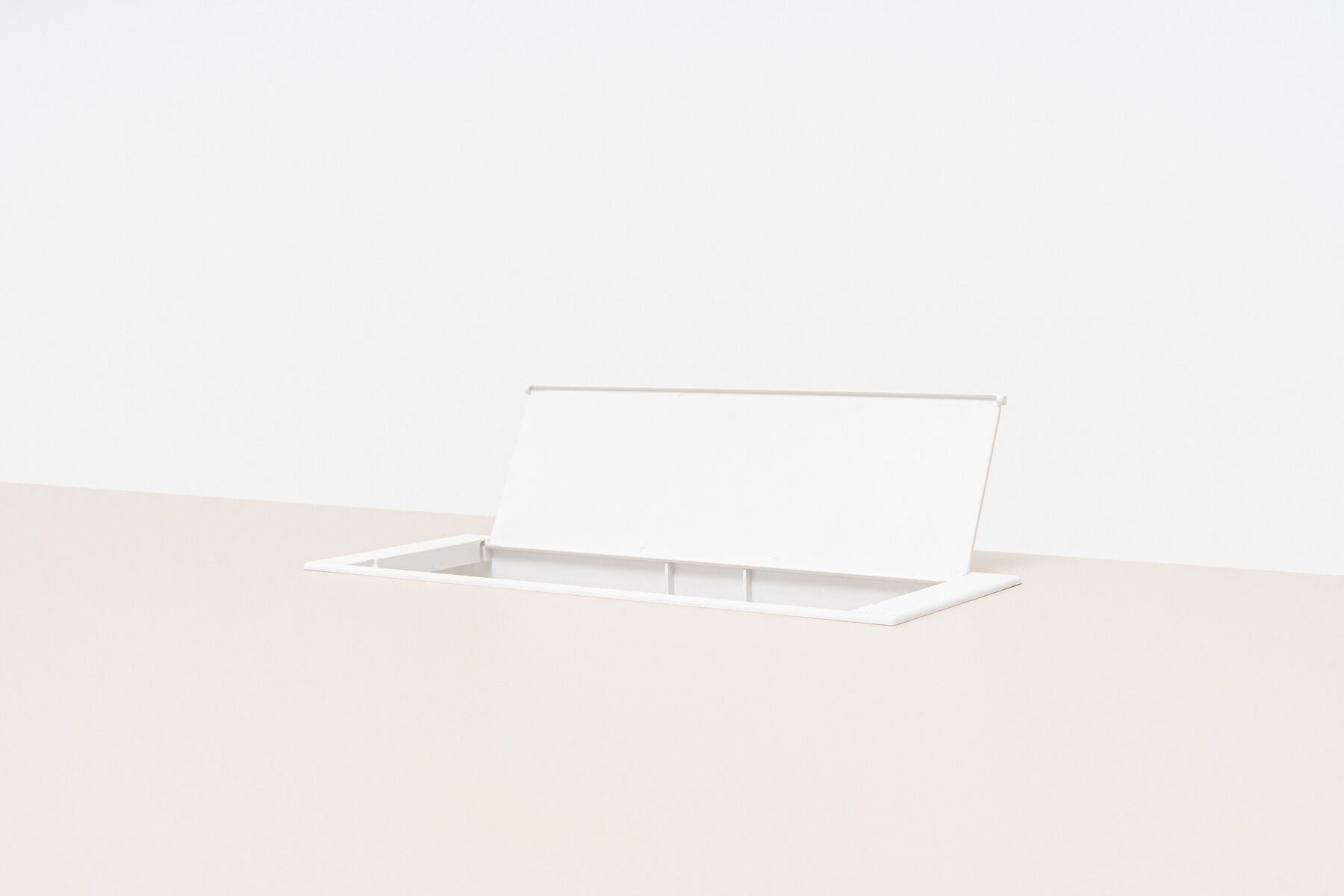

  • Options with extra charge: grommet - 2 pcs, Ø 88 mm; mediabox M14H - plastic frame, 2 x RJ45 (class E, cat. 6); + 1 x USB + 1 x HDMI + 4 x 230V, dimensions: 305x155x150 mm, power cord: 2000 mm; mediabox M14 - plastic frame, 2 x RJ45 (class E, cat. 6); + 1 x USB + 4 x 230V, dimensions: 305x155x150 mm, power cord: 2000 mm; mediabox M071 - 1 x 230V + 1 x USB A charger + 1 x USB C charger, colours: black or white, mounted instead of the existing grommet Ø88 mm (PK80); top access M15 - plastic frame, dimensions: 292x112x18 mm; mediabox M04 - 4 x 230V, 2 x RJ45, 1 x USB, aluminium, power cord 2 m; mediabox M04H - 4 x 230V, 2 x RJ45, 1 x USB, 1 x HDMI, aluminium, power cord 2 m; top access M05 - aluminium;
  • Options with extra charge: horizontal cable tray S69 - powder-coated, colour: 09 - aluminum; single desk horizontal cable tray (SG12, SG16) - powder-coated metal, colour: M009 - aluminum semi-matt; horizontal cable tray E64 - powder-coated, colour: M009 - aluminium semi-matt; cable tray for bench desks Ogi Drive (SOD12, SOD14, SOD16, SOD18, SOD20) - powder-coated, colour: M009 - aluminium semi-matt
• Downloads

• Photos

  Lookbook

  Catalogue

• Finishes
• Assembly manuals

• Assembly manuals

  Assembly manuals twin motor frame

• Sustainability
• Material composition & packaging

  • MFC: 48%
  • Steel: 46%
  • Plastic: 2%
  • Cardboard: 4%

  *average values for a representative of the group.

  Carbon footprint

  56,5 kg

  Recycled content

  43%

  Recyclability

  • Recycling: 50%
  • Downcycling: 50%

  *average values for a representative of the group.

  Certificates

  • Environmental Product Declaration Type III
  • FSC/PEFC







  • Testing of formaldehyde emission by the chamber method according to EN 717- 1:2006 standard.
  • Test of volatile organic compounds (VOC) emission by the chamber method according to PN-EN ISO 16000-9.
  • PN-EN 15371:2016-12. Furniture. Strength, durability and safety. Requirements for non-domestic tables.

  Sustainable production

  • VOC Testing – we make sure that our furniture is safe for both the environment and the users. Ogi desks are tested for the presence of Volatile Organic Compounds using the chamber method in accordance with PN-EN ISO 16000-9.
  • Formaldehyde Testing – to meet the highest standards, we are constantly improving our production methods and the raw materials used. The levels of formaldehyde emission in our desks are now significantly below the requirements in accordance with the PN-EN 717-1:2006.
  • Safety, strength and durability – we believe in creating durable and timeless furniture. All desks in the Ogi family comply with the PN-EN 527-2+A1:2019-08.
  • Sustainable production – we are not indifferent to the environmental impact of our furniture, therefore we provide the essential information on the life cycle of Ogi desks through the Environmental Product Declaration (EPD).


  See more

  Packaging

  Materials: cardboard

  Recyclability: 100%
