Trudnozapalność:
BS EN 1021 - 1:2006 (papieros), BS EN 1021 - 2:2006 California Bulletin CAL 117-E-Class 1
Atlantic
Atlantic
Mica
Go Check
Charles
Venice
Chopper
Medley
Synergy+780$ netto
Tessa+780$ netto
Oceanic+780$ netto
Quest+780$ netto
Grain+780$ netto
Customer`s fabric+780$ netto
Go Check Plus+780$ netto
Nobel+1420$ netto
A-60999 Negro * 22 working days
A-60333 Antracita
A-60025 Grafit
A-60143 Ceniza gris * 22 working days
A-60011 Gris
A-60095 Platino
A-60061 Blanco * 22 working days
A-60063 Beige claro * 22 working days
A-61128 Vainilla
A-61078 Beige
A-61166 Mostaza * 22 working days
A-61110 Beige oscuro
A-61270 Sepia
A-61272 Russet
A-61271 Umber
A-61163 Gris-marrón * 22 working days
A-60142 Leichtes Graphit * 22 working days
A-61165 Marrón oscuro * 22 working days
A-61164 Marrón * 22 working days
A-63033 Hellbraun * 22 working days
A-64092 Bourgogne * 22 working days
A-64089 Rojo
A-64105 Luz borgoña * 22 working days
A-64093 Luz roja * 22 working days
A-63057 Oxidado * 22 working days
A-63034 Dunkelorange * 22 working days
A-63055 Luz naranja * 22 working days
A-63127 Mandarine
A-64117 Luz rosa * 22 working days
A-60141 Gris claro
A-61269 Ladrillo rojo
A-64255 Rose
A-65037 Violeta
A-65142 Luz lavanda
A-66095 Azul pastel
A-66249 Hielo blanco
A-60334 Gris azul
A-66250 Lichtes Pastellblau
A-66063 Luz azul claro * 22 working days
A-66086 Azul * 22 working days
A-66125 Cielo azul * 22 working days
A-66140 Denim blau
A-66123 Azul medianoche
A-66062 Azul * 22 working days
A-66041 Cobalto * 22 working days
A-66057 Inky * 22 working days
A-66064 Azul marino
A-67043 Dunkles Türkis
A-68277 Dunkles Khaki
A-68274 Khaki
A-67030 Aquamarin
A-68110 Bosque verde
A-68276 Jade grün
A-62048 Verde oliva
A-68054 Verde * 22 working days
A-68275 Pastelgrün
A-67128 Aquamarin
Color del techo
G-60084 Dunkelgraphit
G-60084 Dunkelgraphit
Couleur des murs extérieurs
Beige semi-mate RAL 0608005
Blanco semi-mate RAL 9010
Dunkelgrau halbmatt RAL 7042
Dunkelgrün halbmatt RAL 6012
Brick red semi-matt RAL 0404040
Beige semi-mate RAL 0608005
Tipo de pared trasera
Paredes traseras tapizadas
Paredes traseras tapizadas
Paredes traseras de vidrio+452$ netto
Tipo de enchufe
Enchufe de EE UU
Enchufe de EE UU
Coda
Color de las paredes interiores
Atlantic
Color del techo
Couleur des murs extérieurs
Tipo de pared trasera
Tipo de enchufe
$
20 250
$
Add the first element
An internal error occurred, please try again. If the error persists, contact our Customer Service.
Delivery time 10-11 weeks.Product made to customer's order.
Questions about this product?
Use our virtual assistant.
Chat with a virtual advisor
X
By using the chat, you consent to the storage of the data provided in the conversation. The administrator of personal data is .mdd Sp. z o.o. For more information, see our privacy policy.
How can I help you?
Show filters
Fire-retardancy
Abrasion resistance
Pet-friendly fabric
Natural
Synthetic
Antibacterial and washable fabric
Premium fabric
Weave
No weave
Fire resistance
Antibacterial
Ecological
Waterproof
Acoustic
Finish description
Runner
Skład:100% poliester
Gramatura:364/m2*510g/lm
Trudnozapalność:
BS EN 1021 - 1:2006 (papieros), BS EN 1021 - 2:2006 California Bulletin CAL 117-E-Class 1

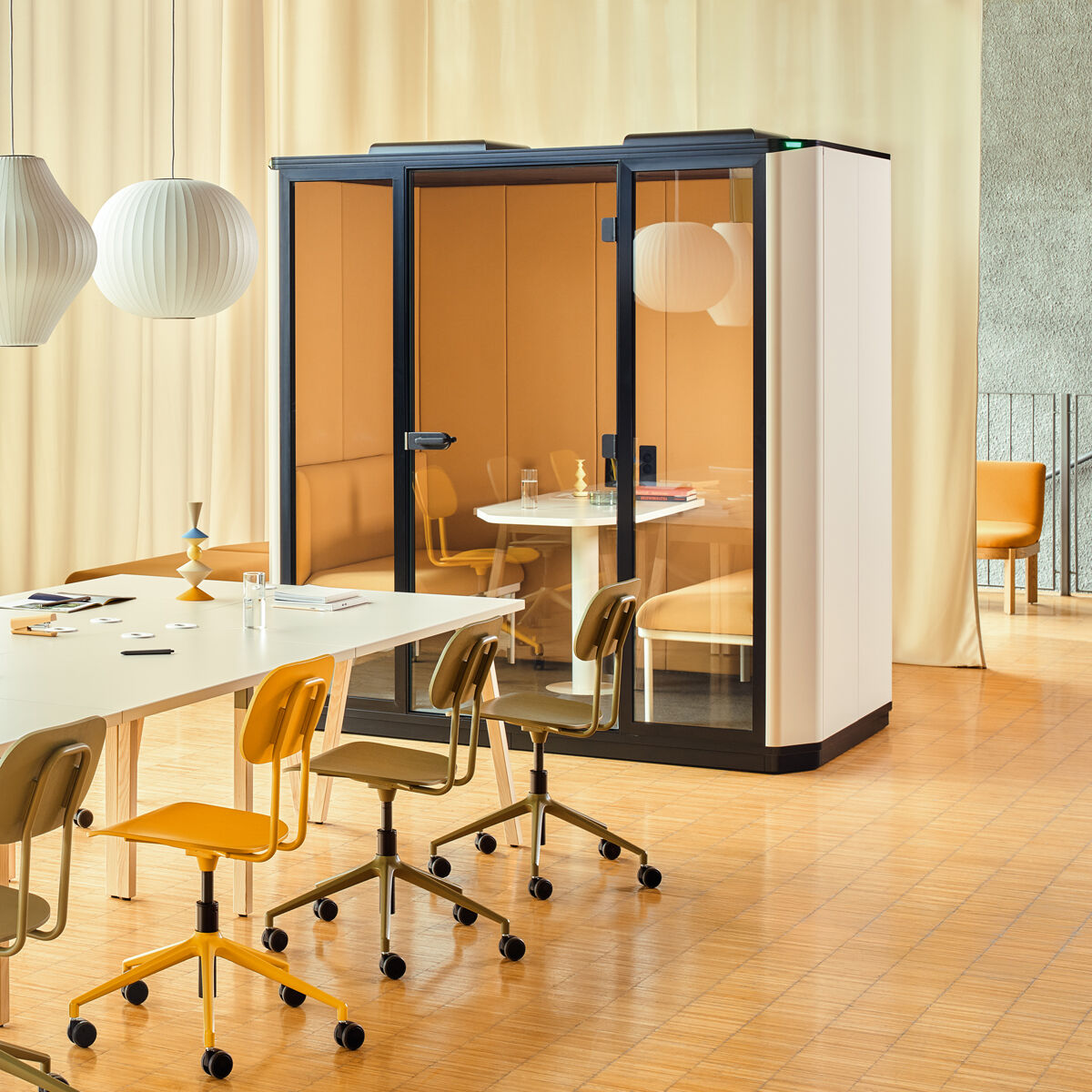

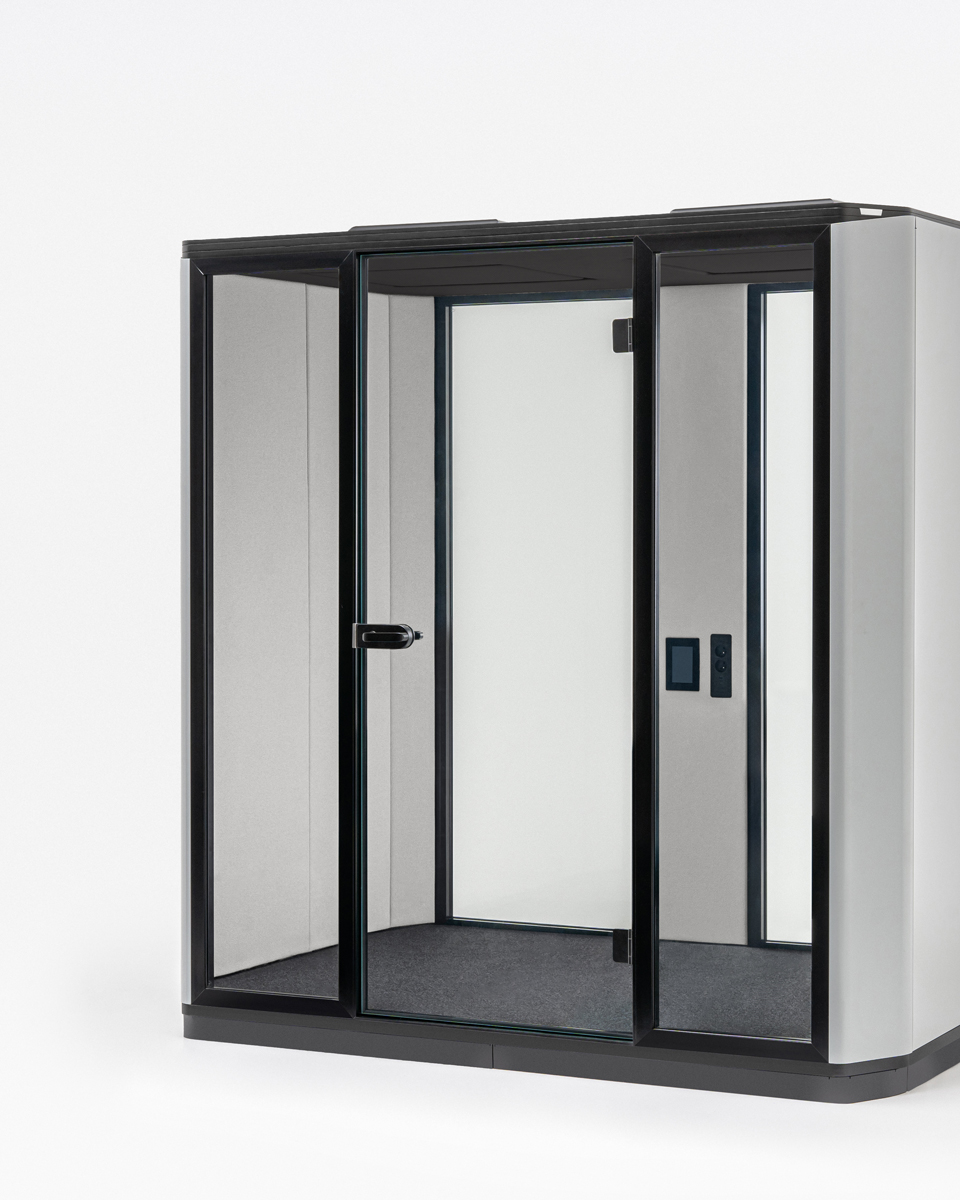

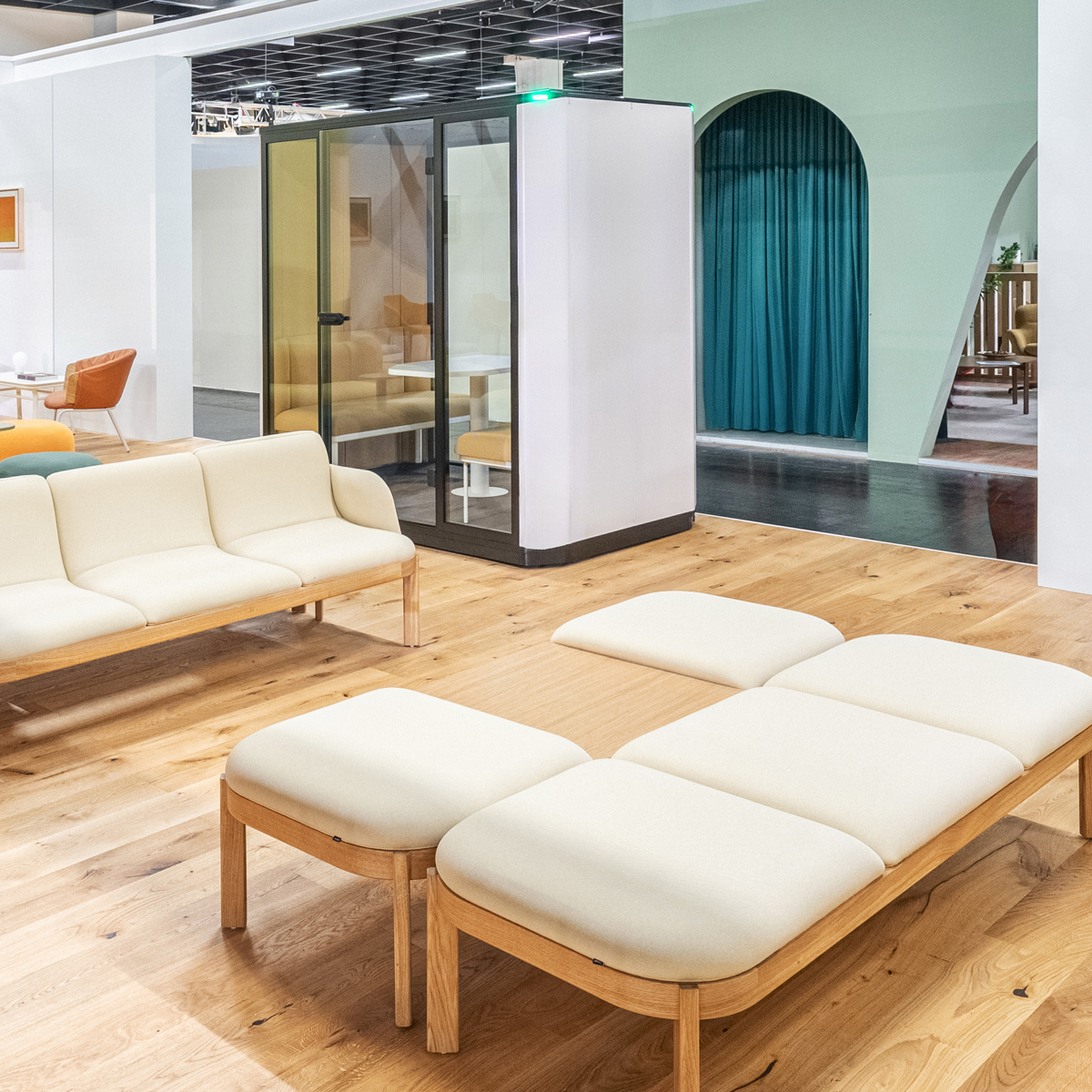

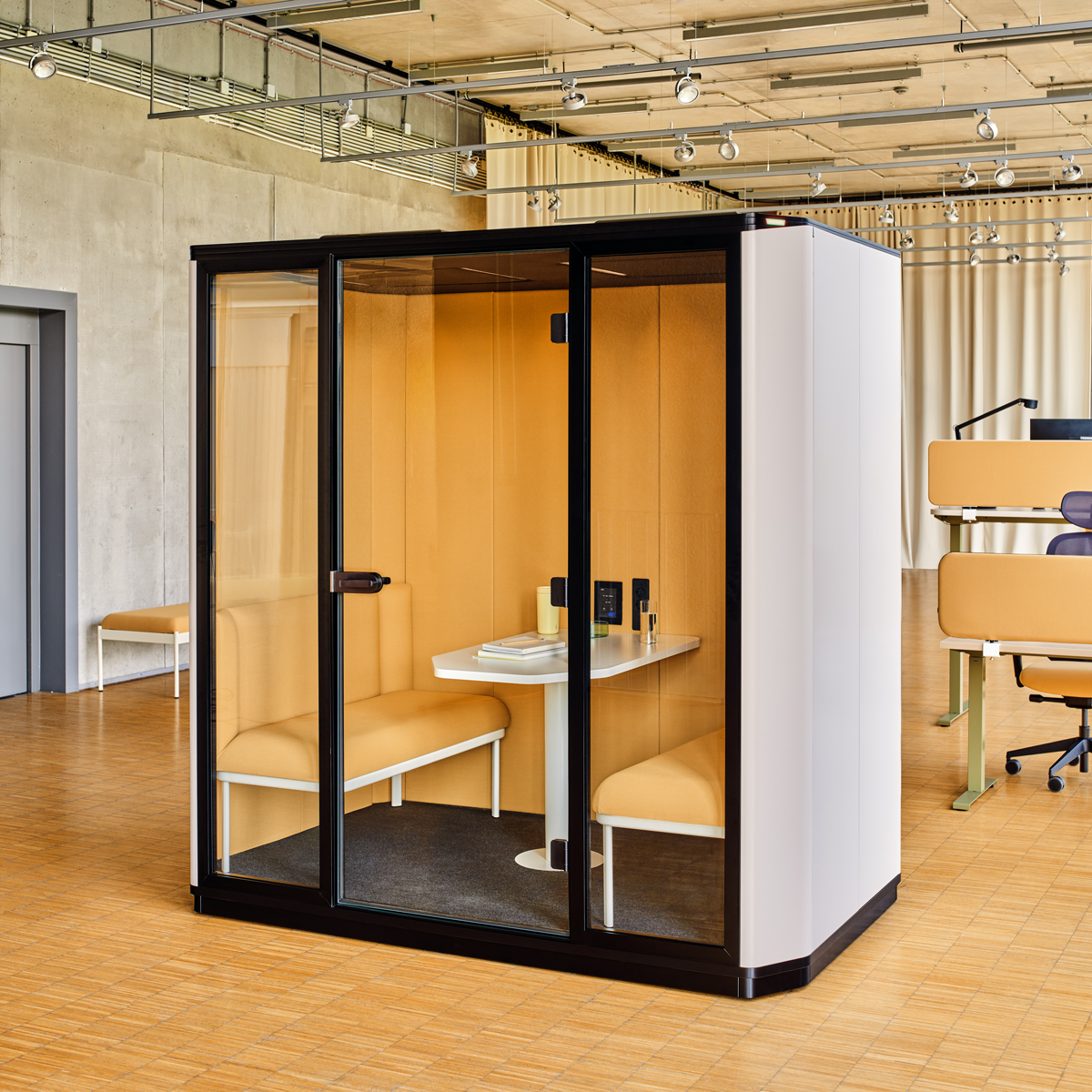

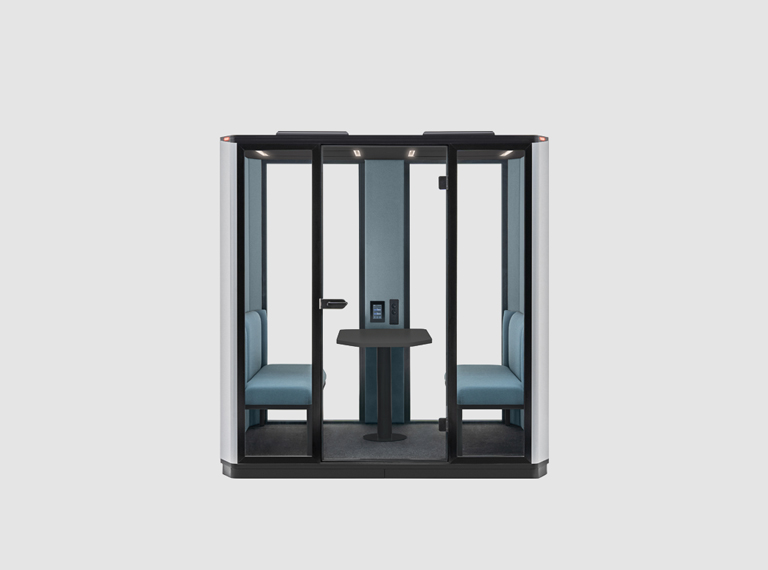

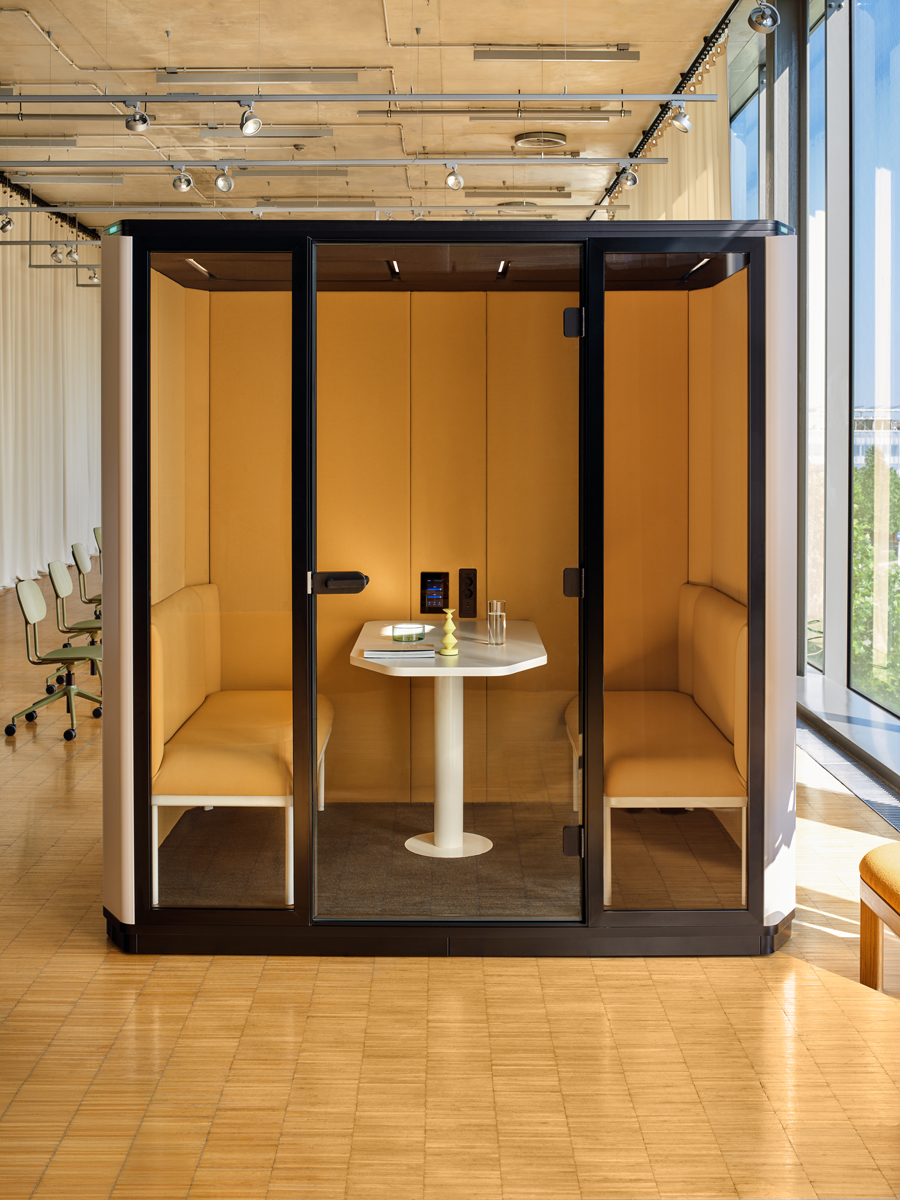

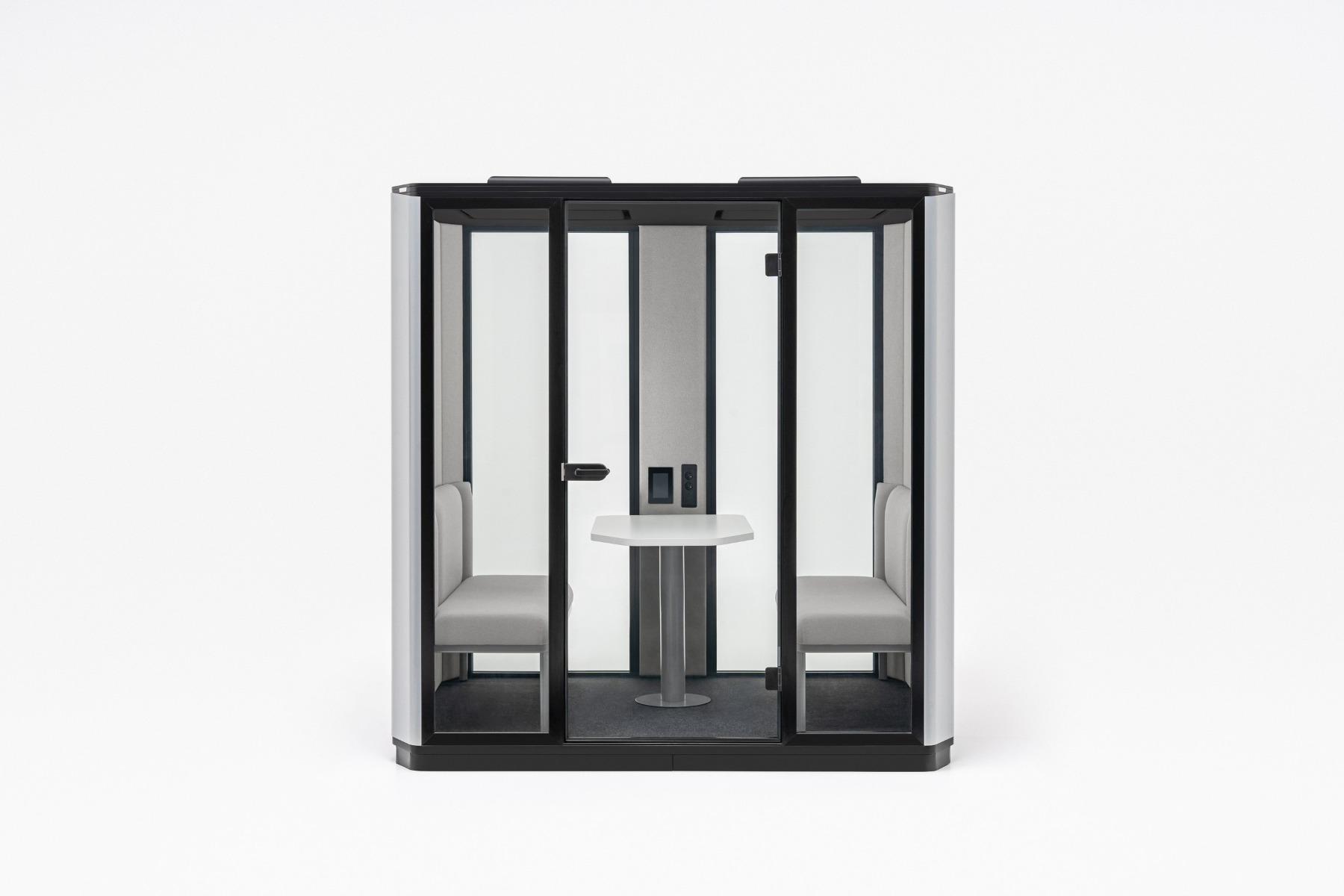

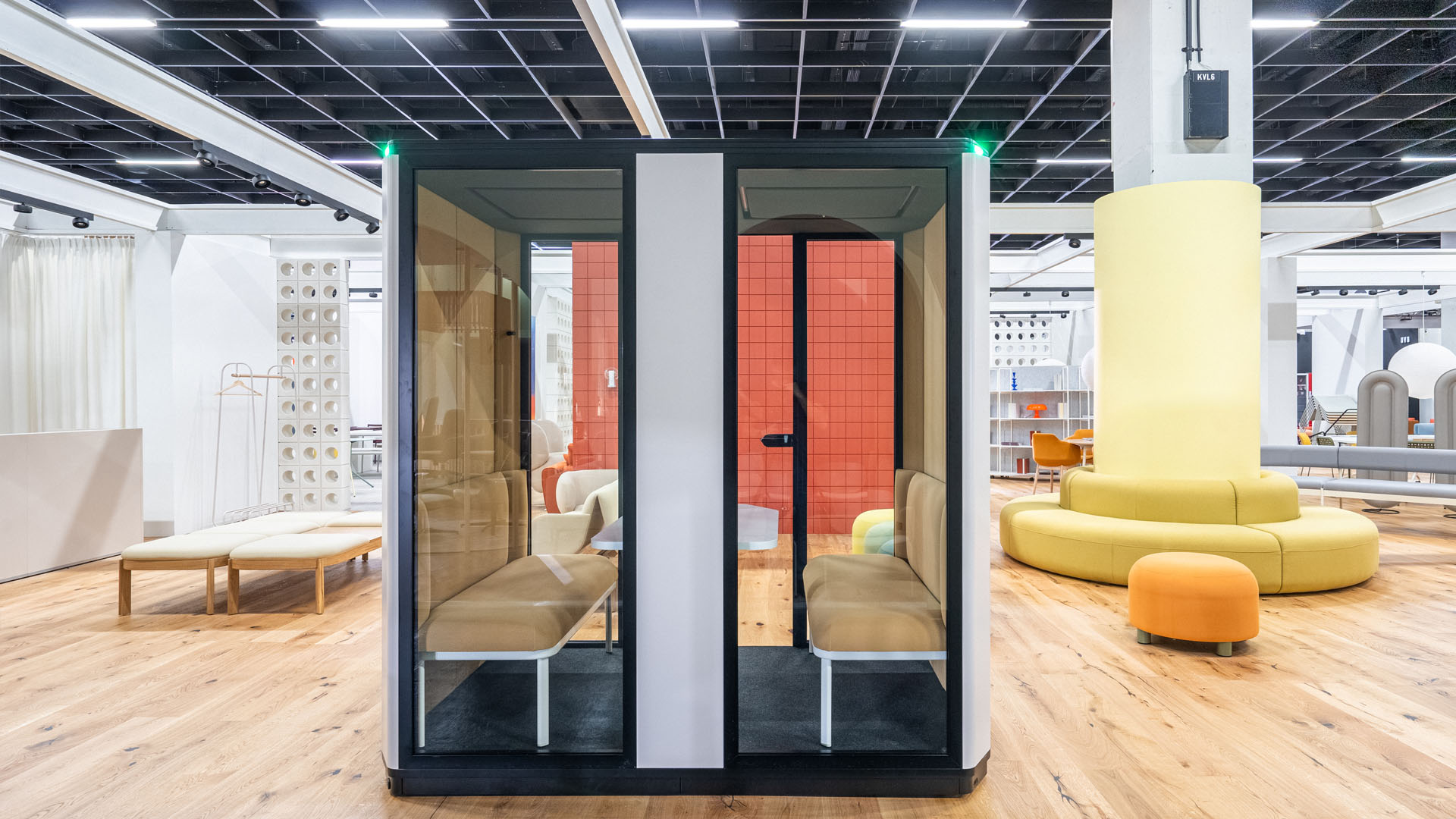

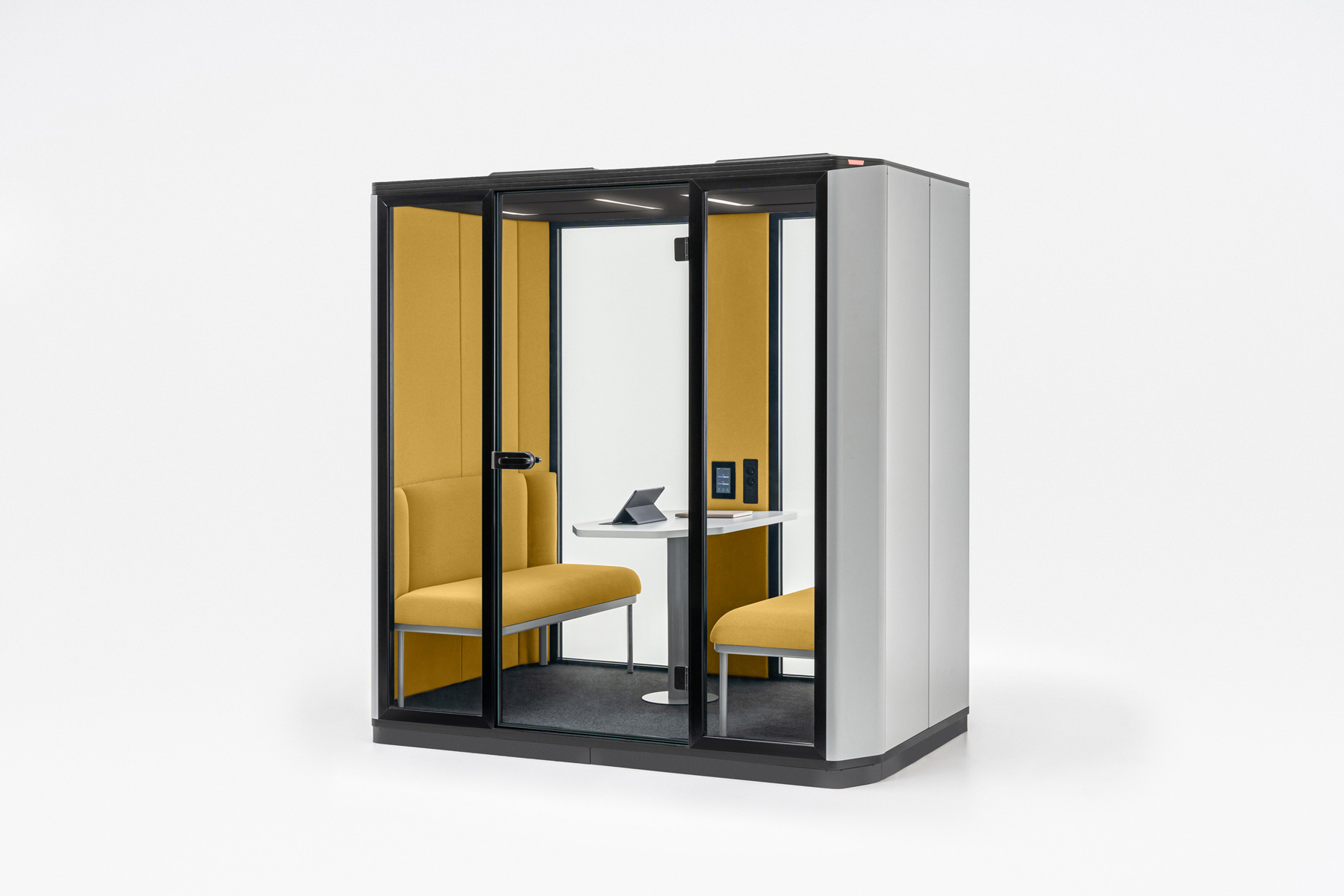

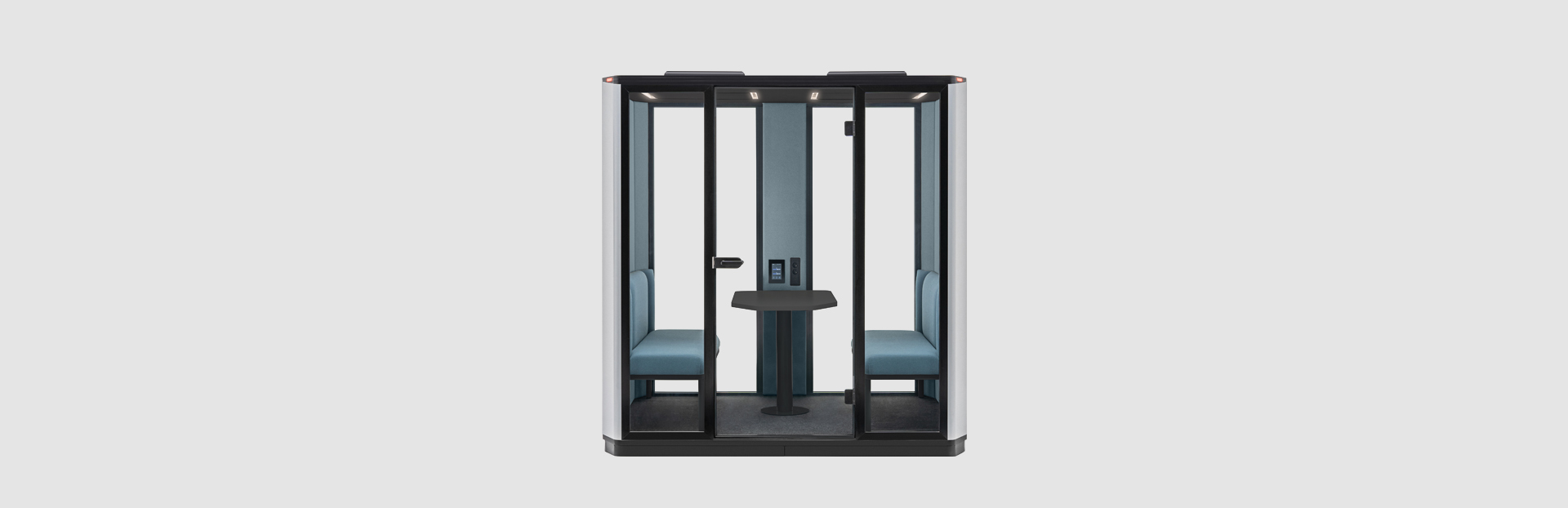

Coda booth is a functional solution for modern offices and public spaces. Designed for groups of four, it provides a comfortable, quiet and private meeting and working zone, even in noisy open-space areas. It has all the benefits of its smaller counterpart and even more! Adjustable lighting and ventilation, quiet fans, occupancy indicator lights, acoustic glass windows and sound-absorbing fabrics are complemented by built-in seating and tables, providing a comfortable place to talk and work.
Ceiling
varnished MDF board, upholstered, colour: G-60084 - dark graphite; fitted with lighting and fan; ventilator - ceiling-mounted fan with airflow adjustment; signal lamps - 4 pcs.; red light - occupied, green light - free; motion sensor - activation of lighting,...
varnished MDF board, upholstered, colour: G-60084 - dark graphite; fitted with lighting and fan;
ventilator - ceiling-mounted fan with airflow adjustment;
signal lamps - 4 pcs.; red light - occupied, green light - free;
motion sensor - activation of lighting, fans, touch panel and signal lamps

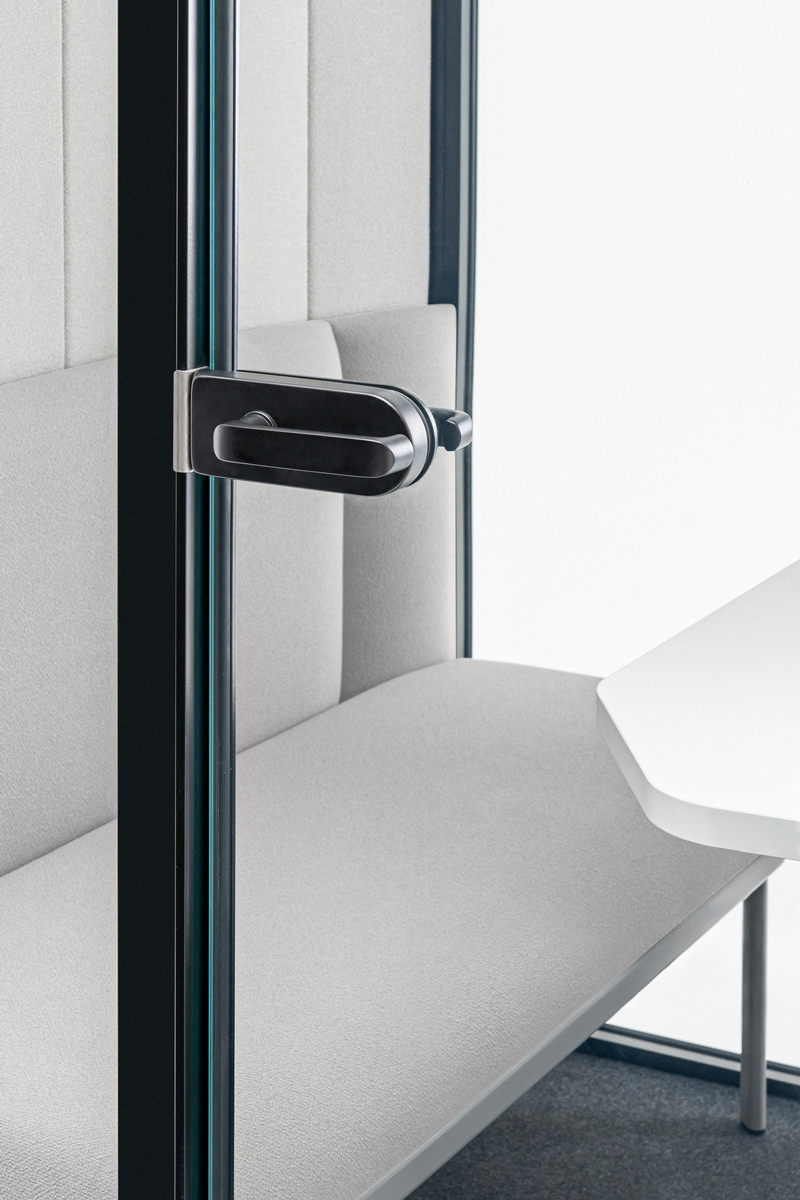

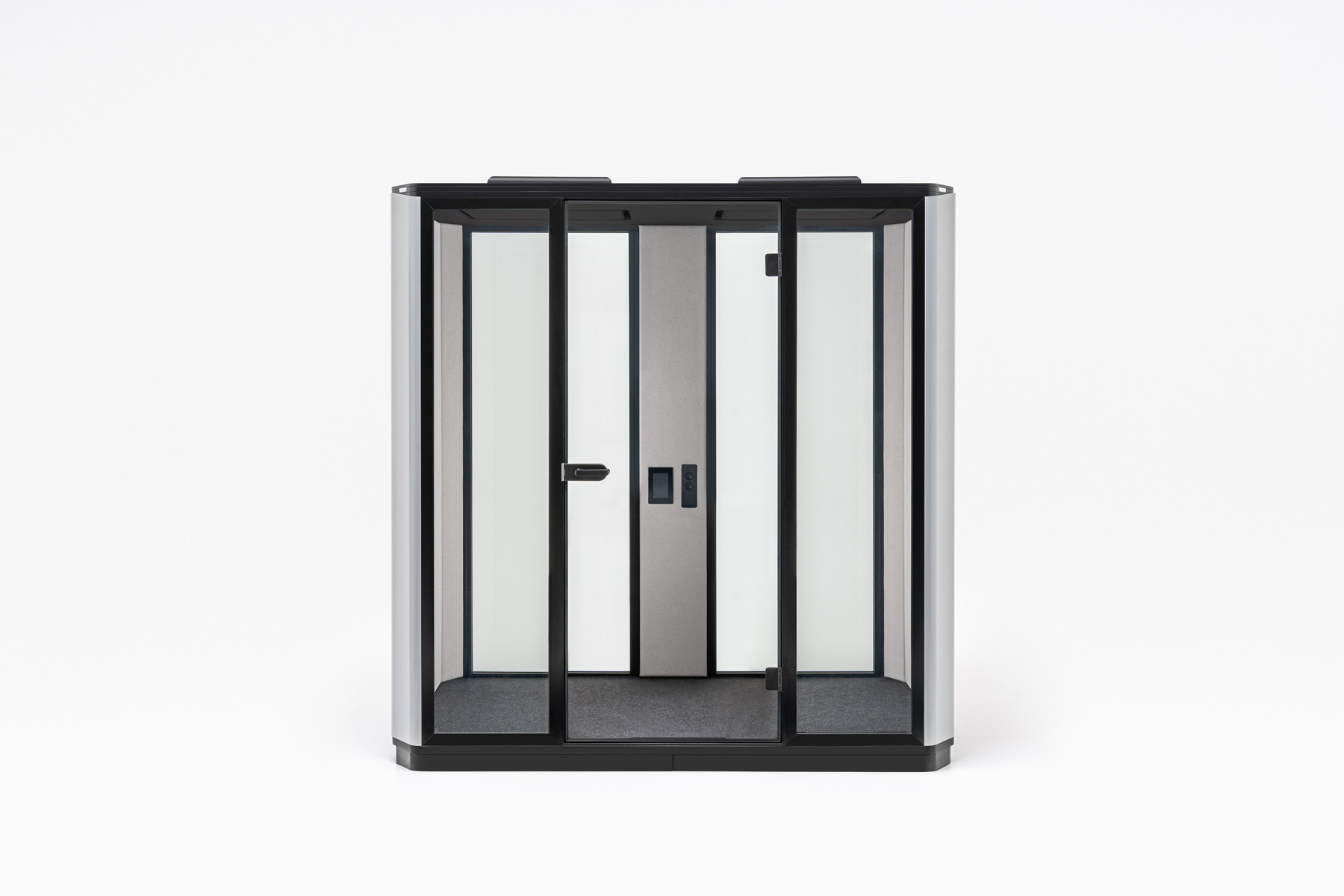

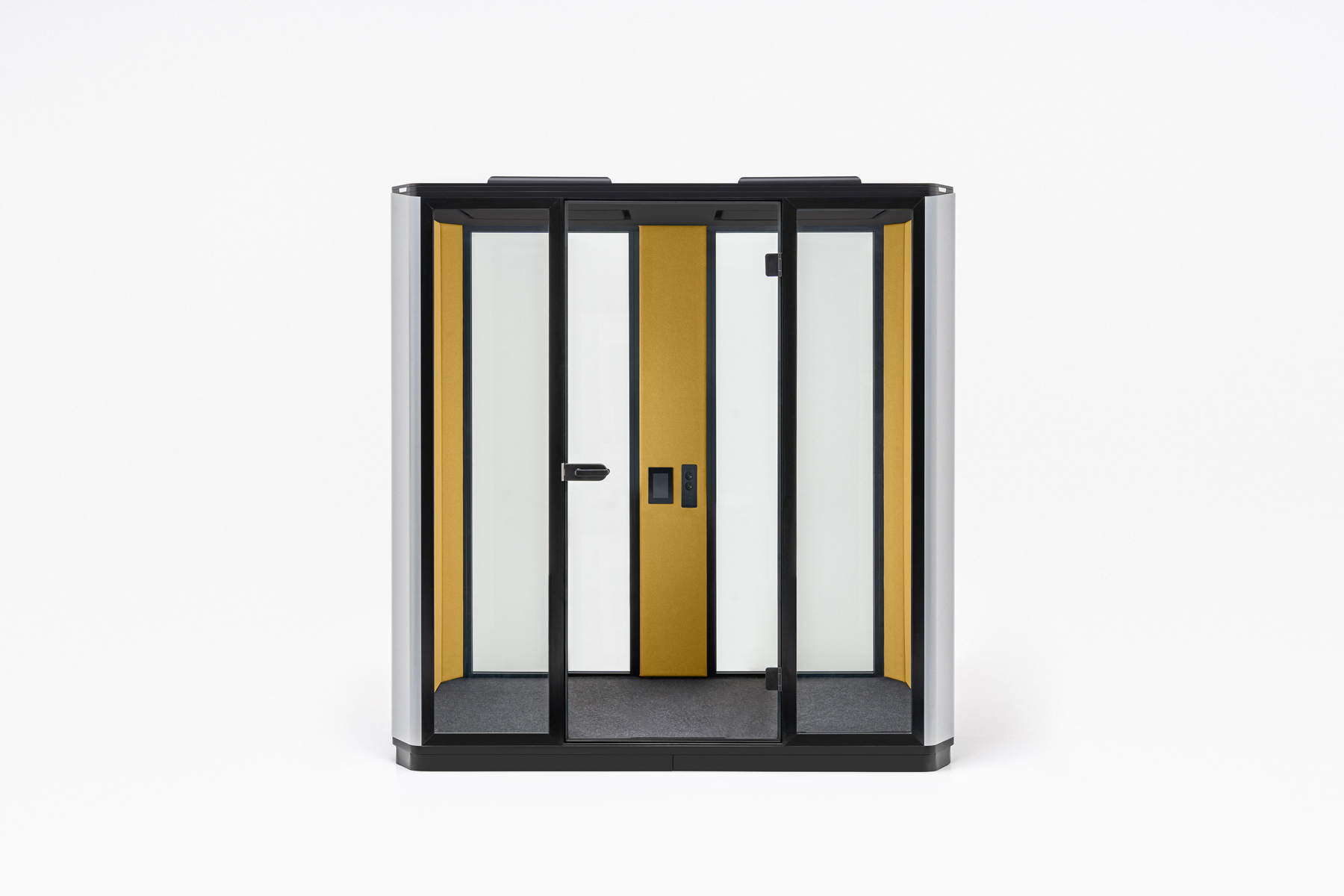

Glass door
acoustic safe glass, thickness 10 mm; equipment: hinges, handle and seal system; CD02 - right-hand door
Walls
internal wall - filled with acoustic foam, upholstered;
glass wall (option with extra charge) - acoustic safety glass, thickness 10 mm, aluminum profile 52x45 mm;
external wall - powder coated steel; 1 mm thick
MDF 31 mm + acoustic fitted carpet; wheels - covered with a plinth, allow the booth to be easily moved; electrical connection - cable outlet in the roof or plinth

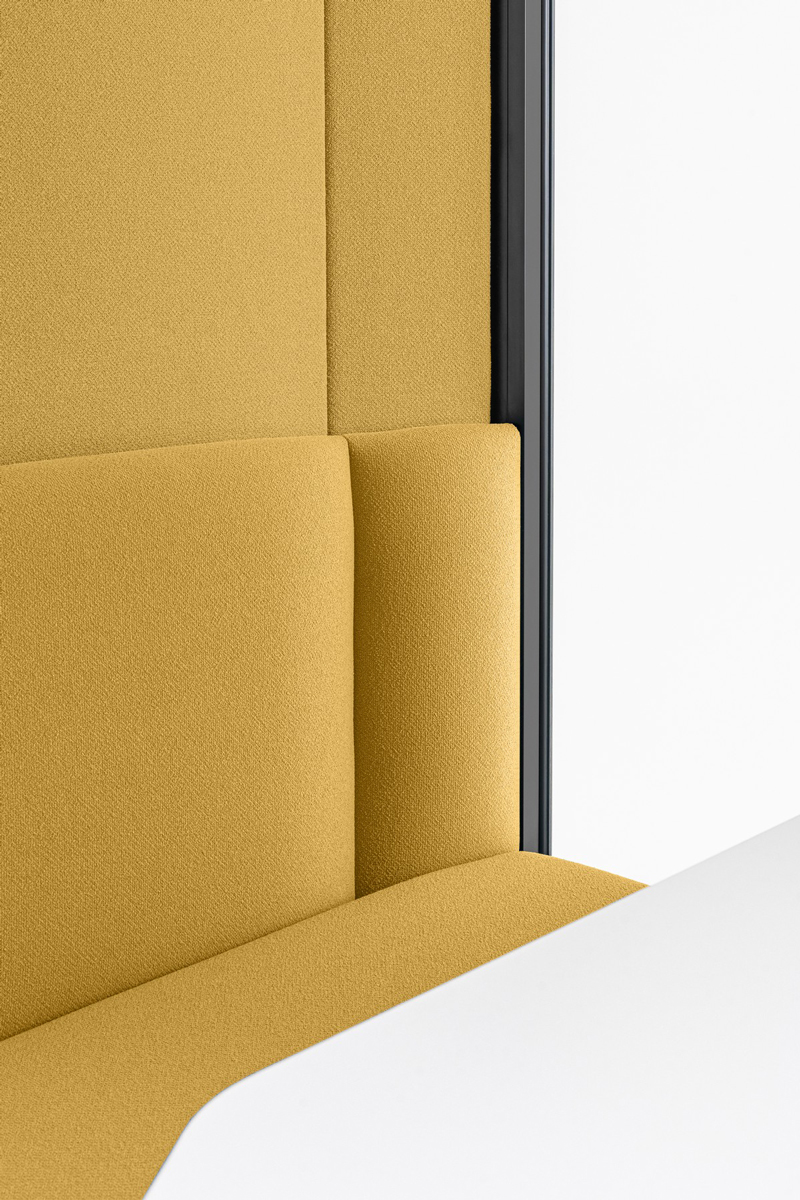

Seat, backrest
cut foam with a density of 25 kg/m³, upholstered
Control panel, mediabox
regulation of lighting intensity and air flow, mediabox 2x230V + 1 x USB A + 1 x USB C
Ceiling
varnished MDF board, upholstered, colour: G-60084 - dark graphite; fitted with lighting and fan; ventilator - ceiling-mounted fan with airflow adjustment; signal lamps - 4 pcs.; red light - occupied, green light - free; motion sensor - activation of lighting,...
varnished MDF board, upholstered, colour: G-60084 - dark graphite; fitted with lighting and fan;
ventilator - ceiling-mounted fan with airflow adjustment;
signal lamps - 4 pcs.; red light - occupied, green light - free;
motion sensor - activation of lighting, fans, touch panel and signal lamps
Glass door
acoustic safe glass, thickness 10 mm; equipment: hinges, handle and seal system; CD02 - right-hand door
Walls
internal wall - filled with acoustic foam, upholstered;
glass wall (option with extra charge) - acoustic safety glass, thickness 10 mm, aluminum profile 52x45 mm;
external wall - powder coated steel; 1 mm thick
MDF 31 mm + acoustic fitted carpet;
wheels - covered with a plinth, allow the booth to be easily moved;
electrical connection - cable outlet in the roof or plinth
Seat, backrest
cut foam with a density of 25 kg/m³, upholstered
Control panel, mediabox
regulation of lighting intensity and air flow, mediabox 2x230V + 1 x USB A + 1 x USB C
Ceiling
varnished MDF board, upholstered, colour: G-60084 - dark graphite; fitted with lighting and fan; ventilator - ceiling-mounted fan with airflow adjustment; signal lamps - 4 pcs.; red light - occupied, green light - free; motion sensor - activation of lighting,...
varnished MDF board, upholstered, colour: G-60084 - dark graphite; fitted with lighting and fan;
ventilator - ceiling-mounted fan with airflow adjustment;
signal lamps - 4 pcs.; red light - occupied, green light - free;
motion sensor - activation of lighting, fans, touch panel and signal lamps
Glass door
acoustic safe glass, thickness 10 mm; equipment: hinges, handle and seal system; CD02 - right-hand door
Walls
internal wall - filled with acoustic foam, upholstered;
glass wall (option with extra charge) - acoustic safety glass, thickness 10 mm, aluminum profile 52x45 mm;
external wall - powder coated steel; 1 mm thick
MDF 31 mm + acoustic fitted carpet;
wheels - covered with a plinth, allow the booth to be easily moved;
electrical connection - cable outlet in the roof or plinth
Seat, backrest
cut foam with a density of 25 kg/m³, upholstered
Control panel, mediabox
regulation of lighting intensity and air flow, mediabox 2x230V + 1 x USB A + 1 x USB C
Technical data
Technical specification
Ceiling - varnished MDF board, upholstered, colour: G-60084 - dark graphite; fitted with lighting and fan;
Ventilator - ceiling-mounted fan with airflow adjustment;
Signal lamps - 4 pcs; red light - occupied, green light - free;
Motion sensor - activation of lighting, fans, touch panel and signal lamps;

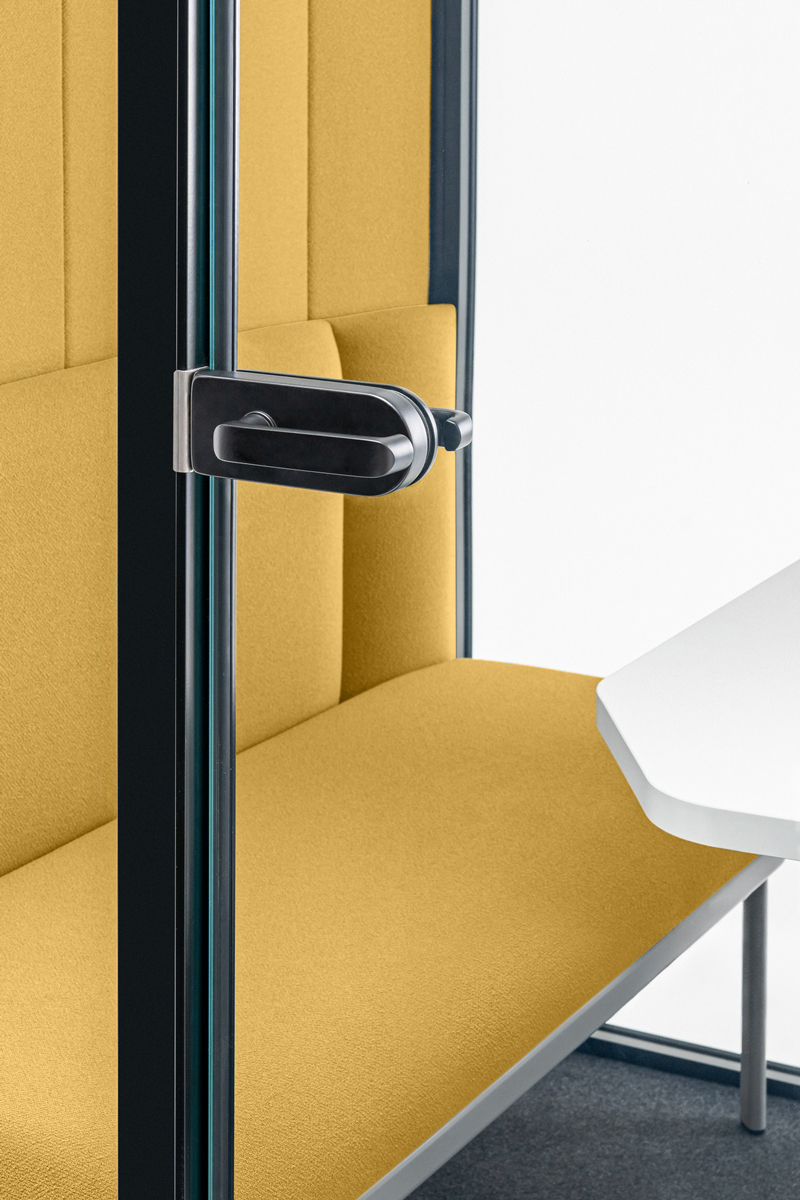

Glass door - acoustic safe glass, thickness 10mm; equipment: hinges, handle and seal system; CD02 - right-hand door;
Internal wall - filled with acoustic foam, upholstered;
Glass wall (option with extra charge) - acoustic safety glass, thickness 1 0mm, aluminum profile 52x45 mm;

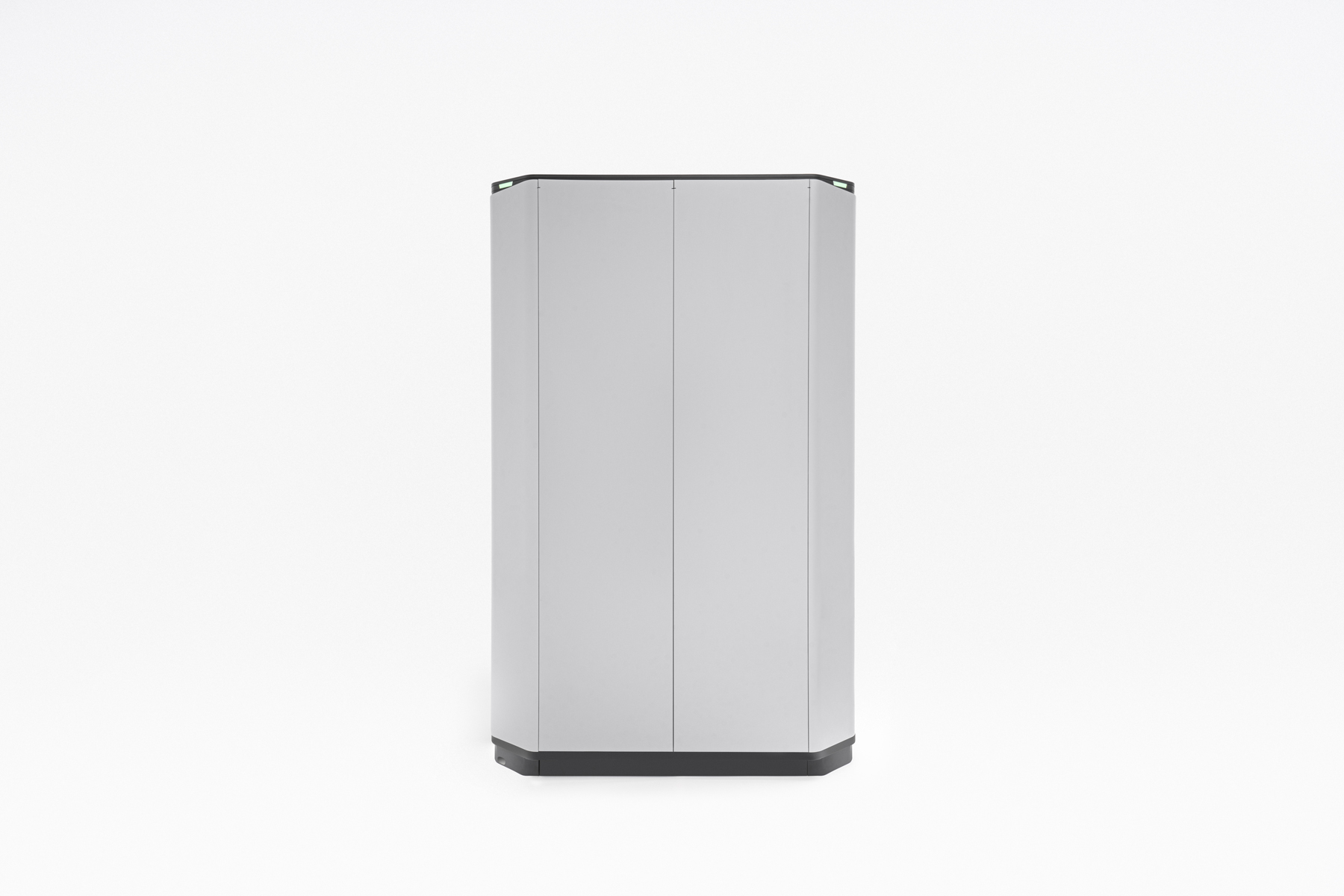

External wall - powder coated steel; 1 mm thick;
Control panel - regulation of lighting intensity and air flow;
Mediabox - 2x230V + 1 x USB A + 1 x USB C;
Seat, backrest - cut foam with a density of 25 kg/m³, upholstered;
Yes, both the door and the back panel are made of acoustic glass.
What elements does the Coda booth consist of?
The top and bottom parts are made of multi-layer MDF, upholstered on the inside. External walls are made of powder-coated sheet metal with acoustic–insulating filling and the internal walls are upholstered. The door is made of acoustic glass and the floor is made of acoustic lining. The back panel can be glass (made of acoustic glass, with an upholstered centre) or fully upholstered.
What elements does the wall of the Coda booth consist of?
The wall of the booth consists of tin panels, bolted together from the inside.
What are the features of the booth’s ventilation system?
In the Coda booth, the supply fan is located in the ceiling and the air outlet – between the floor and the upholstered walls. The air intake can be adjusted using the control panel.
How many times per hour is the air exchanged in the booth?
73 CFM (186 m3/h).
Where inside the booth is the light switch located?
The light is activated by a motion sensor, that switches on the light, ventilation and the illumination of the control panel.
How much power does the booth consume in the standby mode?
In the standby mode, the booth consumes ca. 0,9W: power supply - 0,1W, display of the control panel - 0,4W (10% of which is the backlight), PCB board – 0,04W, green lights – 0,4W.
How long does it take to assemble the booth?
The assembly takes approximately 2,5 hours.
How many people are required to assemble the booth?
Two people are needed to assemble the booth.
What is needed to assemble the booth?
A ladder will be needed to assemble the booth.
Does the room, where the booth will be assembled, have to be significantly higher?
Only around 0,5 m of free space is needed to install the ceiling, so the booth can be placed in interiors that are at least 2,8 m high.
Does the booth have to be mounted to the floor?
No. This way the booth does not damage the floor in the room. Additionally, Coda is equipped with integrated transport castors – after placing it in the final location, the regulators are turned up, so that the castors lift up and stabilise the booth.
Is an electrician required to connect the booth to electricity?
No, it is enough to simply plug the booth into a standard socket.
Where in the booth is the electrical connection located?
The Coda booth can be plugged in from the ceiling or from the floor – the decision has to be made during assembly.
Can an already assembled booth be taken apart and reassembled elsewhere?
Yes, it is possible to take the booth apart and assemble it repeatedly.
How are the Coda booths packed?
The individual elements of the Coda booth are packed in secure parcels and placed in a transport crate.

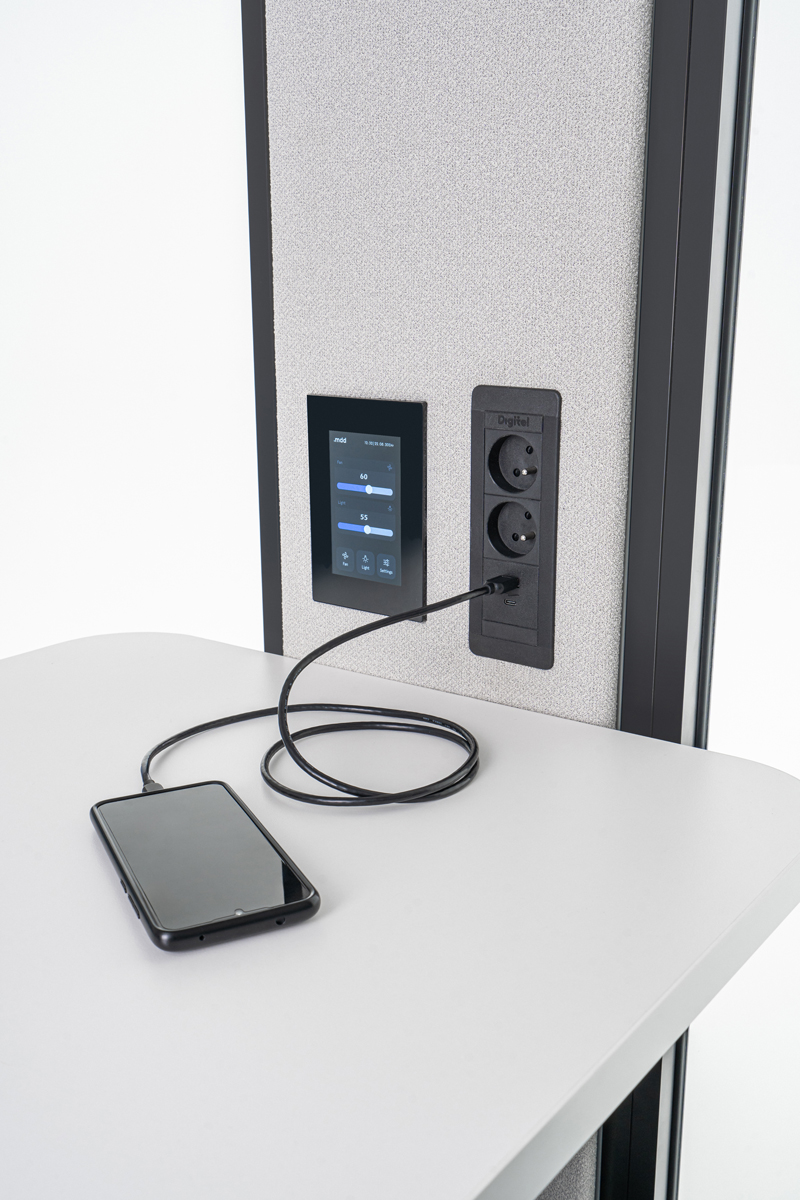

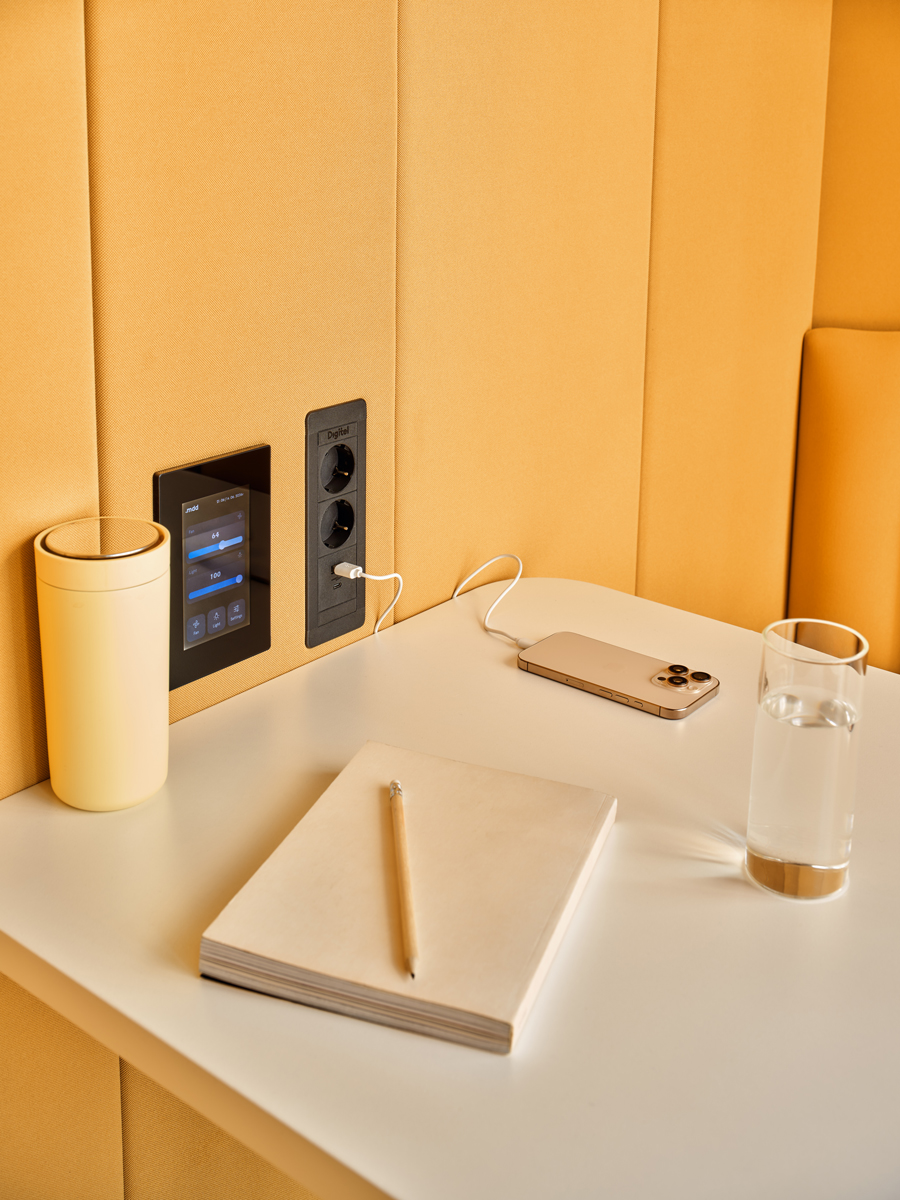

Does the Coda booth have a media port?
The booth has a media port equipped with two 230V power sockets, a USB A charger and a USB C charger. The media port is integrated into the booth’s electrical system and requires no additional power supply.
Where is the internal lightning of the booth located?

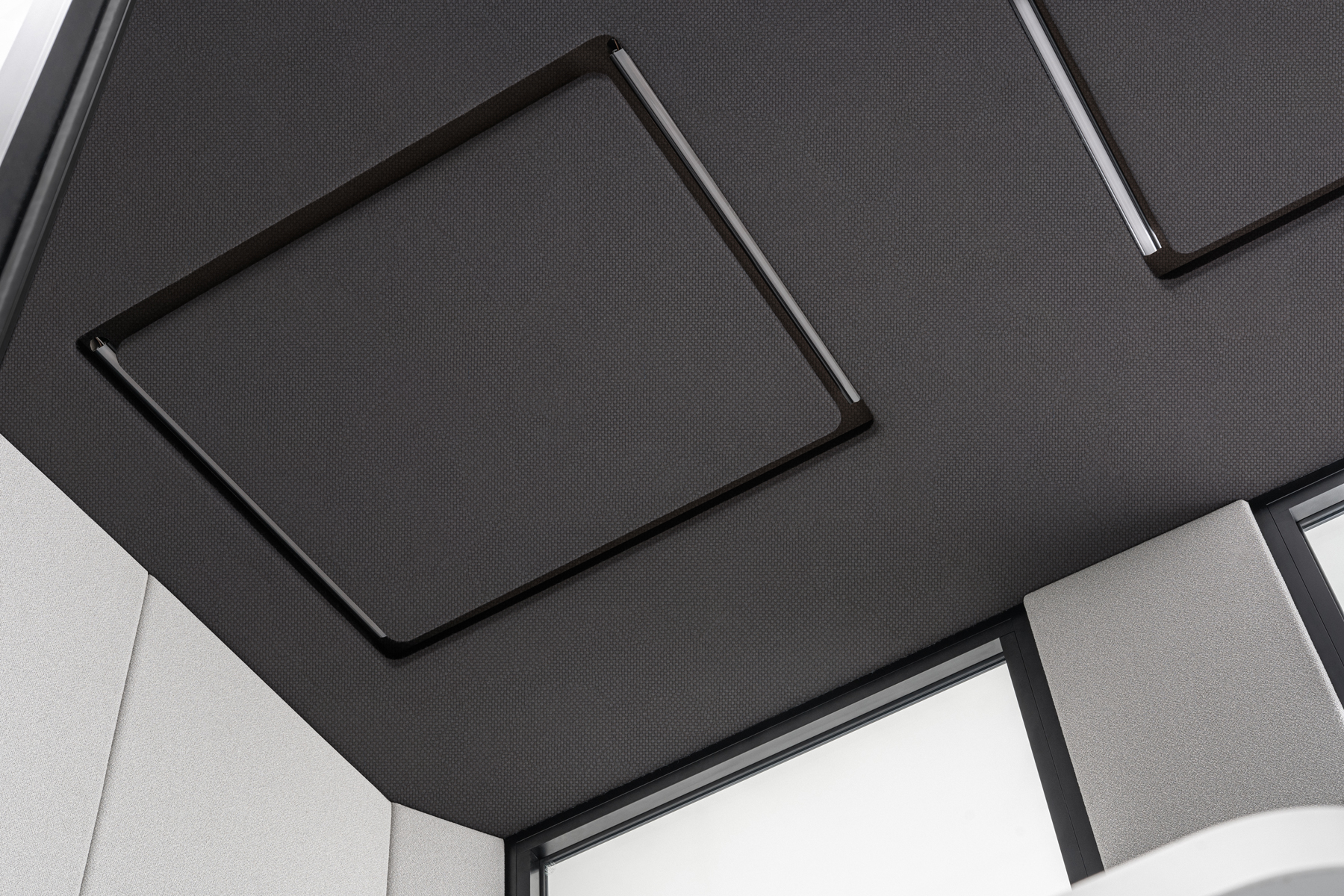

Two LED strips are placed on the ceiling recess. The intensity of the light can be adjusted using the control panel.

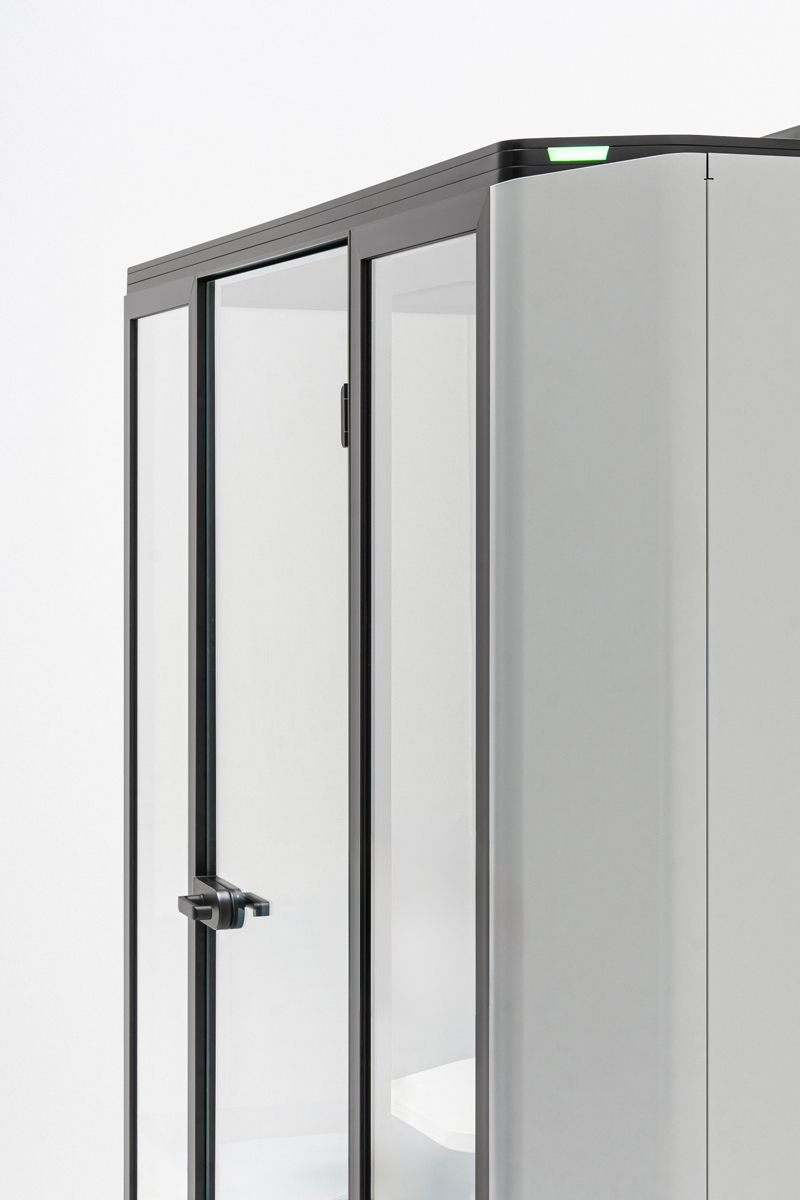

What are the booth’s external lights for?
This is an indication of the booth’s availability – once the user enters the booth, the green signal changes into red (activated by the motion sensor).
Does the Coda booth have any additional equipment?

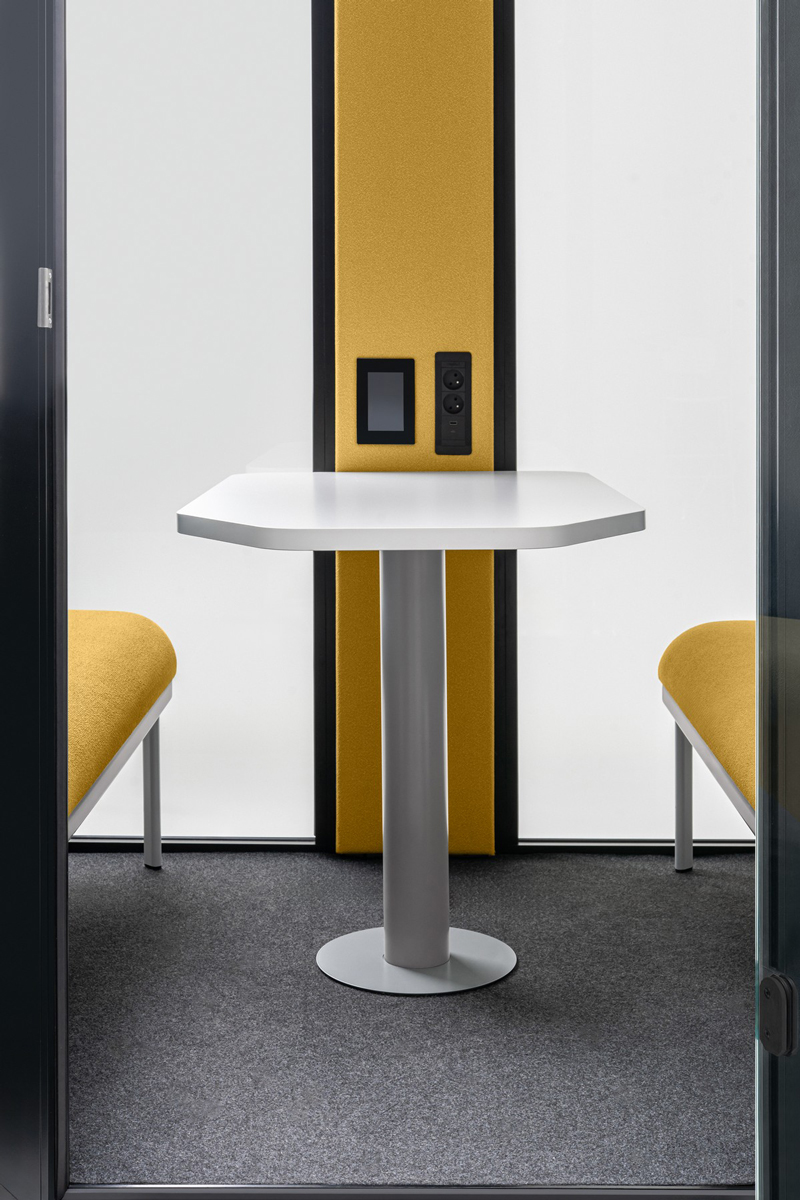

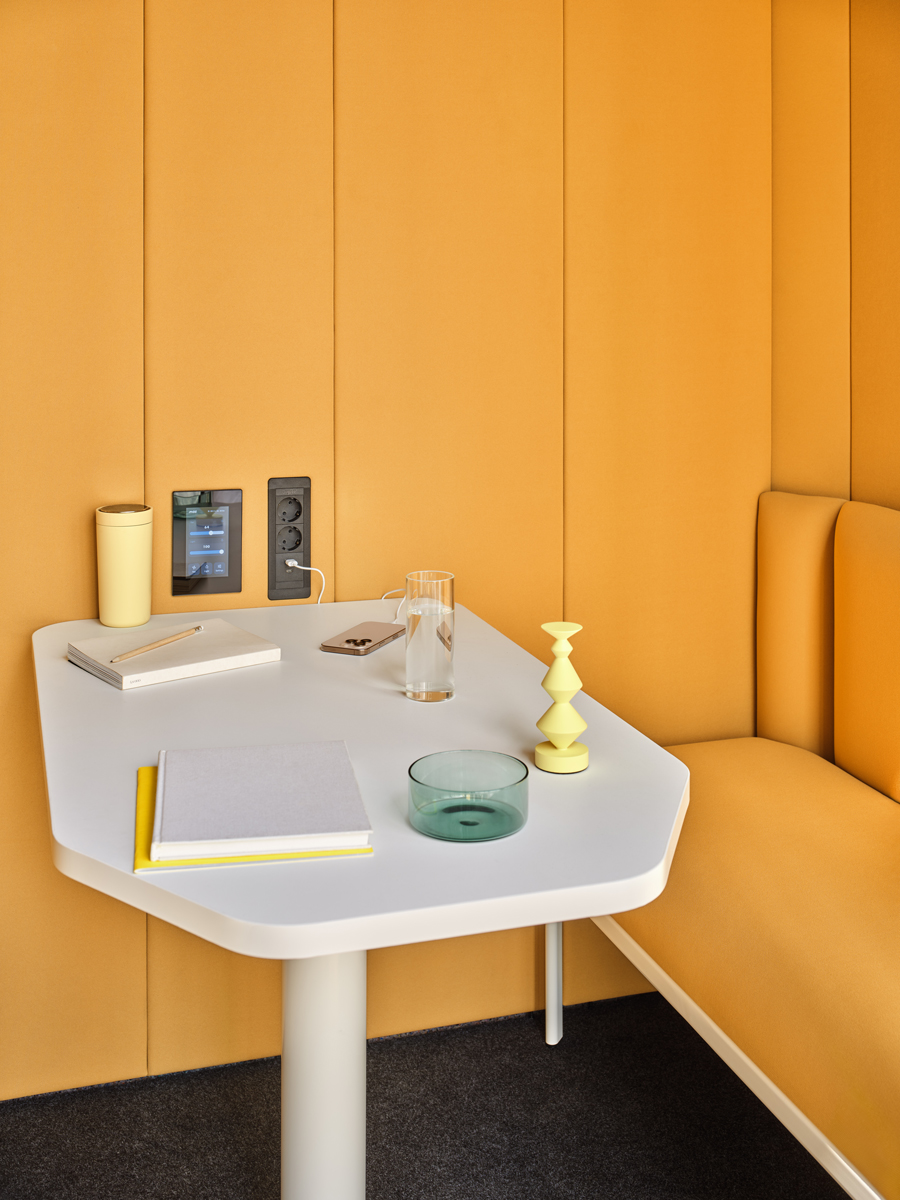

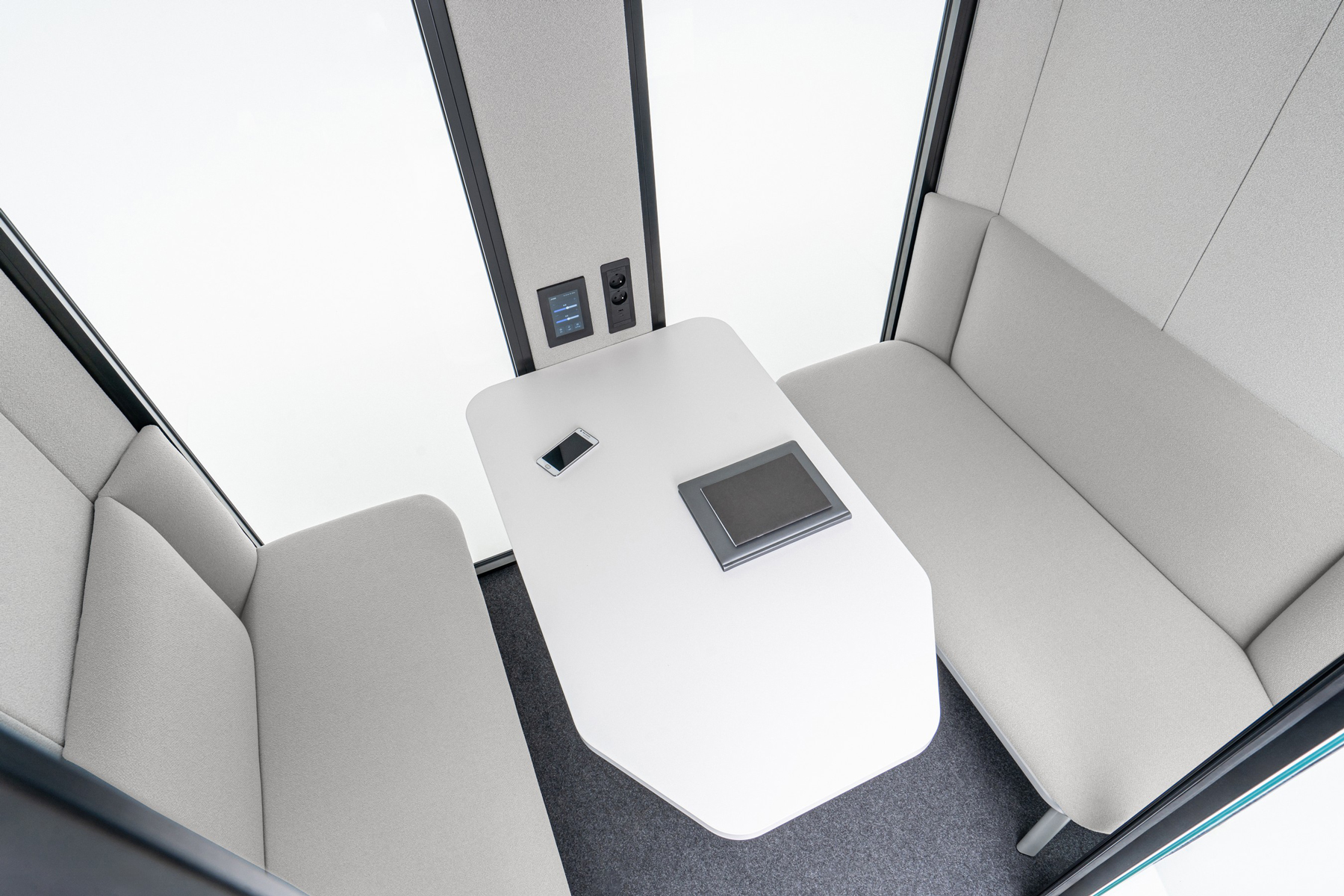

The booth is also equipped with upholstered seats and a table.
Coda
Atlantic A-61270, RAL0608005, white pastel, RAL9010
