file cabinet Standard

Name: file cabinet Standard
Brand: .mdd
SKU: cabinet_drawer_pendants
Availability: InStock

file cabinet - STANDARD - filing cabinet with metal shelves

0%
initializing...

Colour disclaimer

Downloads for the selected configuration

Download 3D models of all indexes in the collection

Download

Show dimensions

Screenshot

Show the inside

Animation

Custom dimensions

Approximate product weight: kg

Standard

for assembly, shelf spacing 33 cm

assembled, shelf spacing 33 cm

file cabinet Standard With metal shelves

for assembly, shelf spacing 33 cm

With metal shelves

assembled, shelf spacing 33 cm

With metal shelves

With drawers and MFC shelves

With metal shelves

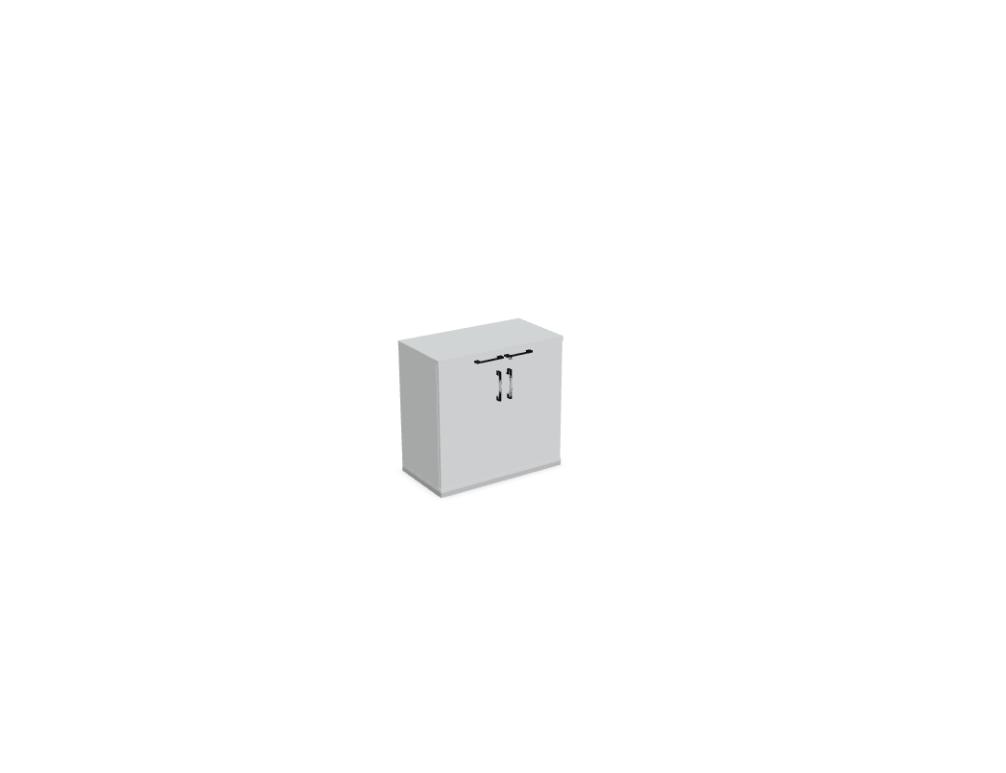

A2104TM

for assembly

W: 801 D: 432

H: 777 mm

A3104TM

for assembly

W: 801 D: 432

H: 1129 mm

A3105TM

for assembly

W: 1000 D: 432

H: 1129 mm

A3106TM

for assembly

W: 1200 D: 432

H: 1129 mm

A4104TM

for assembly

W: 801 D: 432

H: 1481 mm

A5104TM

for assembly

W: 801 D: 432

H: 1833 mm

A6104TM

for assembly

W: 801 D: 432

H: 2185 mm

A5105TM

for assembly

W: 1000 D: 432

H: 1833 mm

A5106TM

for assembly

W: 1200 D: 432

H: 1833 mm

A6105TM

for assembly

W: 1000 D: 432

H: 2185 mm

A6106TM

for assembly

W: 1200 D: 432

H: 2185 mm

With metal shelves

A2104TMK

assembled

W: 801 D: 432

H: 777 mm

A3104TMK

assembled

W: 801 D: 432

H: 1129 mm

A3105TMK

assembled

W: 1000 D: 432

H: 1129 mm

A4104TMK

assembled

W: 801 D: 432

H: 1481 mm

A3106TMK

assembled

W: 1200 D: 432

H: 1129 mm

A5104TMK

assembled

W: 801 D: 432

H: 1833 mm

A6104TMK

assembled

W: 801 D: 432

H: 2185 mm

A5105TMK

assembled

W: 1000 D: 432

H: 1833 mm

A5106TMK

assembled

W: 1200 D: 432

H: 1833 mm

A6105TMK

assembled

W: 1000 D: 432

H: 2185 mm

A6106TMK

assembled

W: 1200 D: 432

H: 2185 mm

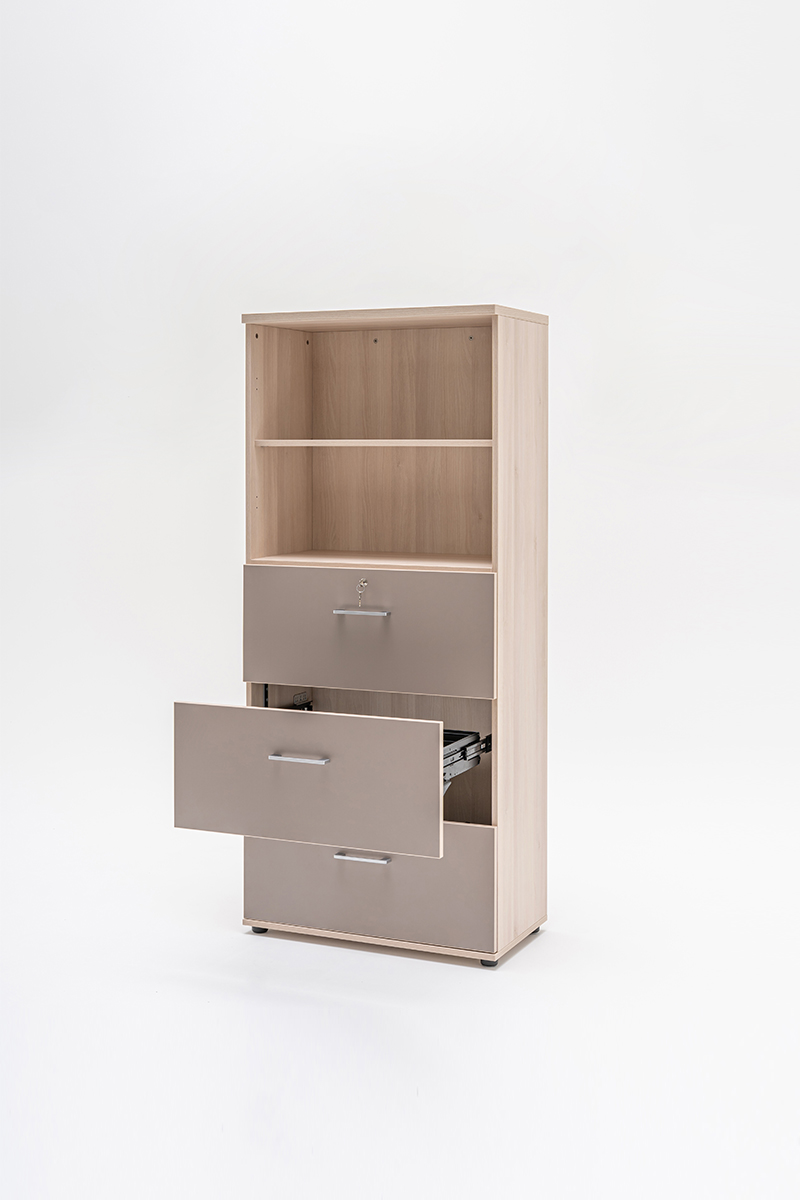

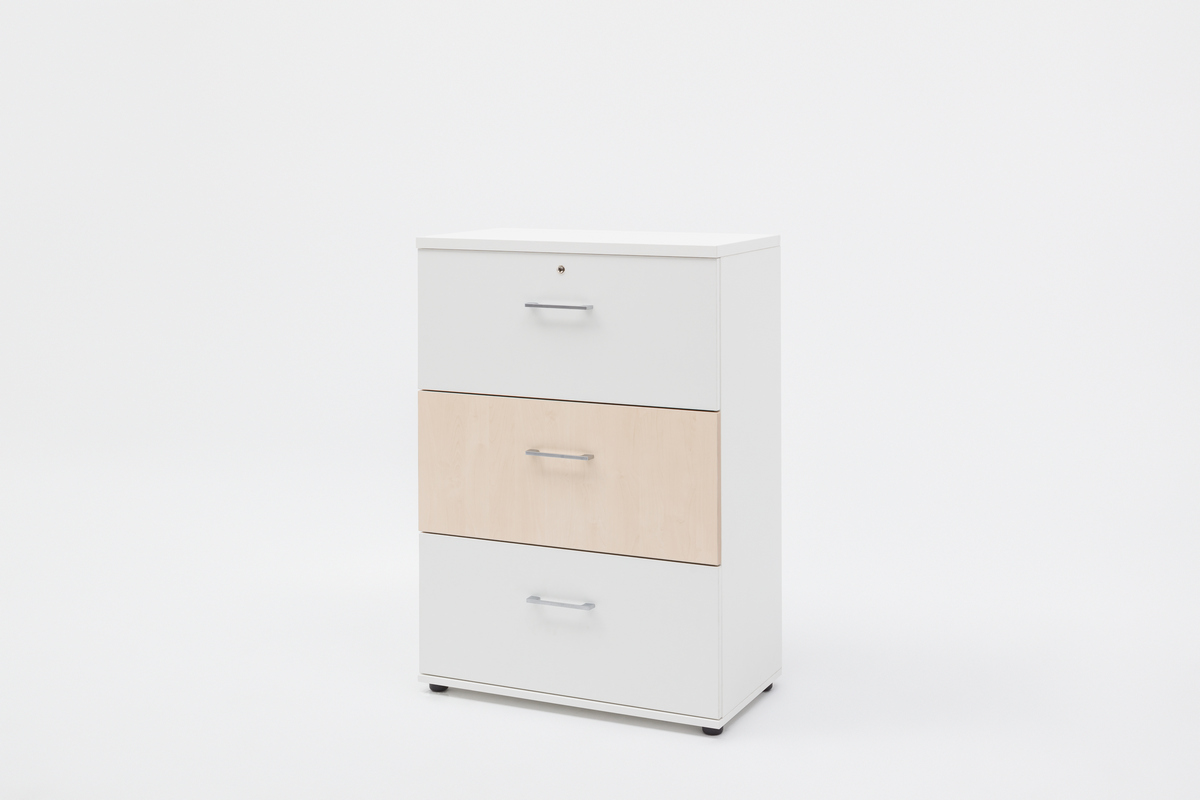

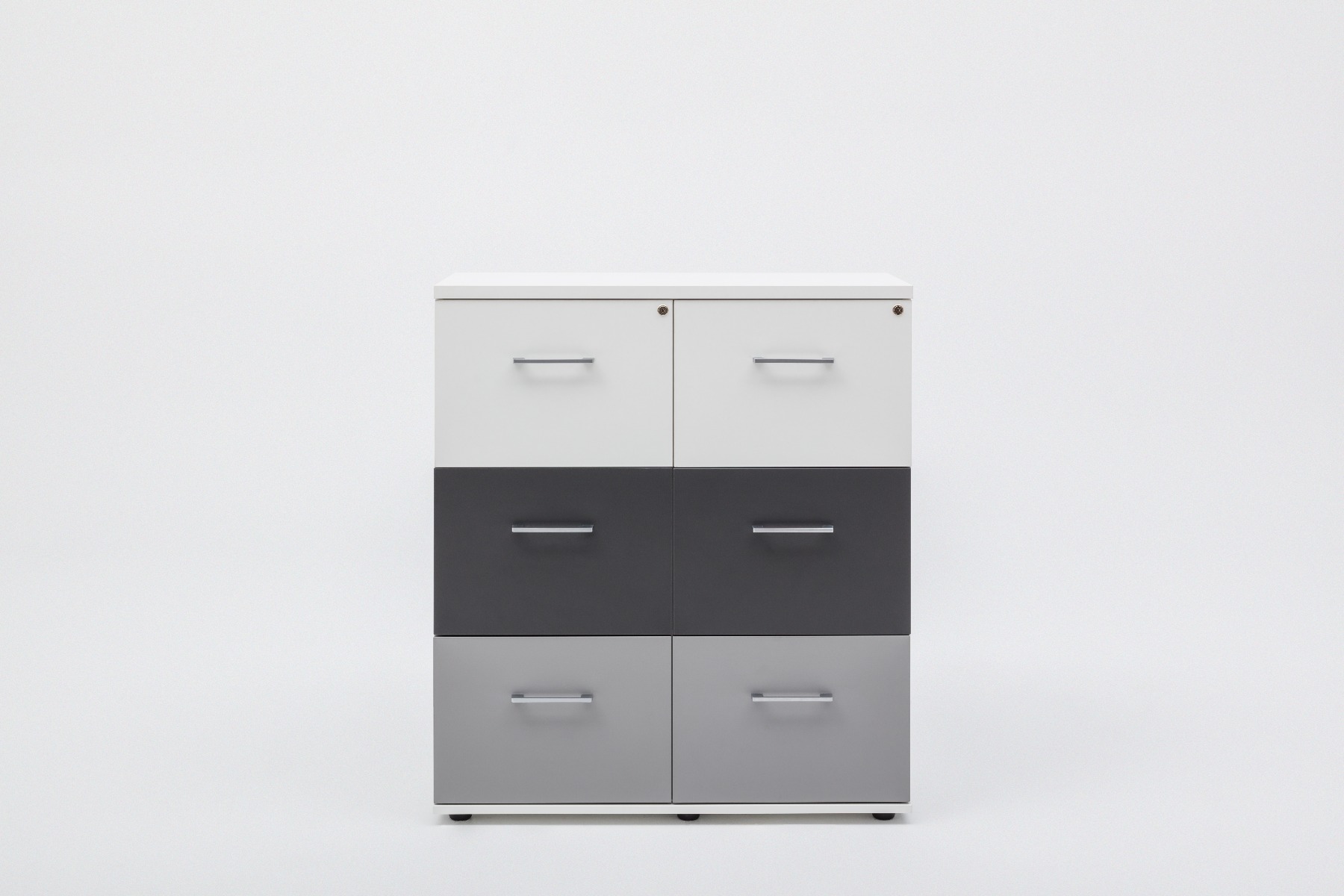

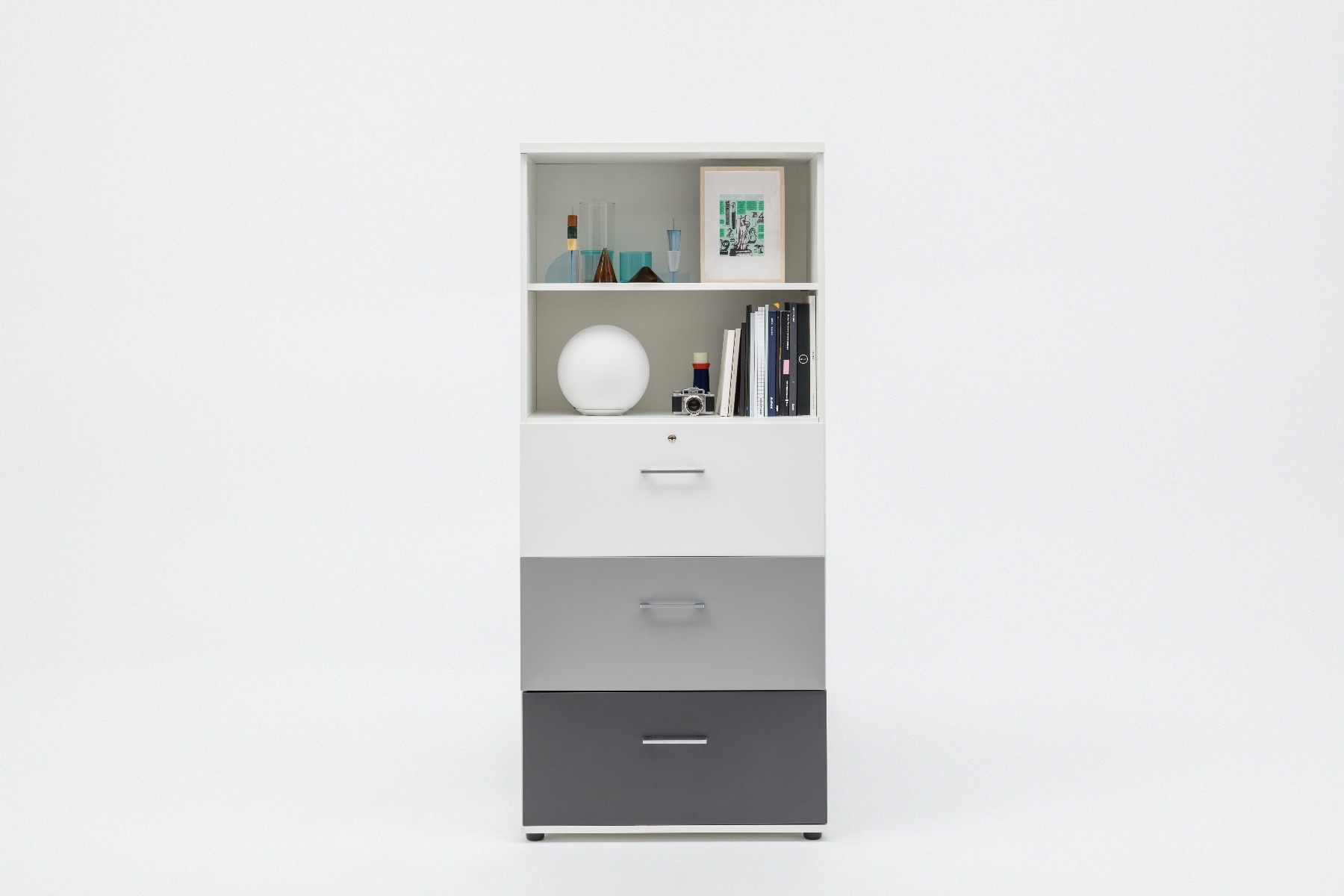

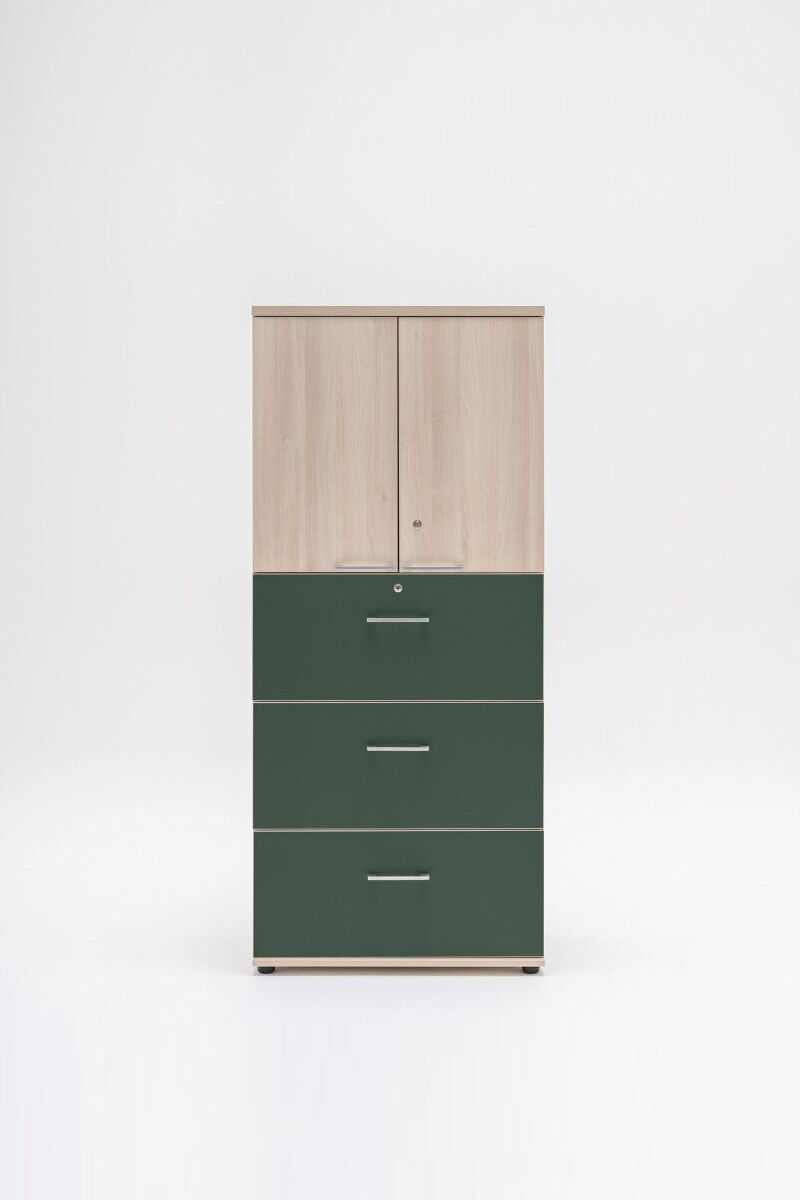

With drawers and MFC shelves

A2F04

W: 801 D: 432

H: 777 mm

A2FB4

W: 801 D: 432

H: 740 mm

A54D4

W: 801 D: 432

H: 1833 mm

A3F04

W: 801 D: 432

H: 1129 mm

A54B4

W: 801 D: 432

H: 1833 mm

A54E4

W: 801 D: 432

H: 1833 mm

A54C4

W: 801 D: 432

H: 1833 mm

A6F04

W: 1000 D: 432

H: 1129 mm

Colour of top and base

White pastel

Aluminum satinato

Anthracite

Black

Polar birch

Acacia

Lowland walnut

Canadian oak

Cocoa

Dark walnut

Grey oak

Natural oak

Honey oak

Beige matt

Light grey

Colour of the body

White pastel

Aluminum satinato

Anthracite

Black

Polar birch +95$ netto

Acacia +95$ netto

Lowland walnut +95$ netto

Canadian oak +95$ netto

Cocoa +95$ netto

Dark walnut +95$ netto

Grey oak +95$ netto

Natural oak +95$ netto

Honey oak +95$ netto

Beige matt +95$ netto

Light grey

Colour of the front

Natural oak

White pastel

Aluminum satinato

Anthracite

Black

Polar birch

Acacia

Lowland walnut

Canadian oak

Cocoa

Dark walnut

Grey oak

Natural oak

Honey oak

Beige matt

Light grey

Type of handle

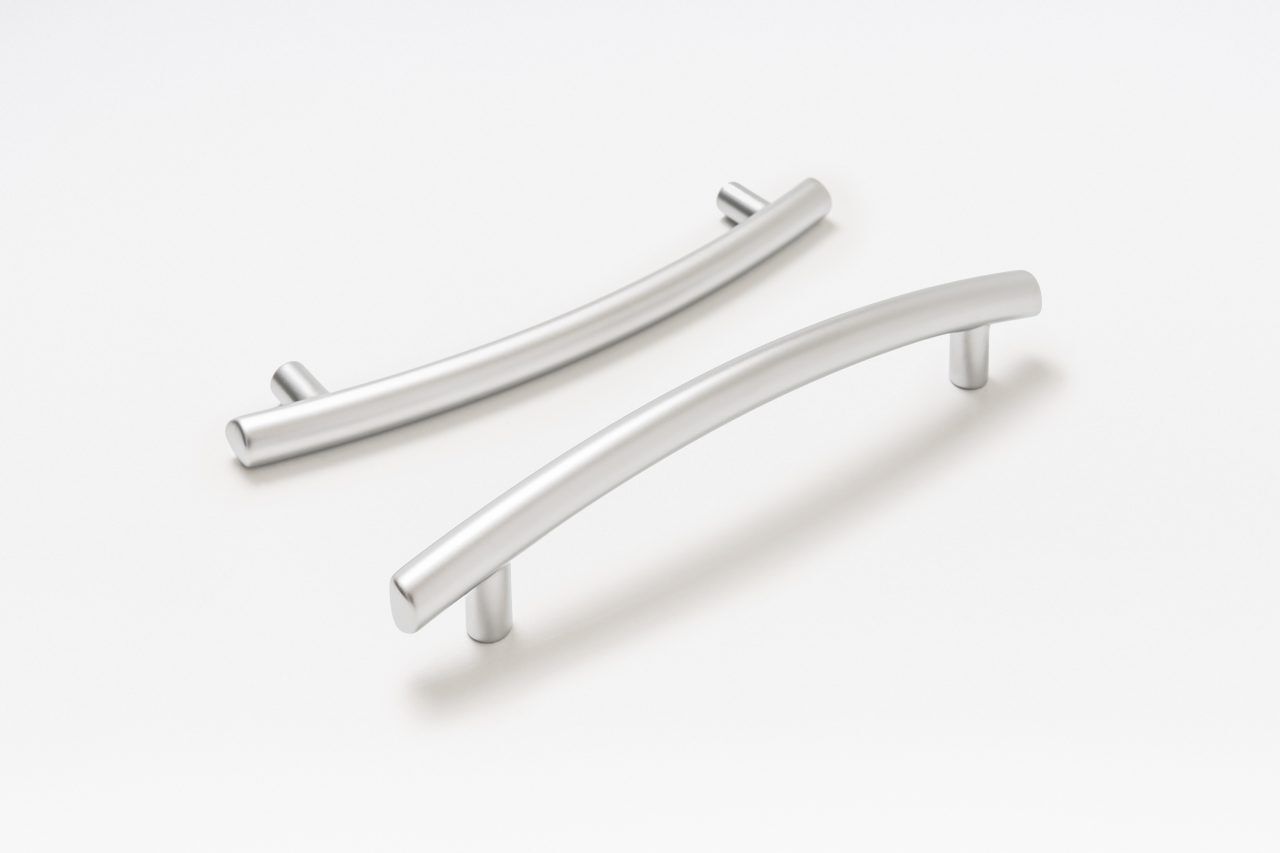

Standard handle aluminum

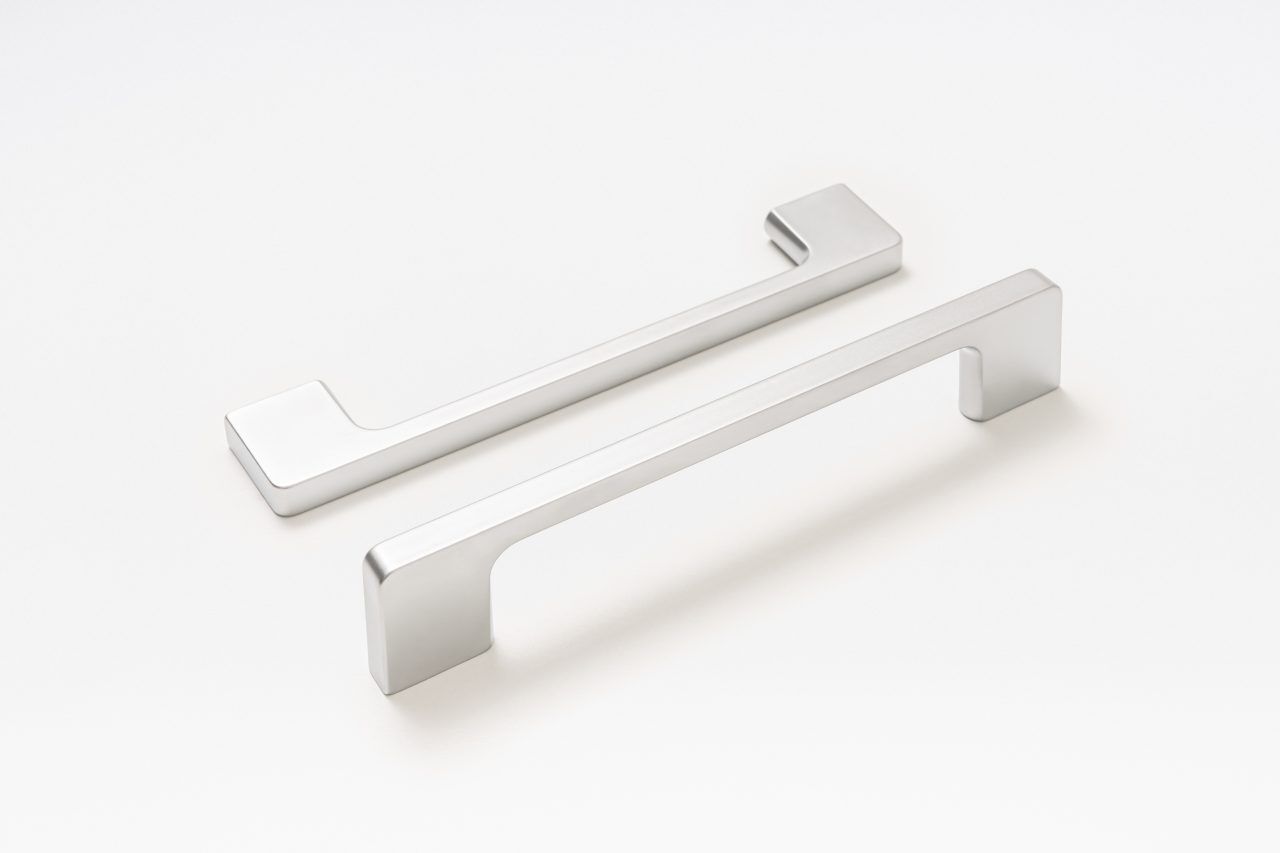

Type of handle - Pro handle aluminum - vertical

Pro handle aluminum - vertical +18$ netto

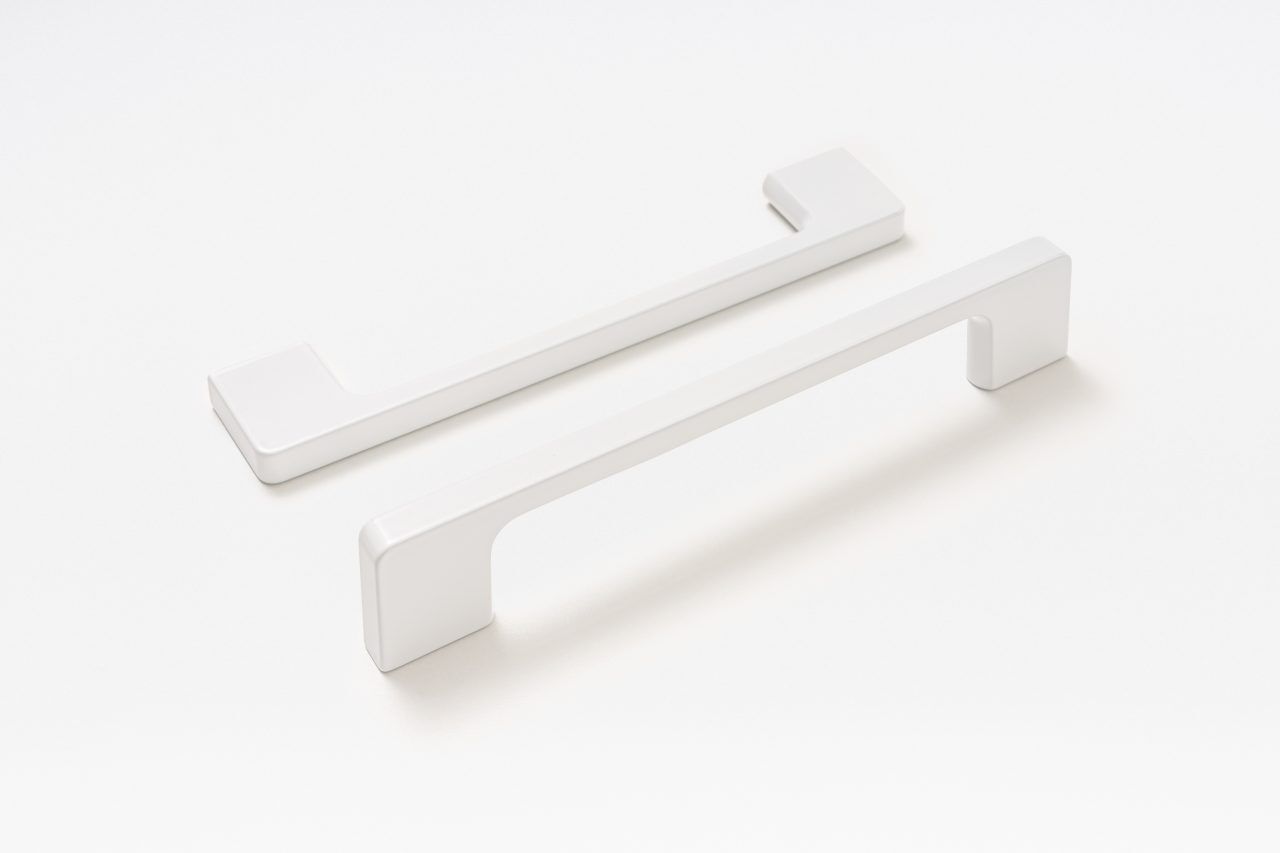

Type of handle - Pro handle white - vertical

Pro handle white - vertical +18$ netto

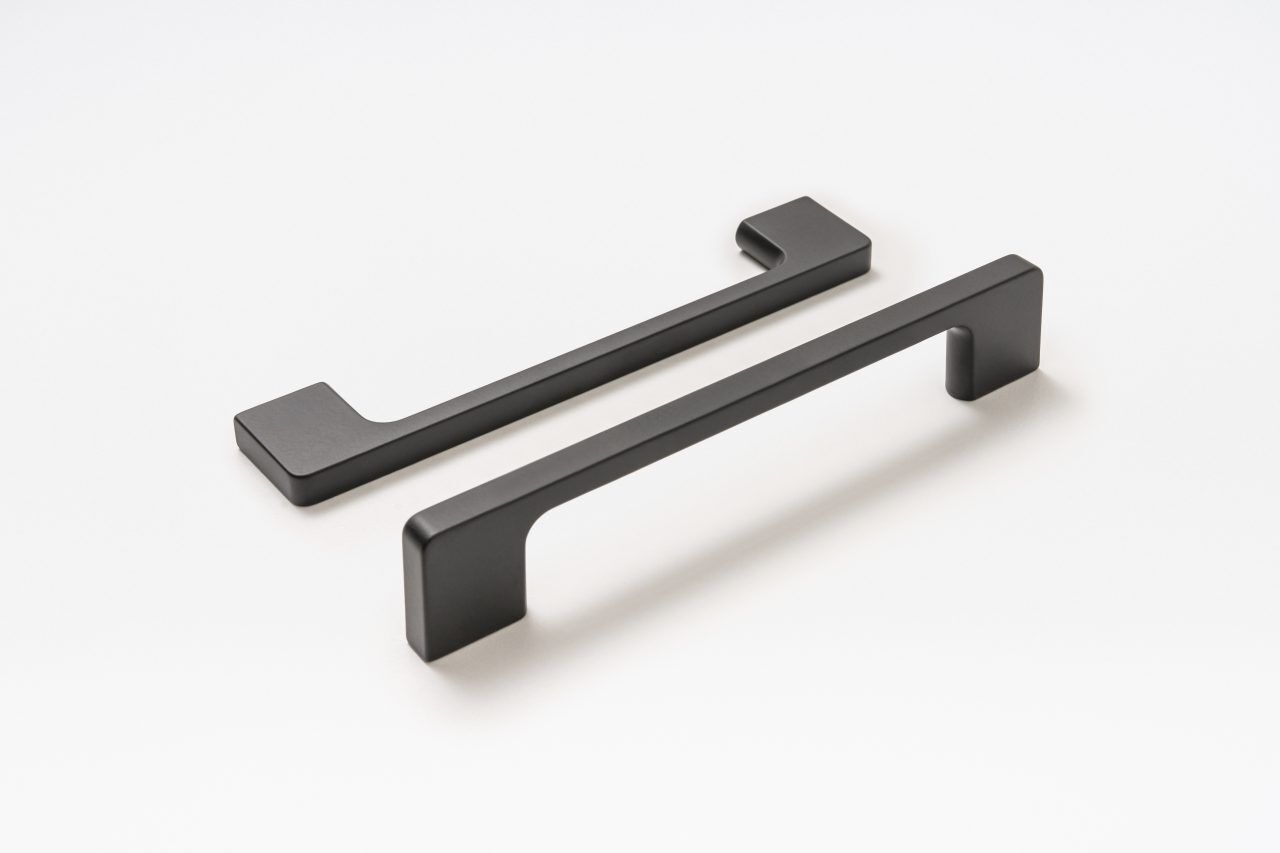

Type of handle - Pro handle black - vertical

Pro handle black - vertical +18$ netto

Type of handle - Pro handle aluminum - horizontal

Pro handle aluminum - horizontal +18$ netto

Type of handle - Pro handle white - horizontal

Pro handle white - horizontal +18$ netto

Type of handle - Pro handle black - horizontal

Pro handle black - horizontal +18$ netto

Type of lock

Bolt lock

Type of hinges

Standard hinge 110°

Type of hinges - Wide-angle hinge 170° x 4

Wide-angle hinge 170° x 4 +60$ netto

Kick plate

No kickplate

Metal kickplate +110$ netto

Standard

Colour of top and base

White pastel

Colour of the body

White pastel

Colour of the front

White pastel

Type of handle

Type of lock

Type of hinges

Kick plate

An internal error occurred, please try again. If the error persists, contact our Customer Service.

Delivery time 8-9 weeks. Product made to customer's order.

Questions about this product?

Use our virtual assistant.

Chat with a virtual advisor

By using the chat, you consent to the storage of the data provided in the conversation. The administrator of personal data is .mdd Sp. z o.o. For more information, see our privacy policy.

How can I help you?

Show filters

Finish description

Runner

Skład: 100% poliester

Gramatura: 364/m2*510g/lm

Trudnozapalność: BS EN 1021 - 1:2006 (papieros), BS EN 1021 - 2:2006 California Bulletin CAL 117-E-Class 1

Select an existing offer or create a new one

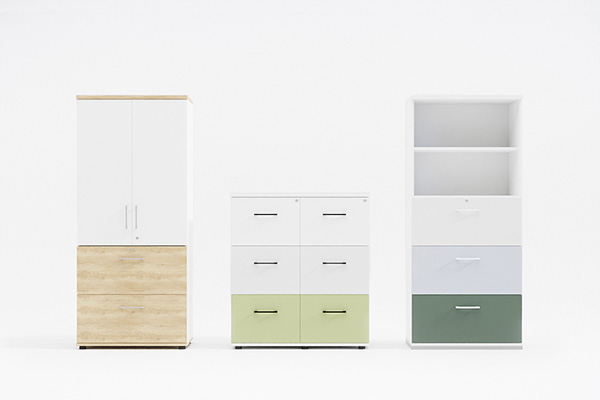

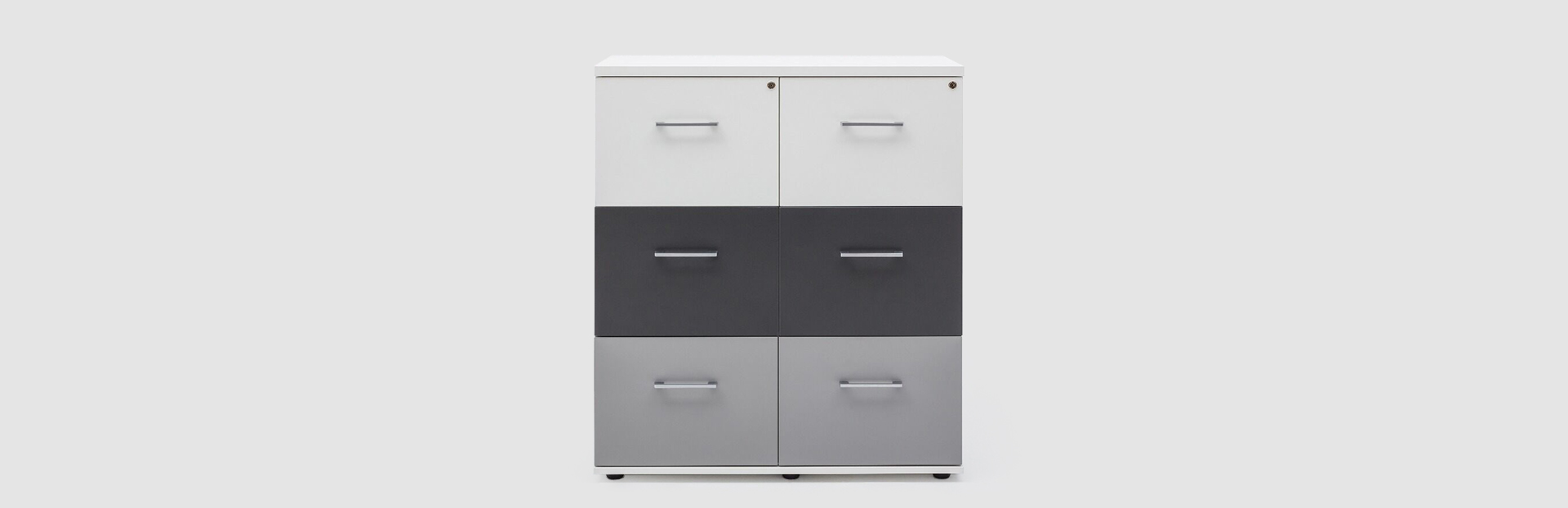

File Cabinet Standard

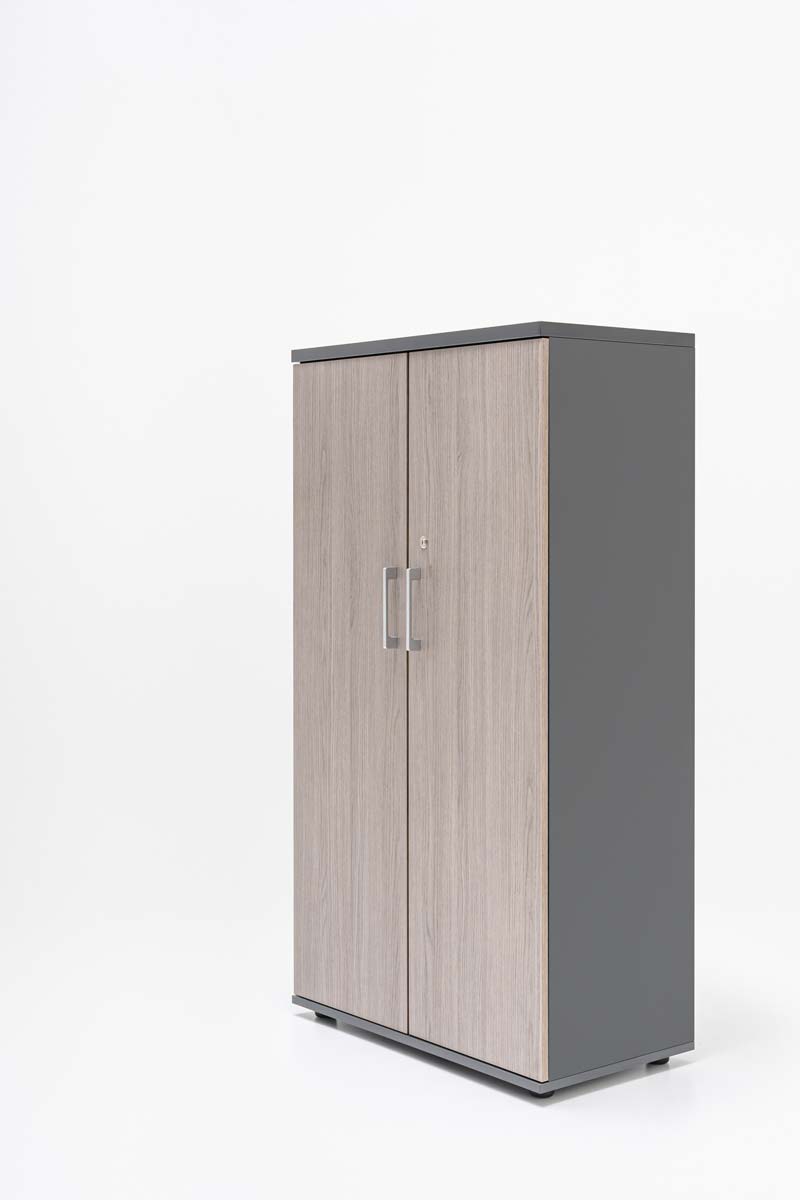

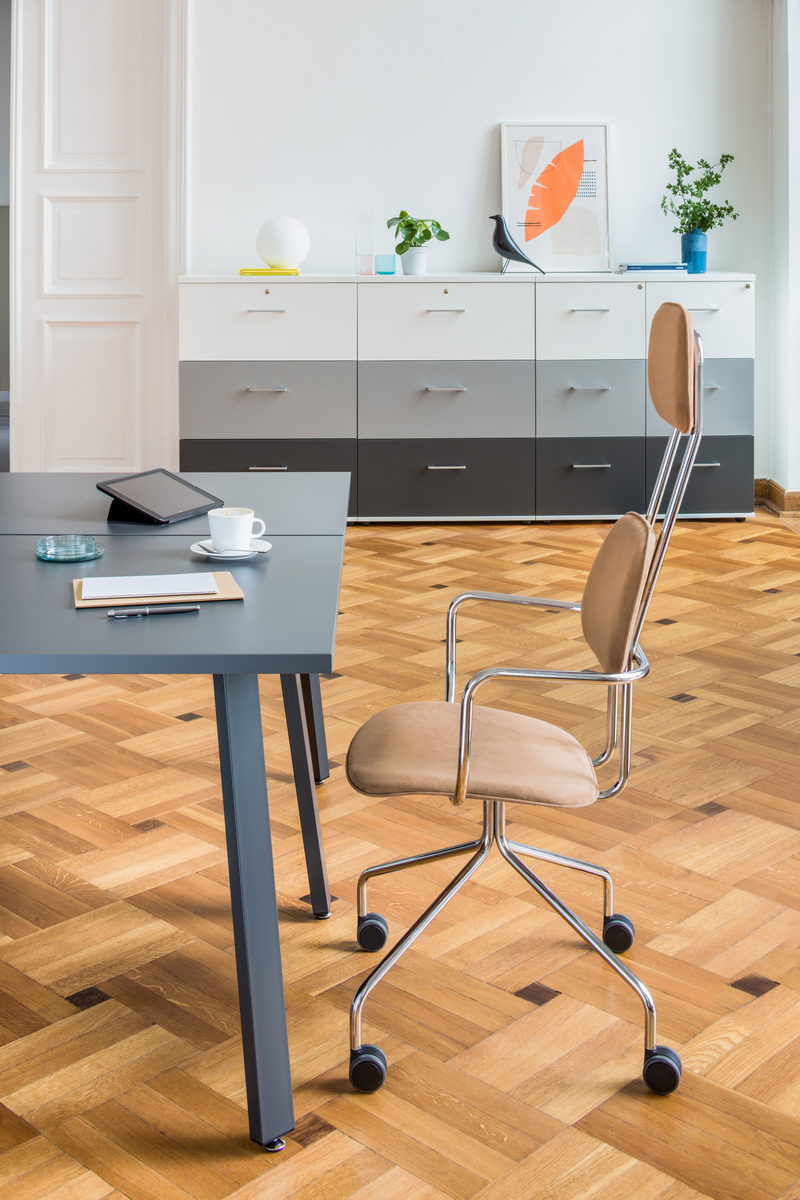

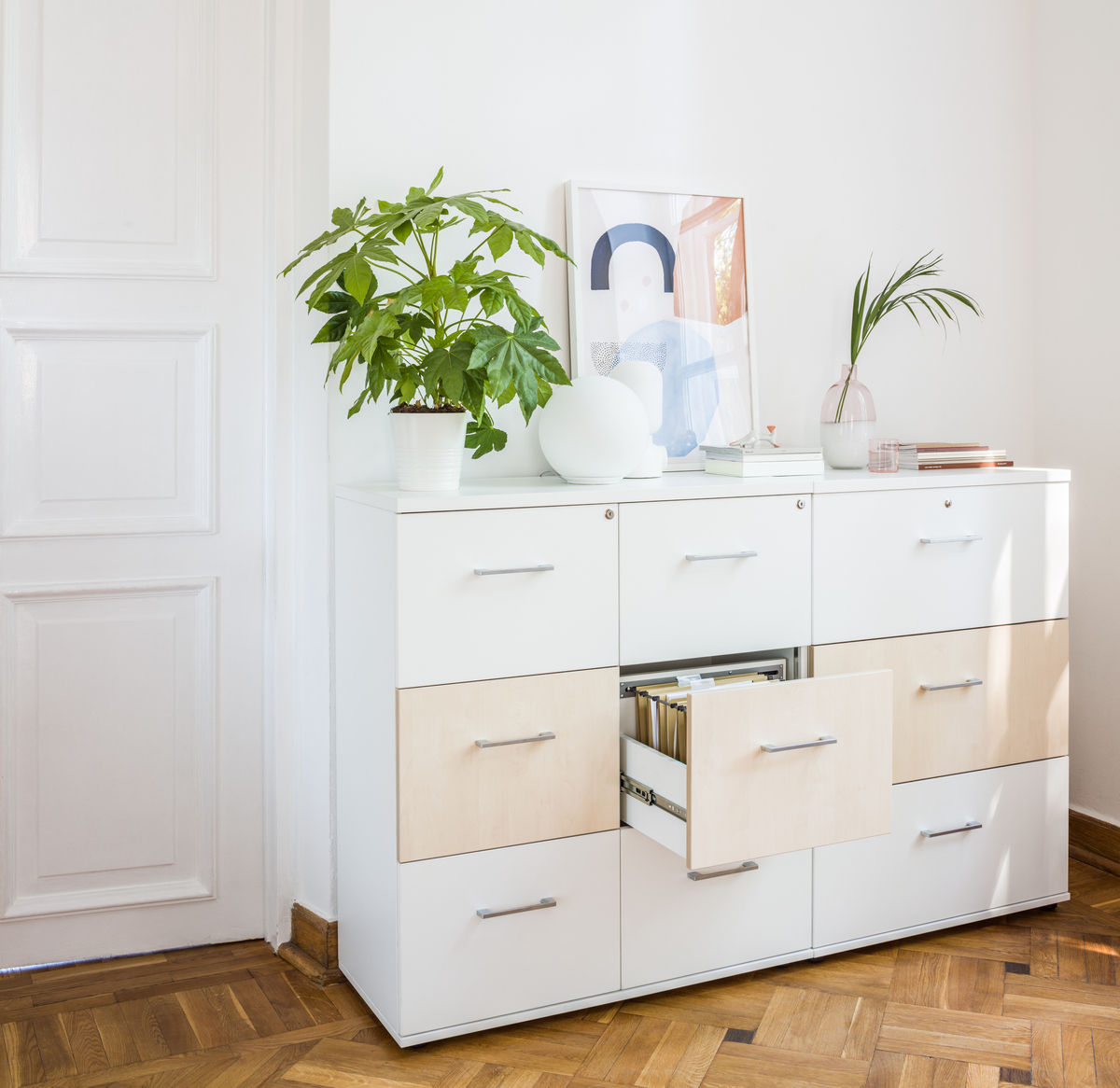

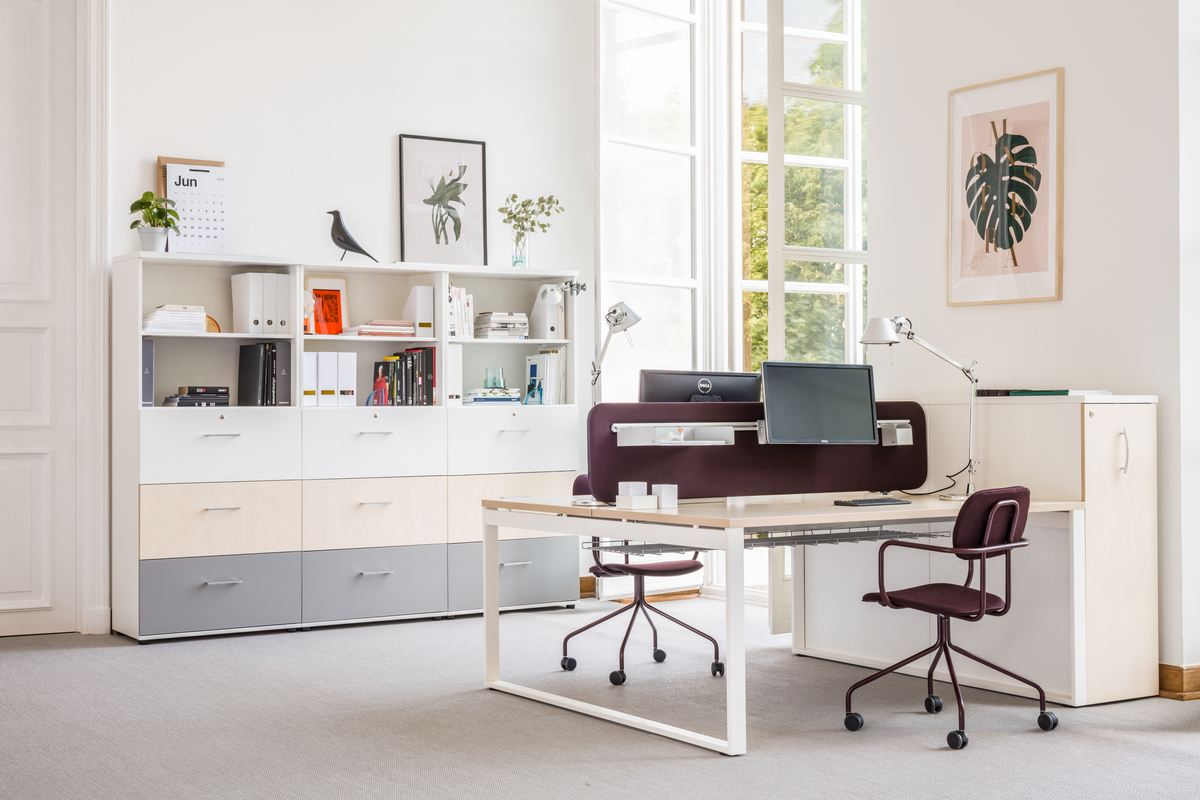

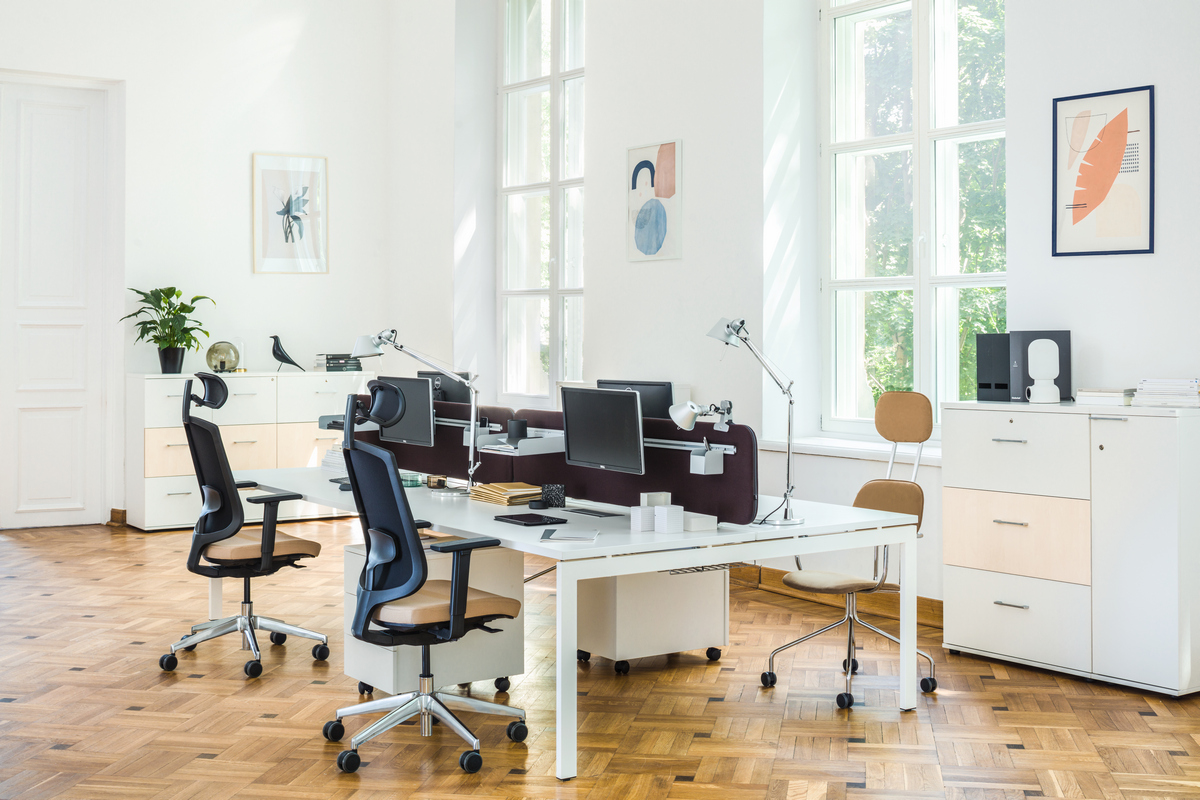

Cabinets with file drawers are not only an equipment element of reception areas and offices but also studies and home office interiors. The cabinets allow for storing documents and maintaining an organized workspace. The minimalistic design helps to create aesthetically coherent arrangements.

Front

front A54D4, A54B4, A54E4, A54C4 - MFC / HPL 18 mm, ABS edge 2 mm, plain hinge 110°, option with extra charge - wide-angle hinge 170°; patent lock, option with extra charge- espagnolette lock; front A3140TM, A3105TM, A3106TM, A5105TM, A5105TM, A5106TM - MFC 18 mm, ABS edge 2 mm, plain hinge 110°, options with extra charge - angle hinge 170°, espagnolette lock - two-point; front A6F04, A3F04 - MFC / HPL 18 mm; central lock - foldable key; handle - aluminium: Standard; option with extra charge: handle Pro (vertical)- colour: white, black, aluminium or Pro (horizontal) + espagnolette lock - colour: white, black, aluminium

Show less

Interior

metal shelf with possibility of using suspension files (A3140TM, A3105TM, A3106TM, A5105TM, A5105TM, A5106TM) - max load 41kg, colour: M009 - aluminium semi-matt; shelf (A54D4, A54B4, A54E4, A54C4) - MFC 18 mm, protection against accidental falling-out, ABS edge 2 mm, max load 30 kg; suspension files drawer (A6F04, A3F04) - MFC 18 mm, ball runners, max load 45 kg, 100% extension; suspension files drawer (A54D4, A54B4, A54E4, A54C4) - metal frame, ball runners, max load 55 kg, 100% extension

Show less

Front

Show less

Interior

Show less

Technical data

Technical specification

Top - MFC 28 mm, ABS edge 2 mm; A3140TM, A3105TM, A3106TM, A5105TM, A5105TM, A5106TM: equipped with file frame;
Body - MFC 18 mm, ABS edge 2 mm;
Back – for assembly: MFC 18 mm, ABS edges 2 mm; assembled: MFC 12 mm, ABS egdes 2 mm, back wall set back 8 mm. Delivered assembled; customers have to mount handles and feet;

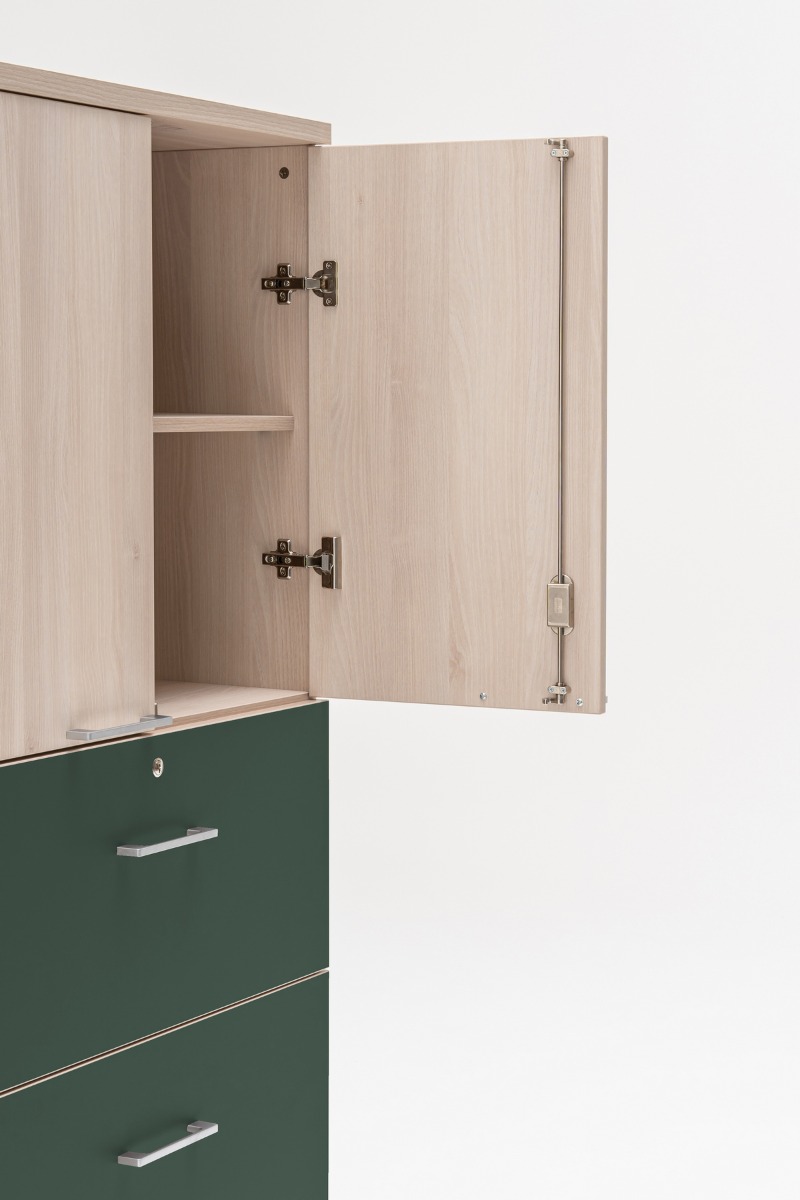

Front A54D4, A54B4, A54E4, A54C4 - MFC / HPL 18 mm, ABS edge 2 mm, plain hinge 110°, option with extra charge - wide-angle hinge 170°; patent lock, option with extra charge- espagnolette lock;

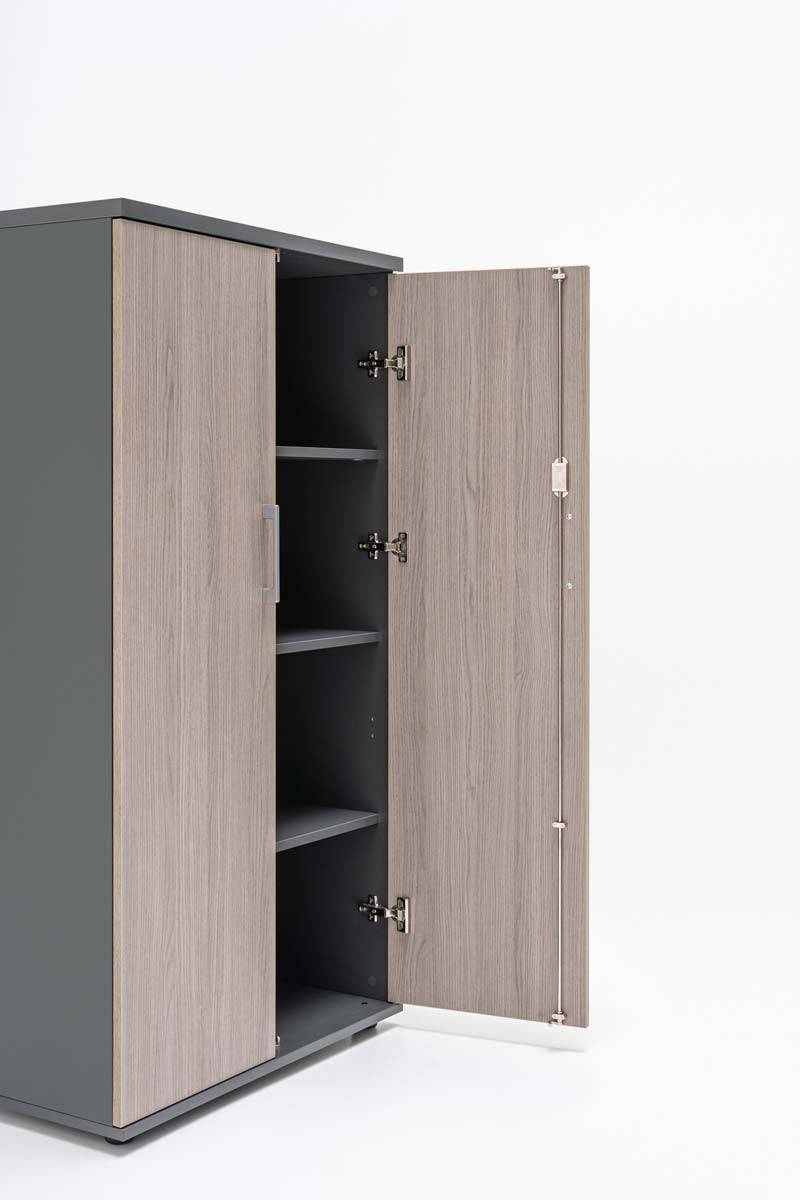

Front A3140TM, A3105TM, A3106TM, A5105TM, A5105TM, A5106TM - MFC 18 mm, ABS edge 2 mm, plain hinge 110°, options with extra charge - angle hinge 170°, espagnolette lock - two-point;
Front A6F04, A3F04 - MFC / HPL 18 mm; central lock - foldable key;
Handle - aluminium: Standard; option with extra charge: handle Pro (vertical)- colour: white, black, aluminium or Pro (horizontal) + espagnolette lock - colour: white, black, aluminium;
Metal shelf with possibility of using suspension files (A3140TM, A3105TM, A3106TM, A5105TM, A5105TM, A5106TM) - max load 41kg, colour: M009 - aluminium semi-matt;

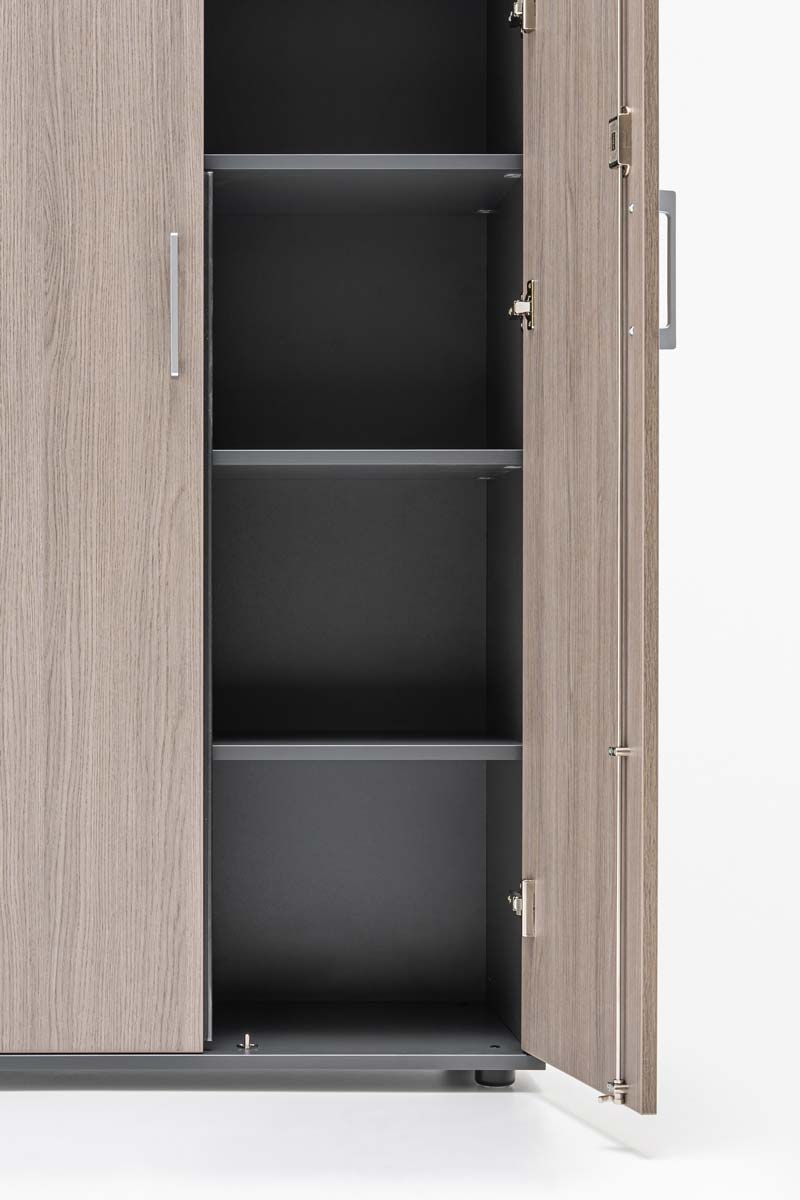

Shelf (A54D4, A54B4, A54E4, A54C4) - MFC 18 mm, protection against accidental falling-out, ABS edge 2 mm, max load 30 kg;

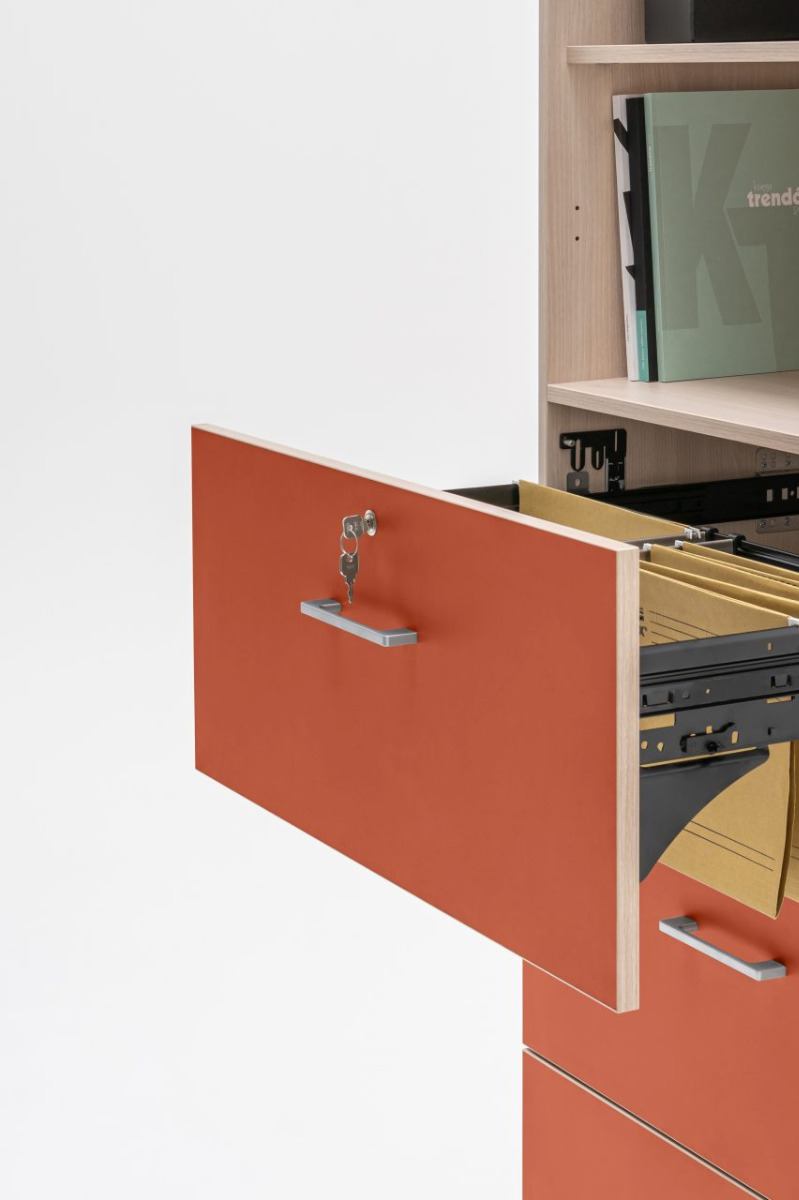

Suspension files drawer (A6F04) - MFC 18 mm, ball runners, max load 25 kg, 100% extension;
Suspension files drawer (A54D4, A54B4, A54E4, A54C4, A3F04) - metal frame, ball runners, max load 55 kg per drawer, 100% extension;

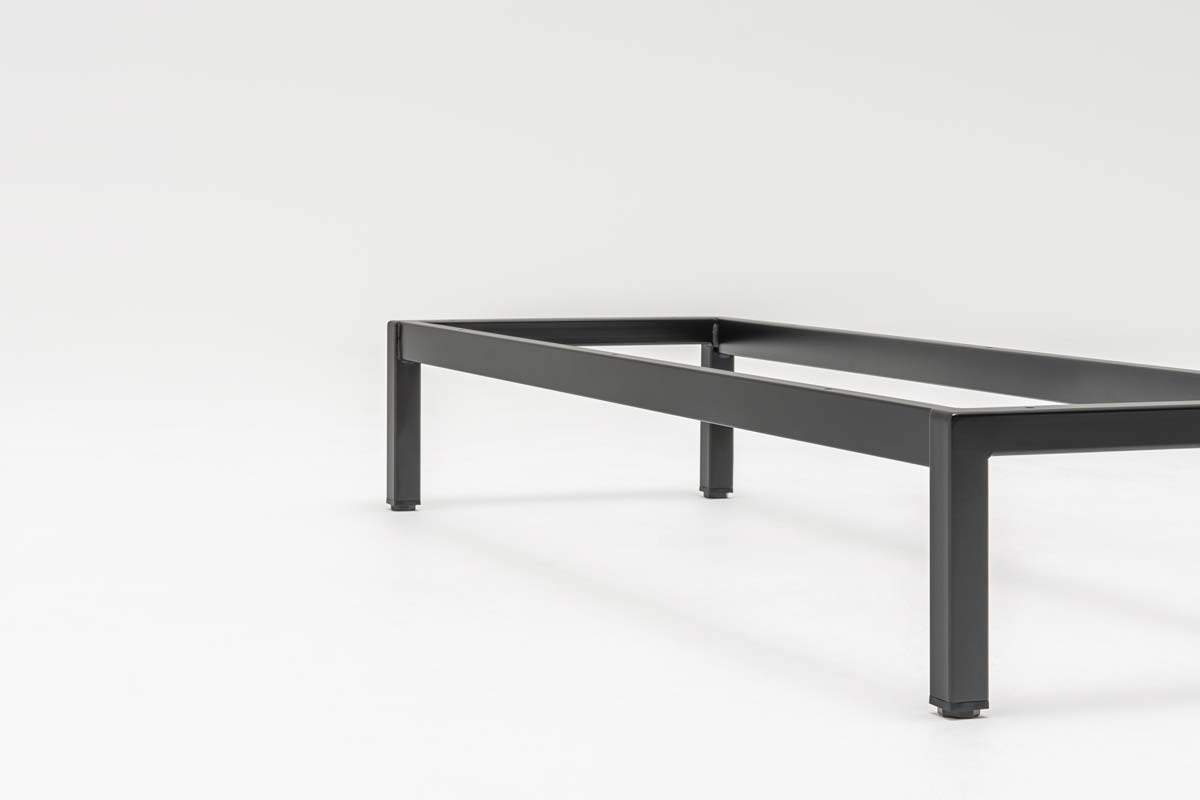

Base - MFC 18 mm, ABS edge 2 mm; leveling feet 27 mm - range 5 mm; metal base (option with extra charge) - colour: M009 - aluminium semi-matt;
Edges can be attached using laser technology or PUR glue - please contact Customer Service if tender or project guidelines require laser edging
Made in Poland, EU

Product features

Compliance with PN-EN 14073-2:2006 standard guarantees the safety of use;
The ability to choose the dimensions and configuration of shelves or drawers makes it easy to adapt the cabinet to an existing or designed arrangement and to the needs of users;

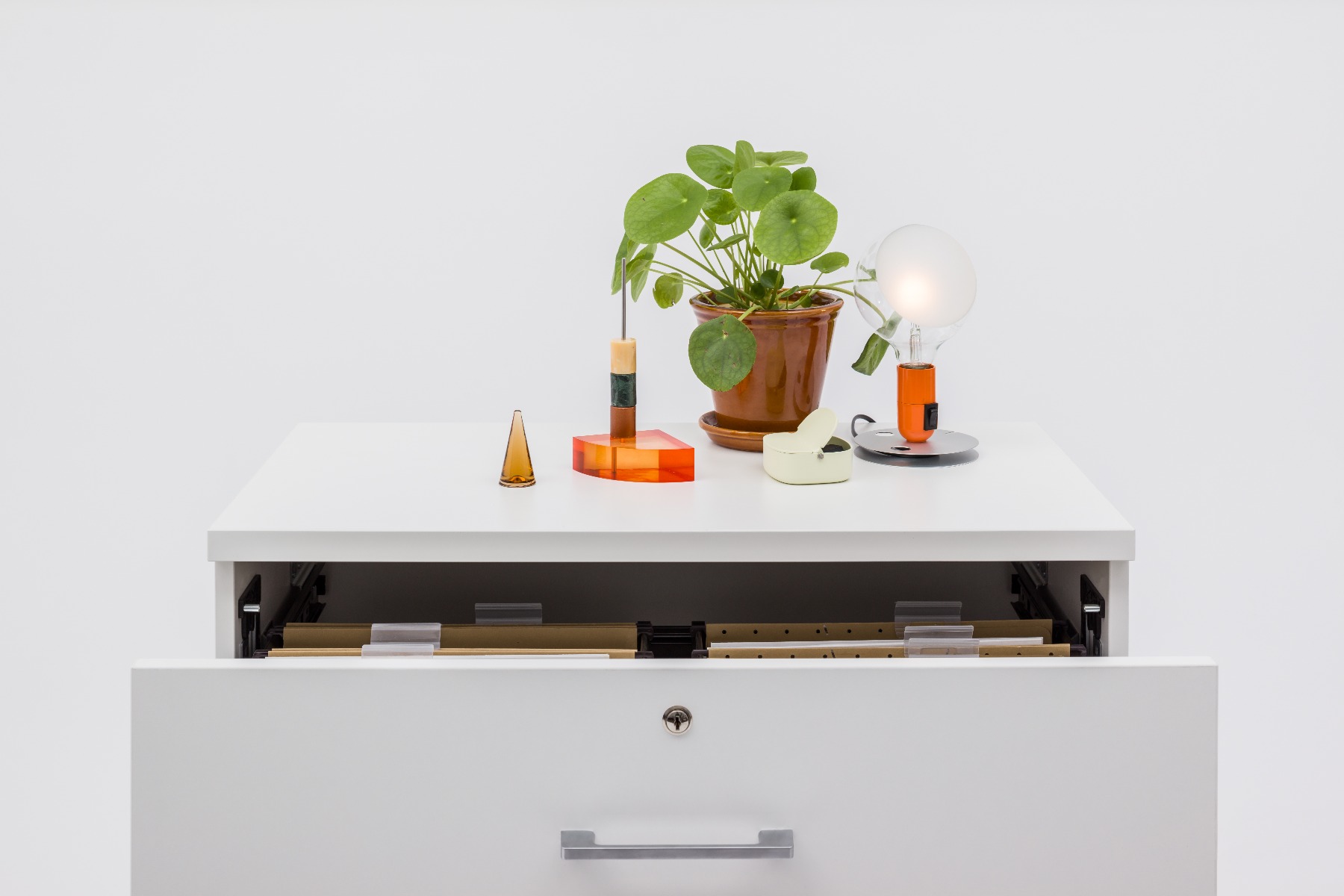

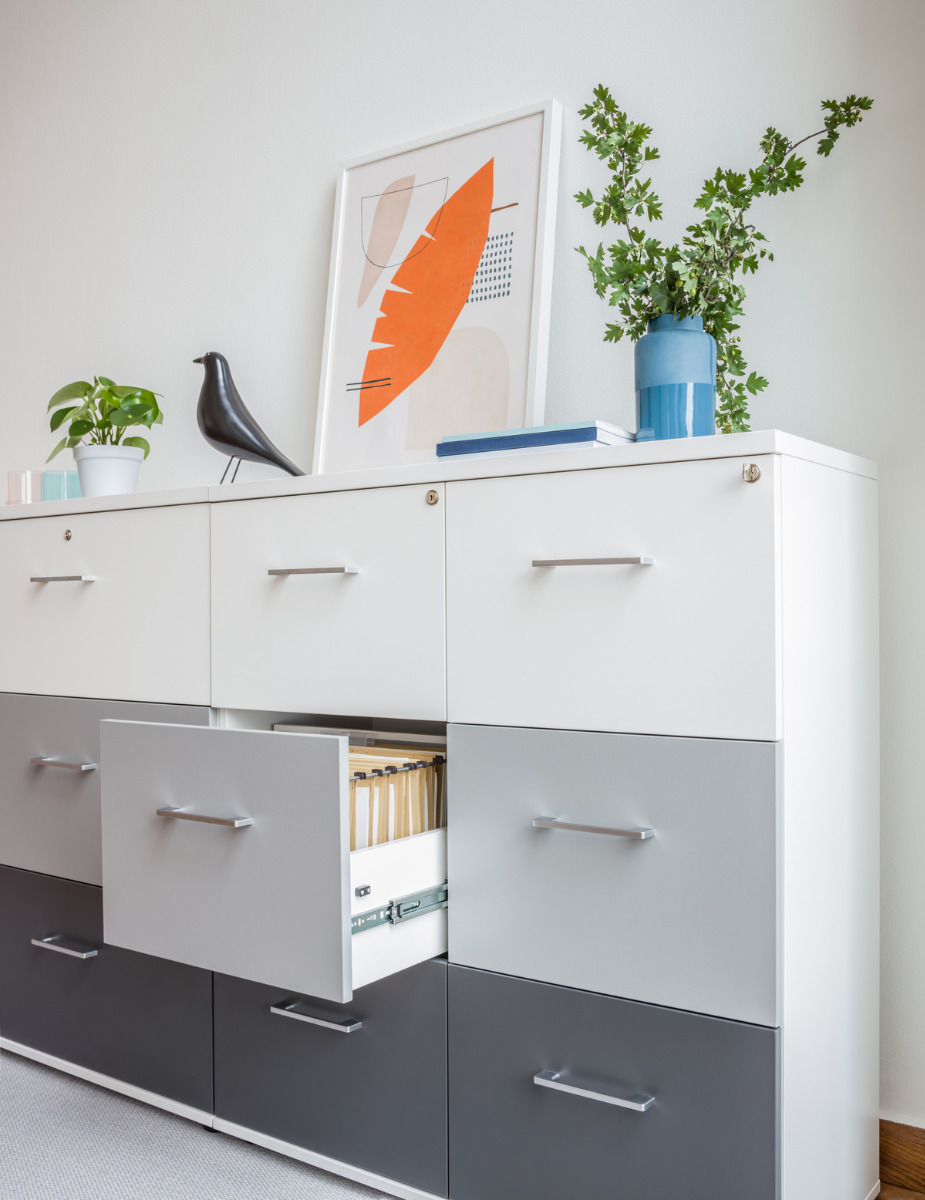

Suspension files drawers and metal shelves are suitable for storing documents and A4 size files;
Security of stored documents is ensured by a central, patent or espagnolette lock;
Optional metal base makes it easier to use of the lowest shelves;
Designed for office spaces, archives, accounting offices and educational facilities
