Ogi Y

Product details

• Base type
• •

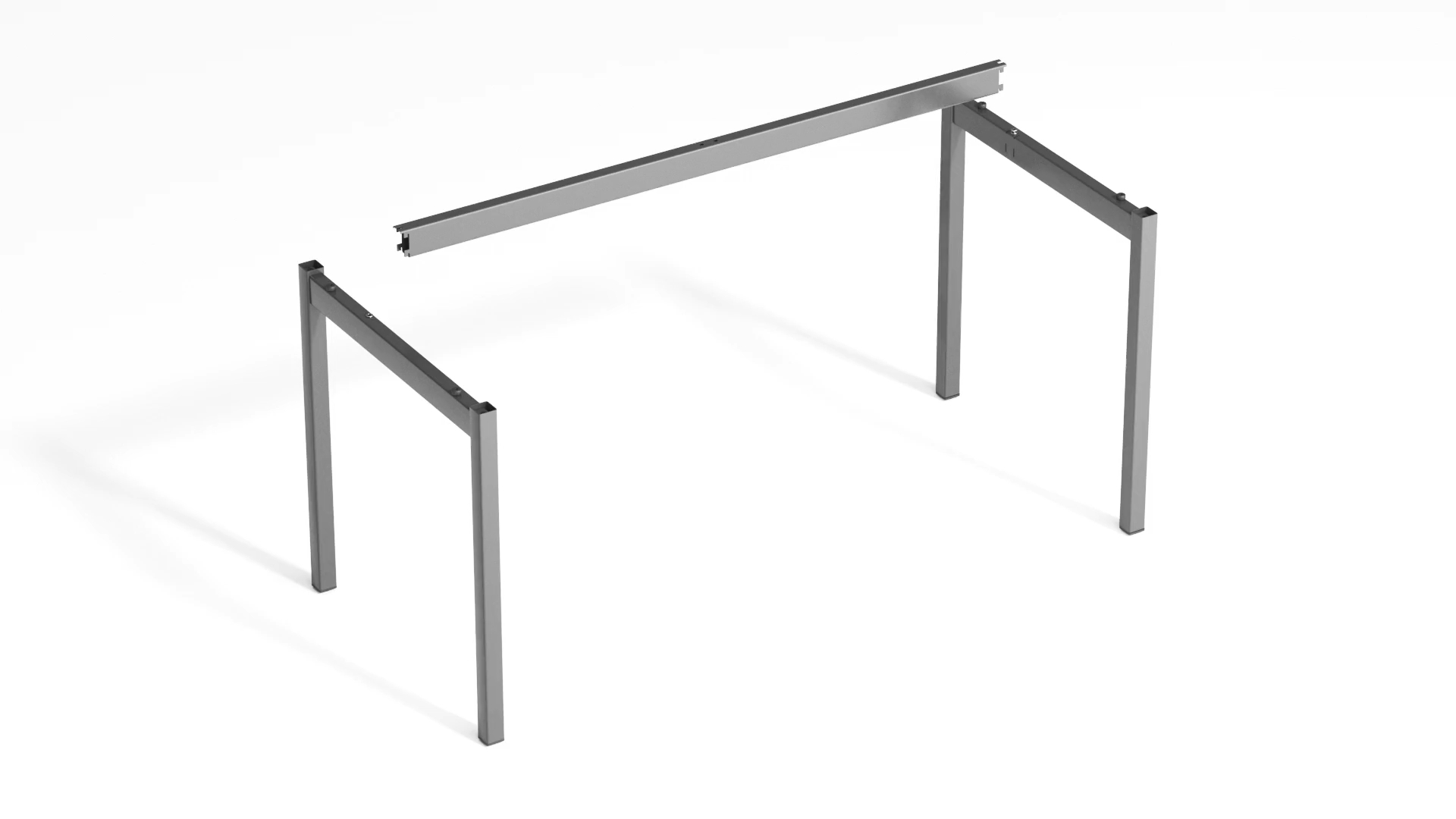

    OGI Y - metal profile 40x40 mm
  •
    OGI U - metal profile 30x60 mm
  •
    OGI W - wooden leg on 40x40 mm metal profile
  •
    OGI V - MFC leg 18 mm
  •
    OGI A - metal profile 30x60 mm with no frame / screwed to worktop
  •
    OGI B – wooden profile 40×56 mm
  •
    OGI N – T-shaped leg with modesty panel
  •
    OGI Q – metal frame on 60x20 mm profile
  •
    OGI T – T-shaped leg on 60x60 mm metal profile
  •
    OGI M - metal profile 40x40 mm
• Product features
• • Compliant with standards: PN-EN 527-2:2017-02;
  • Capacious managerial cabinet with drawers or with a sliding front;
  • Practical accessories: media boxes, grommets, cable trays, panels, modesty panels and computer shelves;
  • Produced entirely in .mdd factory in Poland and tested on all stages of the production process;
  • Designed for office, educational and workshop spaces
• Technical Data
• • Worktop - MFC 28 mm, ABS edge 2 mm;
  • Frame - powder coated steel, profile 40x40 mm, spacer 10 mm between top and frame;
  • Managerial cabinet A14M: top - MFC 28 mm, ABS edge 2 mm; shelf - MFC 18 mm, protection against accidental falling-out, ABS edge 2 mm; drawer - MFC 18 mm, ABS edge 2 mm, patent lock - possible to change location; base - MFC 18 mm, ABS edge 2 mm; front - MFC 18 mm, ABS edge 2 mm;
  • Managerial cabinet A12M: top - MFC 28 mm, ABS edge 2 mm; cable grommets - Ø80 mm; base - MFC 18 mm, ABS edge 2 mm; front - MFC 18 mm, ABS edge 2 mm; central lock - foldable key; patent lock; metal drawer - roll runners, max load 25 kg, 80% extension, anti-tilt mechanism; suspension files drawer - with bottom, ball runners, max load 45 kg, 100% extension, Push-to-Open; drawer with bottom - ball runners, max load 40 kg, 100% extensionn, push-to-open, enough space for computer;
  • Levelling feet - range 5 mm;
  • Options with extra charge: grommet - 2 pcs, Ø 88 mm; mediabox M14H - plastic frame, 2 x RJ45 (class E, cat. 6); + 1 x USB + 1 x HDMI + 4 x 230V, dimensions: 305x155x150 mm, power cord: 2000 mm; mediabox M14 - plastic frame, 2 x RJ45 (class E, cat. 6); + 1 x USB + 4 x 230V, dimensions: 305x155x150 mm, power cord: 2000 mm; mediabox M071 - 1 x 230V + 1 x USB A charger + 1 x USB C charger, colours: black or white, mounted instead of the existing grommet Ø88 mm (PK80); top access M15 - plastic frame, dimensions: 292x112x18 mm; mediabox M04 - aluminium frame, 4 x 230V, 2 x RJ45, 1 x USB, power cord 2 m; mediabox M04H - aluminium frame, 4 x 230V, 2 x RJ45, 1 x USB, 1 x HDMI, power cord 2 m; top access M05 - aluminium frame;
  • Options with extra charge: horizontal cable tray S69 - powder-coated, single desk horizontal cable tray (SG12, SG16) - powder-coated metal, horizontal cable tray E64 – powder-coated;
  • Edges can be attached using laser technology or PUR glue - please contact Customer Service if tender or project guidelines require laser edging
• Downloads

• Photos

  Lookbook

  Catalogue

• Finishes
• Assembly
• Sustainability
• Material composition & packaging

  • MFC: 60%
  • Steel: 35%
  • Plastic: 1%
  • Cardboard: 4%

  *average values for a representative of the group.

  Carbon footprint

  33,55 kg

  Recycled content

  36%

  Recyclability

  • Recycling: 42%
  • Downcycling: 58%

  *average values for a representative of the group.

  Certificates

  • Environmental Product Declaration Type III
  • FSC/PEFC







  • Testing of formaldehyde emission by the chamber method according to EN 717- 1:2006 standard.
  • Test of volatile organic compounds (VOC) emission by the chamber method according to PN-EN ISO 16000-9.
  • PN-EN 15371:2016-12. Furniture. Strength, durability and safety. Requirements for non-domestic tables.

  Sustainable production

  • VOC Testing – we make sure that our furniture is safe for both the environment and the users. Ogi desks are tested for the presence of Volatile Organic Compounds using the chamber method in accordance with PN-EN ISO 16000-9.
  • Formaldehyde Testing – to meet the highest standards, we are constantly improving our production methods and the raw materials used. The levels of formaldehyde emission in our desks are now significantly below the requirements in accordance with the PN-EN 717-1:2006.
  • Safety, strength and durability – we believe in creating durable and timeless furniture. All desks in the Ogi family comply with the PN-EN 527-2+A1:2019-08.
  • Sustainable production – we are not indifferent to the environmental impact of our furniture, therefore we provide the essential information on the life cycle of Ogi desks through the Environmental Product Declaration (EPD).
  • Sustainable production – we are not indifferent to the environmental impact of our furniture, therefore we provide the essential information on the life cycle of our products through the Environmental Product Declarations (EPD).


  See more

  Packaging

  Materials: cardboard

  Recyclability: 100%

•
