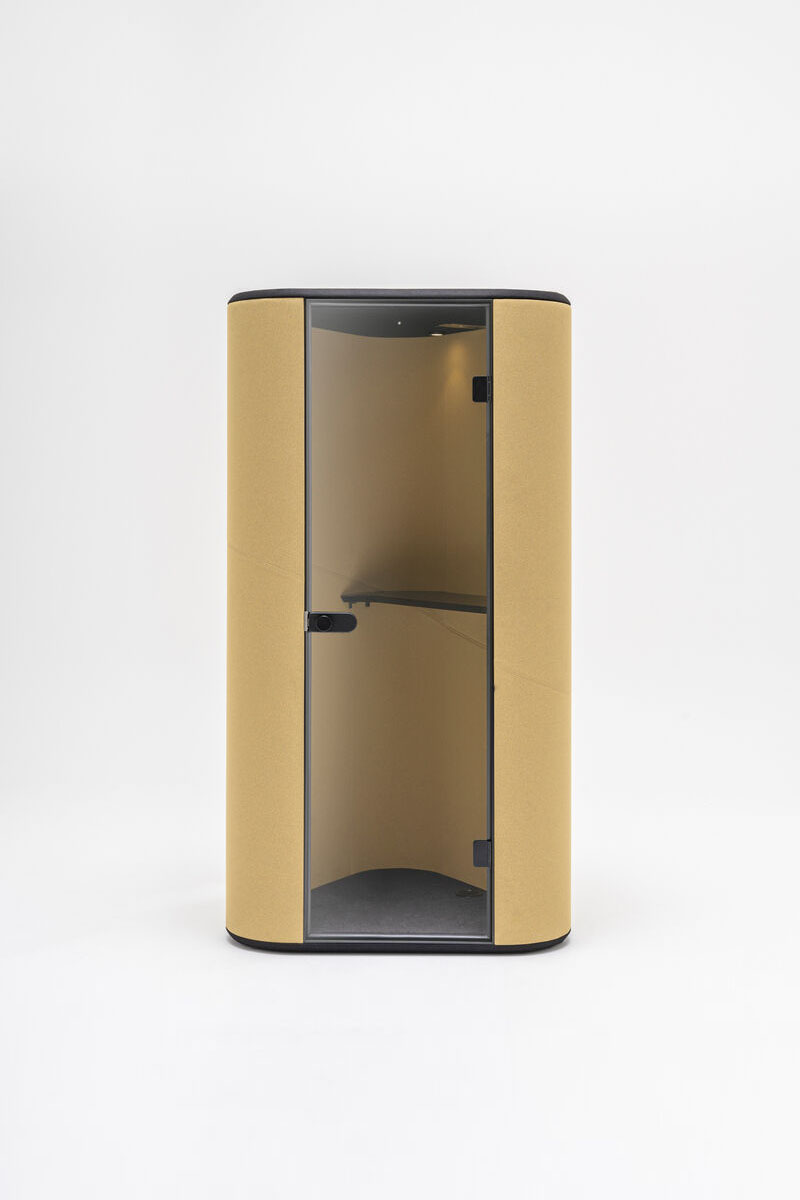

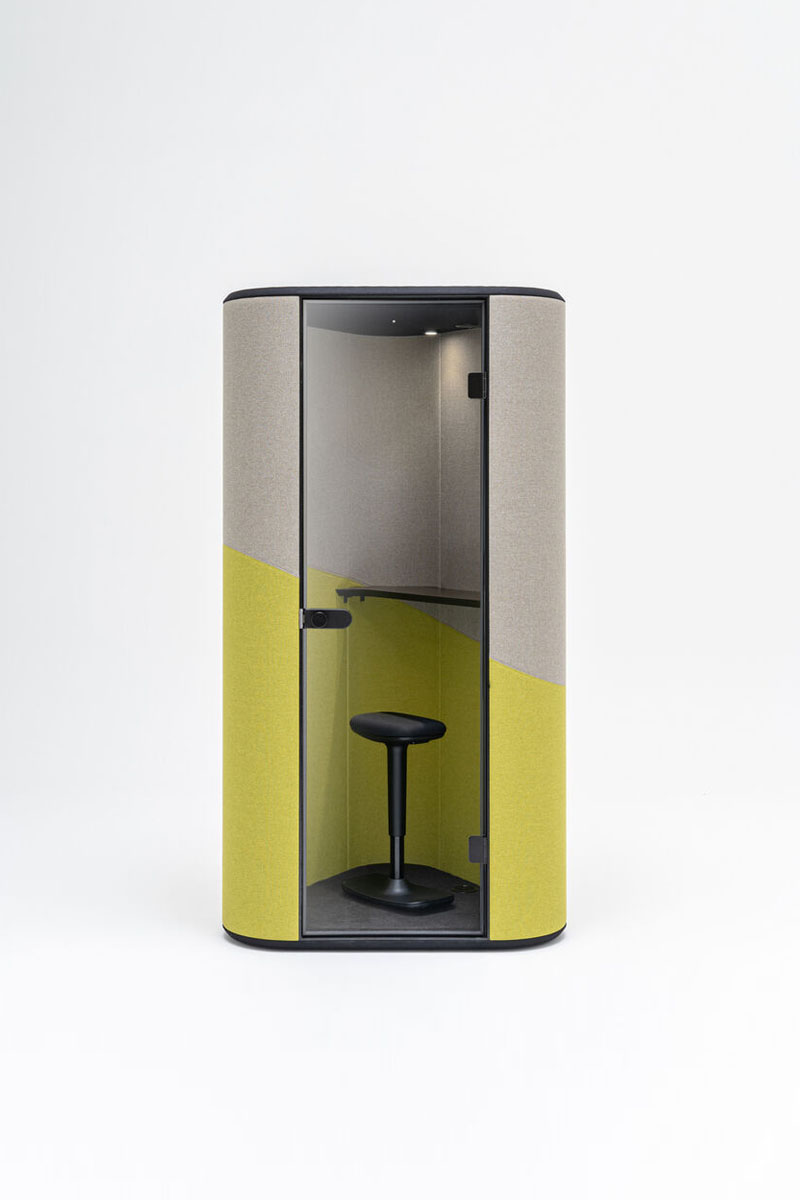

Hana

Product details

• Product features
• • Walls made with the same technology as the A-class Sonic acoustic screens;
  • Sound-absorbing upholstery materials inside and outside;
  • Automatic two-point lightning system;
  • Automatic ventilation with adjustable speed;
  • Mediabox: 2x230V + 1xUSB + 1xUSB C;
  • Compact size;
  • Ideal for telephone calls;

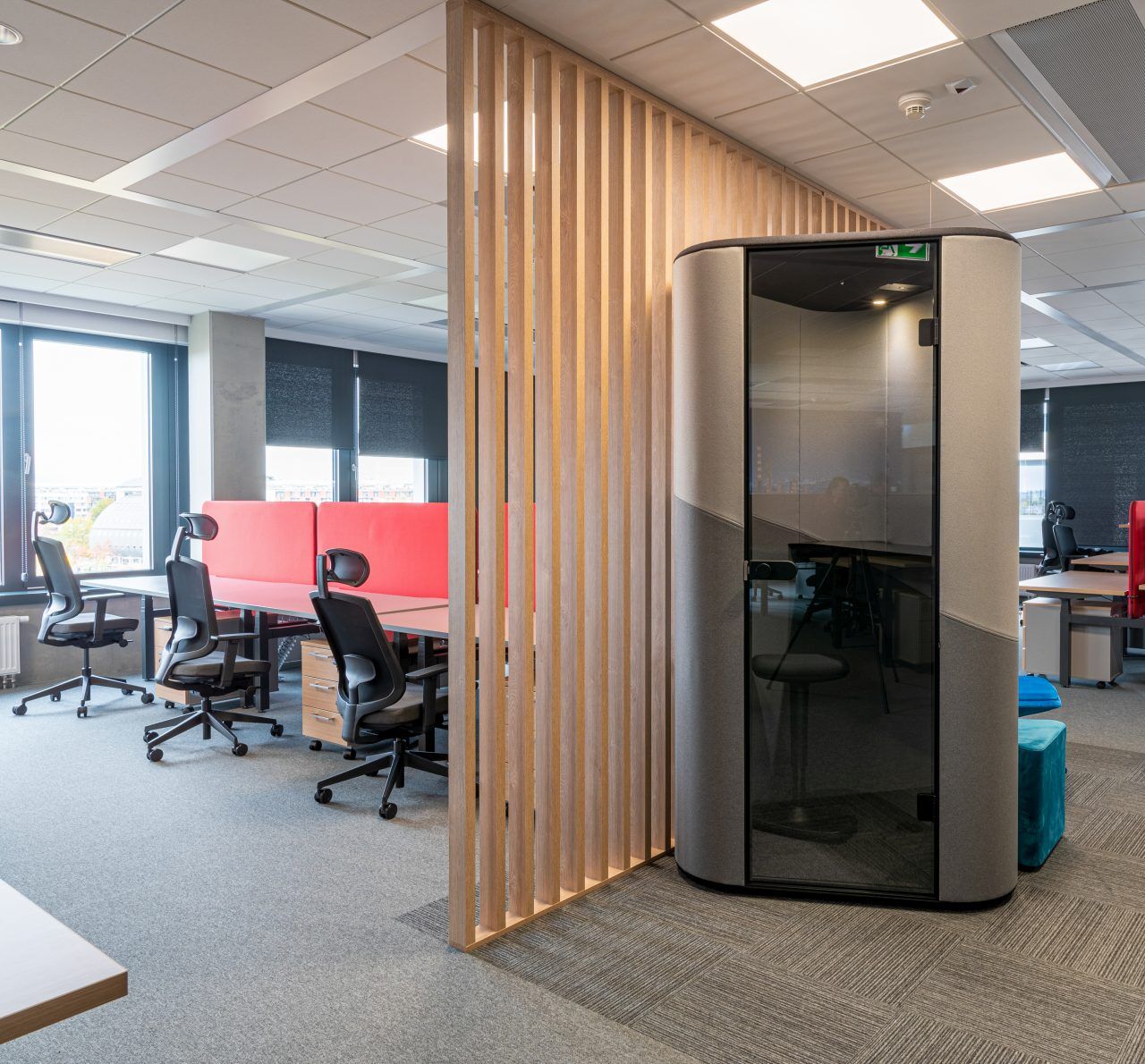

  • Designed for open spaces in offices and public places
• FAQ

• Does the Hana booth have a certificate of acoustics?

  Yes, Hana is made in the certified Sonic technology, which is also used for our acoustic screens.




  What are the acoustic properties of the Hana booth?

  The filling of Hana’s walls have the highest acoustic class – A.




  What elements does the Hana booth consist of?

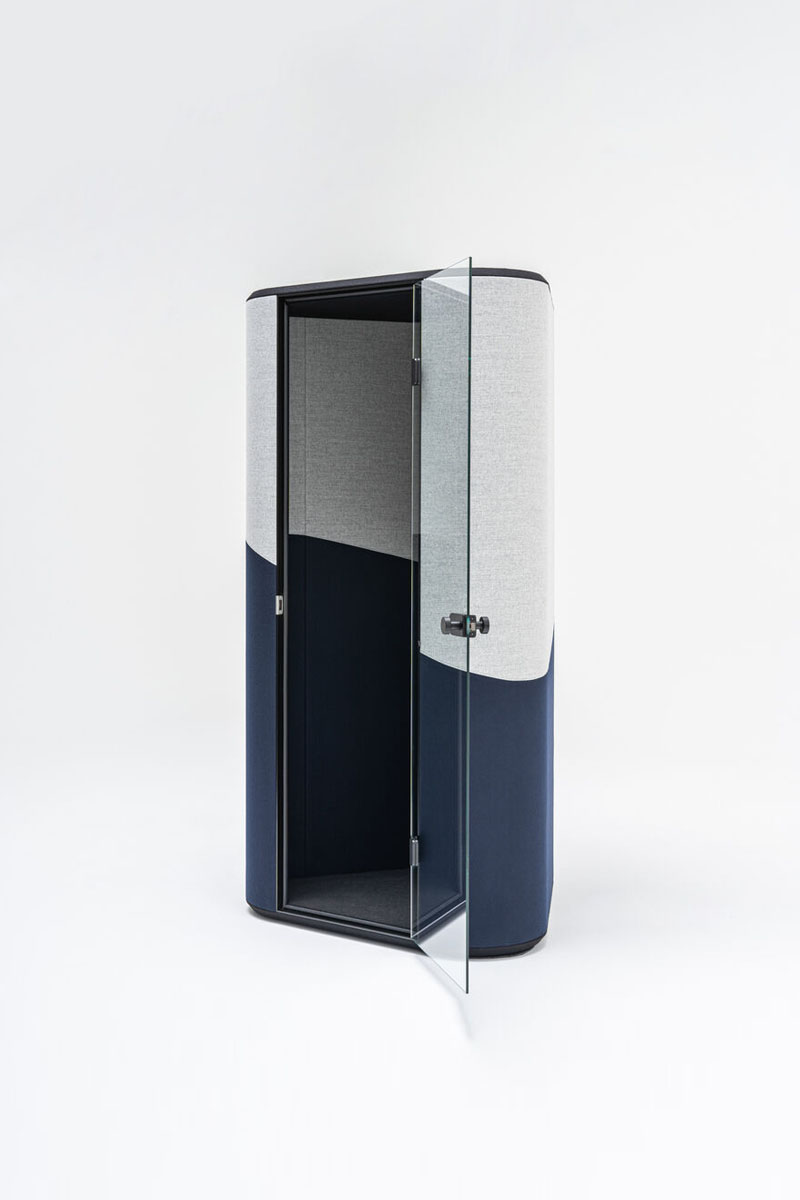

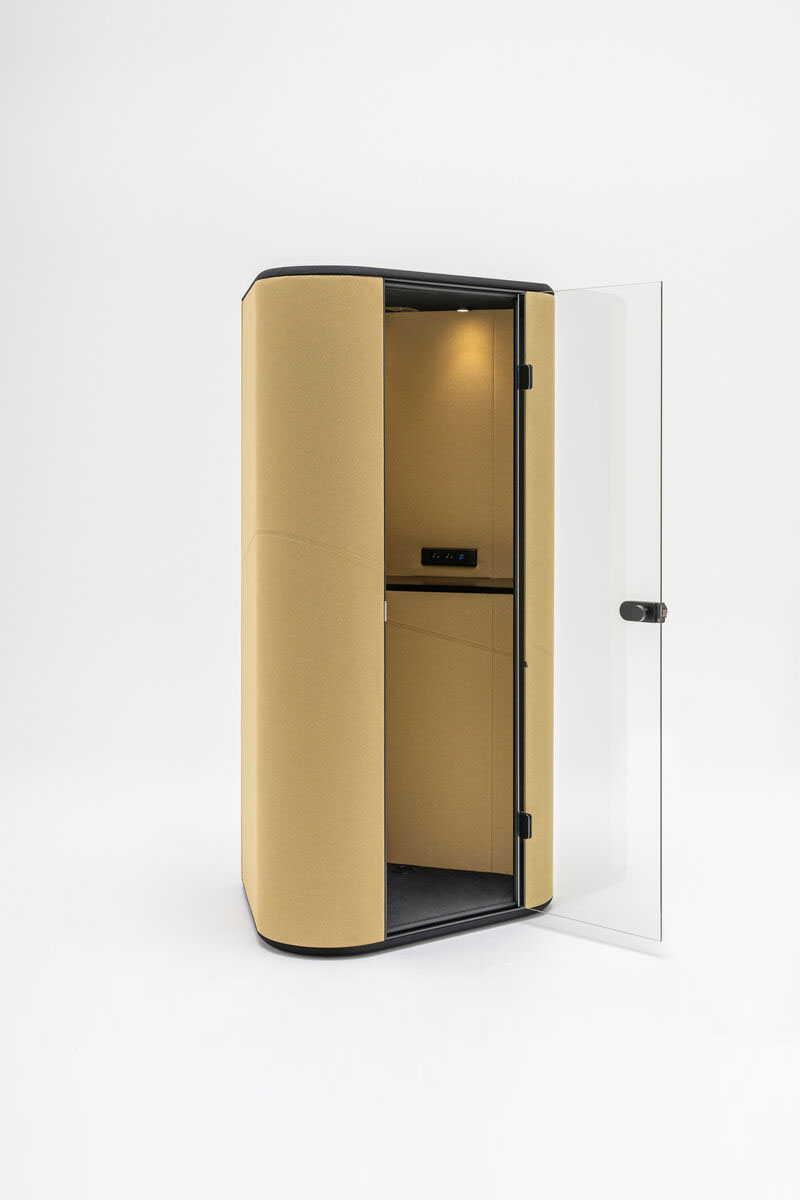

  The Hana booth consists of two top parts (internal and external), two bottom parts (internal and external), upholstered sides, a small worktop and a glass door.




  What materials are used for the structure of the booth?

  The frame is made of MDF, chipboard and HDF. The whole construction is filled with acoustic filling. Top and bottom parts are made of varnished MDF.




  Does the booth have a floor?

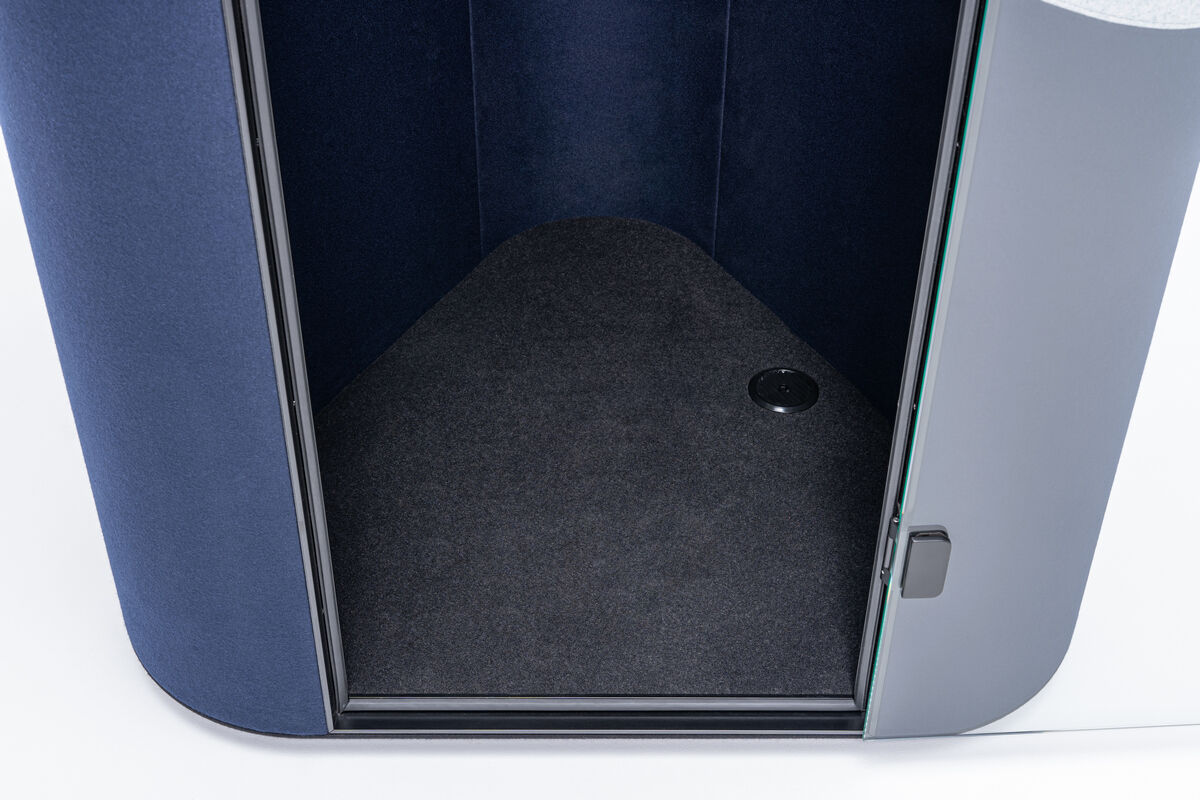

  Yes, the Hana booth has a covered floor.




  Where is the light switch located?

  The light is activated by a motion sensor, that switches on the light and ventilation.




  How many people are required to assemble the booth?

  Two people are needed to assemble the booth.




  How long does it take to assemble the booth?

  The assembly takes approximately 2 hours.




  What is needed to assemble the booth?

  A ladder will be needed to assemble the booth.




  Does the room, where the booth will be assembled, have to be significantly higher?

  The recommended height of the room is at least 3 m.




  Does the booth have to be mounted to the floor?

  No, the Hana booth is not fixed to the floor.




  Is the Hana’s door universal and can it be installed as left- or right-handed?

  No, the door can only be installed on the right-hand side.




  Is an electrician required to connect the booth to electricity?

  No, it is enough to simply plug the booth into a standard socket.




  Where in the booth is the electrical connection located?

  No, it is enough to plug the pod to the standard socket.




  Where is the electrical connection located?

  The electrical connection is located in the ceiling, the power cord comes out from the bottom part.




  Is the booth adapted to the 110V voltage in the USA?

  Yes, the booth automatically adapts to the voltage.




  Can an already assembled booth be taken apart and reassembled elsewhere?

  Yes, it is possible to take the booth apart and assemble it repeatedly.




  Can the assembled Hana booth be moved?

  Yes, but for safety reasons it is recommended that this is done by at least 4 people.




  Are the Hana booths shipped in one piece?

  No, the booths are not transported in one piece, but rather in parts that can be easily moved.




  How are the Hana booths packed?

  The Hana booths are packaged in wooden crates divided into two sections – the top and bottom parts are packed in one of them, and walls in the other. All the elements are carefully secured and fixed so that they do not move while transported.




  What are the dimensions and weight of the crate?

  Dimensions: 2185 x 1415 x 800 mm, weight: 315 kg.

• Technical Data

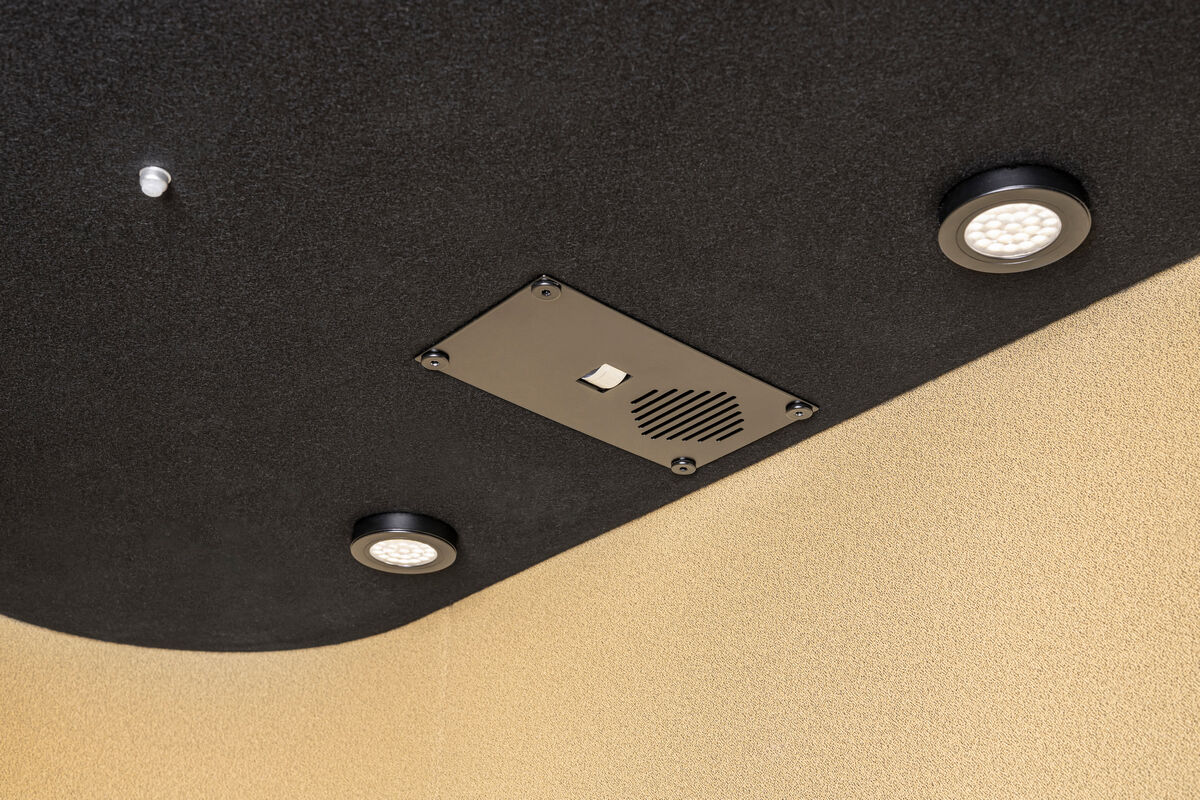

• • Top panel: outside - MDF 28 mm, upholstered, clour: LDS27 - black; inside - chipboard 12 mm upholstered, colour: LDS27 - black, two-point lighting; exhaust fan activated by a motion detector (adjustable ventilation speed); ventilation grate in the floor;
  • Body - 58 mm, upholstered walls with acoustic filling;
  • Shelf - MDF board 28 mm, lacquered, measurements: 1070 x 388 x 28 x 28 mm, colour: black;

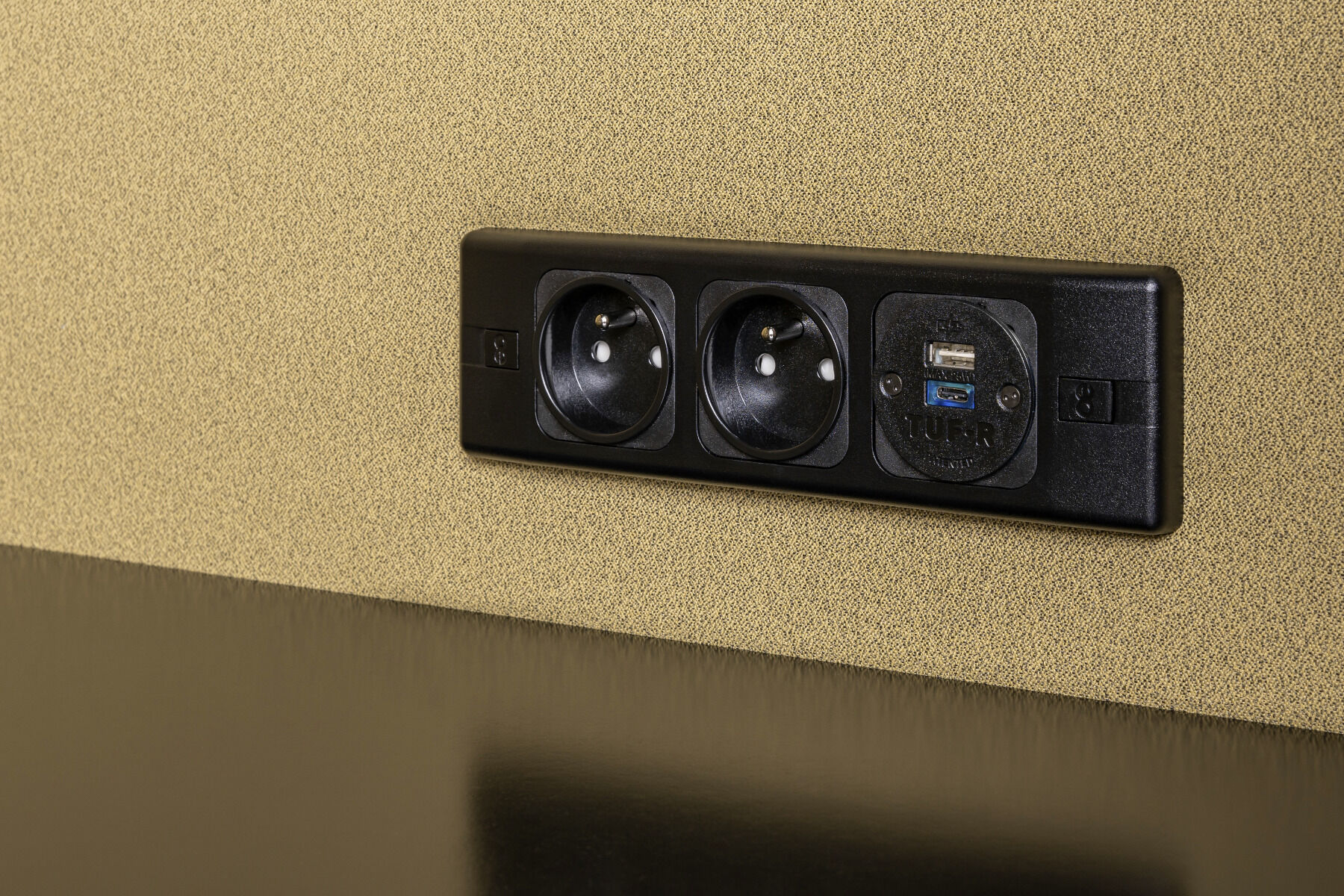

  • Mediabox - 2x230V + 1xUSB + 1xUSB type C;

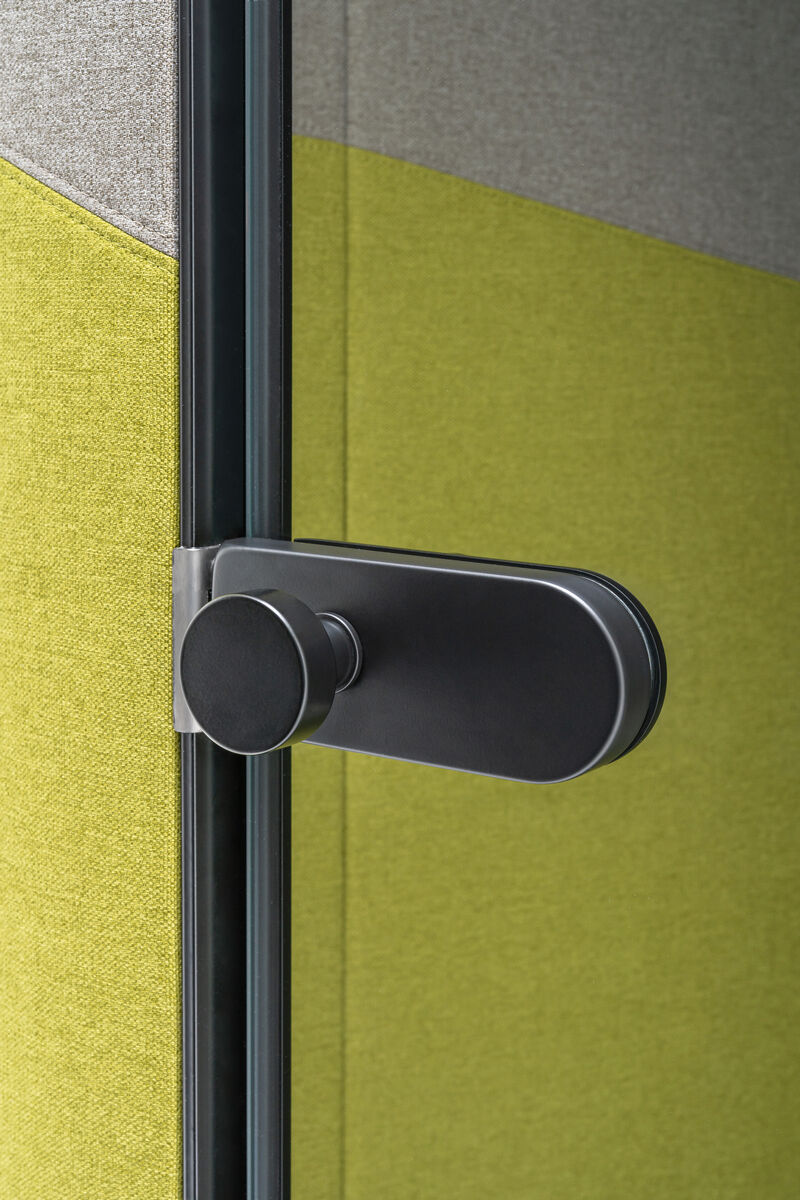

  • Rotary knob - powder coated steel, colour: black;

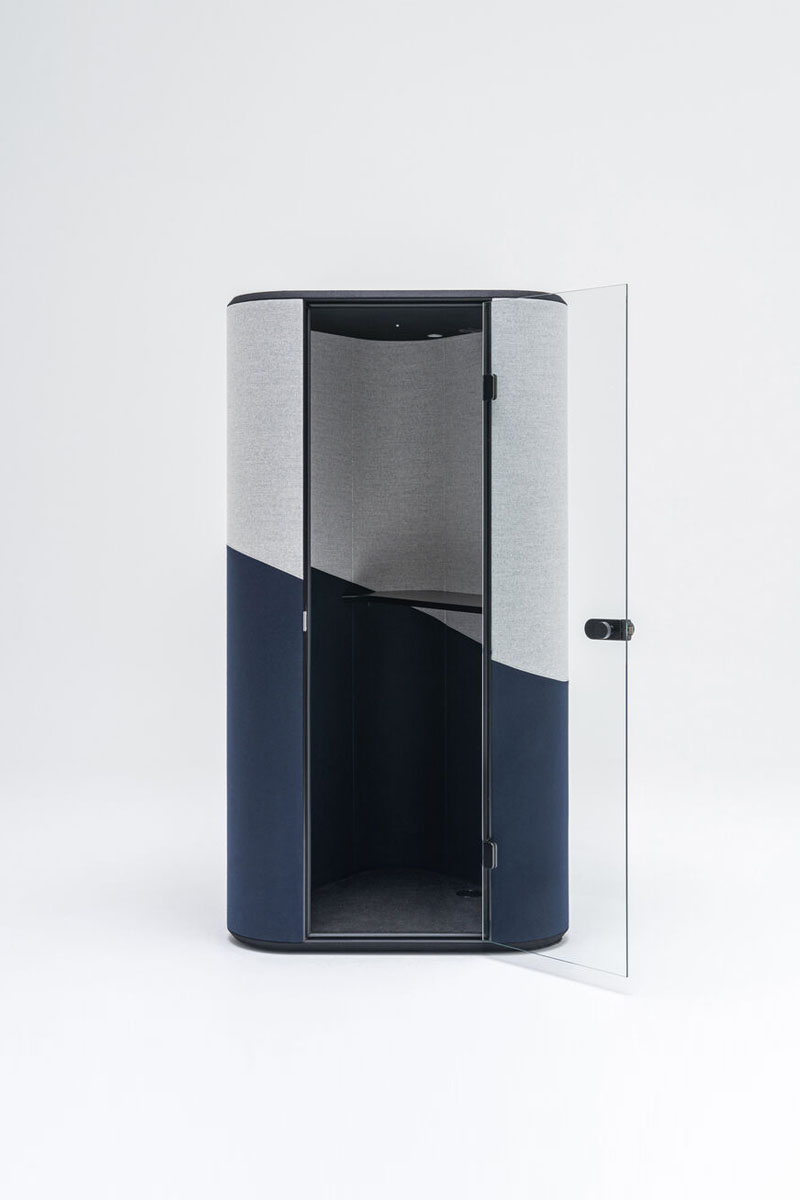

  • Door - toughened glass 8 mm, clear;
  • Bottom rim: outside - MDF 28 mm, upholstered, clour: LDS27 - black; inside - chipboard 18 mm, carpet, colour: graphite;
  • Electric hook-up. Electric systems available: EU, USA, Schuki, UK, Ch;
  • Additional information: Sonic technology structure with A-class acoustics certificate; automatic light switch simultaneously activating the ventilation system; 2 fans: 1 intake and 1 exhaust; volume 14dB, efficiency 90m3/h;
  • Acoustic booth with faster production time HN01Q - control panel with manual (knobs) adjustment of lighting and ventilation;
  • Dimensions: 1132 x 1184 mm, h. 2199
• Downloads

• Lookbook

  Photos

• Finishes
• Assembly manuals

• Assembly manuals

• Sustainability
• Material composition & packaging

  • MFC: 76%
  • Wood: 5%
  • Steel: 5%
  • Glass: 8%
  • Plastic: 3%
  • Fabric: 2%
  • Polyurethane foam: 2%

  *average values for a representative of the group.

  Carbon footprint

  155,2 kg

  Recycled content

  9%

  Recyclability

  • Recycling: 12%
  • Downcycling: 88%

  *average values for a representative of the group.

  Certificates

  • Environmental Product Declaration Type III
  • FSC/PEFC







  • PN-EN 12150-1+A1:2019-06 Glass in building. Thermally toughened soda-lime-silicate safety glass.

  Sustainable production

  • Sustainable production – we are not indifferent to the environmental impact of our furniture, therefore we provide the essential information on the life cycle of our products through the Environmental Product Declarations (EPD).

  Packaging

  Materials: cardboard + foil + wooden crate

  Recyclability: 100%
