acoustic booth Hako Meeting XL

Acoustic booth Hako Meeting XL

Product details

• Dimensions
• •
  •
  •
  •
  •
  •
  •
  •

  All dimensions are in millimeters
• Product features
• • Sound absorption level of 25.7 dB confirmed by testing in accordance with ISO 23351-1:2020;
  • The booth is ideal for calls and focused work, as it provides privacy and silenceet;
  • Upholstered walls are made with Sonic technology, certified for Class A acoustics;
  • The Meeting XL version is designed for groups of up to 6 people;
  • Possibilty to equip the booth with a table and chairs provides a comfortable place for meetings or work;
  • Ability to choose the size and layout of the booth interior makes it easy to adjust it to the needs of users;
  • Integrated exhaust fan and ceiling light are switched on via a wireless switch; In the single-person section of the HK05 booth, the lighting and ventilation are automatically switched on and operate for up to 5 minutes after leaving the booth;
  • Silent fans are adjustable in intensity;
  • Available without a floor as standard (making it more accessible to wheelchair users), it can be fitted with a carpeted MFC board floor to shield the floor of the room;
  • Optional shelf and mediabox allow for working on a laptop or tablet;
  • Available electrical systems: EU, US, Schuko, UK, CH allow the booth to be adjusted to the user's needs and the space;
  • Metal construction ensures the stability of the booth;
  • Designed for open spaces in offices and public places
• FAQ

• What are the acoustic properties of the Hako booth?

  The booth reduces the volume of the speech by 25.7 dB.




  Does the Hako booth have a certificate of acoustics?

  Yes, Hako has a certificate of acoustics, compliant with the ISO 23351-1:2020 standard.




  What elements does the Hako booth consist of?

  The booth is made of pre-assembled walls, connecting profiles and doors.




  What elements does the wall of the Hako booth consist of?

  The booth’s construction is based on a steel frame. Both glass and upholstered walls are fitted into it. The upholstered walls are filled with insulating material.




  What are the features of the booth’s ventilation system?

  The air extraction fans are located in the ceiling (integrated with the lamp). The supply fans are located in the walls.




  What material is used for the metal structure?

  The structure is made of powder-coated aluminium.




  Is it possible to choose non-standard colours for the metal structure of the booth?

  As standard, the structure of the Hako booth can have one of the three colours: anthracite, light grey or red. With an additional charge, it is possible to choose any other colour for the metal profiles.




  Does the booth have to have a floor?

  In the standard version, the Hako booth does not have a floor. It is possible to select a floor as an option with an additional charge – recommended if the floor in the planned location of the booth is hard.




  Where inside the booth is the light switch located?

  In the one-person booth, the light is activated by a motion sensor, that switches on the light and ventilation. In the multi-person booths, the light switch is located near the entrance.




  How many people are required to assemble the booth?

  Two people are needed to assemble the booth.




  How long does it take to assemble the booth?

  The assembly takes approximately 2 hours.




  What is needed to assemble the booth?

  A ladder will be needed to assemble the booth.




  Does the room, where the booth will be assembled, have to be significantly higher?

  No, the walls of the booth are mounted from the sides, there is no need to slide them from above.




  What to prepare for the assembly of the booth?

  A ladder will be needed to assembly the booth.




  Does the room, where the pod is going to be assemble, have to be significantly higher?

  No, the walls are mounted from the side, there is no need to slide them from the top.




  Does the booth have to be mounted to the floor?

  No. This way the booth does not damage the floor in the room.




  Is an electrician required to connect the booth to electricity?

  No, it is enough to simply plug the booth into a standard socket.




  Where in the booth is the electrical connection located?

  The electrical connection is located in the ceiling. The booth can be connected by pulling the cables from the floor to the ceiling, or by pulling the cable from the floor or the walls, using a zipped grommet located in the bottom part of each upholstered wall. The grommet allows the cables to be pulled through the wall and to access the opening C-shaped cut-out.




  Is the booth adapted to the 110V voltage in the USA?

  Yes, the booth automatically adapts to the voltage.




  Can an already assembled booth be taken apart and reassembled elsewhere?

  Yes, it is possible to take the booth apart and assemble it repeatedly.




  How are the Hako booths packed?

  The Hako booths are packaged in secure crates and their individual elements are fixed on wooden hangers. All panels are carefully secured with foil.




  Are the Hako booths shipped in one piece?

  No, the booths are not transported in one piece, but rather in parts that can be easily moved.




  What are the dimensions and weight of the crate?

  Dimensions: 2250 x 1479 x 870 mm, weight: Hako – 1 package – 360 kg, Hako Meeting – 1 package – 503 kg, Hako Meeting XL – 2 package – 855 kg. Depending on the configuration, Hako booths are shipped in 1 (HK01, HK02, HK04), w 2 (HK03, HK05) or 3 (HK06, HK07) crates.

• Technical Data

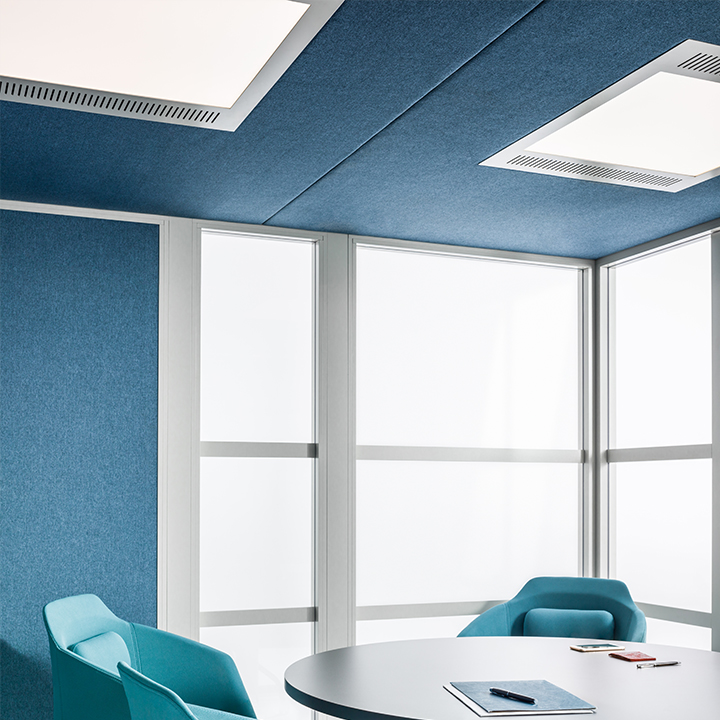

• • Ceiling - upholstered, equipped with lighting and exhaust fans;
  • Upholstered wall - full, 75 mm thick, upholstered on both sides acoustic filling with sound isolation properties;
  • Columns - 75x75 mm, powder coated;
  • Shelf (option with extra charge) - 12 mm MDF, colour: black, can be mounted only to upholstered walls with 1000 mm width;
  • Aluminium strips - 5 mm thick;
  • Glass wall - toughened glass, 6 mm thick;
  • Glass door - toughened glass, 8 mm thick, equipped with hinges, handle with a lock and gaskets system improving the acoustic properties of the booth;
  • Floor - option with additional fee - melamine plate + acoustic covering (21mm thickness), colour: graphite;
  • Fans - in-take (near the floor) - can be turned on and off, with adjustable fan speed. The exact location can be found on the shop drawings; exhaust - integrated with the ceiling lamp;
  • Mediabox - 2x230V + 1xUSB + 1xUSB C;
  • Additional information: multi-layer walls structure ensure ideal acoustic isolation; the remarkable acoustic parameters have been confirmed through a research done by an acreddited laboratory in accordance with ISO 23351-1:2020 acquiring a certificate with the DS,A result of 25,7 dB; air function (HK05) – fans work for additional 5 minutes after leaving the booth; maximum air-flow: 520 m3/h; volume 27,5 dB (A); LED SLIM panel, 60x60 cm, external power supply; 40W, 3200lm, 4000k, 220-240V AC, 120’, RA>80, PF>0.9, white, STANDARD LINE;
  • Dimensions - HK03: 2762 x 2725 mm, h. 2341 mm; HK05: 2725 x 2225 mm, h. 2341 mm; HK06: 2225 x 4913 mm, h. 2341 mm; HK07: 2725 x 3838 mm, h. 2341 mm;
  • Made in Poland, EU
• Downloads

• Photos

  Lookbook

  Catalogue

• Finishes
• Instructions

• Assembly manuals

• Sustainability
• Material composition & packaging

  • MFC: 76%
  • Wood: 5%
  • Steel: 5%
  • Glass: 8%
  • Plastic: 3%
  • Fabric: 2%
  • Polyurethane foam: 2%

  *average values for a representative of the group.

  Carbon footprint

  155,2 kg

  Recycled content

  9%

  Recyclability

  • Recycling: 12%
  • Downcycling: 88%

  *average values for a representative of the group.

  Certificates

  • Environmental Product Declaration Type III
  • FSC/PEFC







  • PN-EN 12150-1+A1:2019-06 Glass in building. Thermally toughened soda-lime-silicate safety glass.

  Sustainable production

  • Structural elements of the booths are powder-coated to reduce the emission of Volatile Organic Compounds.
  • Profiles of the Hako booths are made of aluminum and can be easily recycled.


  See more

  Packaging

  Materials: cardboard + foil + wooden crate

  Recyclability: 100%

•
•
•
•
•
•
•
•
